Gretsch G5220LH Electromatic Jet BT Single-Cut V-Stoptail Dark Cherry Metallic Specs

The G5220LH Electromatic Jet BT Single-Cut with V-Stoptail Left-Handed Laurel Fingerboard Dark Cherry Metallic is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2517120539.

Key Features

Laminated Maple Top
Mahogany Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast with Round Button Tuning Machines
Black Top Broad’Tron Bridge Pickup
Black Top Broad'Tron Neck Pickup

Product Identifiers

Model Name	G5220LH Electromatic Jet BT Single-Cut with V-Stoptail
Part Number	2517120539
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978906758

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Laminated Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	White with Black/White Purfling
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.25" (260 mm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.5" (216 mm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Die-Cast with Round Button
Pickguard	Silver Plexi with Black Gretsch & Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Gretsch V-Stoptail
Hardware Finish	Chrome

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Big Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Black Top Broad’Tron
Neck Pickup	Black Top Broad'Tron
Pickup Configuration	Broad'Tron / Broad'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume with Treble Bleed, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Left-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G6238FT Gretsch Flat Top Solid Body Hardshell (p/n 099-6474-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

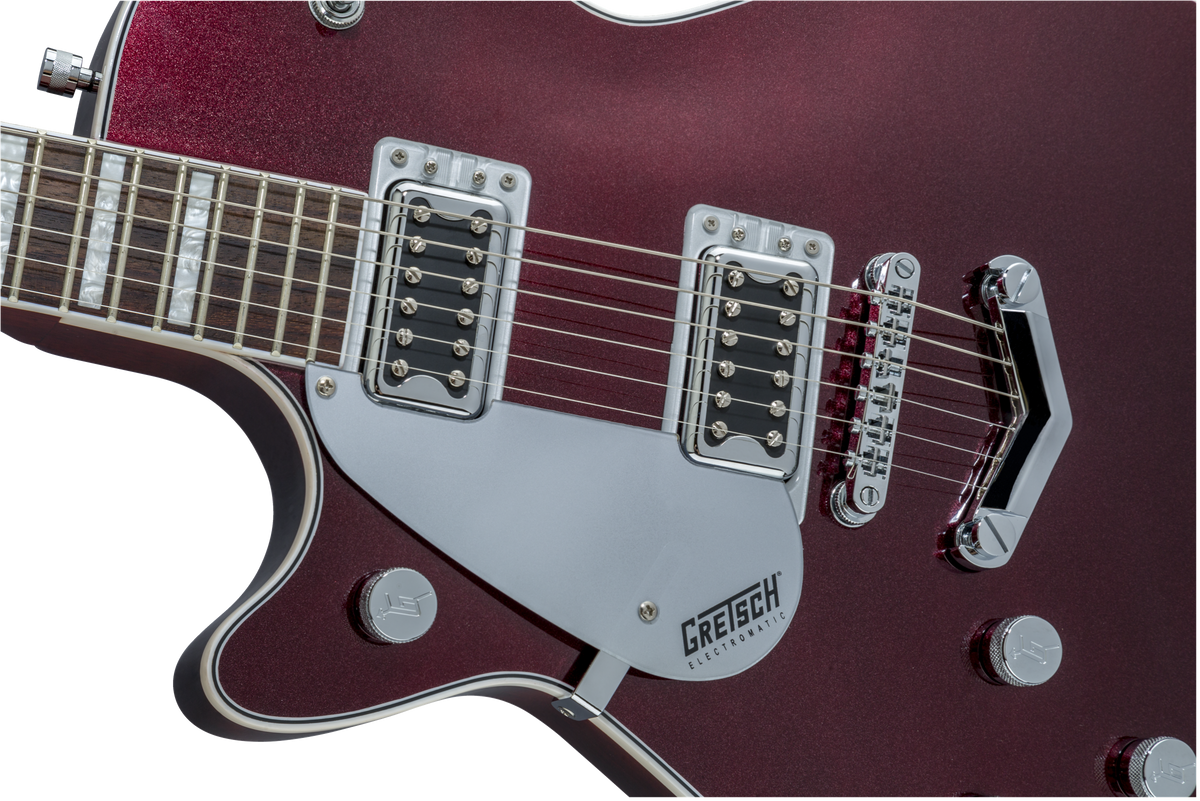

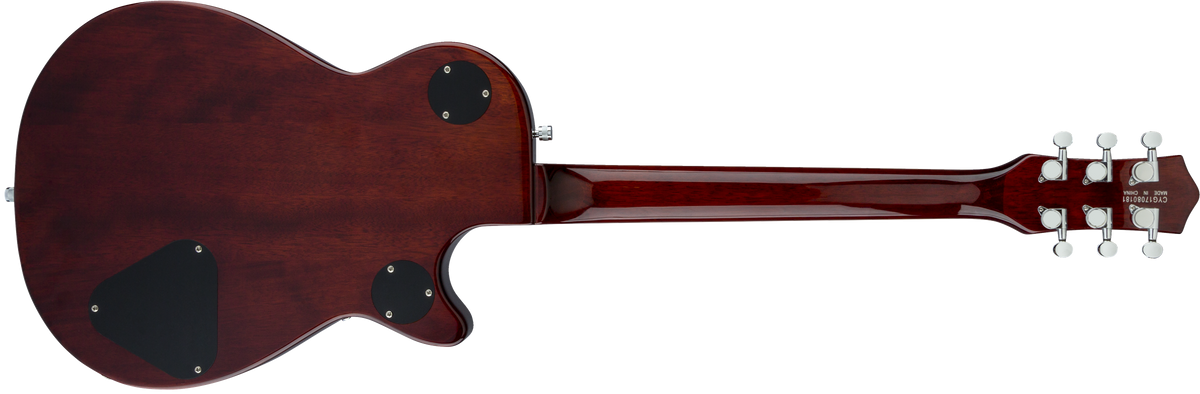

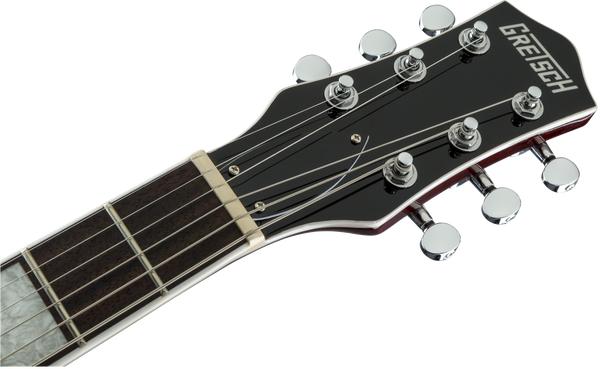

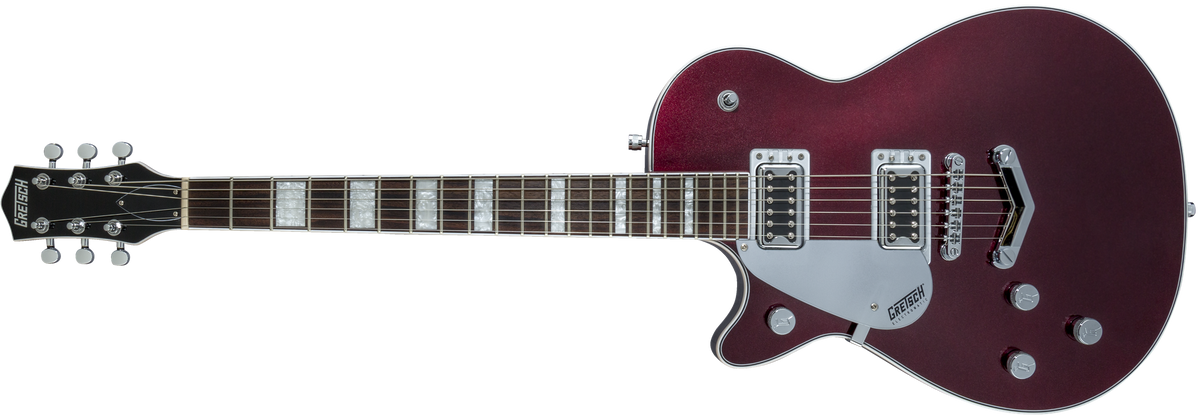

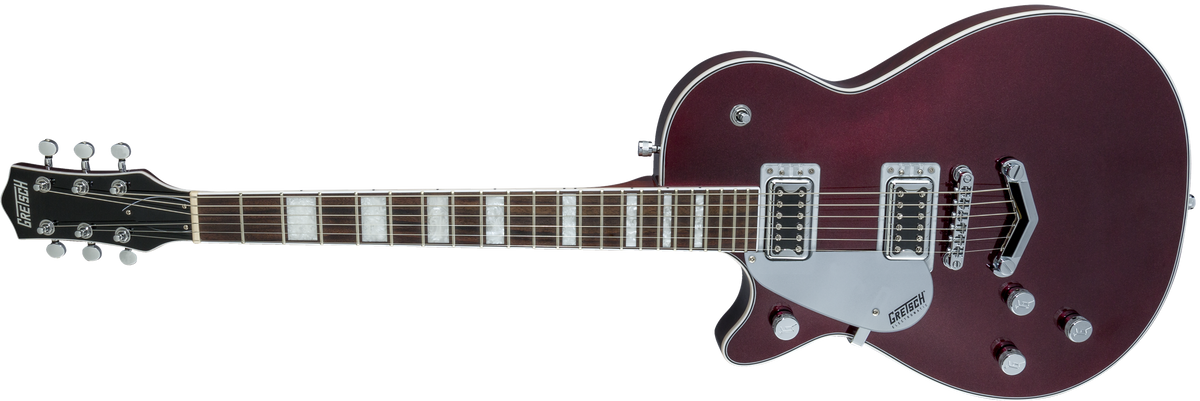

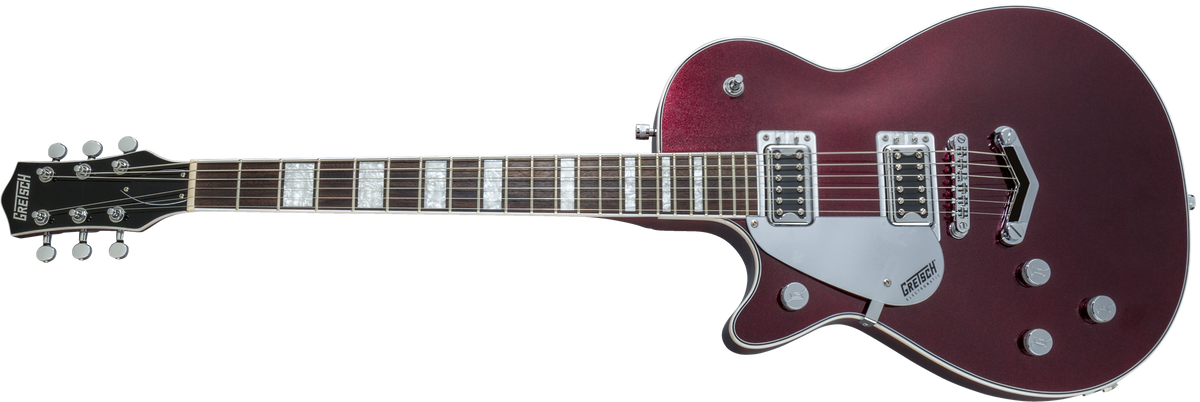

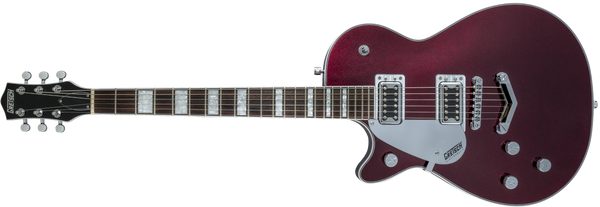

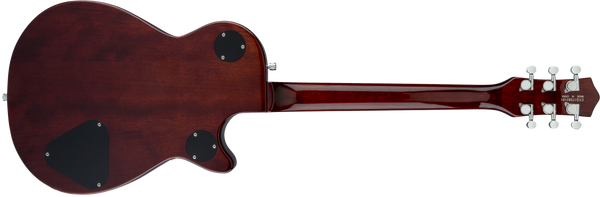

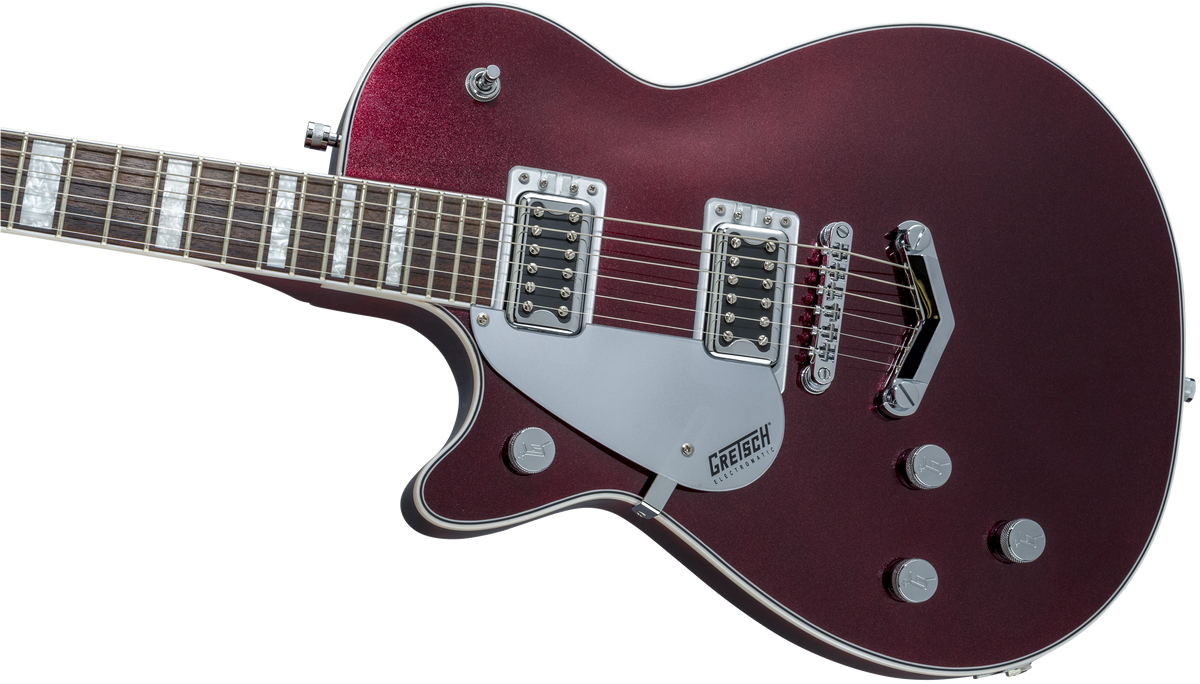

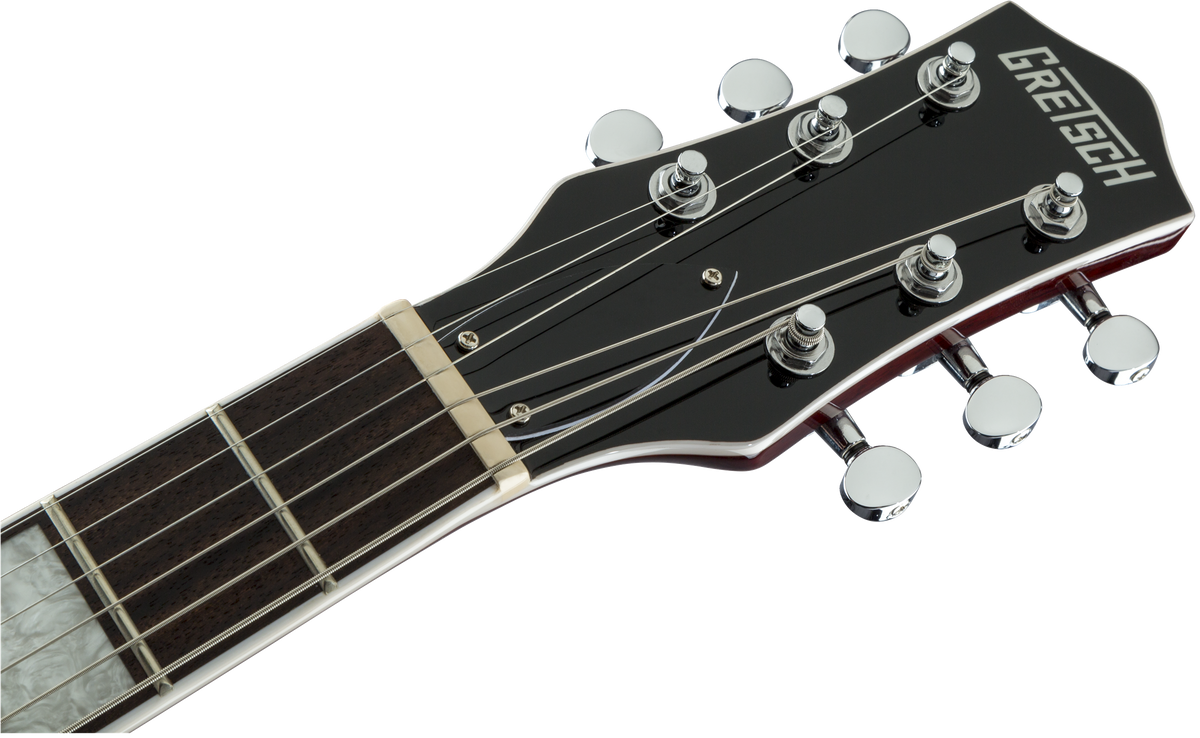

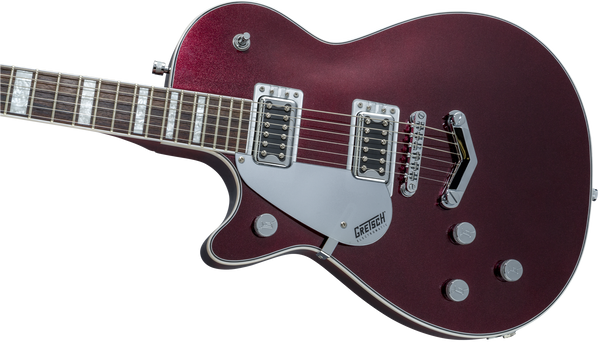

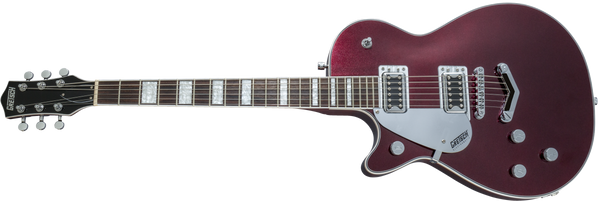

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5220LH Electromatic Jet BT Single-Cut with V-Stoptail Left-Handed Laurel Fingerboard Dark Cherry Metallic listed above. For larger pics, click on an image to open in a new tab.
