Gretsch G5210-P90 Electromatic Jet Two 90 Single-Cut Wraparound Tailpiece Firestick Red Specs

The G5210-P90 Electromatic Jet Two 90 Single-Cut with Wraparound Laurel Fingerboard Firestick Red is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2517190595.

Key Features

Arched Maple Top
Mahogany Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjustable Wrap-Around Bridge
Die-Cast Sealed Tuning Machines
P-90E Single-Coil Bridge Pickup
P-90E Single-Coil Neck Pickup

Product Identifiers

Model Name	G5210-P90 Electromatic Jet Two 90 Single-Cut with Wraparound Tailpiece
Part Number	2517190595
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	717669638481

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	White with B/W Purfling
Body Finish	Gloss
Bracing	Chambered
Upper Bout Width	10.25" (260 mm)
Lower Bout Width	13.375" (340 mm)
Waist	8.5" (216 mm)

Hardware

Bridge	Adjustable Wrap-Around
Tuning Machines	Die-Cast Sealed
Pickguard	Tortoise with Gold Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Adjustable Wrap-Around
Hardware Finish	Nickel

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	P-90E Single-Coil
Neck Pickup	P-90E Single-Coil
Pickup Configuration	P90 / P90
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional Case (p/n 099-6474-000); Gig Bag (p/n 099-6460-000)

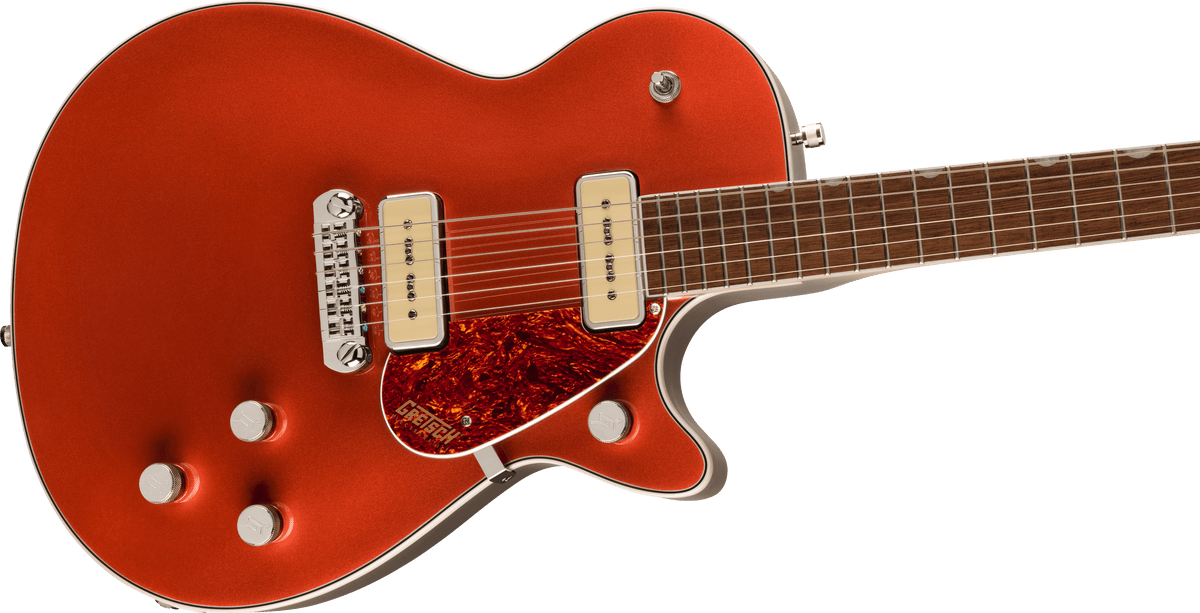

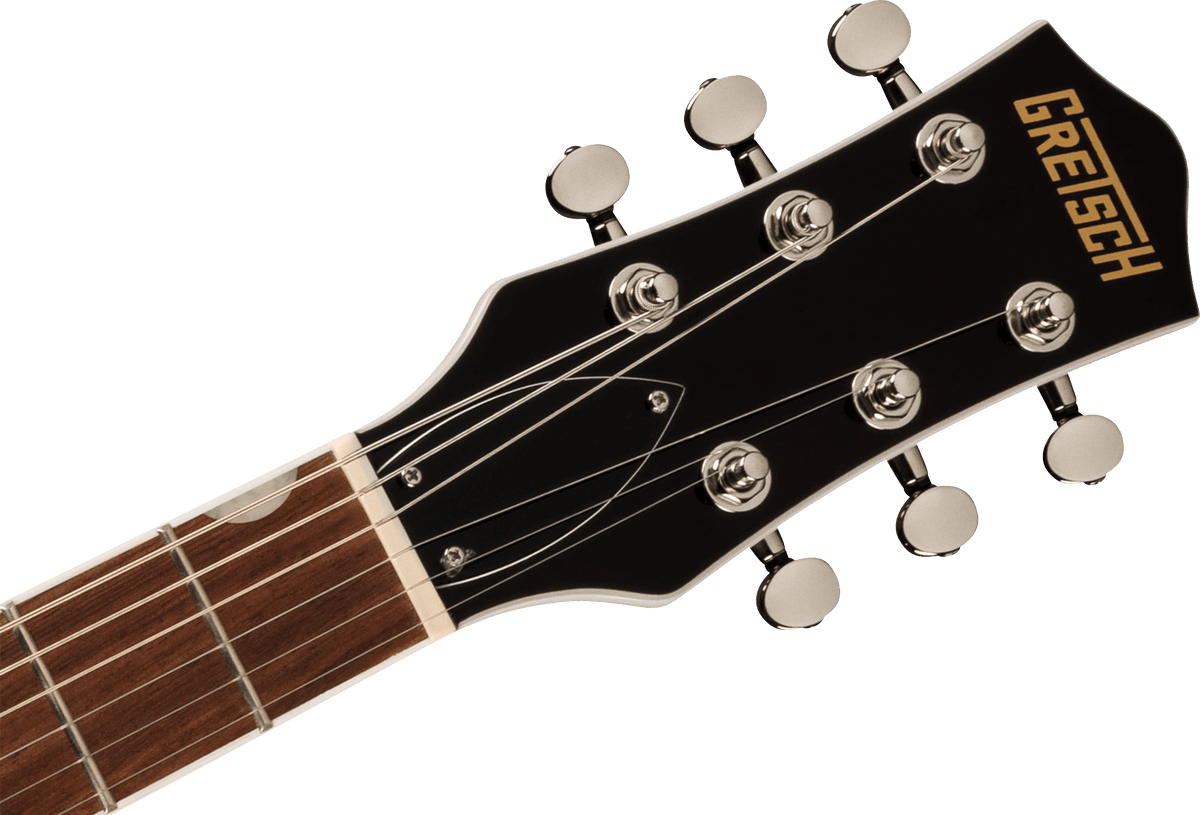

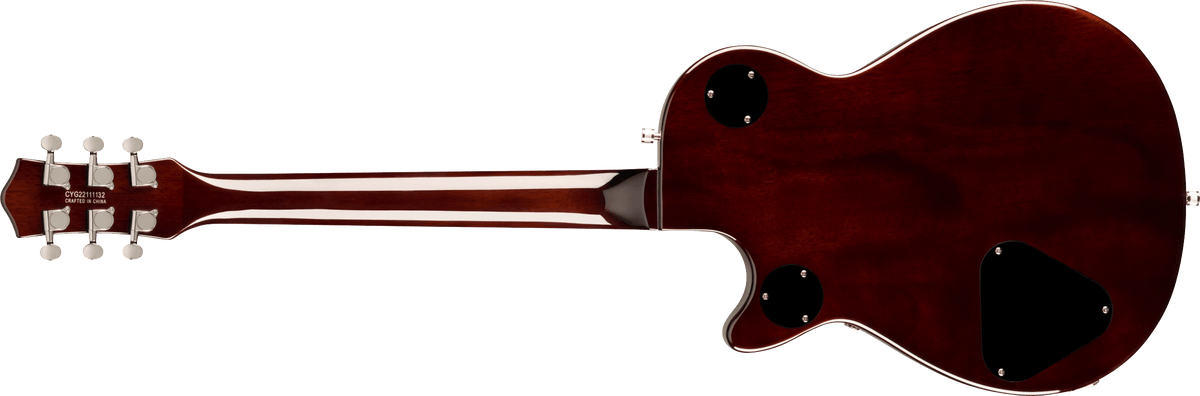

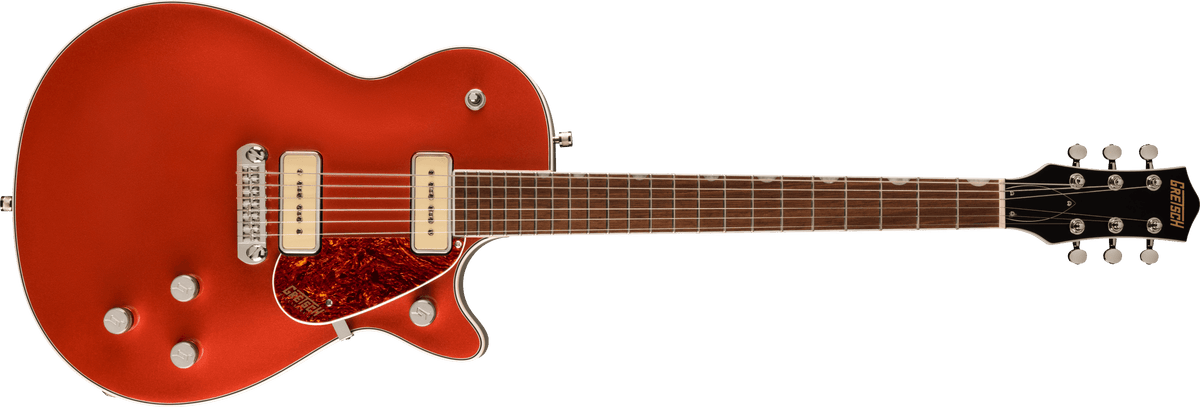

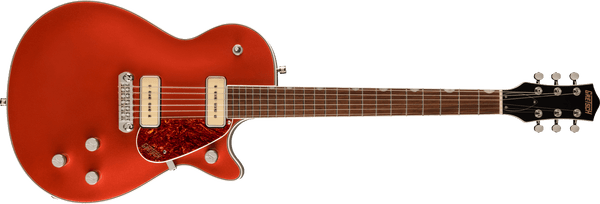

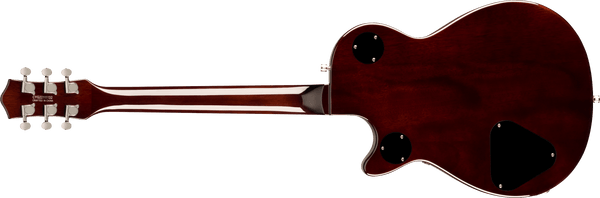

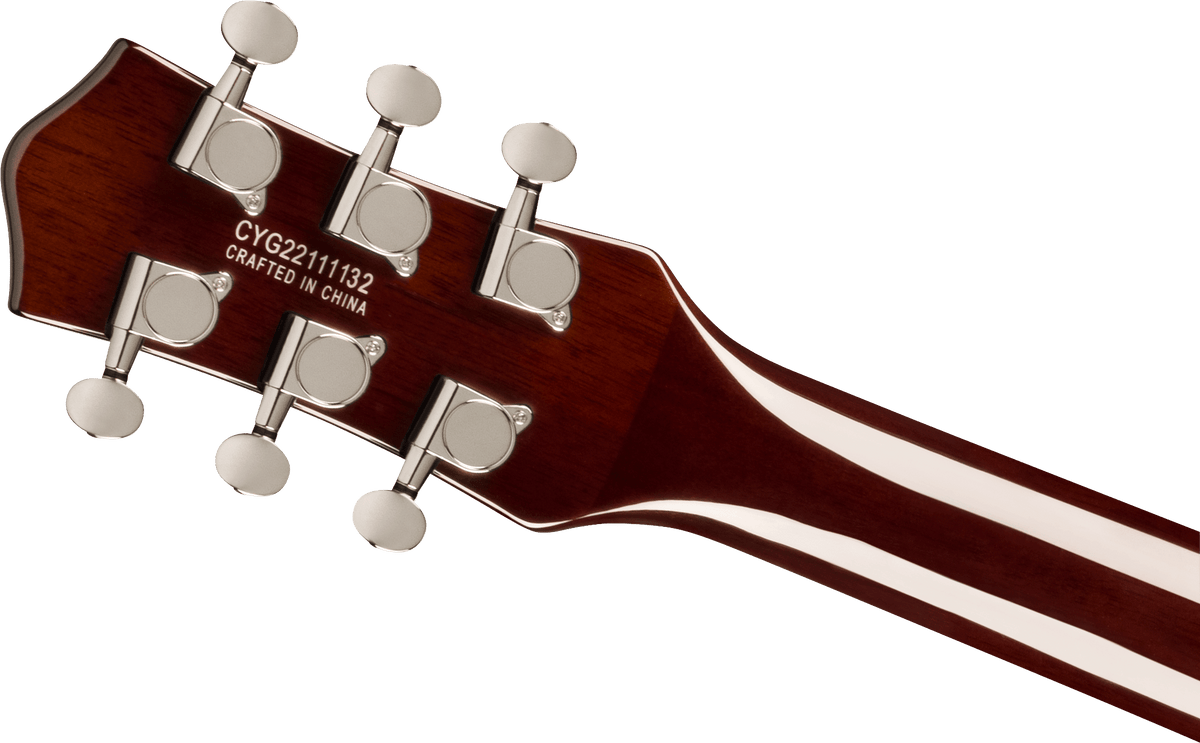

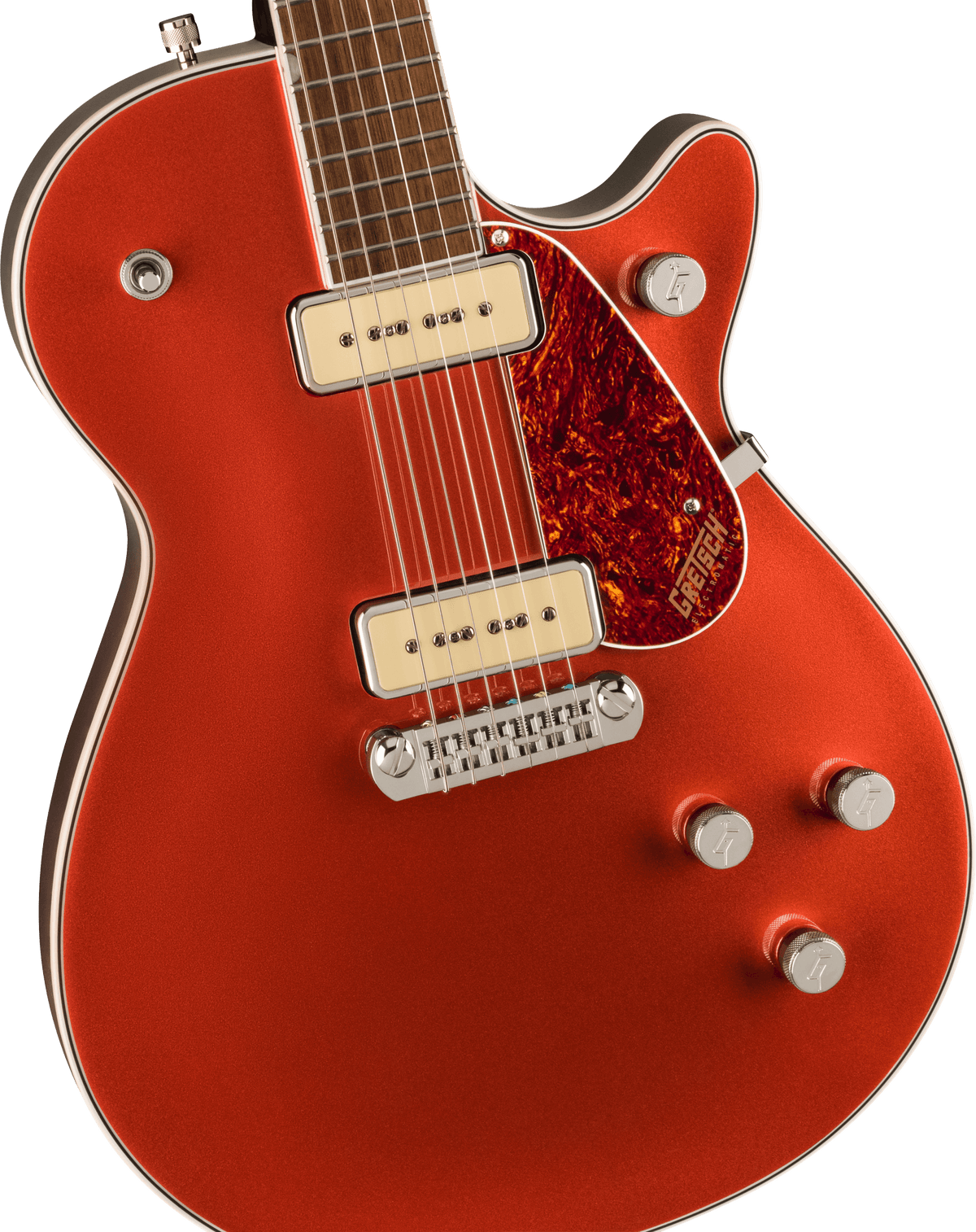

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5210-P90 Electromatic Jet Two 90 Single-Cut with Wraparound Laurel Fingerboard Firestick Red listed above. For larger pics, click on an image to open in a new tab.
