Gretsch G5191BK Tim Armstrong Signature Electromatic Hollow Body Gold Hardware Left-Handed Matte Black Specs

The G5191BK Tim Armstrong Signature Electromatic Hollow Body Left-Handed Gold Hardware Flat Black is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Korea and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2516020506.

Key Features

5-Ply Arched Maple Top
Maple Neck
Rosewood Fingerboard
24.33" (618 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12.6" (320 mm) Radius
Jumbo Frets
Adjusto-Matic with Secured Rosewood Base Bridge
Grover Sta-Tite Die-Cast Tuning Machines
Black Top Filter'Tron Bridge Pickup
Black Top Filter'Tron Neck Pickup

Product Identifiers

Model Name	G5191BK Tim Armstrong Signature Electromatic Hollow Body with Gold Hardware, Left-Handed
Part Number	2516020506
Product Series	Electromatic
Country of Origin	Korea
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	717669852795

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	5-Ply Arched Maple
Body Shape	Electromatic Hollow Body
Body Binding	4-Ply
Body Finish	Matte Urethane
Bracing	Parallel Tone Bars
Lower Bout Width	17" (43.2 cm)

Hardware

Bridge	Adjusto-Matic with Secured Rosewood Base
Tuning Machines	Grover Sta-Tite Die-Cast
Pickguard	None
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	"Harp" Style Tailpiece
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12.6" (320 mm)
Fingerboard Inlays	Pearloid Block
Number of Frets	22
Fret Size	Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.33" (618 mm)
Nut Material	Graphite
Neck Finish	Matte Urethane
Headstock	Baldwin Era Gretsch

Electronics

Bridge Pickup	Black Top Filter'Tron
Neck Pickup	Black Top Filter'Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup), Master Volume
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Left-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Unique Features	Block Acrylic Inlay Position Markers, Gold-Plated Hardware, Graphite Nut, Black Headstock Overlay, Grover Tuners, Gold-Plated Pickup Bezels, Harp Tailpiece, Pearloid Gretsch Headstock Inlay, 4-Ply Bound Top and Back, 3-Ply Bound Fingerboard & Headstock, Single Ply Bound F Holes, Knurled Strap Retainer Knobs, "Blacktop" Filter'Tron Pickups, Adjustable Truss Rod
Case / Gig Bag	Optional G6242L-FT Gretsch 17" Hollow Body Hardshell (p/n 099-6480-000)
Recommended Case	099-6480-000 Economy Case - G6242L - 17" (Flat) Hollowbody Models\|099-6470-000 Premium Case - G6275 - 17” Gray Speckle Case

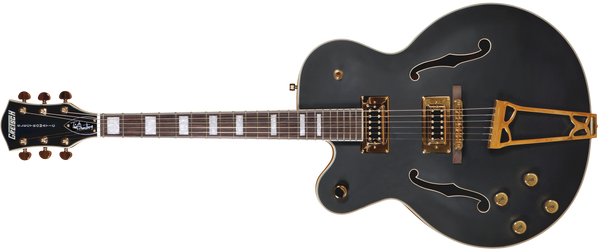

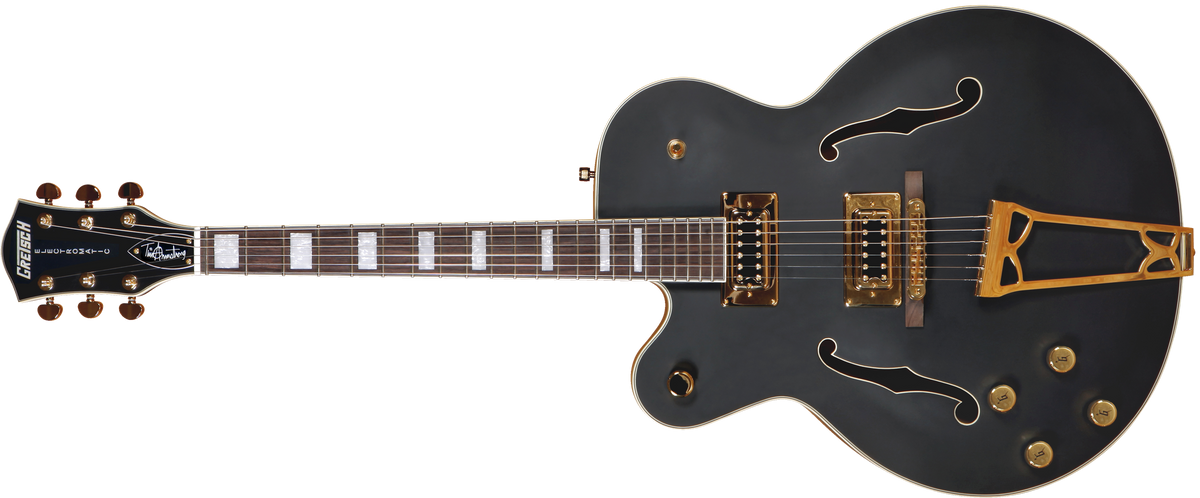

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5191BK Tim Armstrong Signature Electromatic Hollow Body Left-Handed Gold Hardware Flat Black listed above. For larger pics, click on an image to open in a new tab.
