Gretsch G5135CVT-PS Patrick Stump Signature "Stump-O-Matic" Electromatic CVT Solid Body Black Pewter Stripes Specs

The G5135CVT-PS Patrick Stump Electromatic "Stump-O-Matic" CVT Black with Pewter Stripes is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2515202506.

Key Features

Mahogany Top
Mahogany Neck
Rosewood Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Vintage-Style Tuning Machines
Mega'Tron Bridge Pickup
Mega'Tron Middle Pickup
Mega'Tron Neck Pickup

Product Identifiers

Model Name	G5135CVT-PS Patrick Stump Signature "Stump-O-Matic" Electromatic CVT Solid Body
Part Number	2515202506
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978622481

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Mahogany
Body Shape	CVT
Body Finish	Gloss Urethane
Lower Bout Width	13.11" (33.30 cm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Vintage-Style
Pickguard	3-Ply Black
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	String-Thru-Body
Hardware Finish	Chrome

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	White Dot
Number of Frets	21
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Synthetic Bone
Neck Finish	Gloss Urethane
Headstock	Jet Style

Electronics

Bridge Pickup	Mega'Tron
Middle Pickup	Mega'Tron
Neck Pickup	Mega'Tron
Pickup Configuration	Mega'Tron / Mega'Tron / Mega'Tron
Controls	Master Volume, Volume/Blend (Middle Pickup)(Inoperable in 2-Pickup Mode)
Pickup Switching	3-Position Toggle: 2-Pickup Mode: Position 1. Bridge Pickup, Position 2. Bridge/Neck Pickups, Position 3. Neck Pickup -- 3-Pickup Mode: Position 1. Bridge/Middle, Position 2. Middle/Neck Pickups, Position 3. All Pickups
Auxiliary Switching	2-Position Rotary Mode Switch

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.011-.049 Gauges)
Unique Features	White Color Scheme with Gray Competition Stripes, Patrick Stump 1-Ply White Pickguard, Aged White Dot Position Markers, G-Arrow Knobs, Stump-O-Matic on Truss Rod Cover, Side-Mounted Jack Plate, Knurled Strap Retainer Knobs, Adjustable Truss Rod
Case / Gig Bag	Optional G2164 Solid Body Gig Bag (p/n 099-6460-000)
Included Accessories	Deluxe Hardshell Case, Strap and Certificate of Authenticity.
Recommended Case	Optional: 099-6460-000 Gig Bag - G2164 - Solid Body Electric

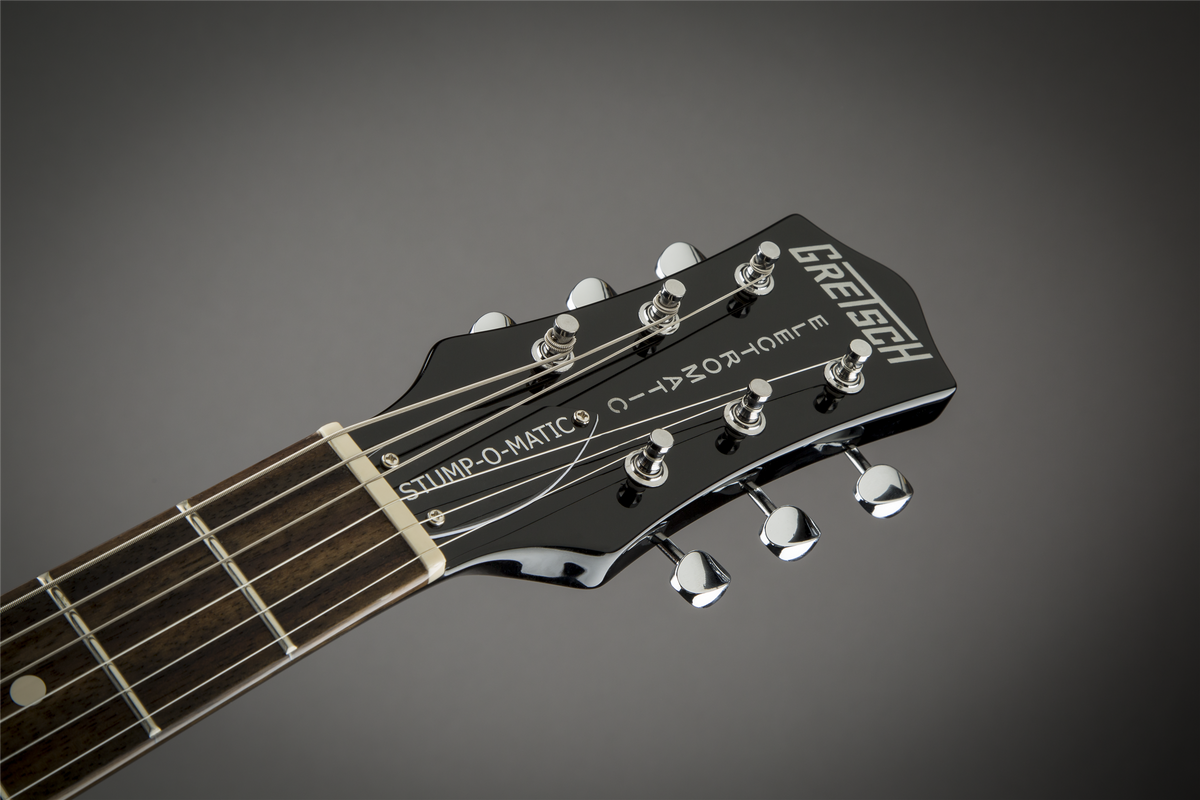

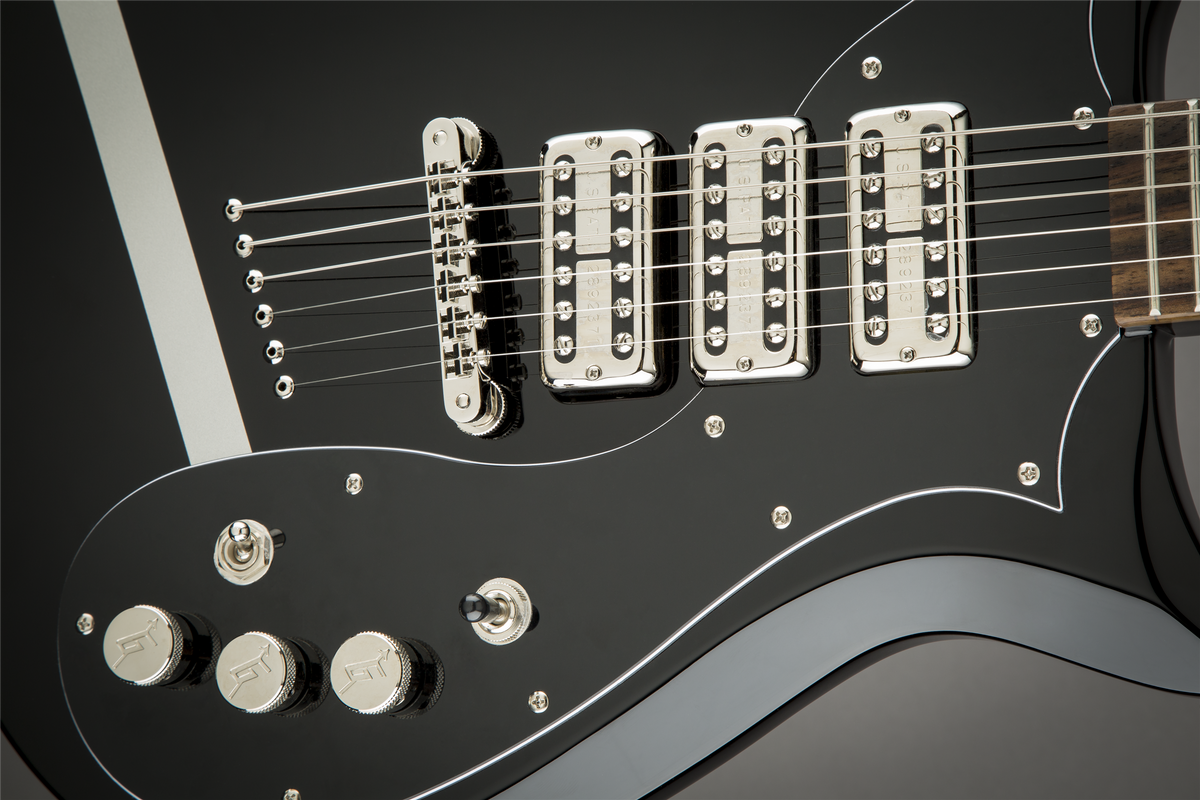

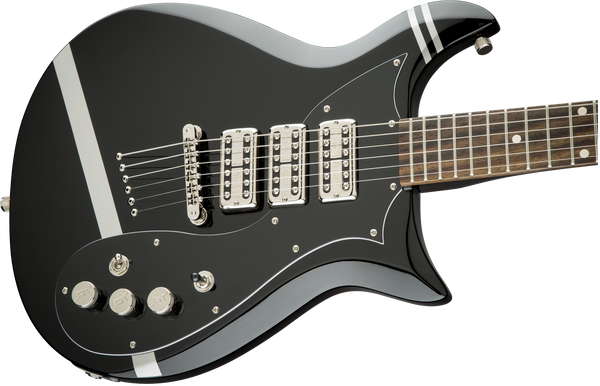

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5135CVT-PS Patrick Stump Electromatic "Stump-O-Matic" CVT Black with Pewter Stripes listed above. For larger pics, click on an image to open in a new tab.
