Gretsch G5031FT Rancher Dreadnought Fideli'Tron Pickup Sunburst Specs

The G5031FT Rancher Dreadnought Fideli-Tron Pickup Sunburst is a dreadnought acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Acoustic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2714031552.

Key Features

Solid Spruce Top
Flame Maple Back
Flame Maple Sides
Mahogany Neck
Laurel Fingerboard
25" (635 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage-Style Frets
Laurel with Compensated Synthetic Bone Saddle Bridge
Deluxe Die-Cast Tuning Machines

Product Identifiers

Model Name	G5031FT Rancher Dreadnought with Fideli'Tron Pickup
Part Number	2714031552
Product Series	Acoustic Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Dreadnought
UPC Code	885978132683

Factory Specifications

Body Construction

Body Material	Laminated Maple Back and Sides
Top Material	Solid Spruce
Back Material	Flame Maple
Side Material	Flame Maple
Body Shape	Dreadnought
Body Finish	Gloss Polyester
Bracing	Scalloped X
Rosette	N/A

Hardware

Bridge	Laurel with Compensated Synthetic Bone Saddle
Tuning Machines	Deluxe Die-Cast
Pickguard	4-Ply Tortoiseshell
Bridge Cover / Tailpiece	Traditional Acoustic Bridge
Hardware Finish	Gold-Plated

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	16
Fret Size	Vintage-Style
Nut Width	1.6875" (42.86 mm)
Scale Length	25" (635 mm)
Nut Material	Synthetic Bone
Neck Finish	Gloss Polyester

Electronics

Controls

Master Volume

General

Orientation	Right-Hand
Strings	D'Addario EJ21 Nickel Plated Steel (.012-.052 Gauges)
Unique Features	Traditional Gretsch Rancher "Triangular" Sound Hole, White Bound Body, Neck, Headstock and Sound Hole, White Pearloid Neo-ClassicTM “Thumbnail” Position Inlays, Knurled Forward Strap Retainer Knob, 3-Ply Tortoiseshell Pickguard with Gretsch Logo, Adjustable Truss Rod with Headstock Adjustment, Top Mounted “G” Arrow Volume Control Knob, Synthetic Bone Nut
Case / Gig Bag	Optional G6293 Gretsch Dreadnought Hardshell (p/n 099-6492-000); Optional G2186 Dreadnought Gig Bag (p/n 099-6487-000)
Recommended Case	Optional: 099-6487-000 Gig Bag - G2186 - Dreadnought

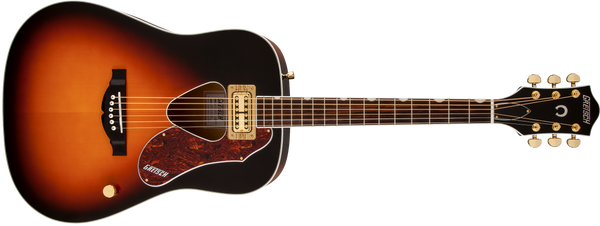

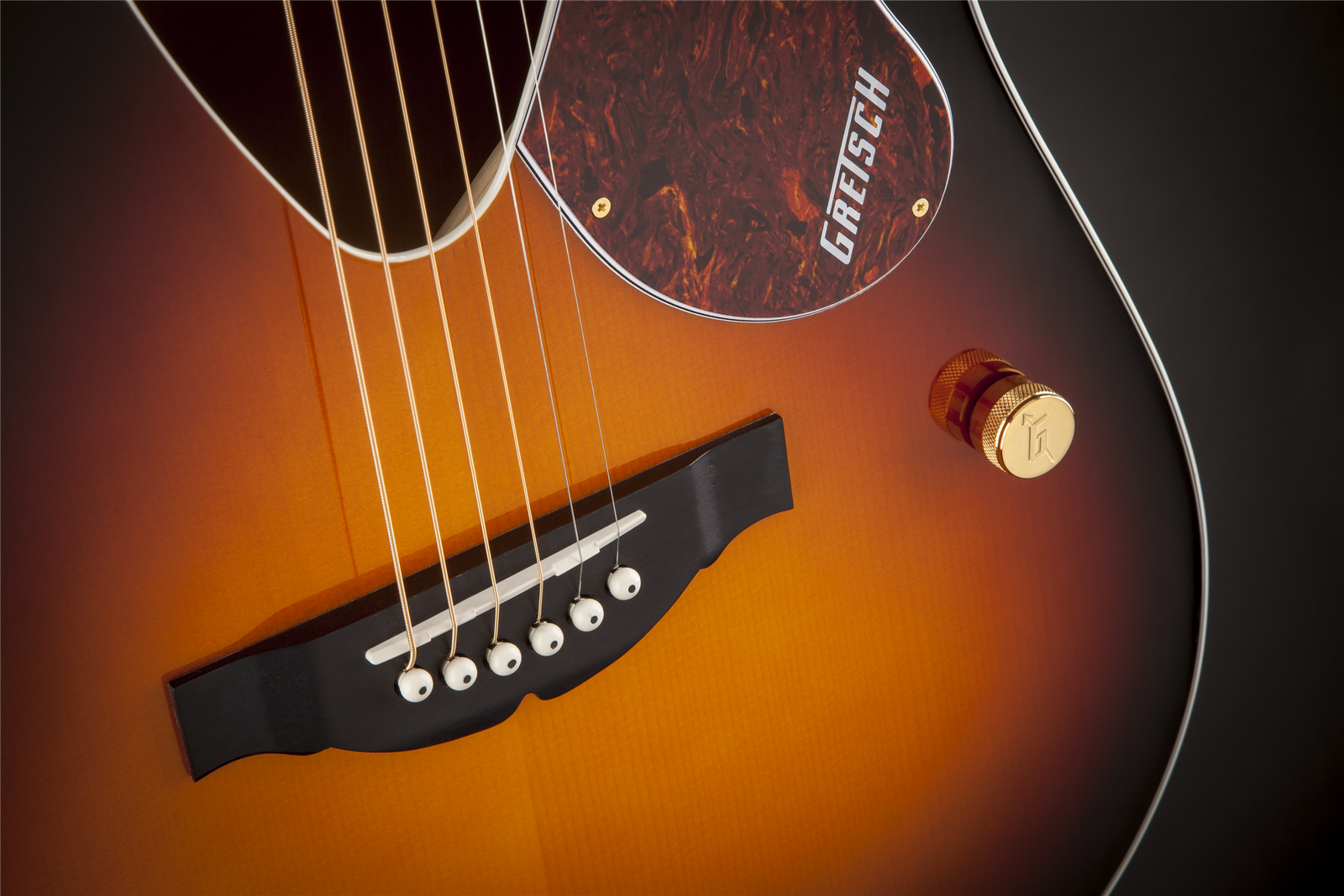

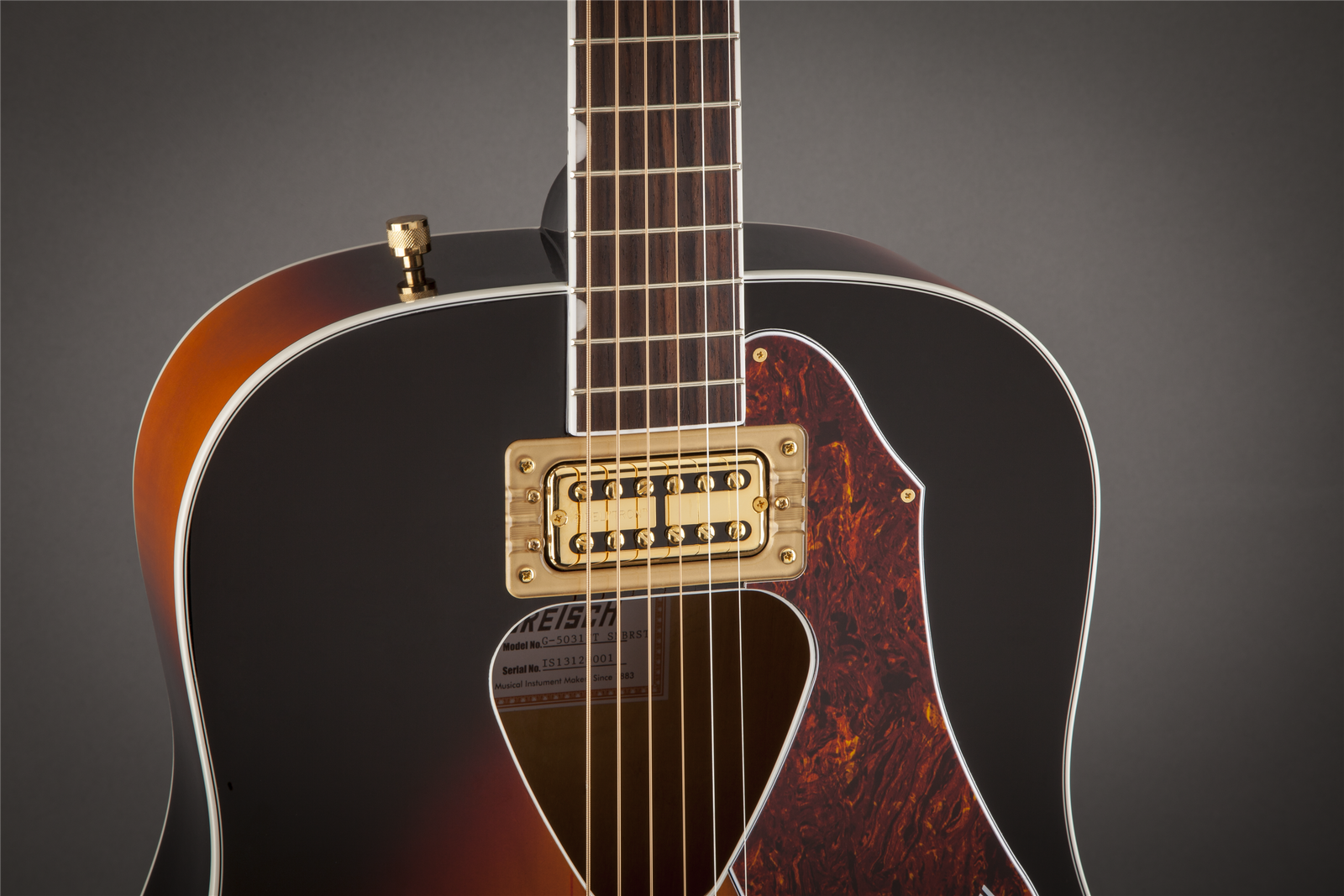

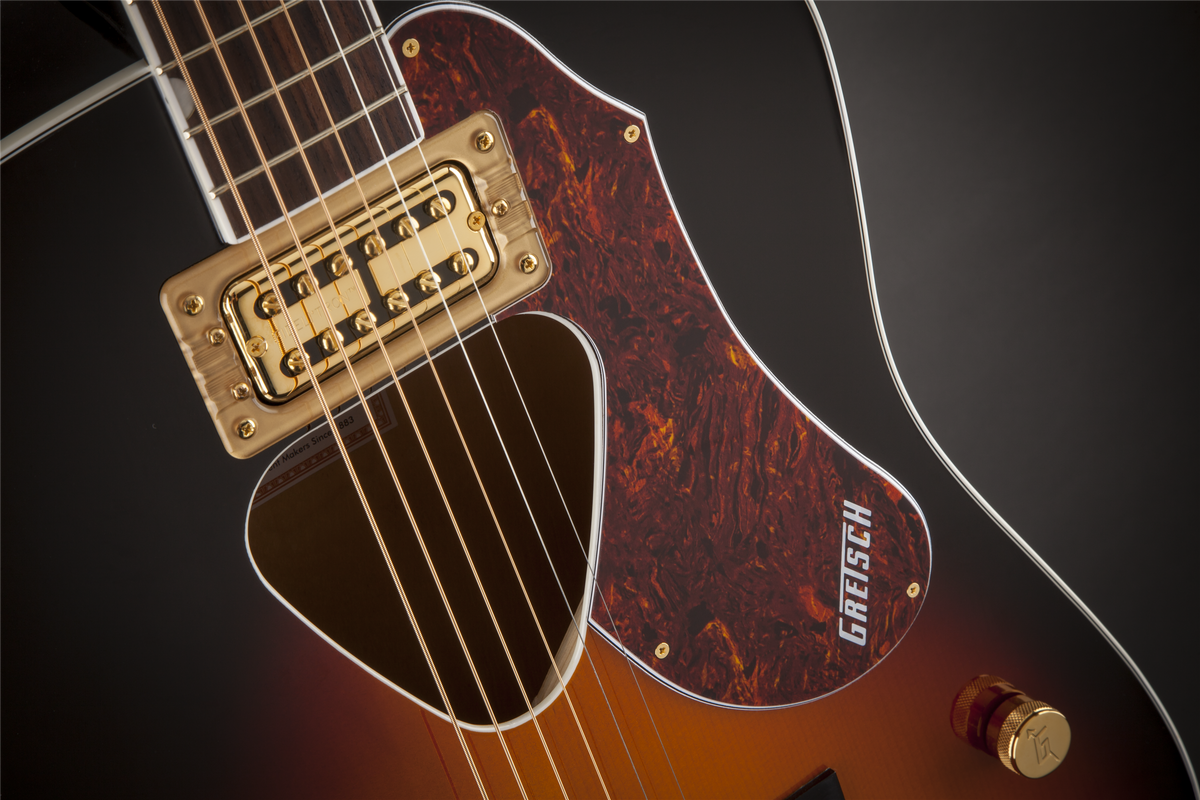

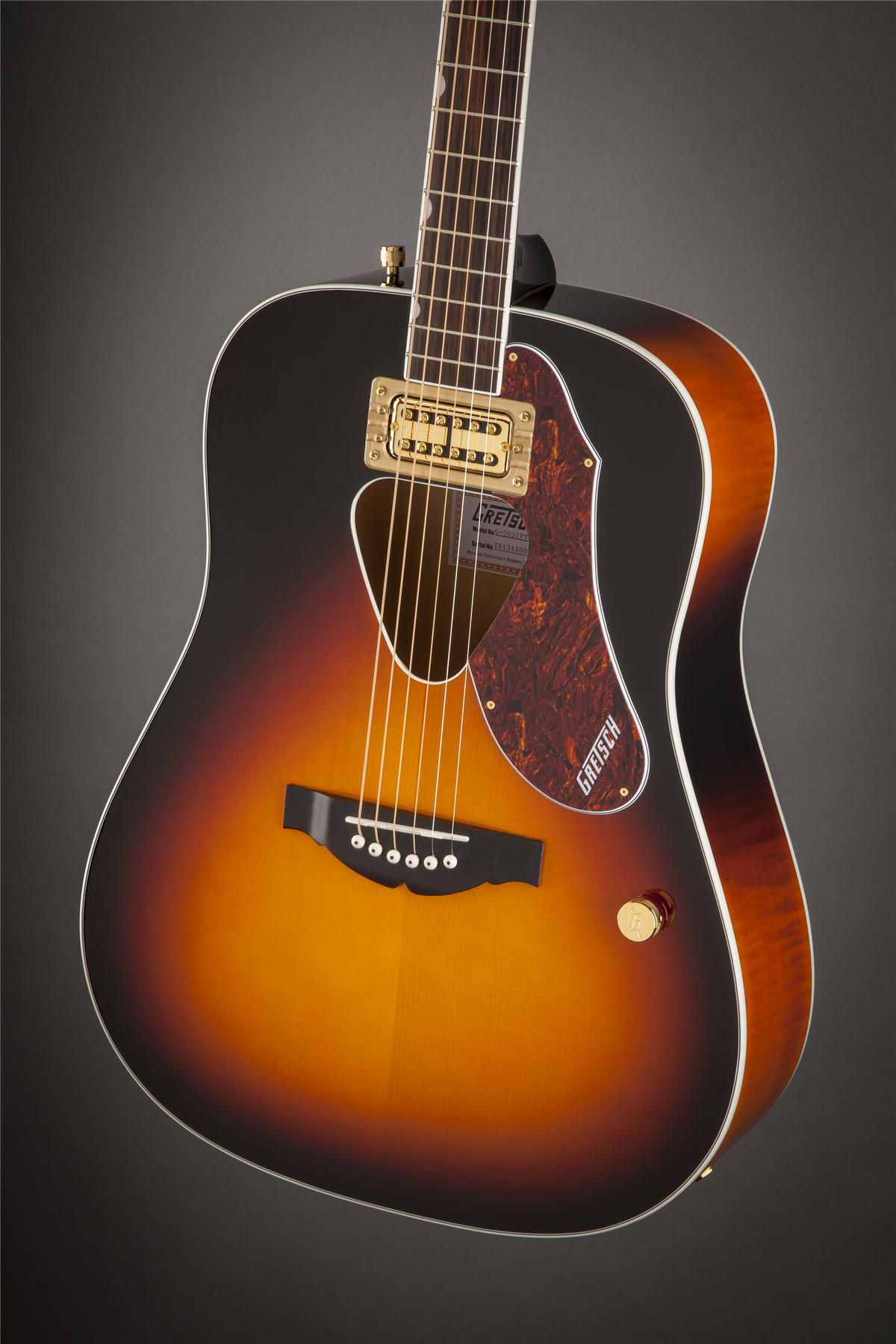

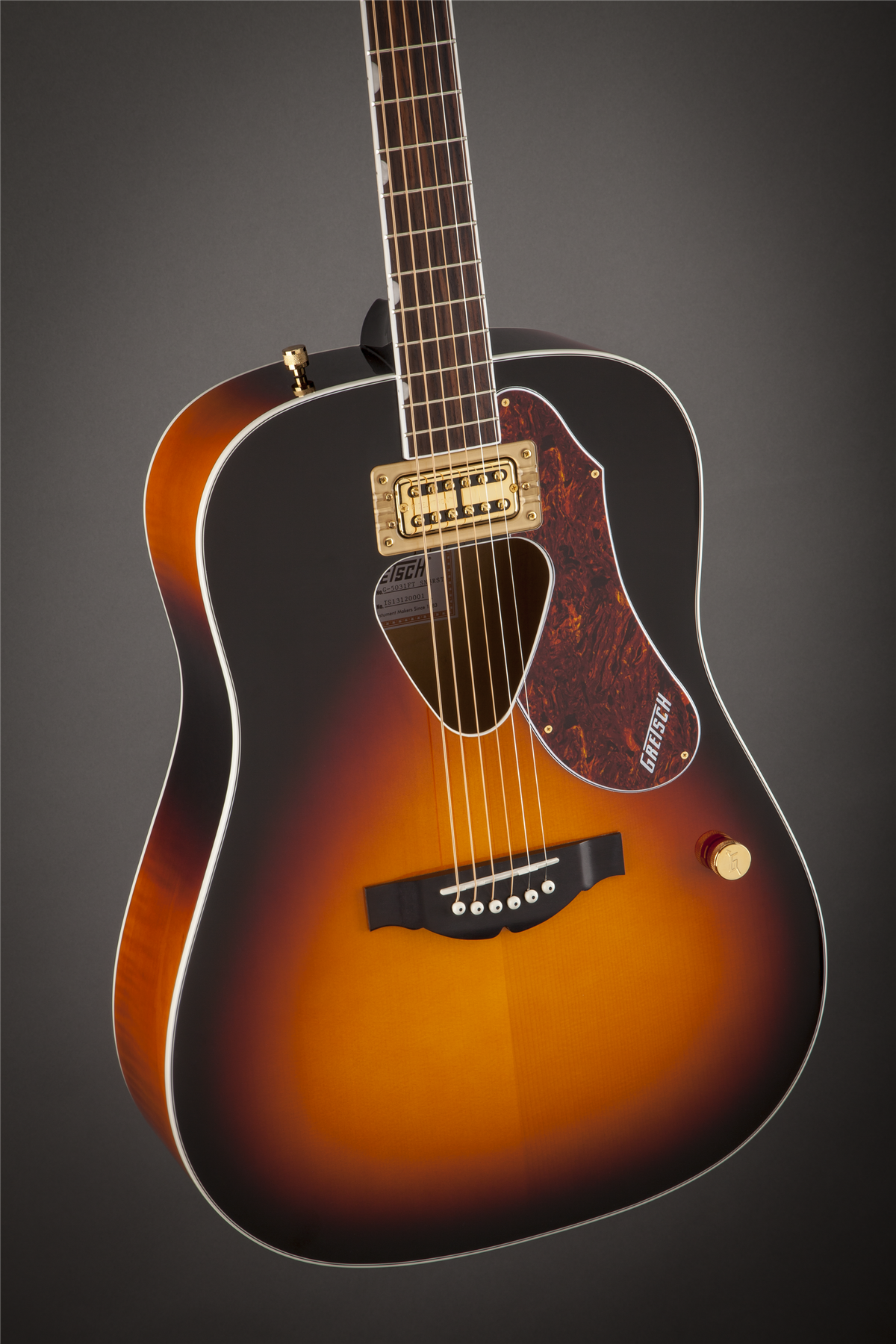

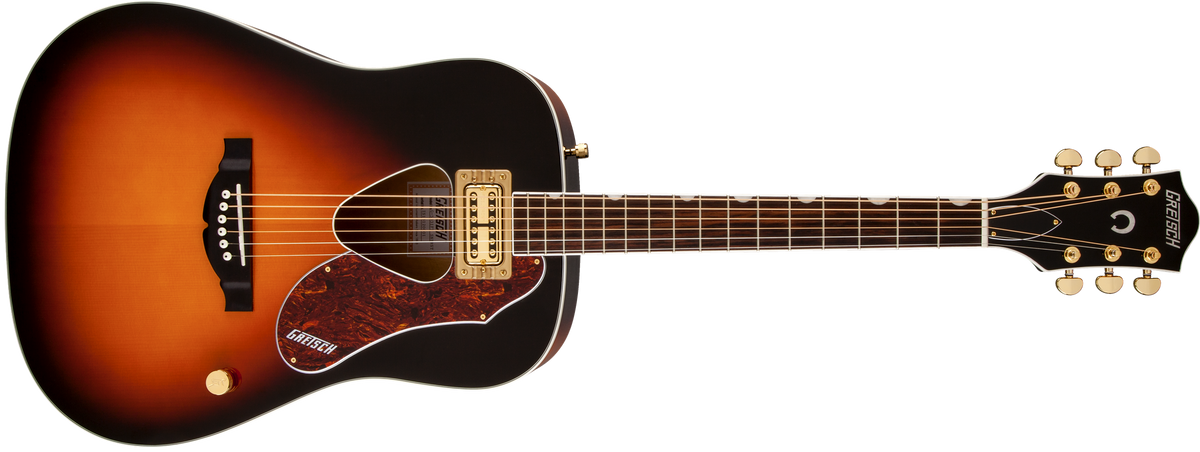

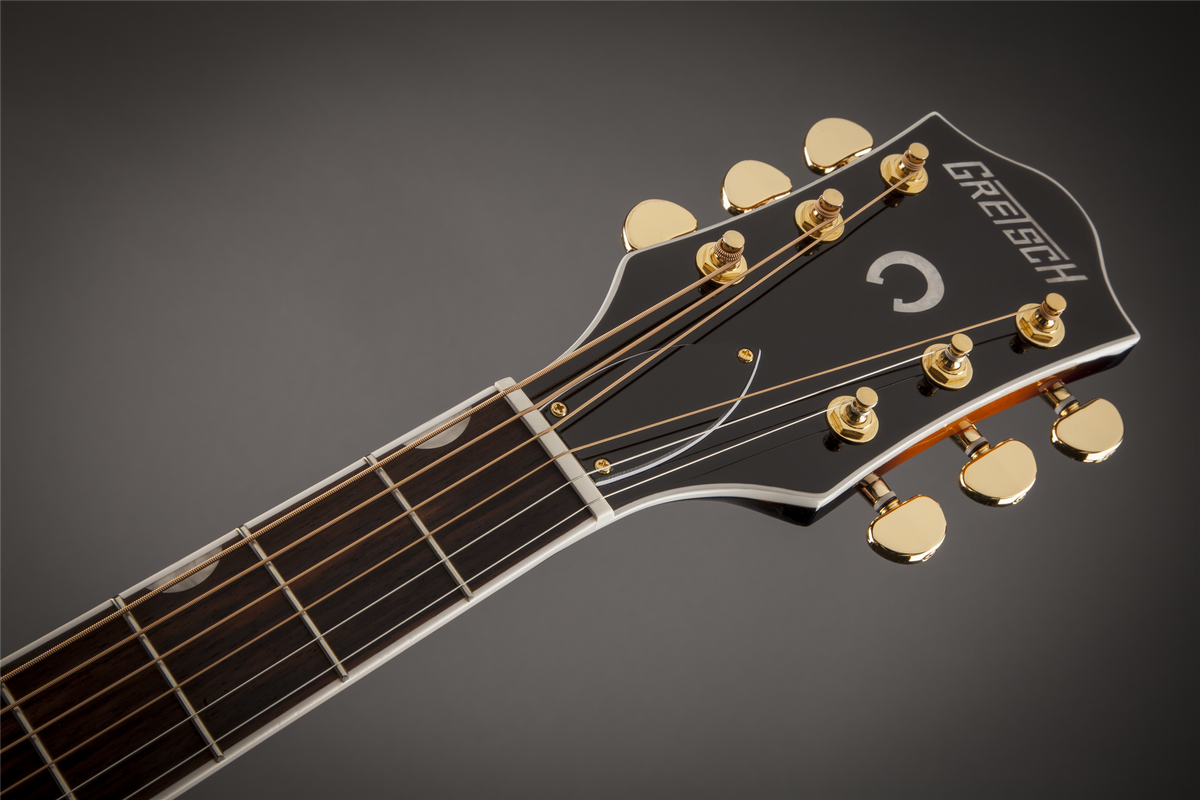

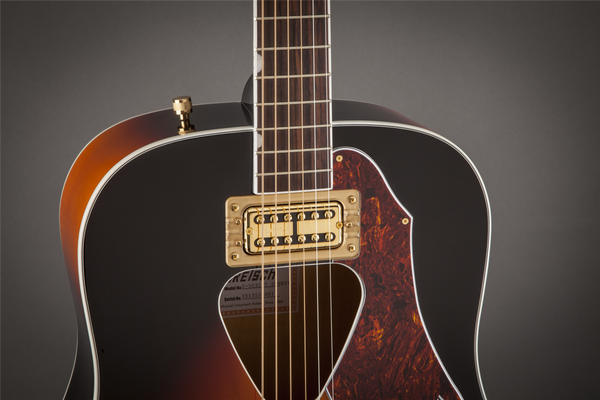

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5031FT Rancher Dreadnought Fideli-Tron Pickup Sunburst listed above. For larger pics, click on an image to open in a new tab.
