Gretsch G5024E Rancher Dreadnought Acoustic-Electric Sunburst Specs

The G5024E Rancher Dreadnought Electric Fishman Pickup System Sunburst is a dreadnought acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Acoustic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2714035500.

Key Features

Solid Spruce Top
Laminated Mahogany Back
Laminated Mahogany Sides
Mahogany Neck
Laurel Fingerboard
25" (635 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage-Style Frets
Laurel with Compensated Synthetic Bone Saddle Bridge
Deluxe Die-Cast Tuning Machines

Product Identifiers

Model Name	G5024E Rancher Dreadnought Acoustic / Electric
Part Number	2714035500
Product Series	Acoustic Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Dreadnought
UPC Code	885978460243

Factory Specifications

Body Construction

Body Material	Laminated Mahogany Back and Sides
Top Material	Solid Spruce
Back Material	Laminated Mahogany
Side Material	Laminated Mahogany
Body Shape	Dreadnought
Body Finish	Gloss Polyester
Bracing	Scalloped X
Rosette	N/A

Hardware

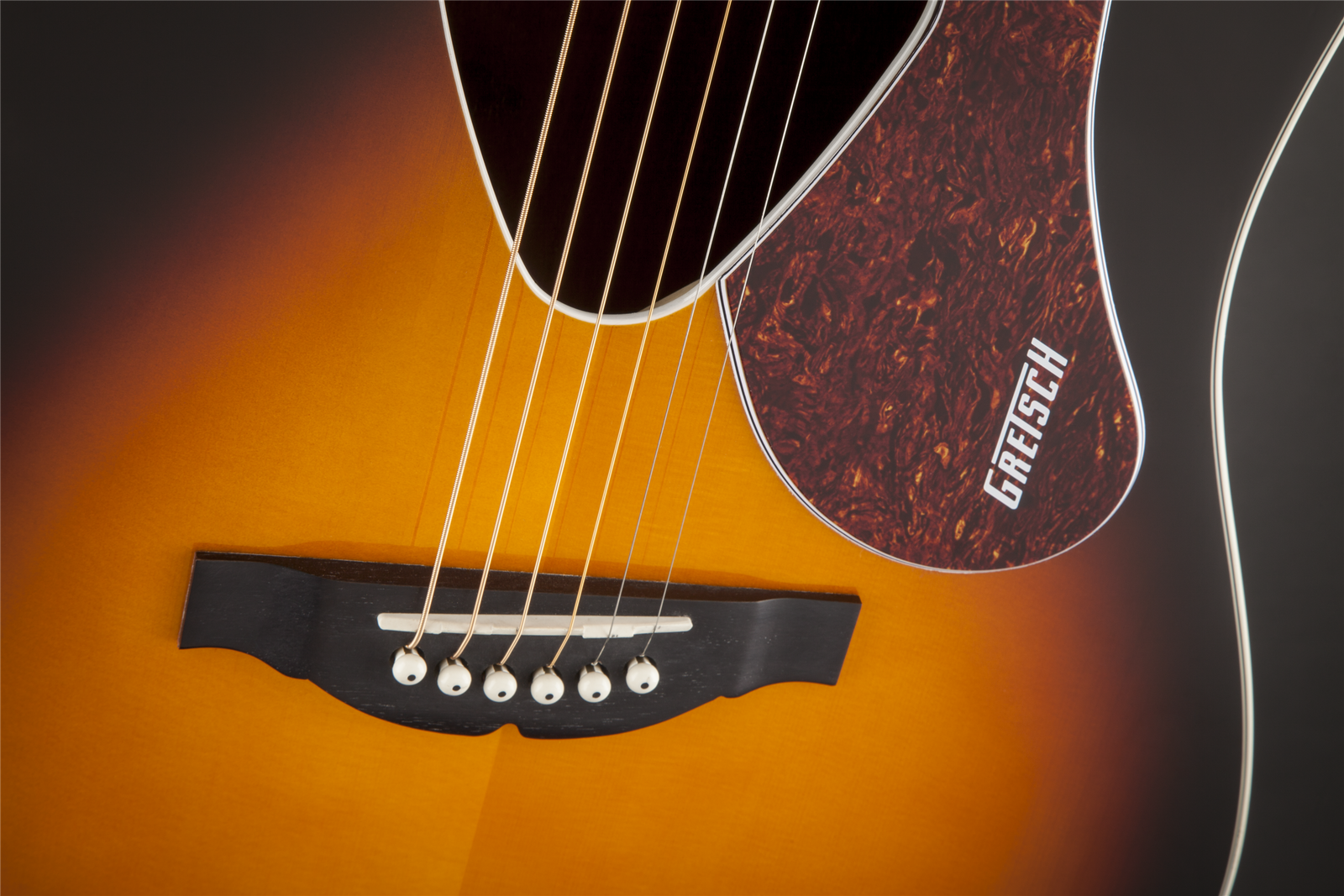

Bridge	Laurel with Compensated Synthetic Bone Saddle

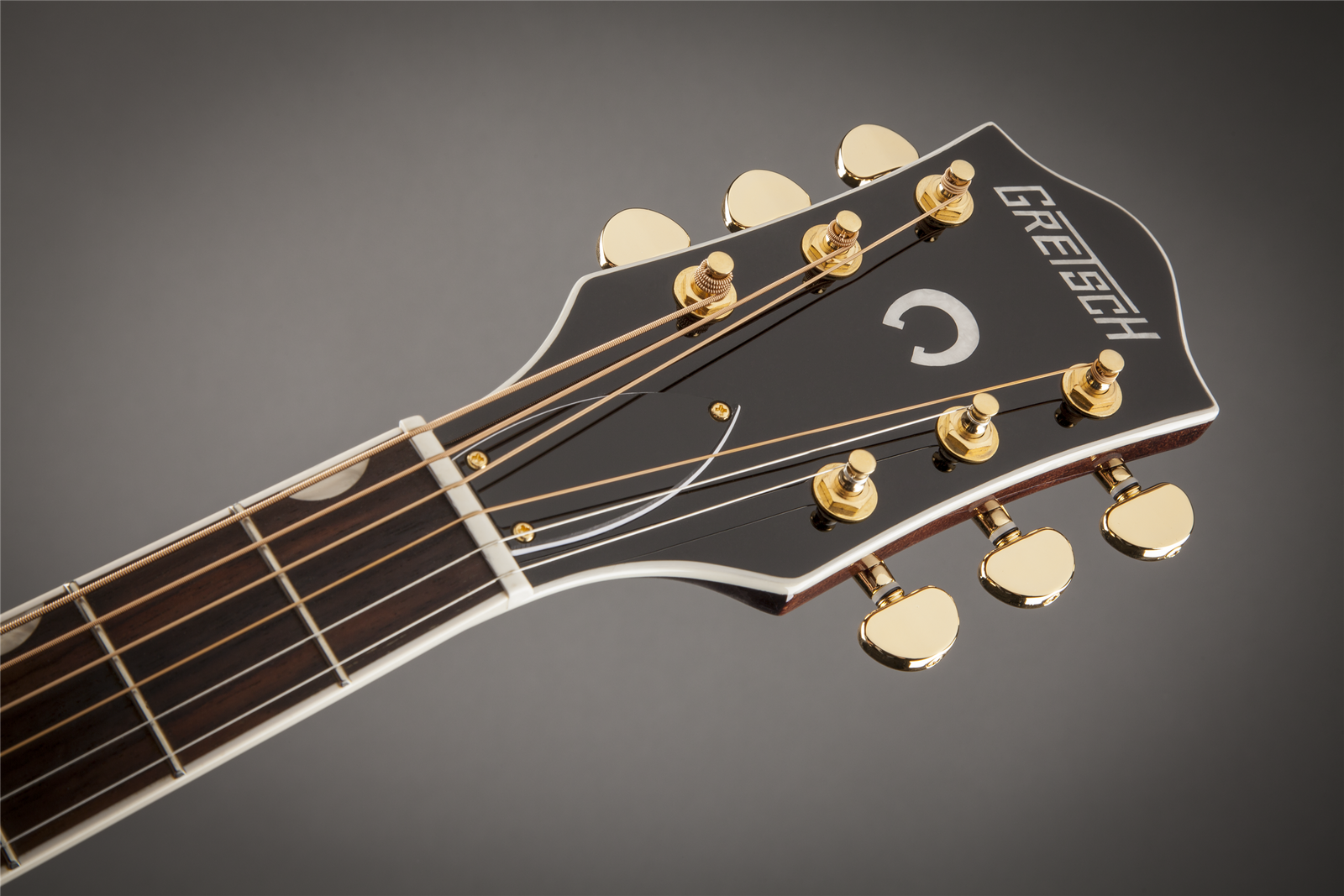

Tuning Machines	Deluxe Die-Cast

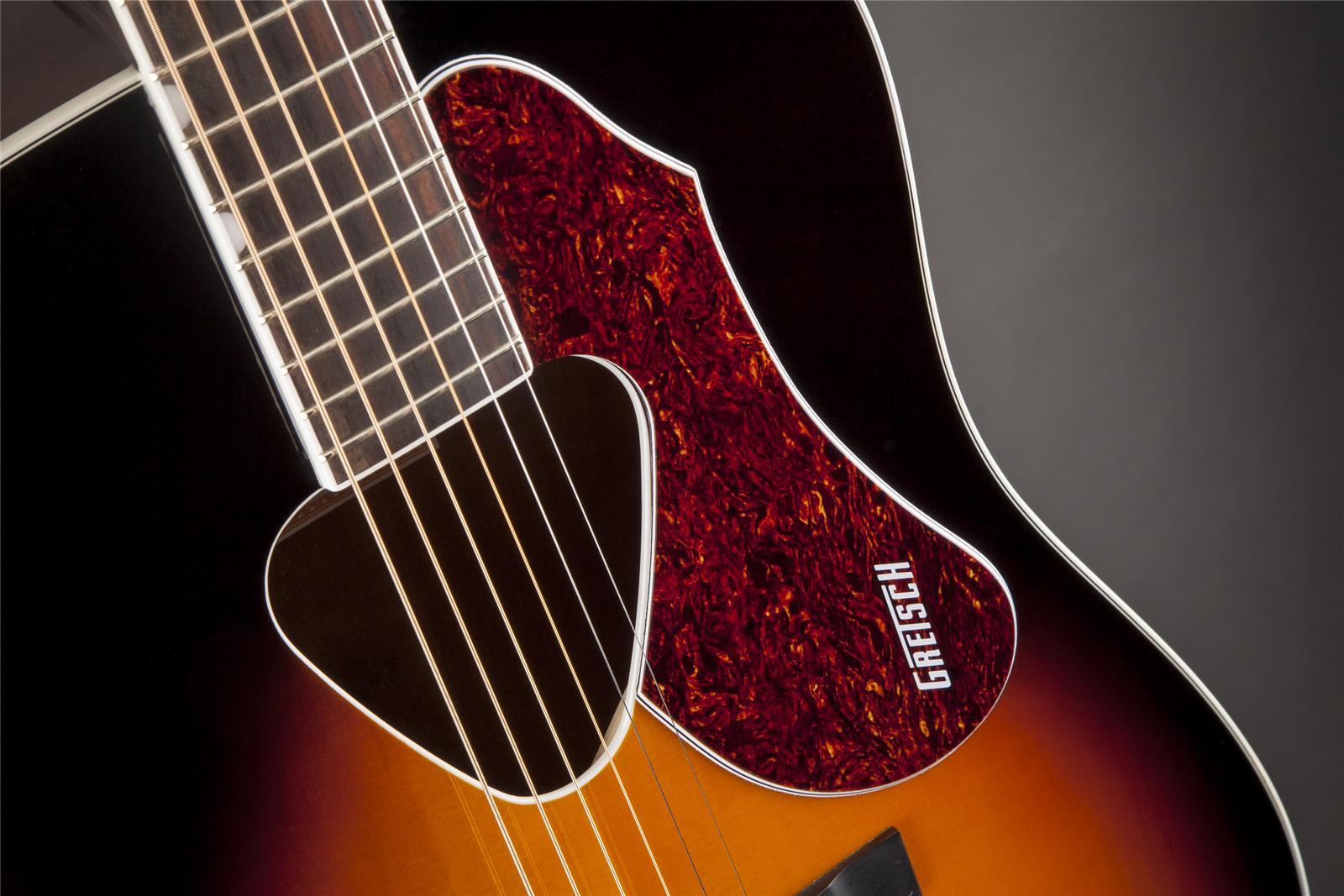

Pickguard	3-Ply Tortoiseshell
Bridge Cover / Tailpiece	Traditional Acoustic Bridge
Hardware Finish	Gold-Plated

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	21
Fret Size	Vintage-Style
Nut Width	1.6875" (42.86 mm)
Scale Length	25" (635 mm)
Nut Material	Synthetic Bone
Neck Finish	Gloss Polyester

Electronics

Controls	Volume, Bass, Middle, Treble, Low Battery Indicator Light, Tuner On/Off Switch
Special Electronics	Fishman Presys III Pickup System with Active Onboard Preamp and Tuner

General

Orientation	Right-Hand
Strings	D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges)

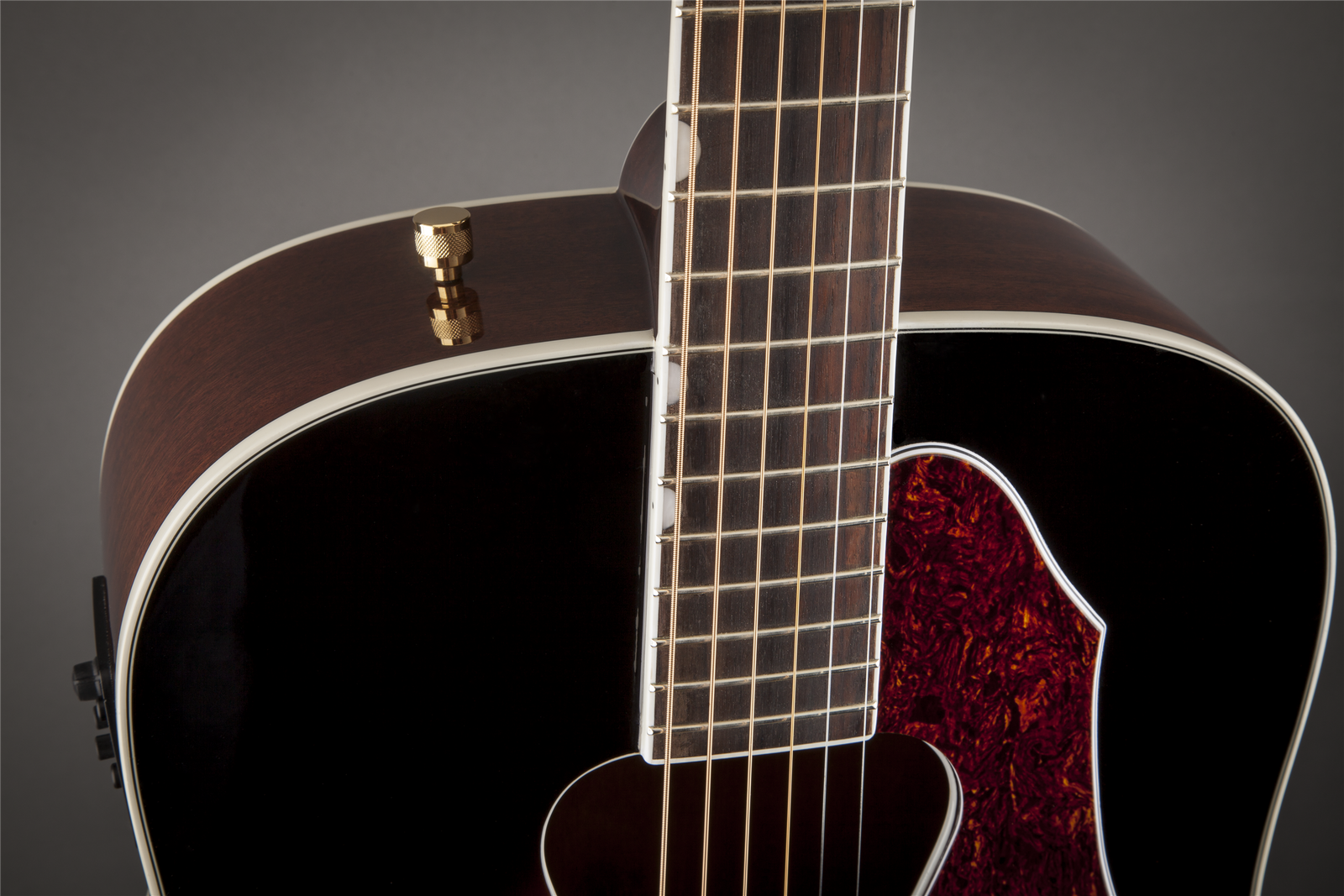

Unique Features	Traditional Gretsch Rancher “Triangular” Sound Hole, White Bound Body, Neck, Headstock and Sound Hole, White Pearloid Neo-ClassicTM “Thumbnail” Position Inlays, Knurled Forward Strap Retainer Knob, 3-Ply Tortoiseshell Pickguard with Gretsch Logo, Synthetic Bone Nut
Case / Gig Bag	Optional G6293 Gretsch Dreadnought Hardshell (p/n 099-6492-000); Optional G2186 Dreadnought Gig Bag (p/n 099-6487-000)
Recommended Case	Optional: 099-6487-000 Gig Bag - G2186 - Dreadnought

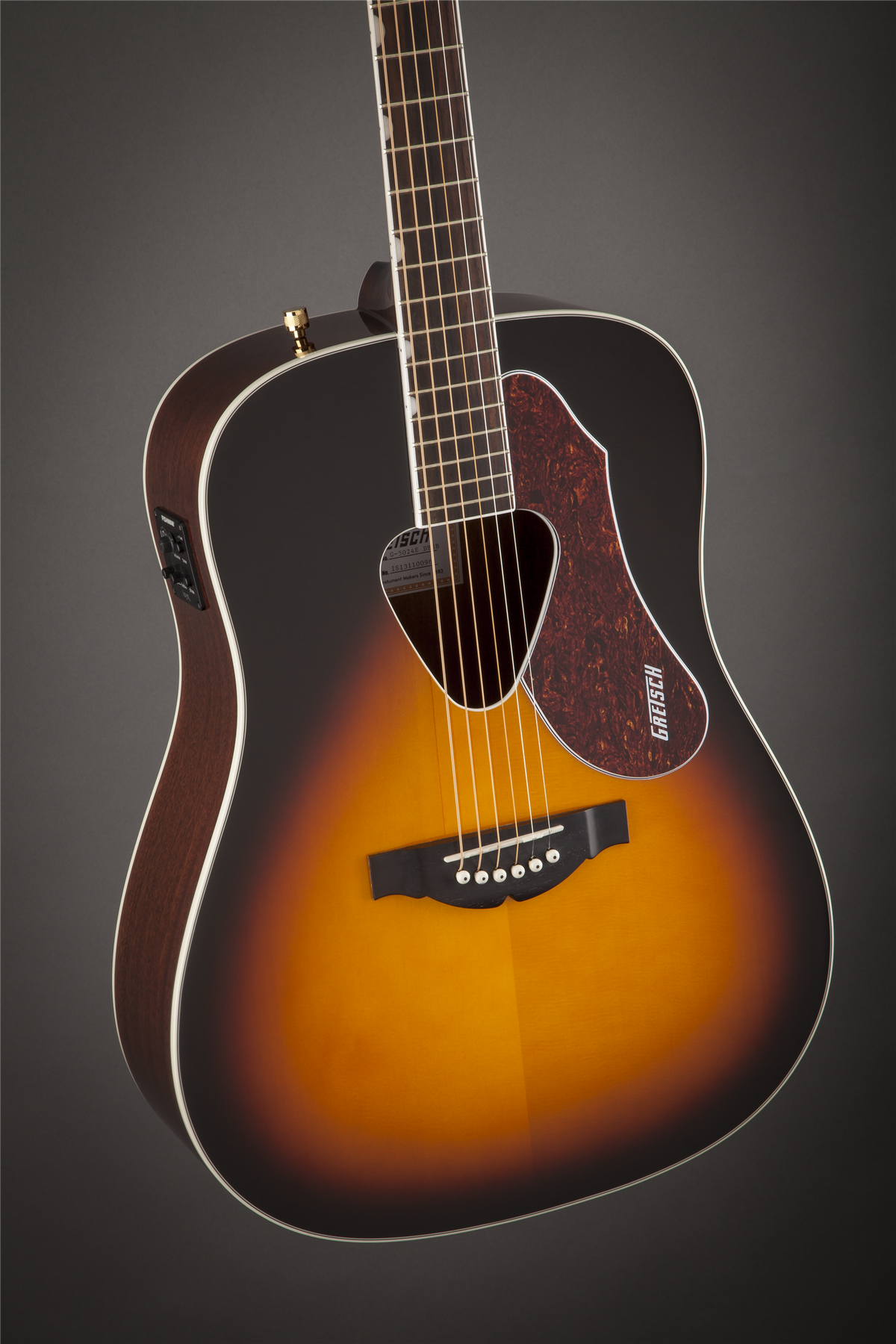

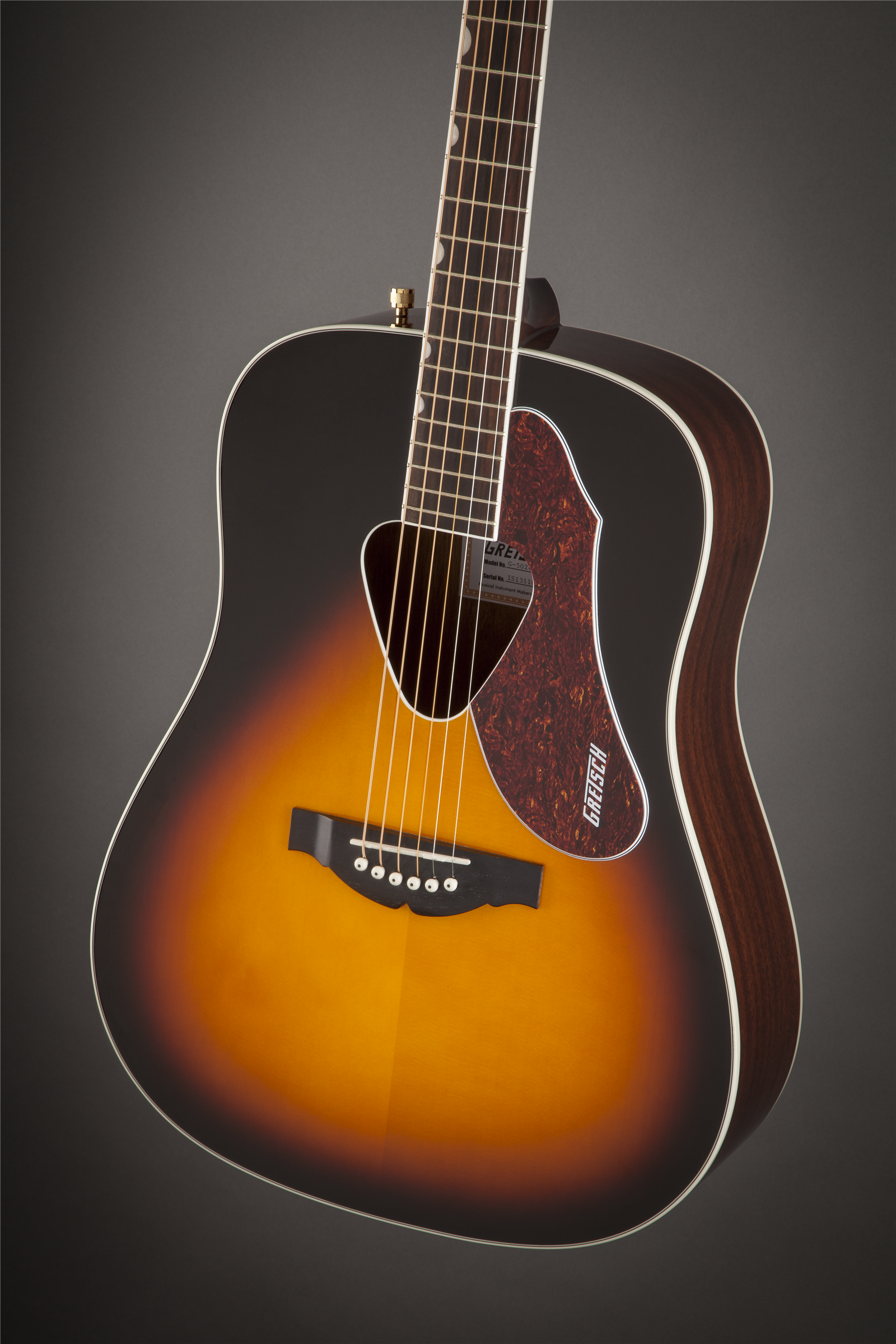

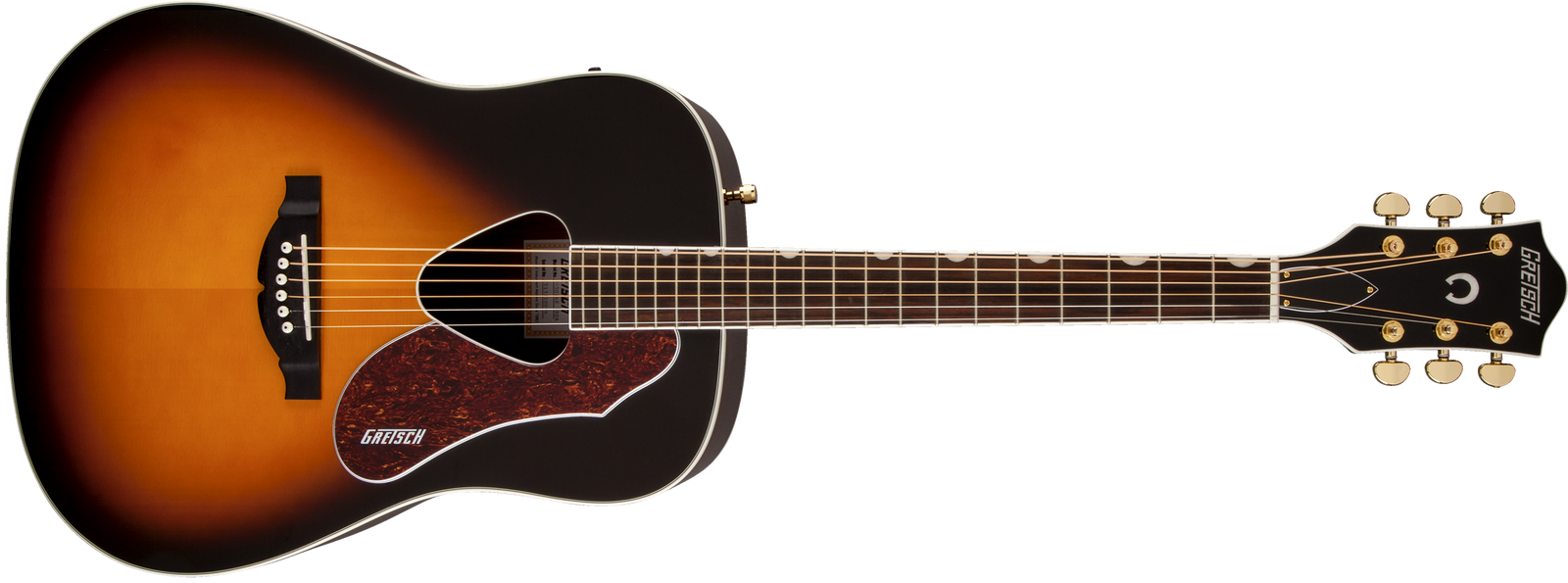

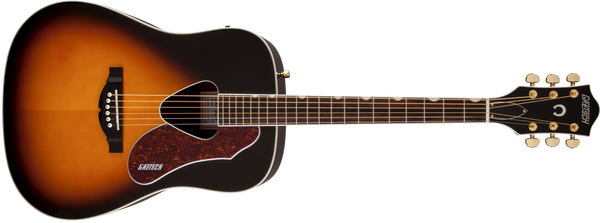

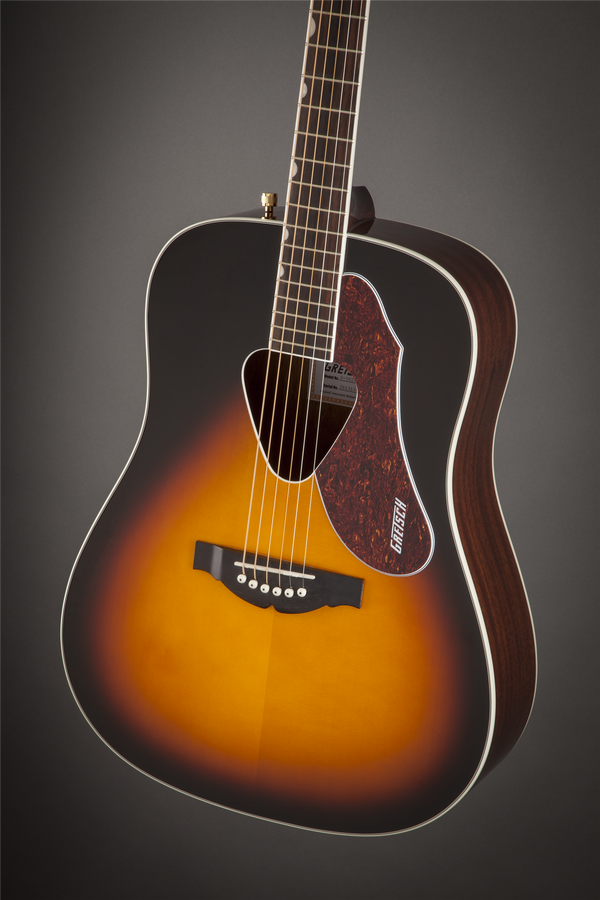

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5024E Rancher Dreadnought Electric Fishman Pickup System Sunburst listed above. For larger pics, click on an image to open in a new tab.
