Gretsch G5022CWFE-12 Rancher Falcon Acoustic-Electric 12-String White Specs

The G5022CWFE-12 Rancher Falcon Jumbo 12-String Cutaway Electric Fishman Pickup System White is a jumbo acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Acoustic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2714025505.

Key Features

Solid Spruce Top
Laminated Maple Back
Laminated Maple Sides
Mahogany Neck
Laurel with Compensated Synthetic Bone Saddle Fingerboard
25" (635 mm) Scale Length
1.875" (47.6 mm) Nut Width
12" (305 mm) Radius
Vintage-Style Frets
Rosewood with Compensated Synthetic Bone Saddle Bridge
Deluxe Die-Cast Tuning Machines

Product Identifiers

Model Name	G5022CWFE-12 Rancher Falcon Acoustic / Electric 12-String
Part Number	2714025505
Product Series	Acoustic Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Jumbo
UPC Code	885978460229

Factory Specifications

Body Construction

Body Material	Laminated Maple Back and Sides
Top Material	Solid Spruce
Back Material	Laminated Maple
Side Material	Laminated Maple
Body Shape	Jumbo
Body Finish	Gloss Polyester
Bracing	Scalloped X
Lower Bout Width	17" (43.2 cm)
Rosette	N/A

Hardware

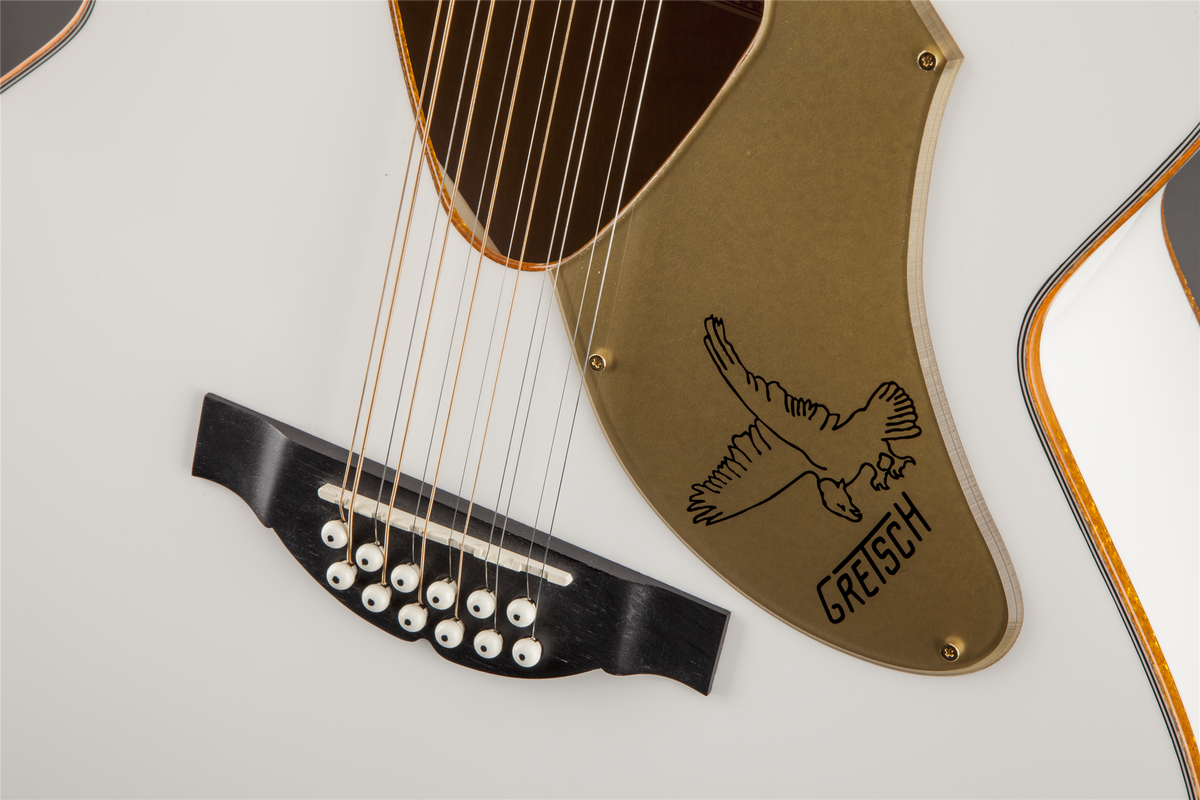

Bridge	Rosewood with Compensated Synthetic Bone Saddle
Tuning Machines	Deluxe Die-Cast

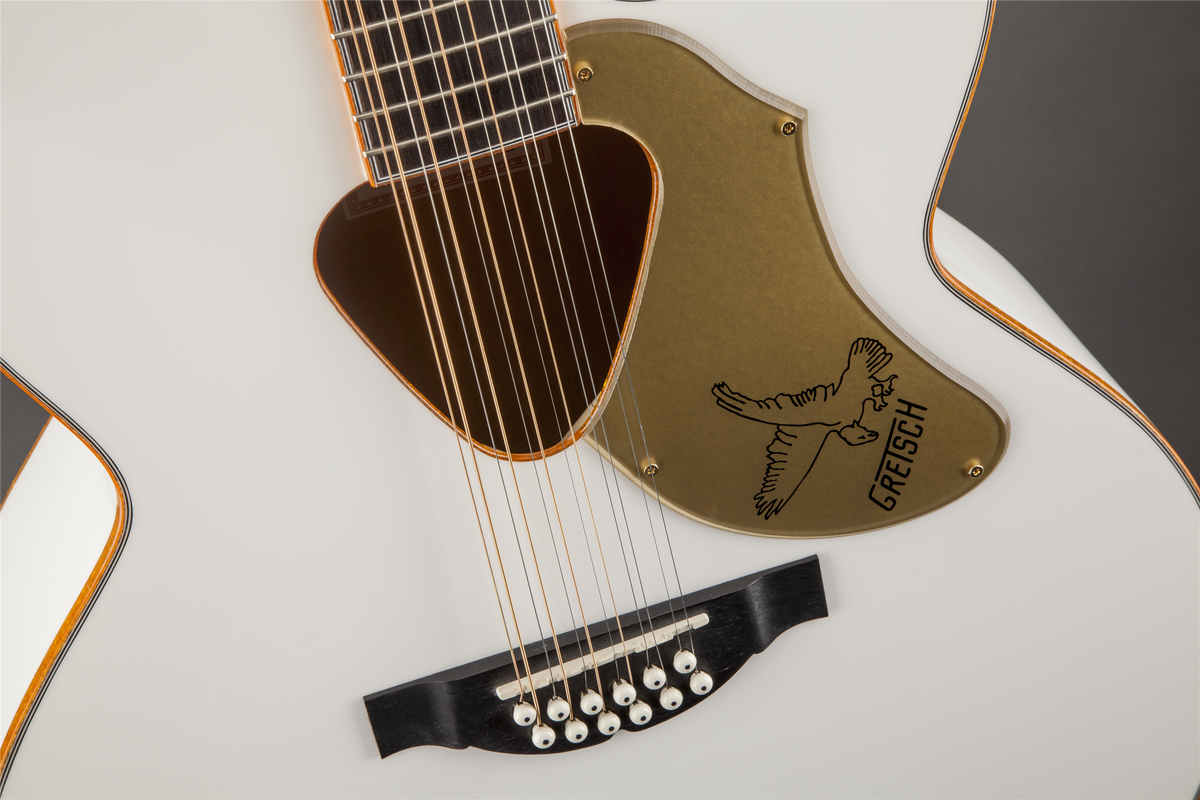

Pickguard	Gold Plexi with Falcon Graphic and Gretsch Logo
Bridge Cover / Tailpiece	Traditional Acoustic 12-String Bridge
Hardware Finish	Gold-Plated

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel with Compensated Synthetic Bone Saddle
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	21
Fret Size	Vintage-Style
Nut Width	1.875" (47.6 mm)
Scale Length	25" (635 mm)
Nut Material	Synthetic Bone
Neck Finish	Gloss Polyester
Headstock	Falcon Style

Electronics

Controls	Volume, Bass, Middle, Treble, Low Battery Indicator Light, Tuner On/Off Switch
Special Electronics	Fishman Presys III Pickup System with Active Onboard Preamp and Tuner

General

Orientation	Right-Hand
Strings	D'Addario EJ38 Phosphor Bronze, 12-String Light (.010-.047 Gauges)

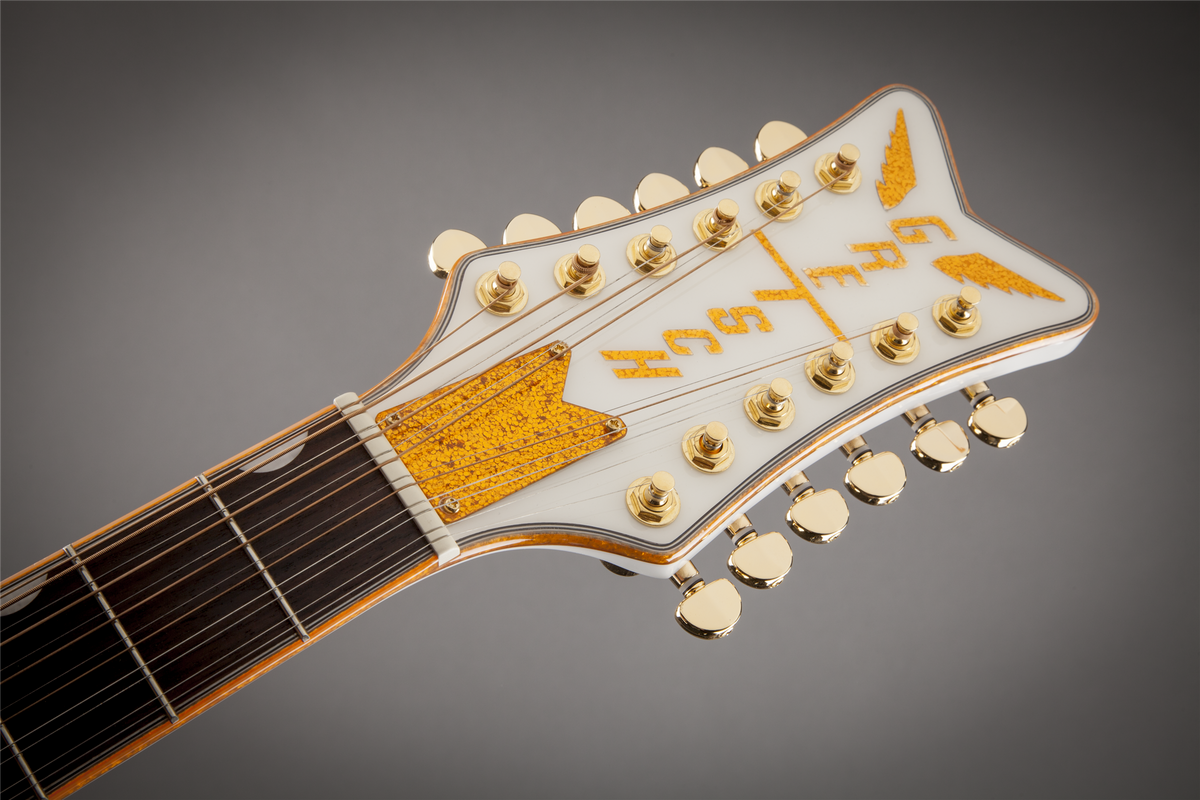

Unique Features	V-Shaped Matching White Painted Falcon Headstock with Gold-Sparkle Inlaid Gretsch Vertical Winged Logo, Traditional Gretsch Rancher "Triangular" Sound Hole, Gold Sparkle Bound Body Neck and Headstock with B/W/B/W Purfling, Gold Sparkle Heel Cap, Synthetic Bone Nut, Knurled Strap Retainer Knobs, Adjustable Truss Rod with Headstock Adjustment
Case / Gig Bag	Optional G6302 Gretsch XL Jumbo Hardshell (p/n 099-6502-000)
Recommended Case	Optional: 099-6502-000 Economy Case - G6302 - XL Jumbo Flat Top Case

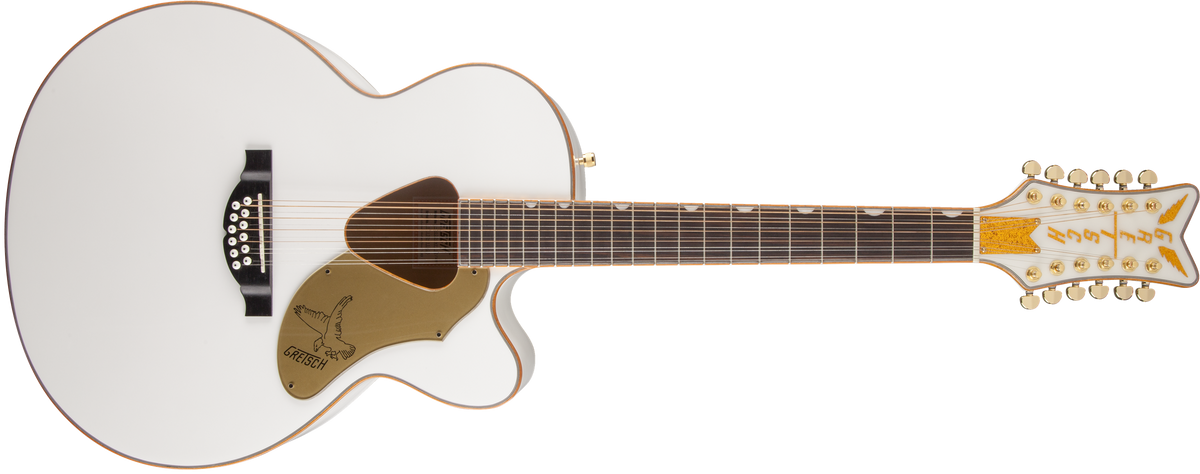

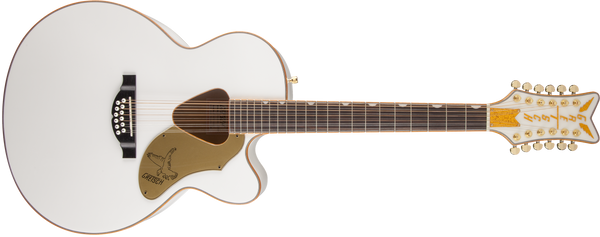

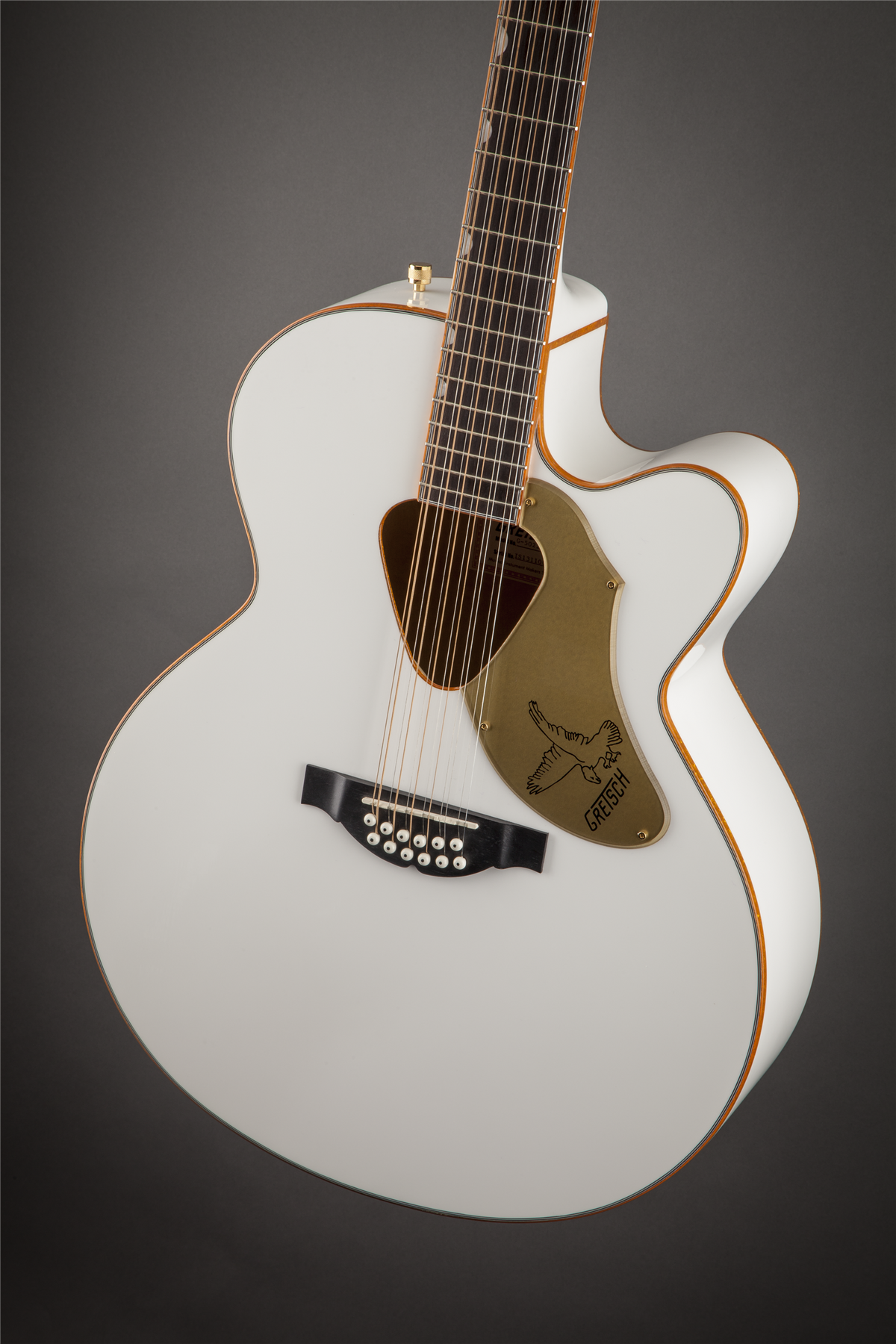

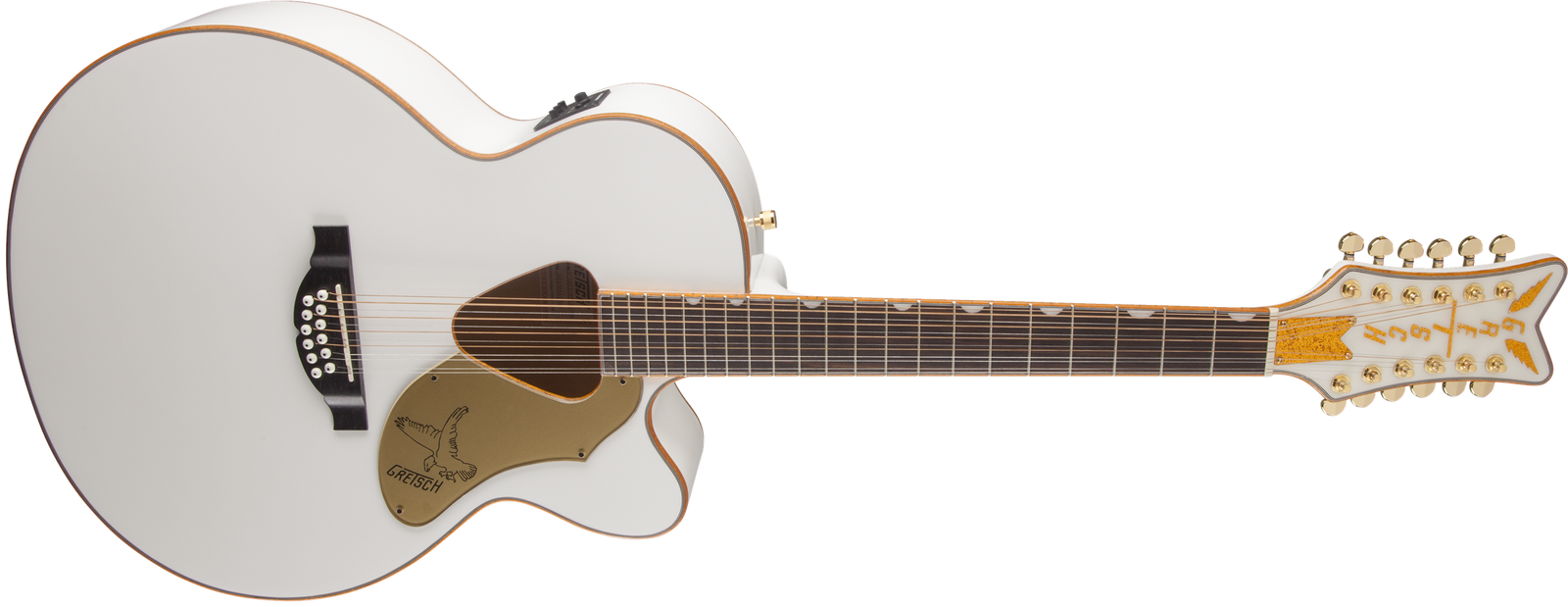

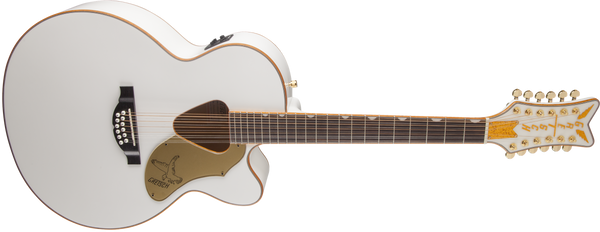

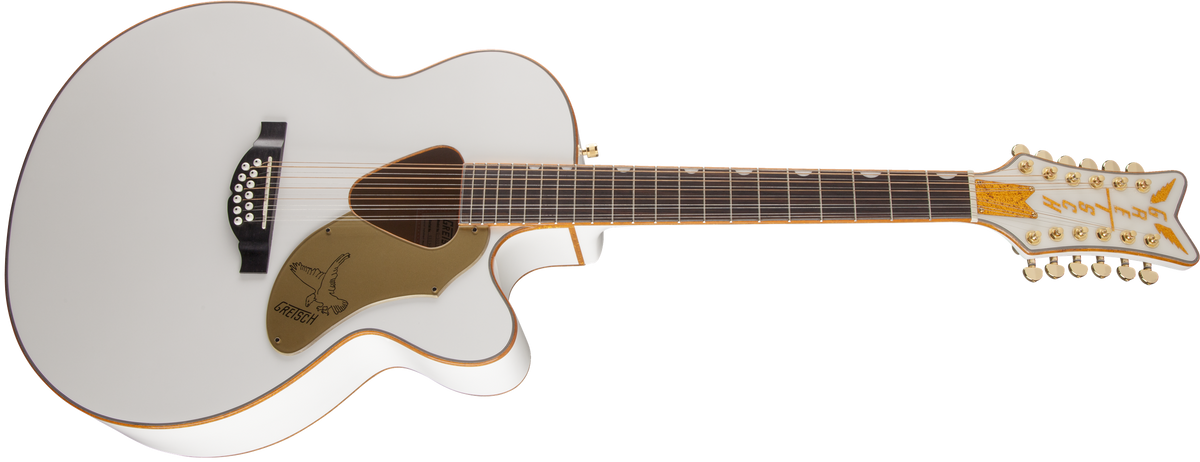

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5022CWFE-12 Rancher Falcon Jumbo 12-String Cutaway Electric Fishman Pickup System White listed above. For larger pics, click on an image to open in a new tab.
