Gretsch G5021E Rancher Penguin Parlor Acoustic-Electric Mint Metallic Specs

The G5021E Rancher Penguin Parlor Acoustic/Electric Mint Metallic is a parlor acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Acoustic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2714014549.

Key Features

Solid Spruce Top
Laminated Maple Back
Laminated Maple Sides
Mahogany Neck
Laurel Fingerboard
25" (635 mm) Scale Length
1.675" (42.5 mm) Nut Width
12" (305 mm) Radius
Vintage-Style Frets
Laurel Bridge
Deluxe Die-Cast Tuning Machines

Product Identifiers

Model Name	G5021E Rancher Penguin Parlor Acoustic/Electric
Part Number	2714014549
Product Series	Acoustic Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Parlor
UPC Code	717669554040

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Solid Spruce
Back Material	Laminated Maple
Side Material	Laminated Maple
Body Shape	Penguin Acoustic
Body Binding	Gold Sparkle with W/B/W/B Purfling
Body Finish	Gloss
Bracing	X-Bracing
Upper Bout Width	9.63" (24.46 cm)
Lower Bout Width	13.8125" (351mm)
Waist	8.25" (21.0 cm)
Rosette	N/A

Hardware

Bridge	Laurel
Tuning Machines	Deluxe Die-Cast
Pickguard	Gold Plexi with Black Penguin Graphic and Gretsch Logo
Bridge Cover / Tailpiece	N/A
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	20
Fret Size	Vintage-Style
Nut Width	1.675" (42.5 mm)
Scale Length	25" (635 mm)
Nut Material	Synthetic Bone
Neck Shape	Standard "U"
Neck Finish	Gloss
Headstock Binding	Gold Sparkle with W/B/W Purfling

Electronics

Controls	Volume, Bass, Middle, Treble, Low Battery Indicator Light, Tuner On/Off Switch
Special Electronics	Fishman Presys III Pickup System with Active Onboard Preamp and Tuner

General

Orientation	Right-Hand
Strings	D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges)
Case / Gig Bag	Optional G6291 Gretsch Folk Hardshell (p/n 099-6490-000); Optional G2188 Folk/Rancher JR/Orchestra Gig Bag (p/n 099-6489-000)

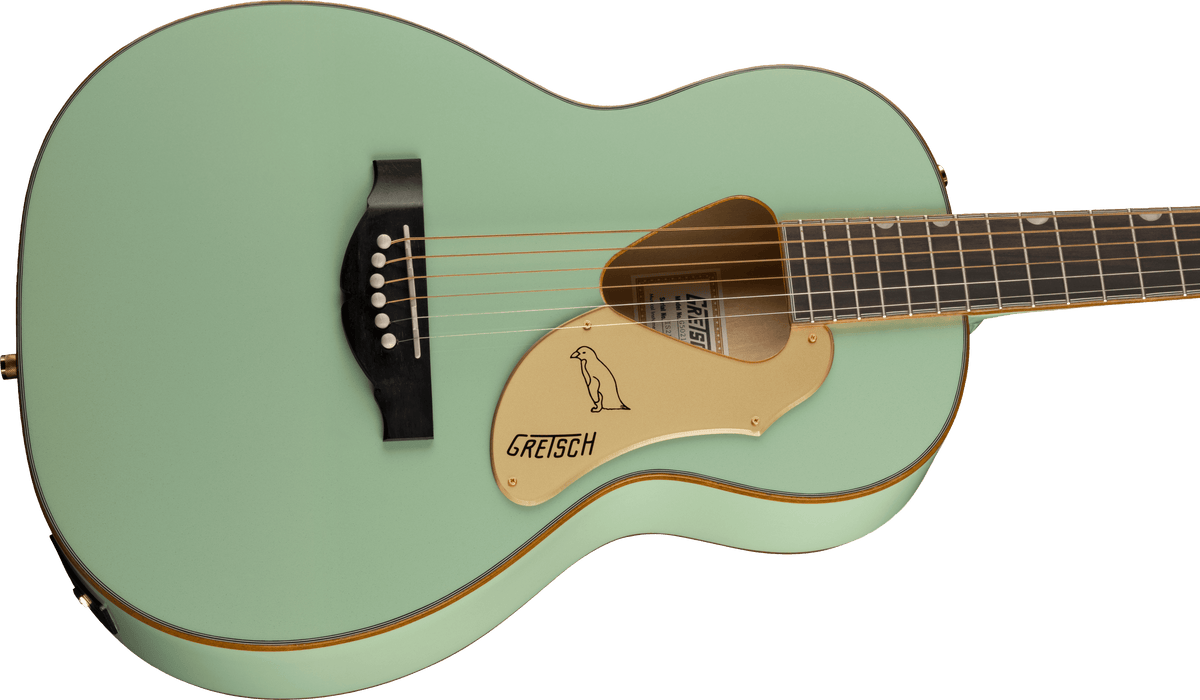

Reference Images

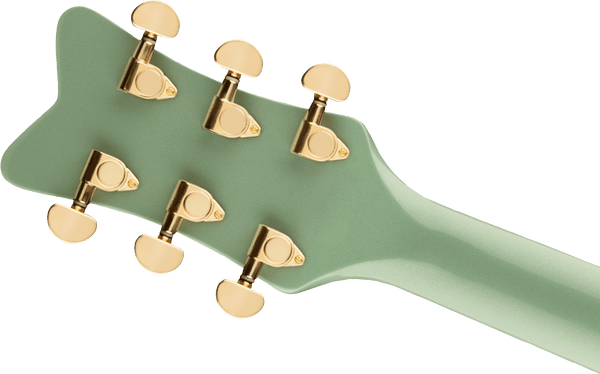

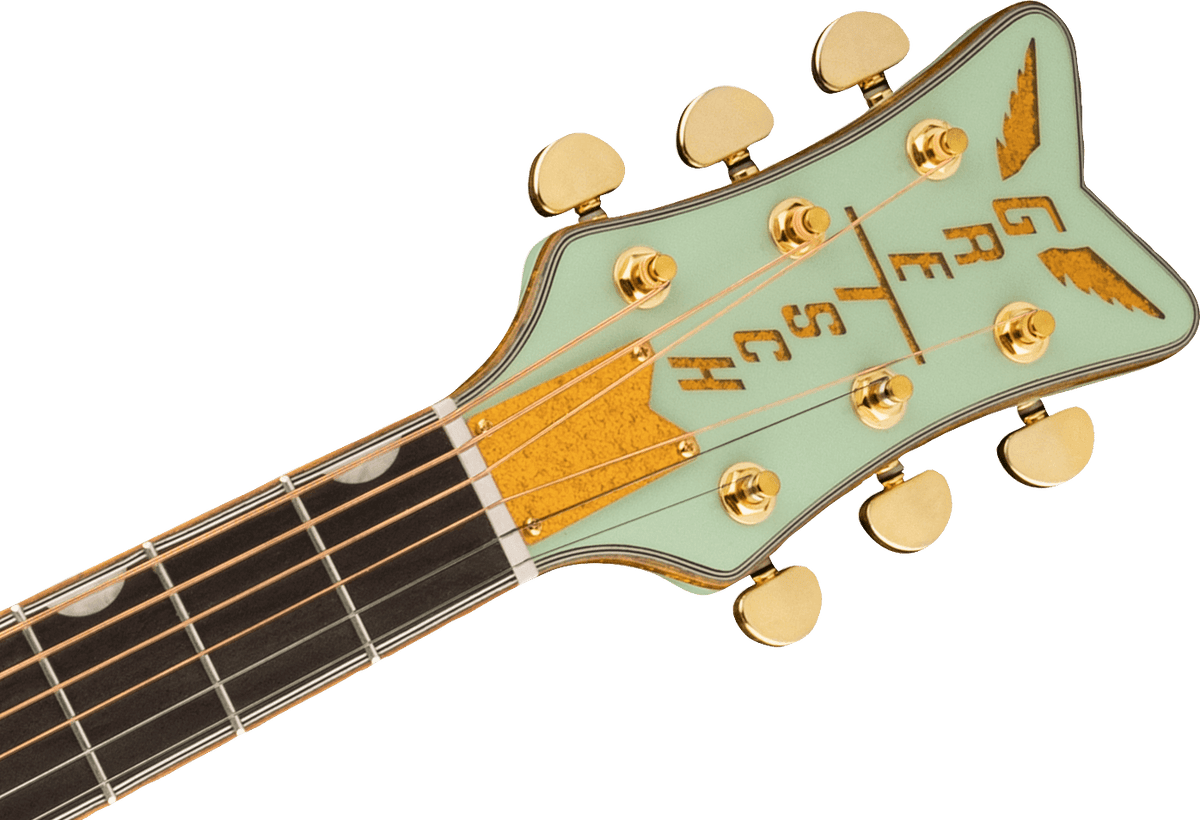

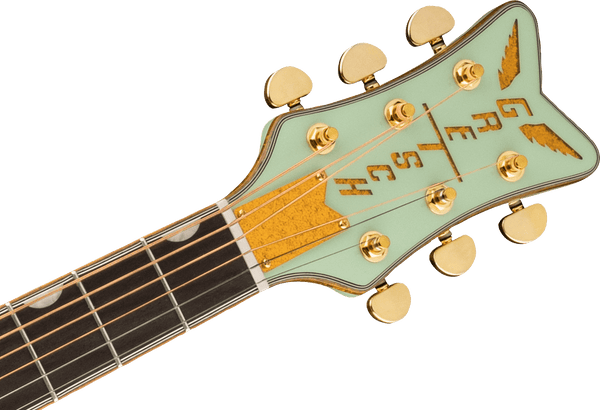

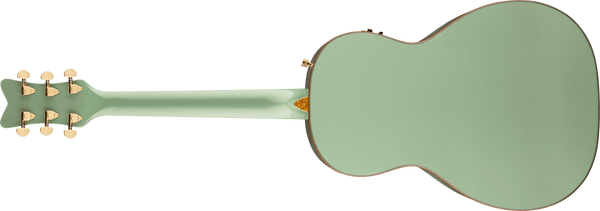

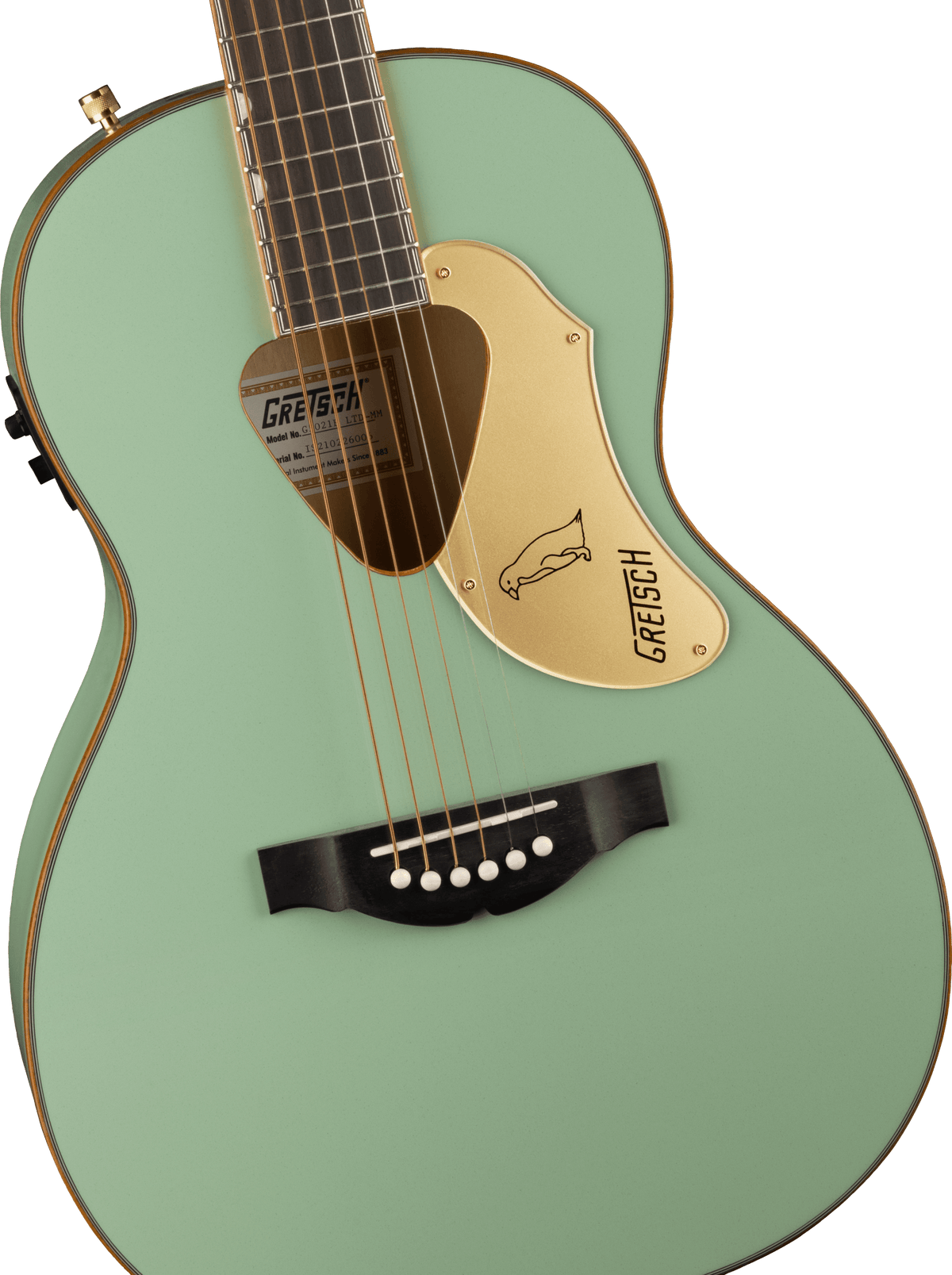

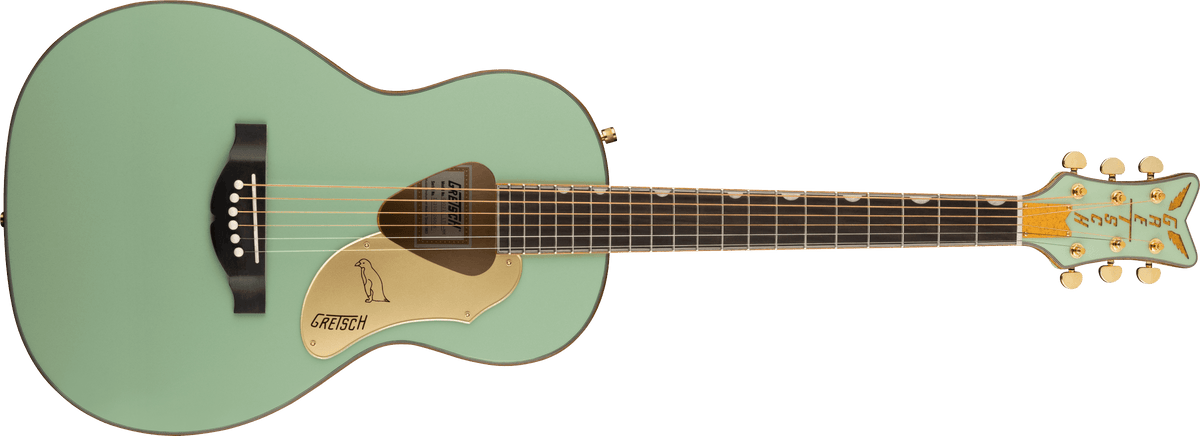

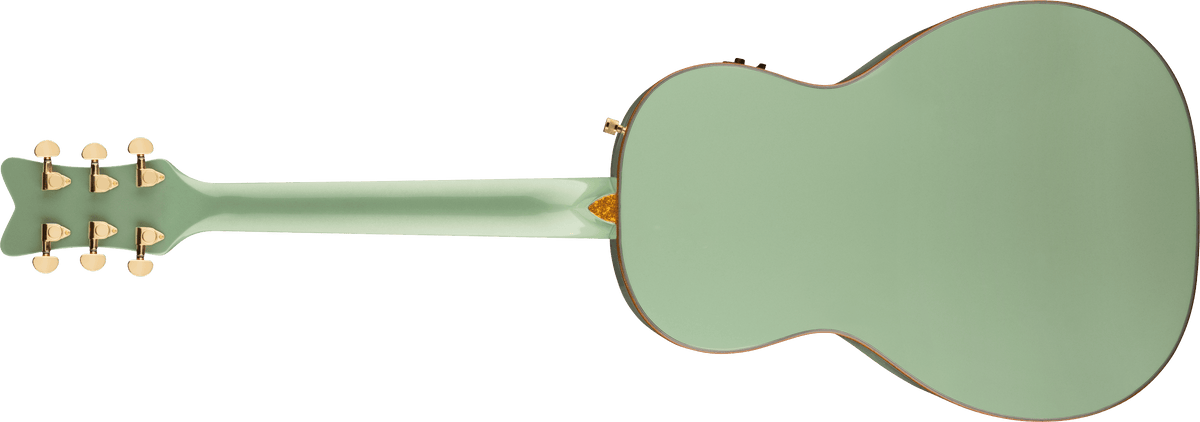

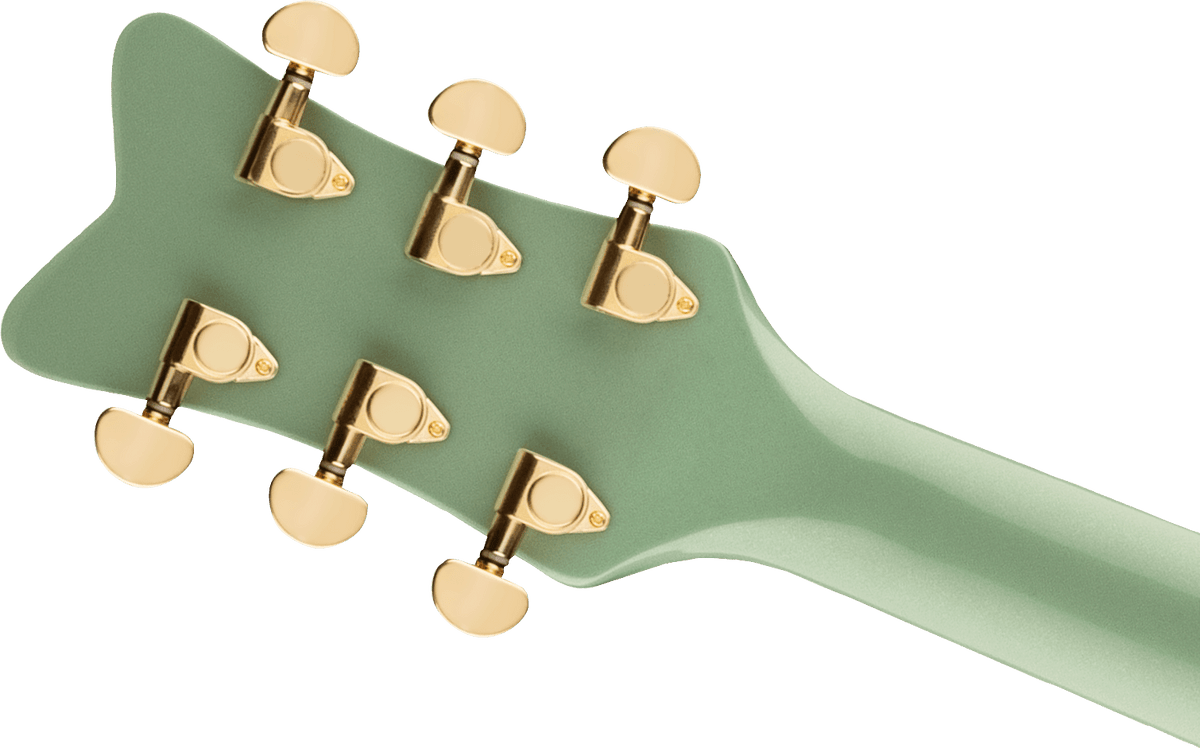

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5021E Rancher Penguin Parlor Acoustic/Electric Mint Metallic listed above. For larger pics, click on an image to open in a new tab.
