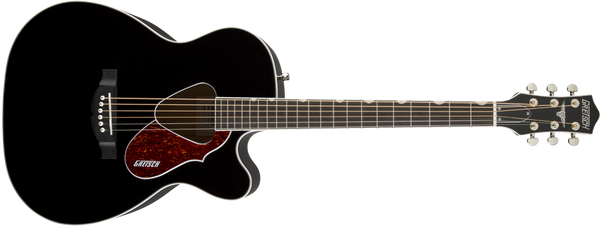

Gretsch G5013CE Rancher Jr. Cutaway Acoustic-Electric Black Specs

The G5013CE Rancher Jr. Cutaway Acoustic Electric Fishman Pickup System Black is a grand concert acoustic guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Acoustic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2714013506.

Key Features

Laminated Spruce Top
Laminated Mahogany Back
Laminated Mahogany Sides
Mahogany Neck
Laurel Fingerboard
25" (635 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Vintage-Style Frets
Laurel with Compensated Synthetic Bone Saddle Bridge
Deluxe Die-Cast Tuning Machines

Product Identifiers

Model Name	G5013CE Rancher Jr. Cutaway Acoustic / Electric
Part Number	2714013506
Product Series	Acoustic Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Acoustic Guitar
Category	Grand Concert
UPC Code	885978519156

Factory Specifications

Body Construction

Body Material	Laminated Mahogany Back and Sides
Top Material	Laminated Spruce
Back Material	Laminated Mahogany
Side Material	Laminated Mahogany
Body Shape	Rancher Jr.
Body Finish	Gloss Polyester
Bracing	Scalloped X
Rosette	N/A

Hardware

Bridge	Laurel with Compensated Synthetic Bone Saddle
Tuning Machines	Deluxe Die-Cast
Pickguard	3-Ply Tortoiseshell
Bridge Cover / Tailpiece	Traditional Acoustic Bridge
Hardware Finish	Nickel-Plated

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Number of Frets	21
Fret Size	Vintage-Style
Nut Width	1.6875" (42.86 mm)
Scale Length	25" (635 mm)
Nut Material	Synthetic Bone
Neck Shape	"C" Shape
Neck Finish	Gloss Polyester

Electronics

Controls	Volume, Bass, Middle, Treble, Low Battery Indicator Light, Tuner On/Off Switch
Special Electronics	Fishman Presys III Pickup System with Active Onboard Preamp and Tuner

General

Orientation	Right-Hand
Strings	D'Addario EJ16 Phosphor Bronze, Light (.012-.053 Gauges)
Case / Gig Bag	Optional G6292 Gretsch Orchestra/Rancher Jr Hardshell (p/n 099-6491-000); Optional G2188 Folk/Rancher Jr/Orchestra Gig Bag (p/n 099-6489-000)
Recommended Case	Optional: 099-6489-000 Gig Bag - G2188 - Folk/Rancher Junior/Orchestra Acoustic

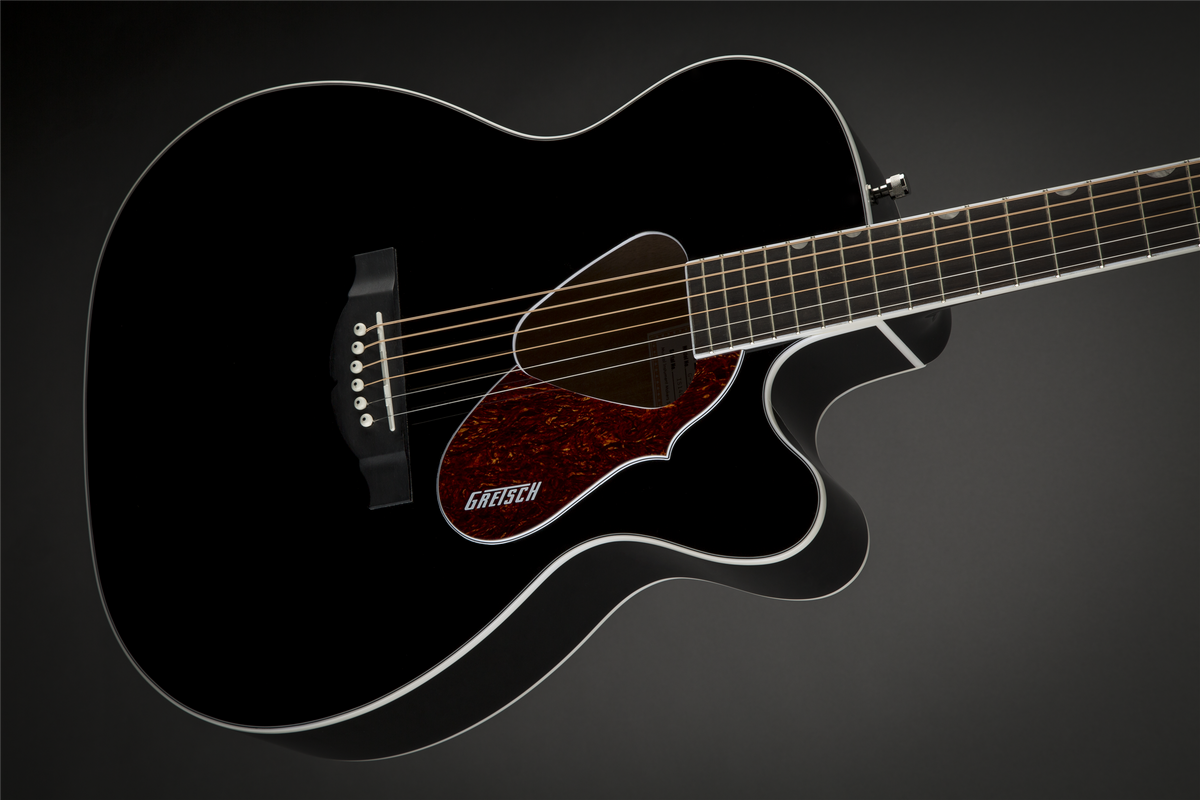

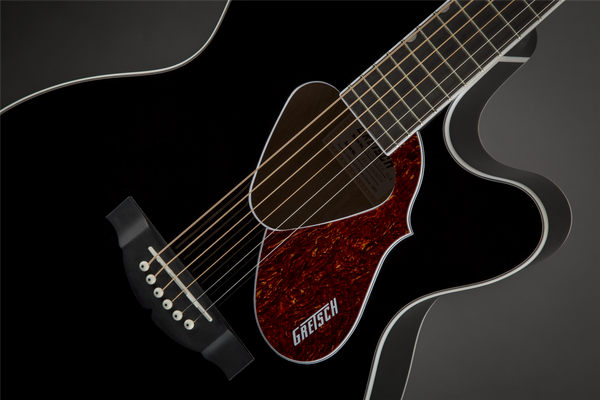

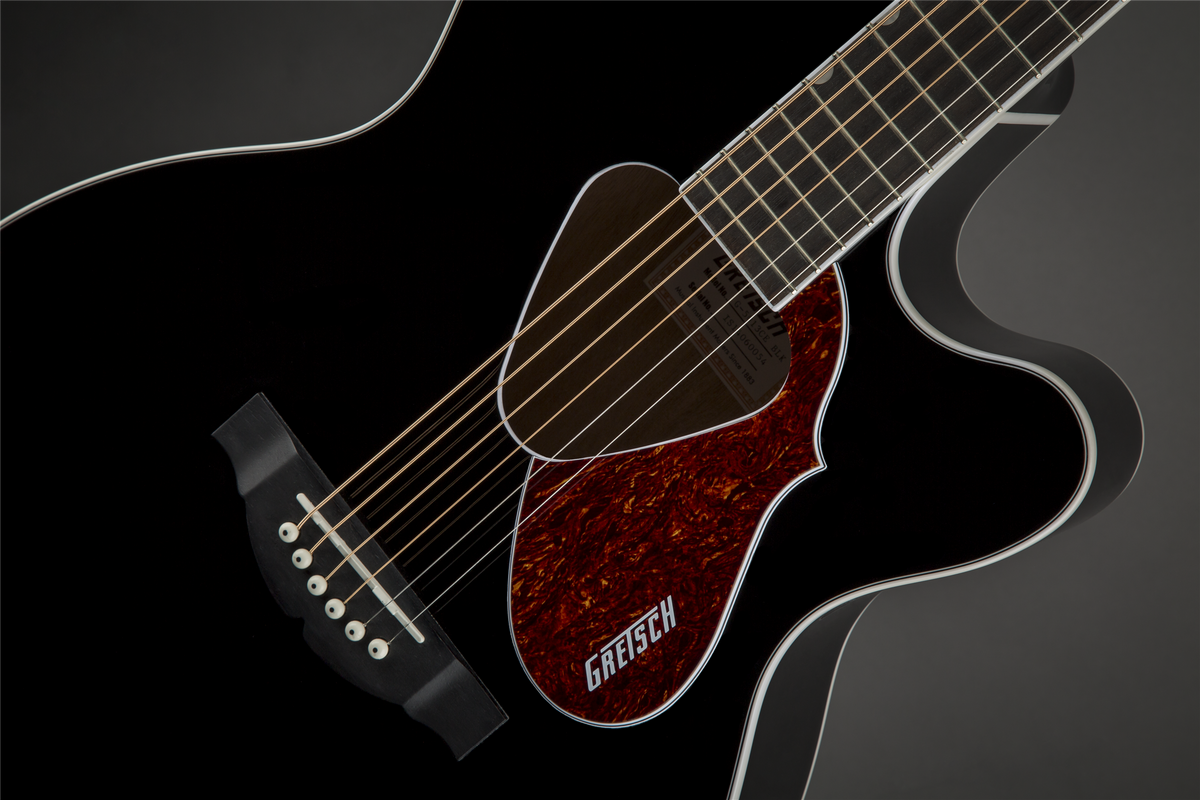

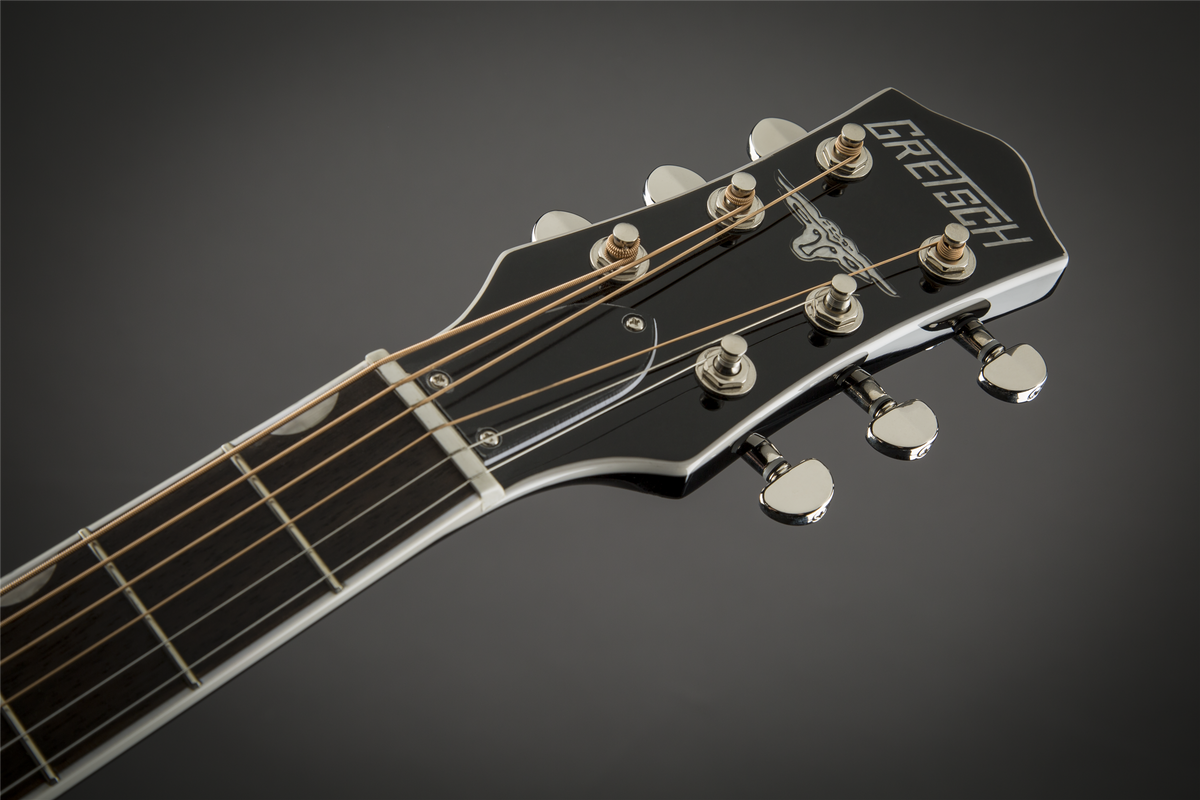

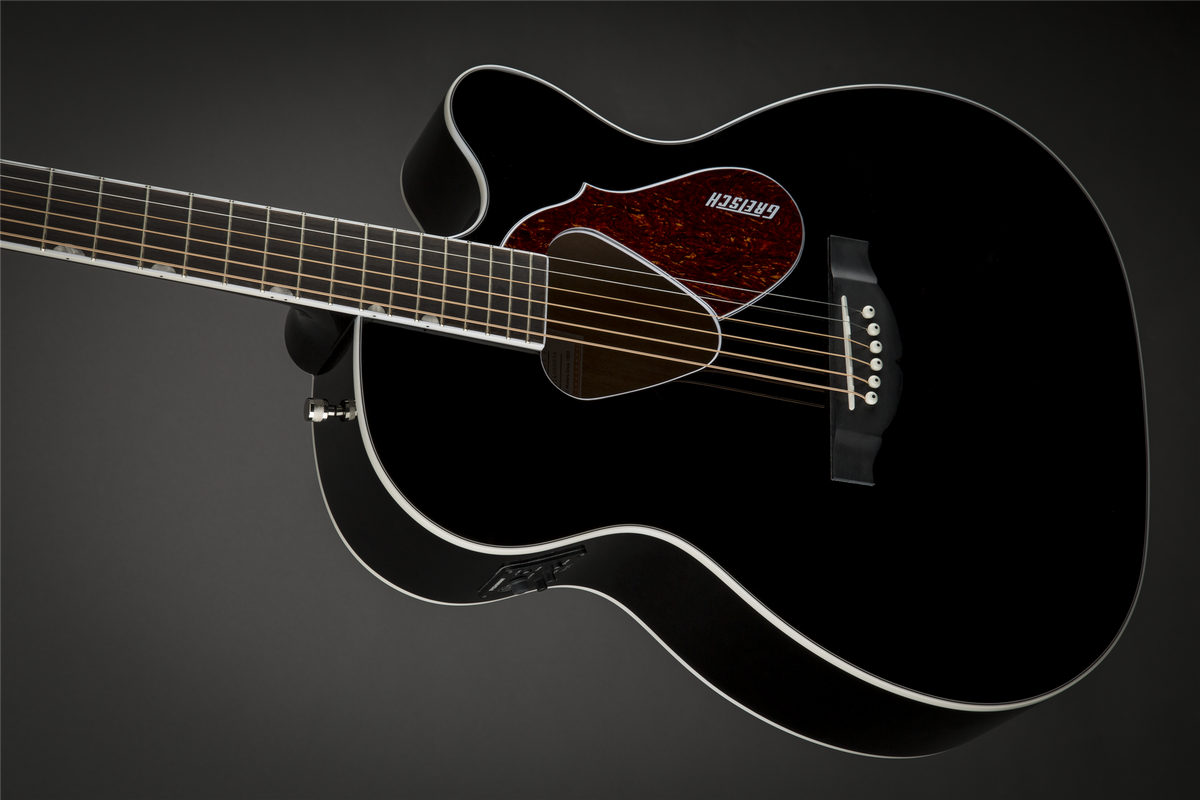

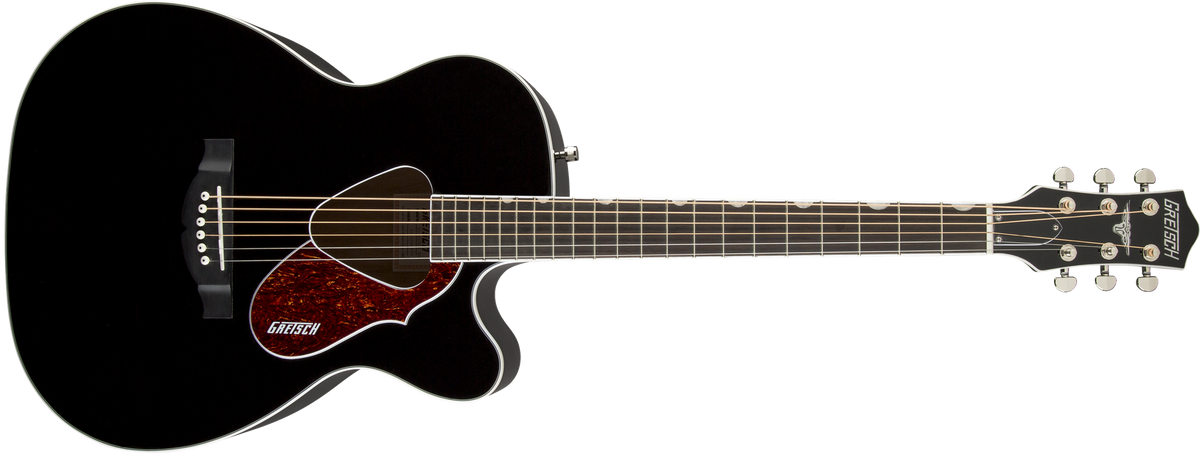

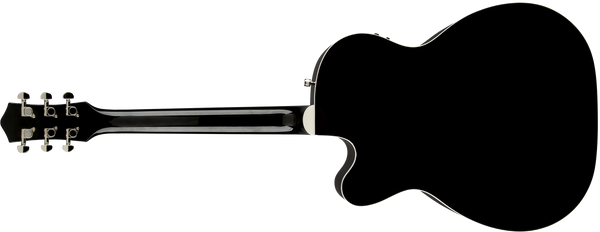

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G5013CE Rancher Jr. Cutaway Acoustic Electric Fishman Pickup System Black listed above. For larger pics, click on an image to open in a new tab.
