Gretsch G2627TG Streamliner Center Block Bigsby Gold Hardware Black Specs

The G2627TG Streamliner Center Block with Bigsby and Gold Hardware Laurel Fingerboard Black is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2807200506.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Tuning Machines
Broad'Tron Bridge Pickup
Broad'Tron Middle Pickup
Broad'Tron Neck Pickup

Product Identifiers

Model Name	G2627TG Streamliner Center Block with Bigsby and Gold Hardware
Part Number	2807200506
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978809936

Factory Specifications

Body Construction

Body Material	Laminated Flame Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Center Block
Body Binding	White with B/W/B Purfling
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	11.5" (292 mm)
Lower Bout Width	16" (406 mm)
Waist	9.75" (248 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	1-Ply Black
Control Knobs	Black Vintage-Style
Bridge Cover / Tailpiece	Bigsby B70
Hardware Finish	Gold

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Block
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	Broad'Tron
Middle Pickup	Broad'Tron
Neck Pickup	Broad'Tron
Pickup Configuration	HHH
Controls	Volume 1. Neck Pickup, Volume 2. Middle Pickup, Volume 3. Bridge Pickup, Master Volume, Master Tone
Pickup Switching	3-Position Toggle #1: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup; 3-Position Toggle #2: Position 1: Middle Pickup Off, Position 2. Neck, Bridge, Middle Pickups, Position 3: Neck and Middle Pickups

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G2622T Gretsch Hardshell (p/n 099-2622-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)

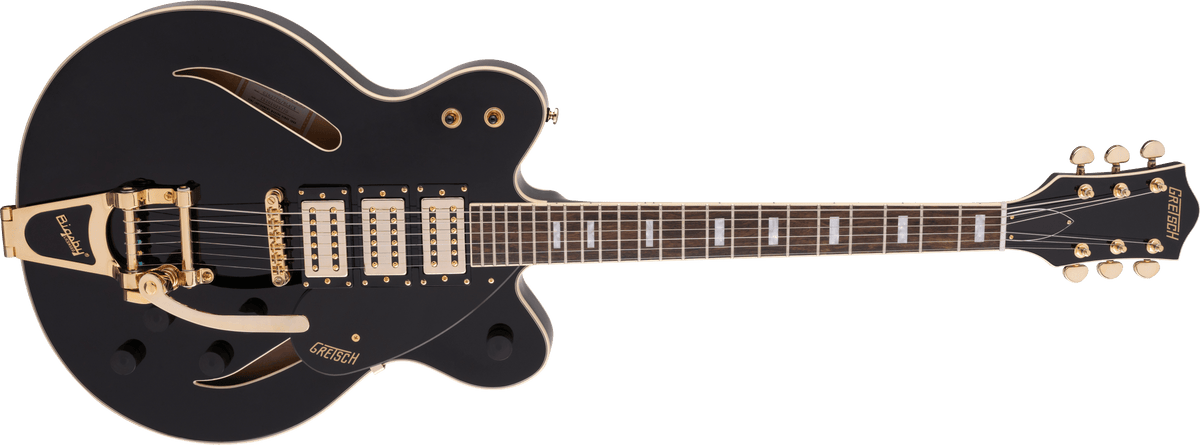

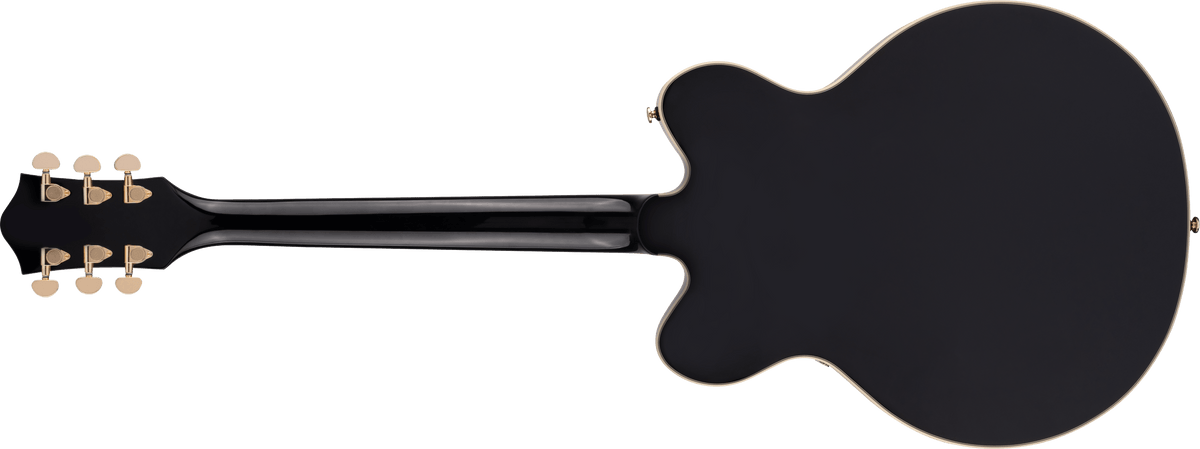

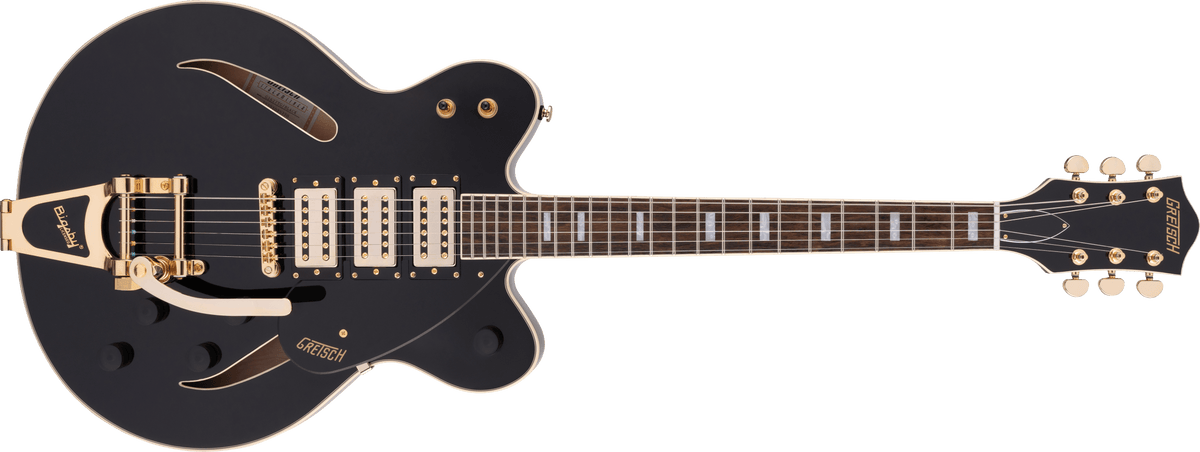

Reference Images

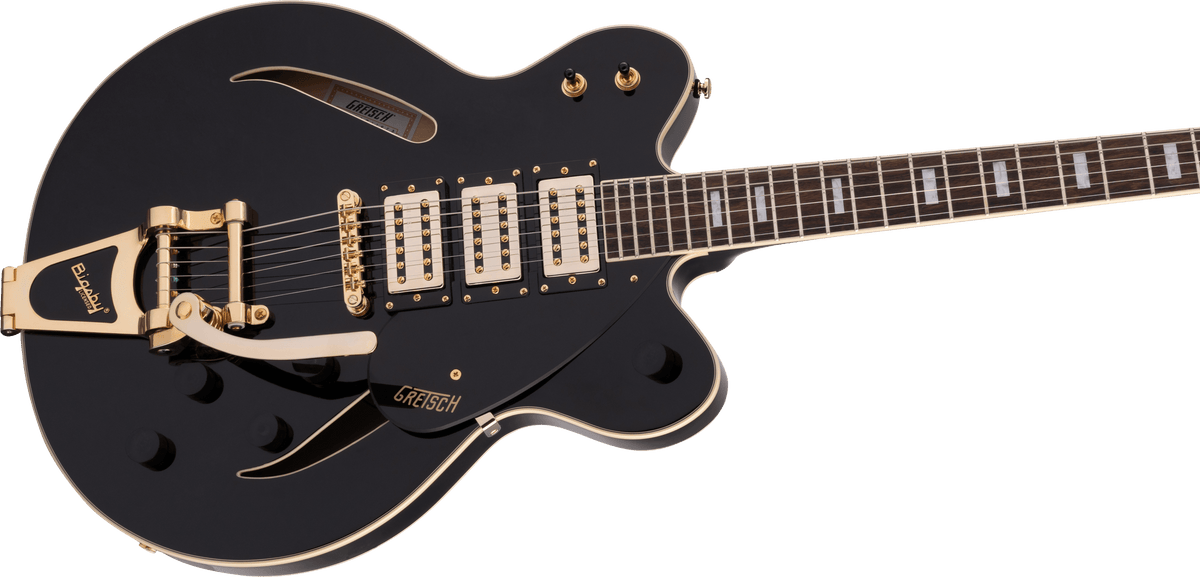

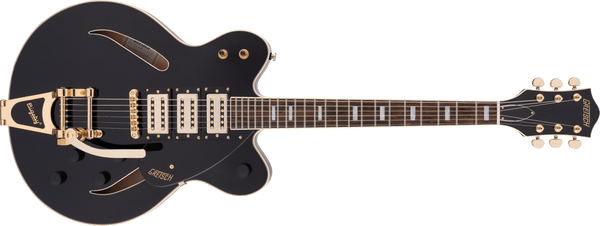

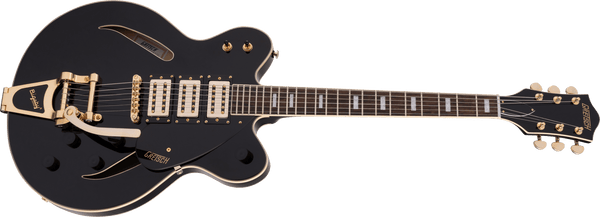

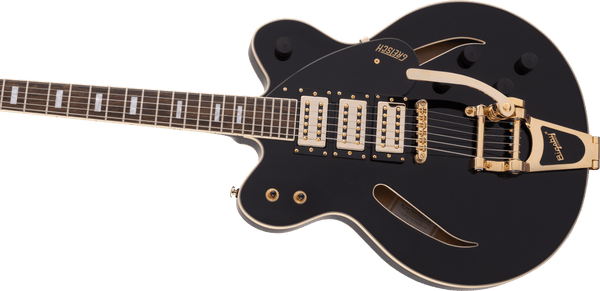

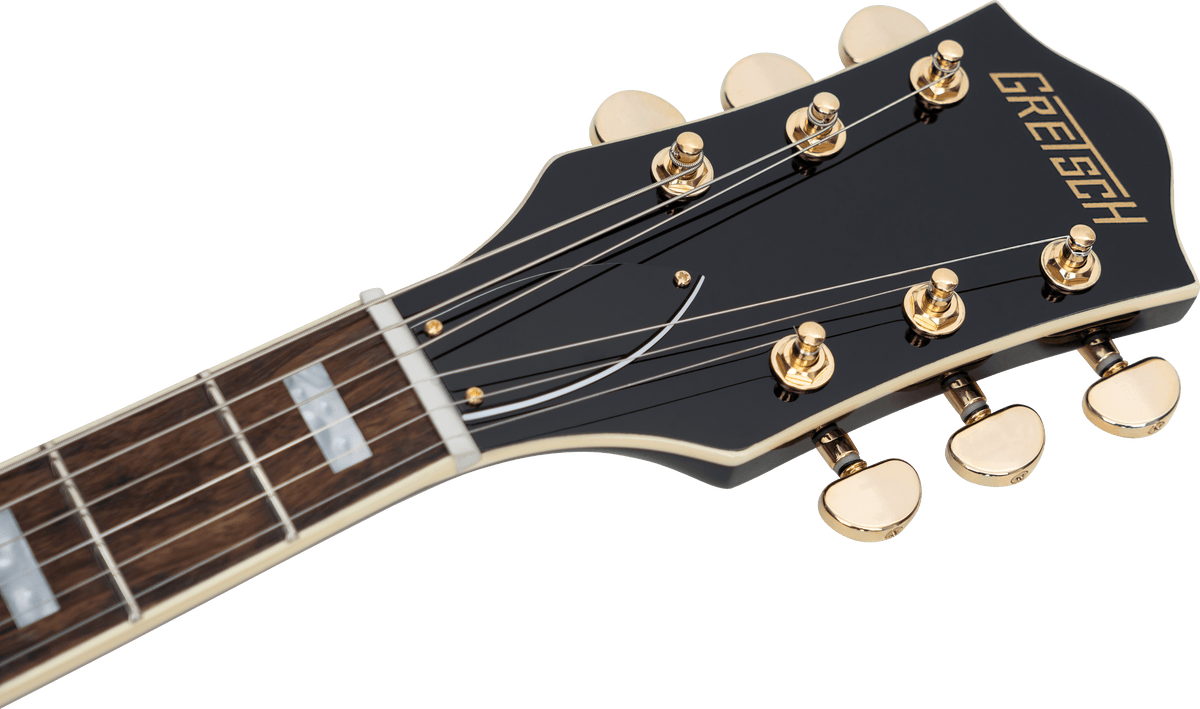

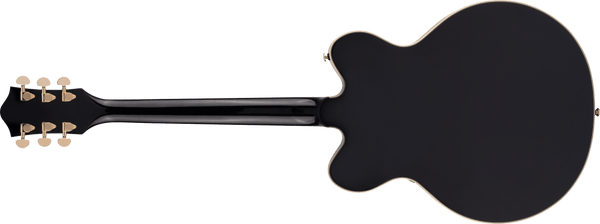

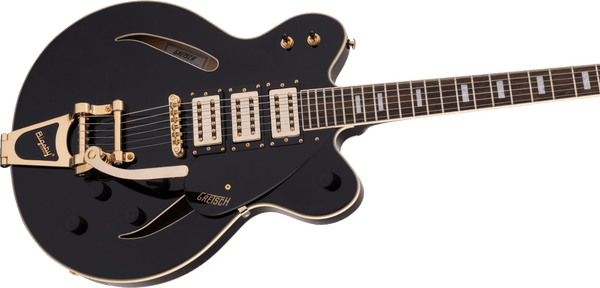

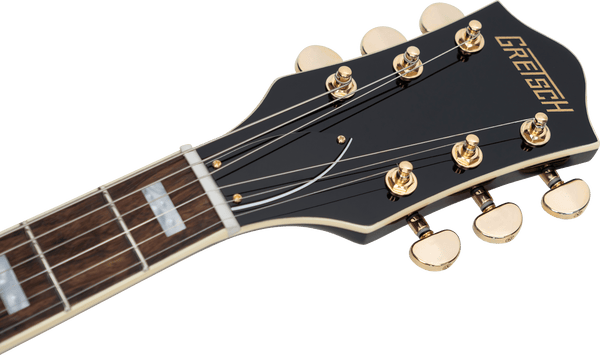

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2627TG Streamliner Center Block with Bigsby and Gold Hardware Laurel Fingerboard Black listed above. For larger pics, click on an image to open in a new tab.
