Gretsch G2622TG-P90 Limited Edition Streamliner Center Block P90 Bigsby Gold Hardware Candy Apple Red Specs

The G2622TG-P90 Limited Edition Streamliner Center Block P90 with Bigsby and Gold Hardware Laurel Fingerboard Candy Apple Red is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Limited Edition model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2807100509.

Key Features

Arched Maple Top
Arched Maple Body
Maple Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.685" (42.8 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast Tuning Machines
P90 Soap Bar Bridge Pickup
P90 Soap Bar Neck Pickup

Product Identifiers

Model Name	G2622TG-P90 Limited Edition Streamliner Center Block P90 with Bigsby and Gold Hardware
Part Number	2807100509
Product Series	Limited Edition
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978308422

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Maple
Back Material	Arched Maple
Body Shape	Streamliner Center Block
Body Binding	Aged White with B/W/B Purfling
Body Finish	Satin
Bracing	Center Block
Upper Bout Width	11.5" (29.2 cm)
Lower Bout Width	16" (40.6 cm)
Waist	9.75” (24.76 cm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	3-Ply Tortoiseshell
Control Knobs	Black Vintage-Style
Bridge Cover / Tailpiece	Bigsby-Licensed B70 Vibrato
Hardware Finish	Gold

Neck Construction

Neck Material	Maple
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Big Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.685" (42.8 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Standard "U"
Neck Construction	Set-Neck
Neck Finish	Satin

Electronics

Bridge Pickup	P90 Soap Bar
Neck Pickup	P90 Soap Bar
Pickup Configuration	P90 / P90
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional Gig Bag 0996458000 / Hardshell Case 0992622000

Reference Images

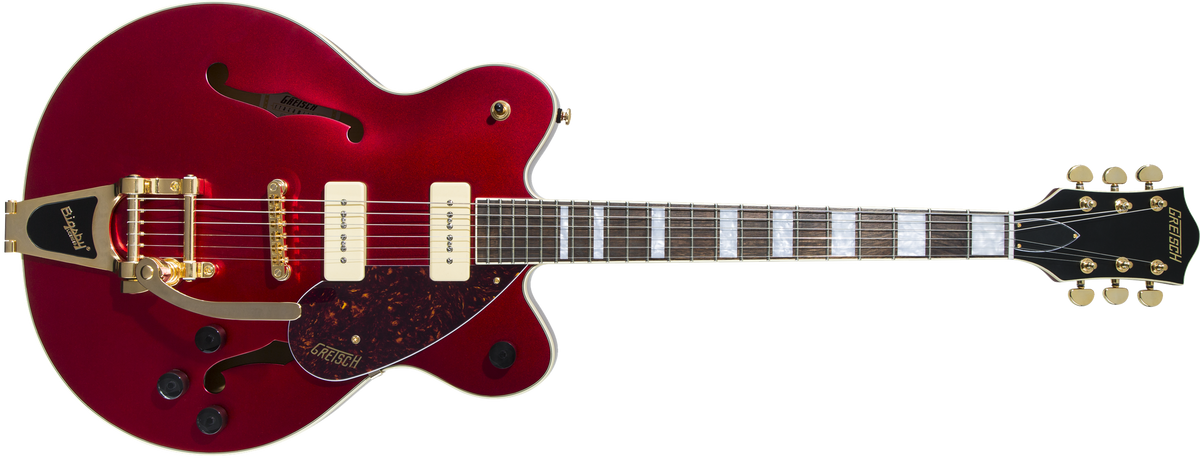

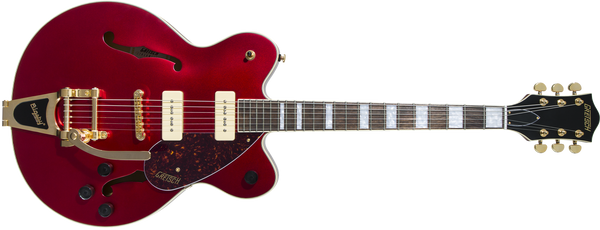

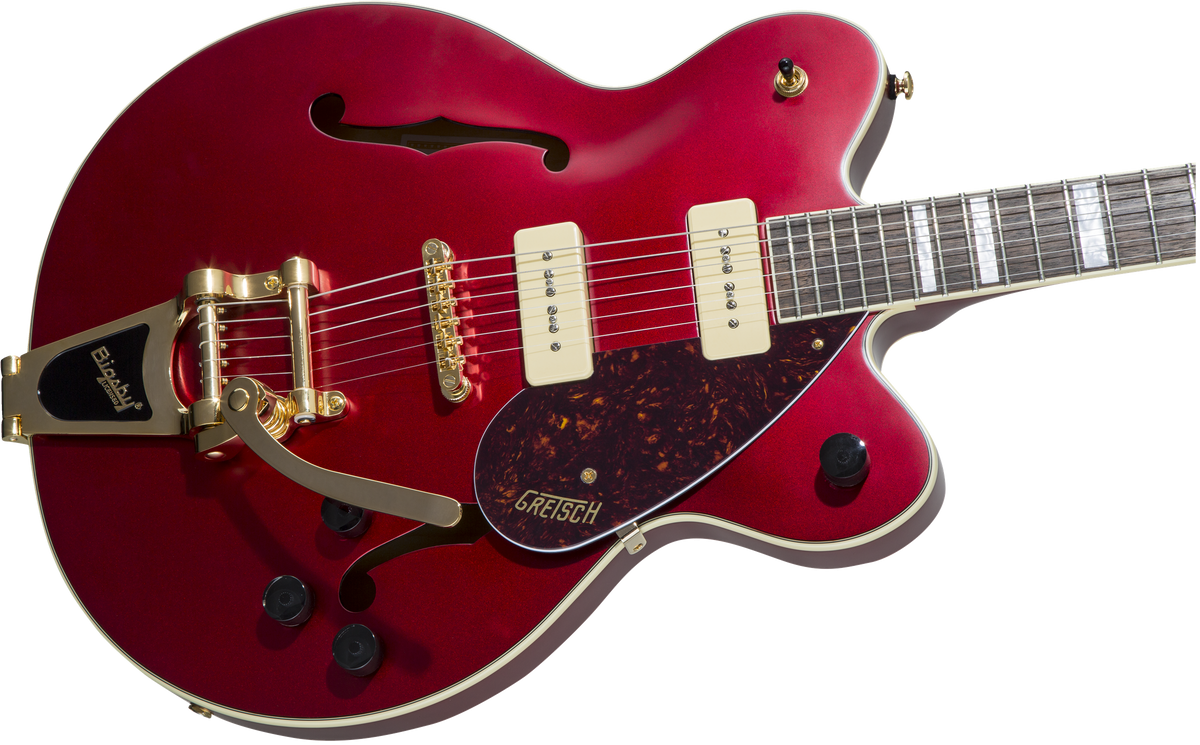

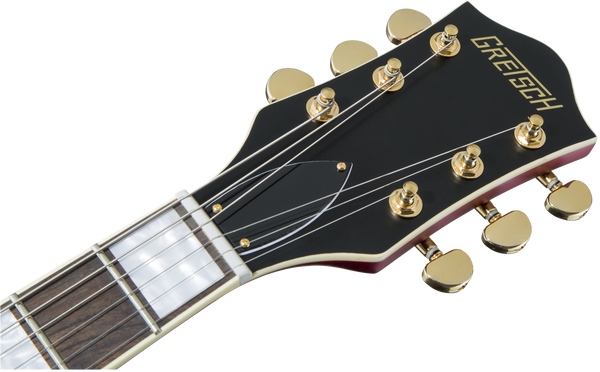

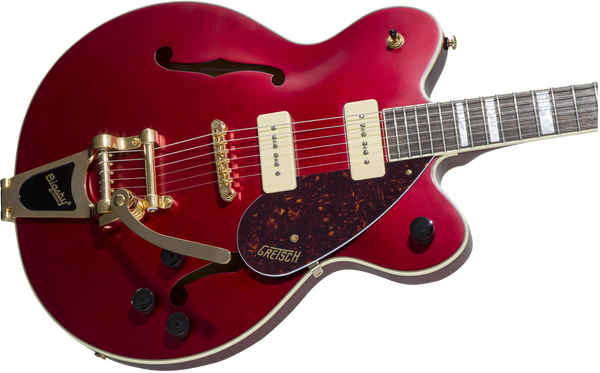

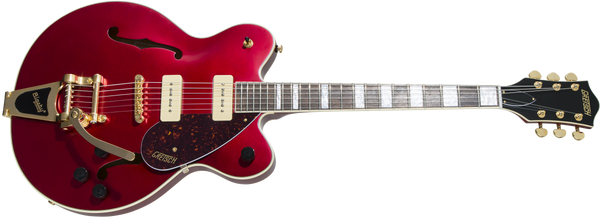

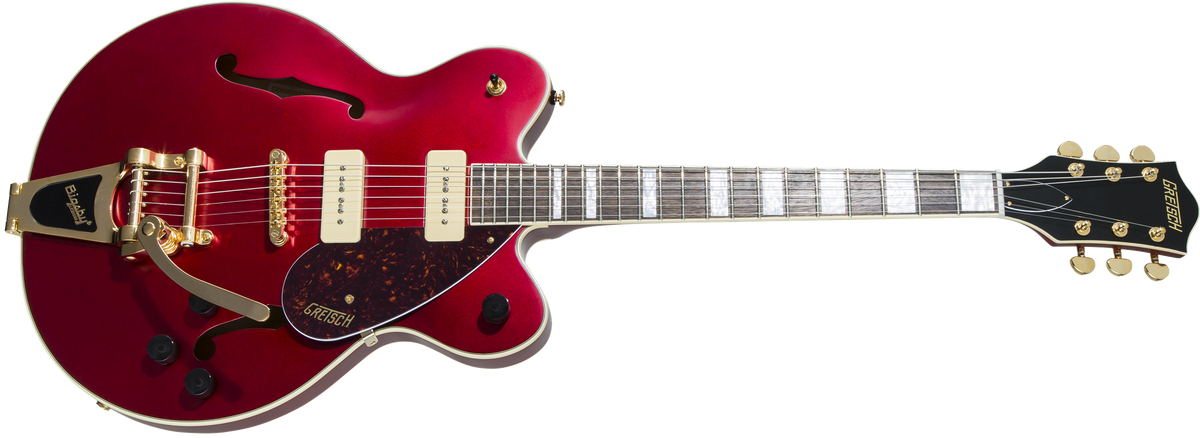

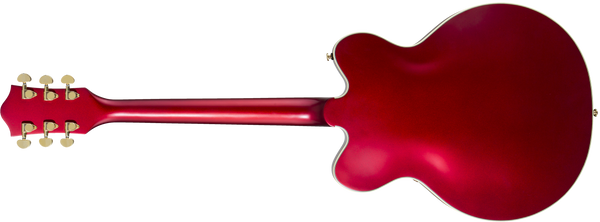

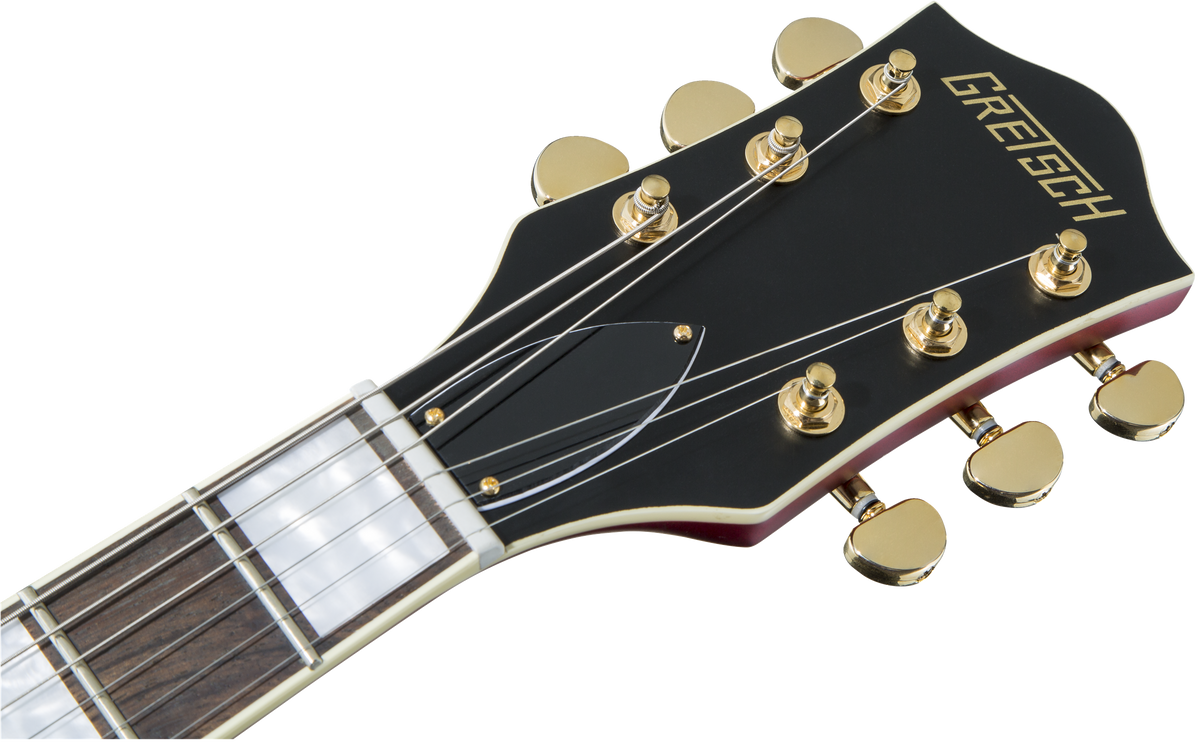

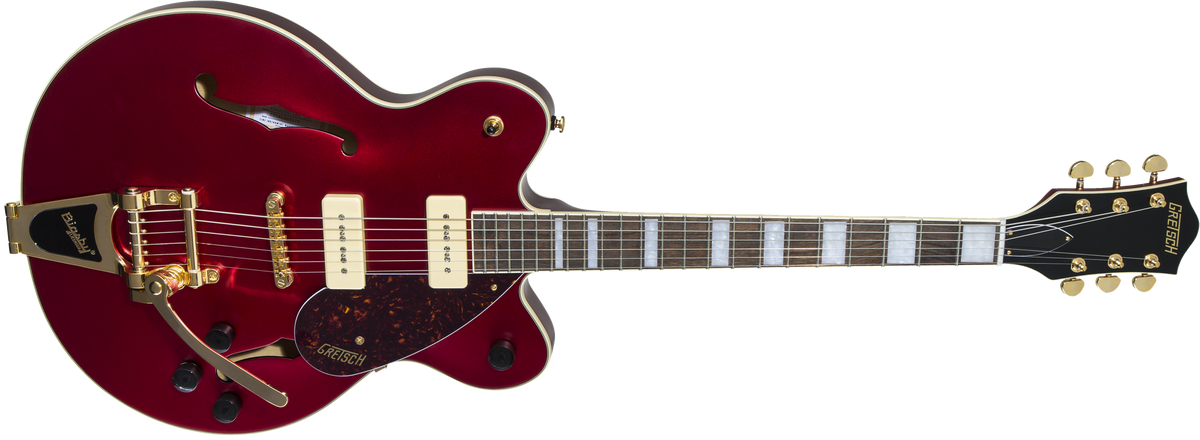

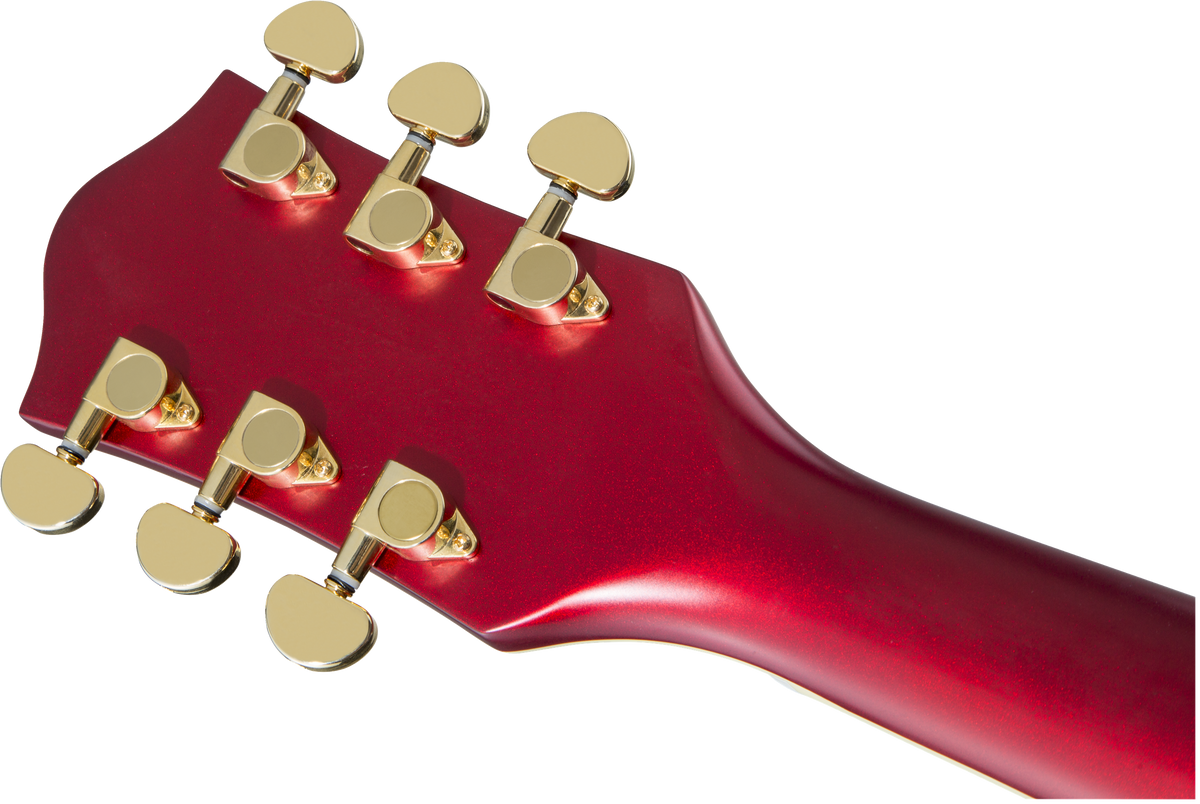

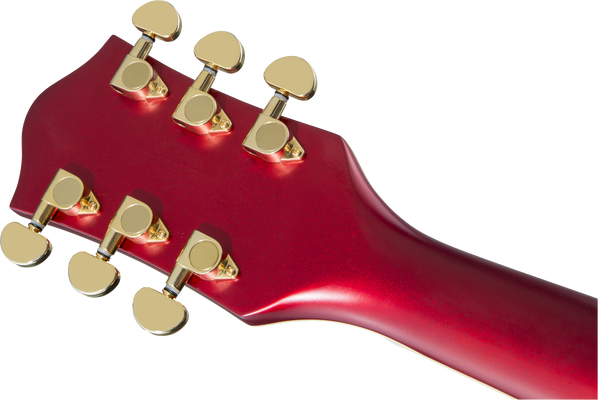

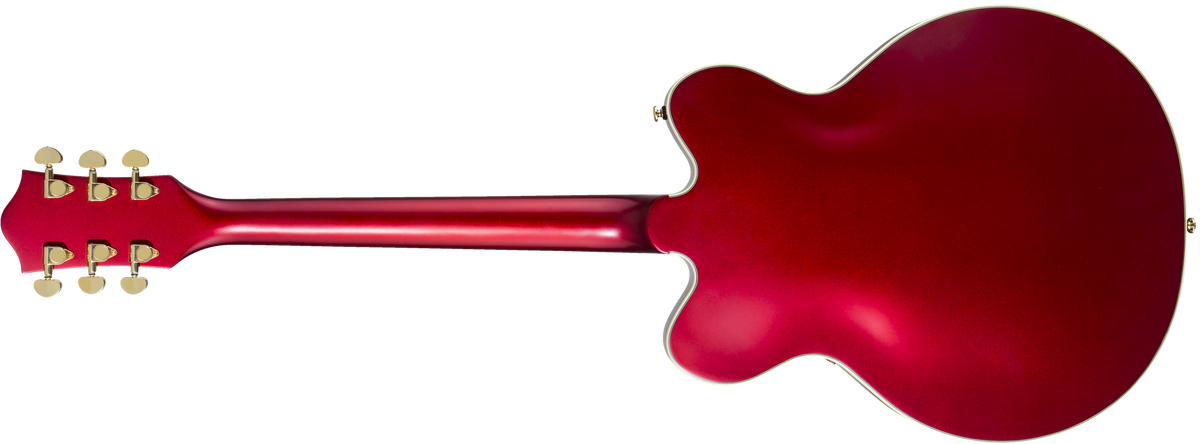

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2622TG-P90 Limited Edition Streamliner Center Block P90 with Bigsby and Gold Hardware Laurel Fingerboard Candy Apple Red listed above. For larger pics, click on an image to open in a new tab.
