Gretsch G2622T Streamliner Center Block Double-Cut Bigsby Abbey Ale Specs

The G2622T Streamliner Center Block Double-Cut with Bigsby Laurel Fingerboard Broad’Tron BT-3S Pickups Abbey Ale is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2807250562.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Sealed Tuning Machines
Broad'Tron BT-3S Bridge Pickup
Broad'Tron BT-3S Neck Pickup

Product Identifiers

Model Name	G2622T Streamliner Center Block Double-Cut with Bigsby
Part Number	2807250562
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	717669924539

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Center Block
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	11.5" (292 mm)
Lower Bout Width	16" (406 mm)
Waist	9.75" (248 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast Sealed
Pickguard	3-Ply Tortoise
Control Knobs	Gretsch Radio Knob
Bridge Cover / Tailpiece	Bigsby B70
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Bone
Neck Shape	Soft "C"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	Aged White

Electronics

Bridge Pickup	Broad'Tron BT-3S
Neck Pickup	Broad'Tron BT-3S
Pickup Configuration	Broad'Tron / Broad'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Tone, Master Volume with Push/Pull for Coil Split
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Auxiliary Switching	Push/Pull Pot (for Coil Split)

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G2622T Gretsch Hardshell (p/n 099-2622-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)

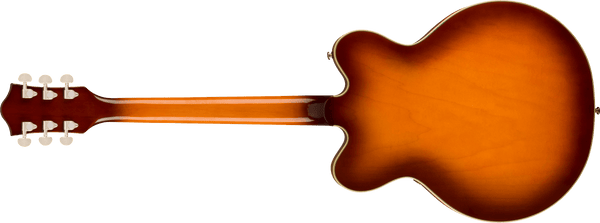

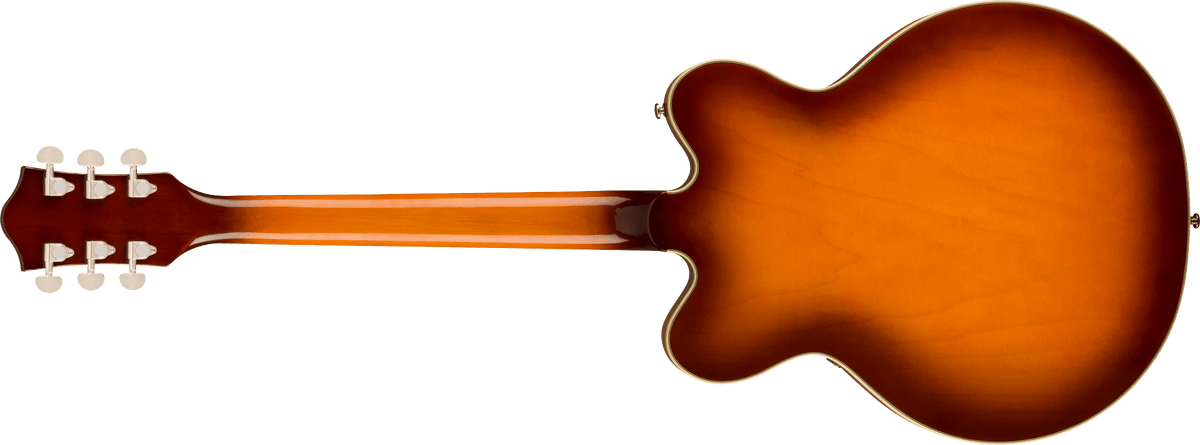

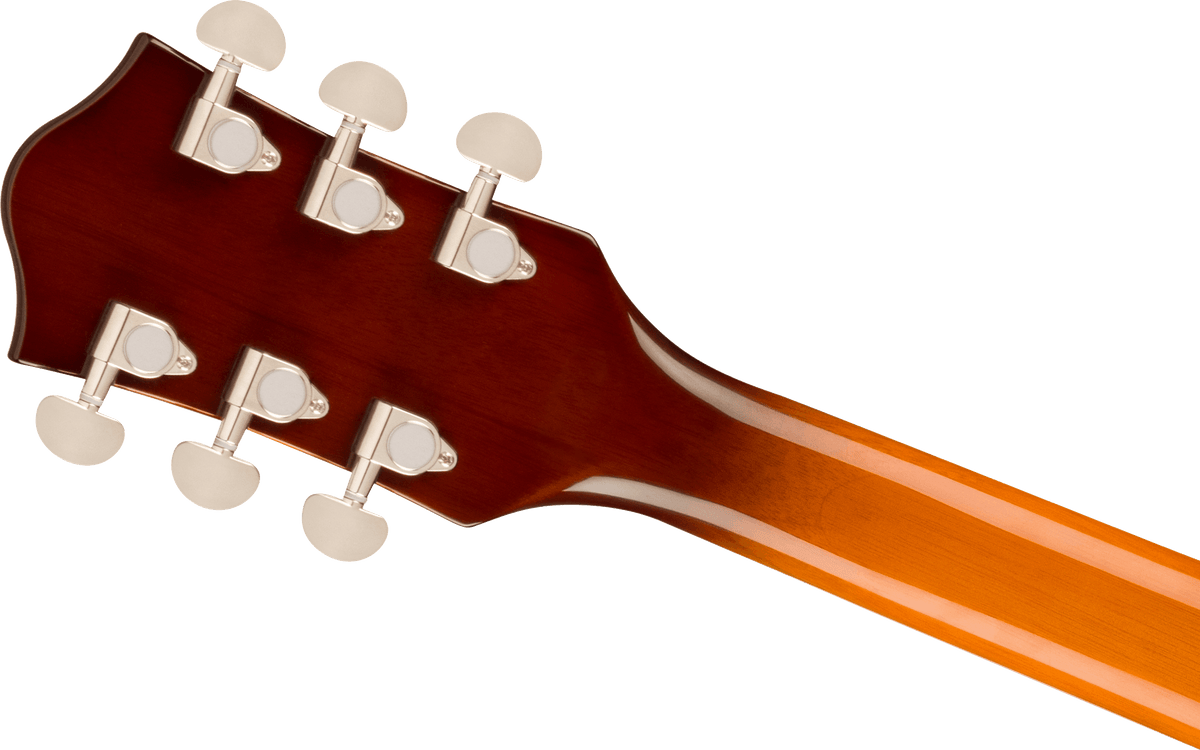

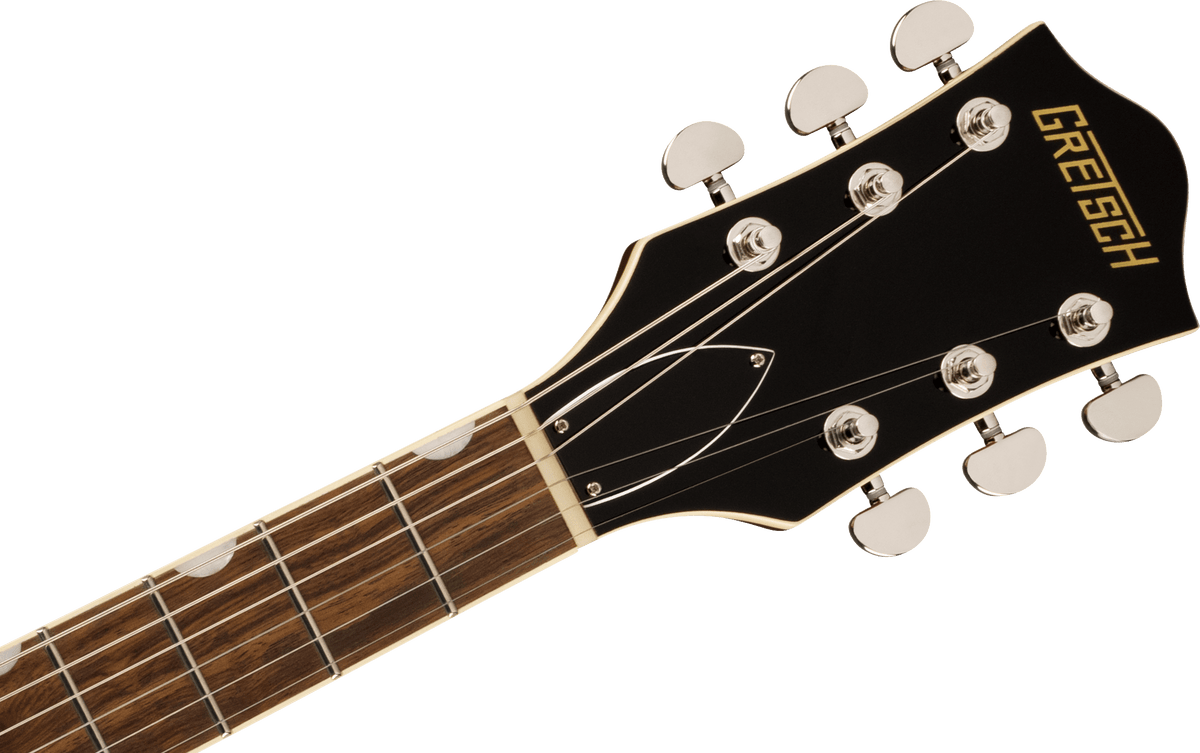

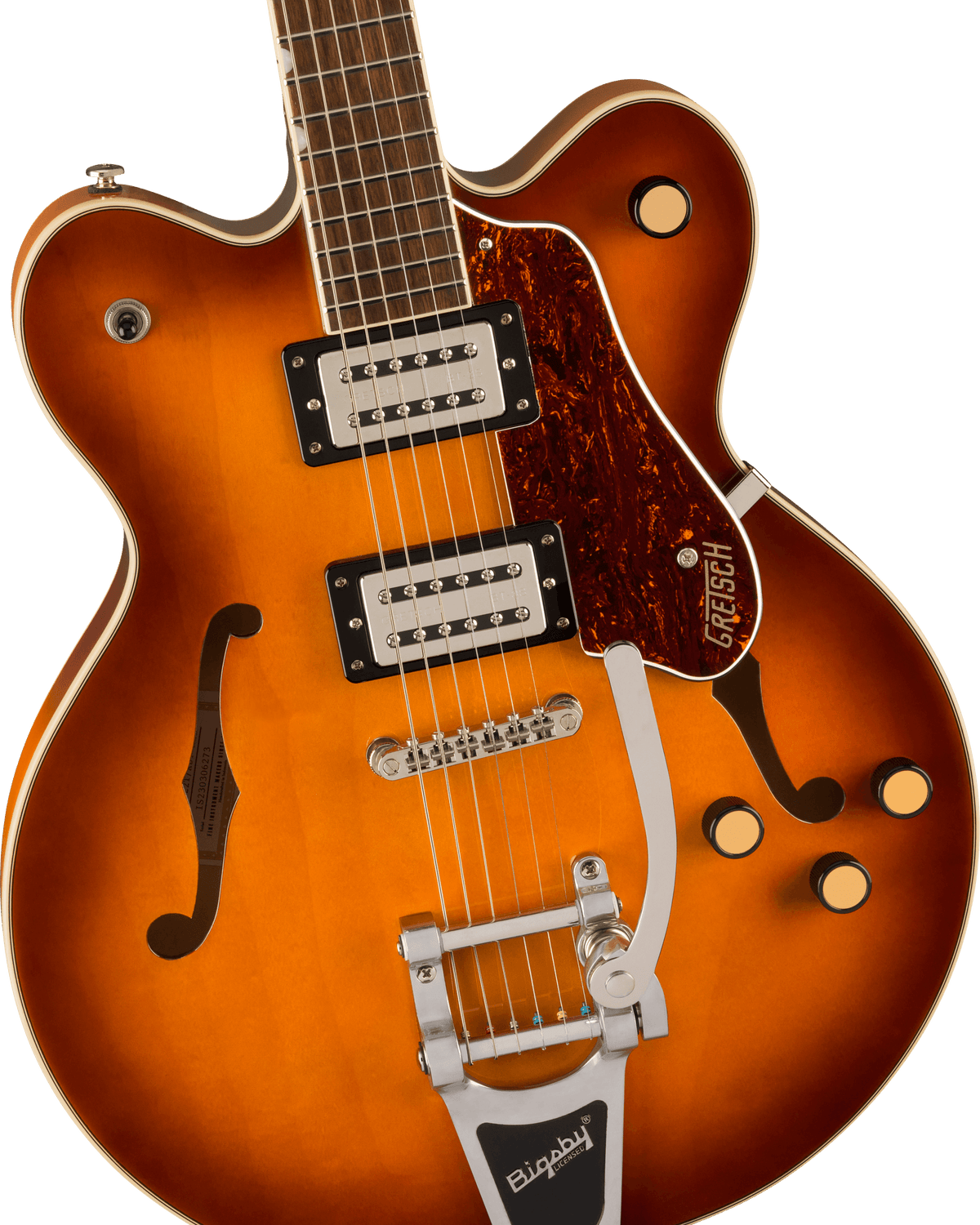

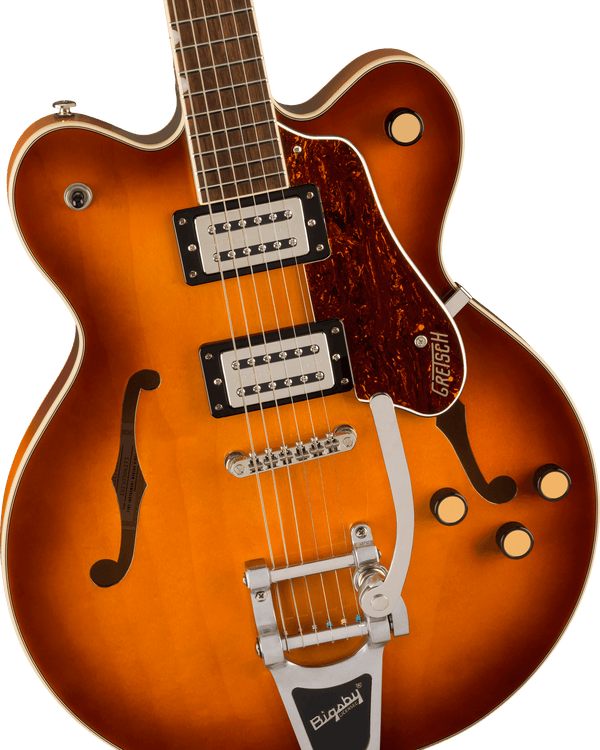

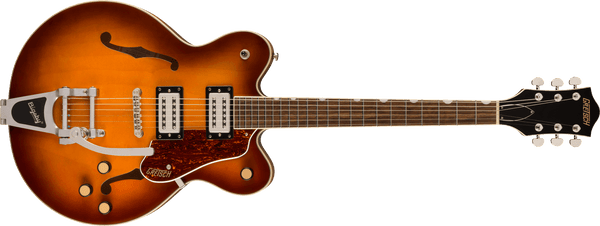

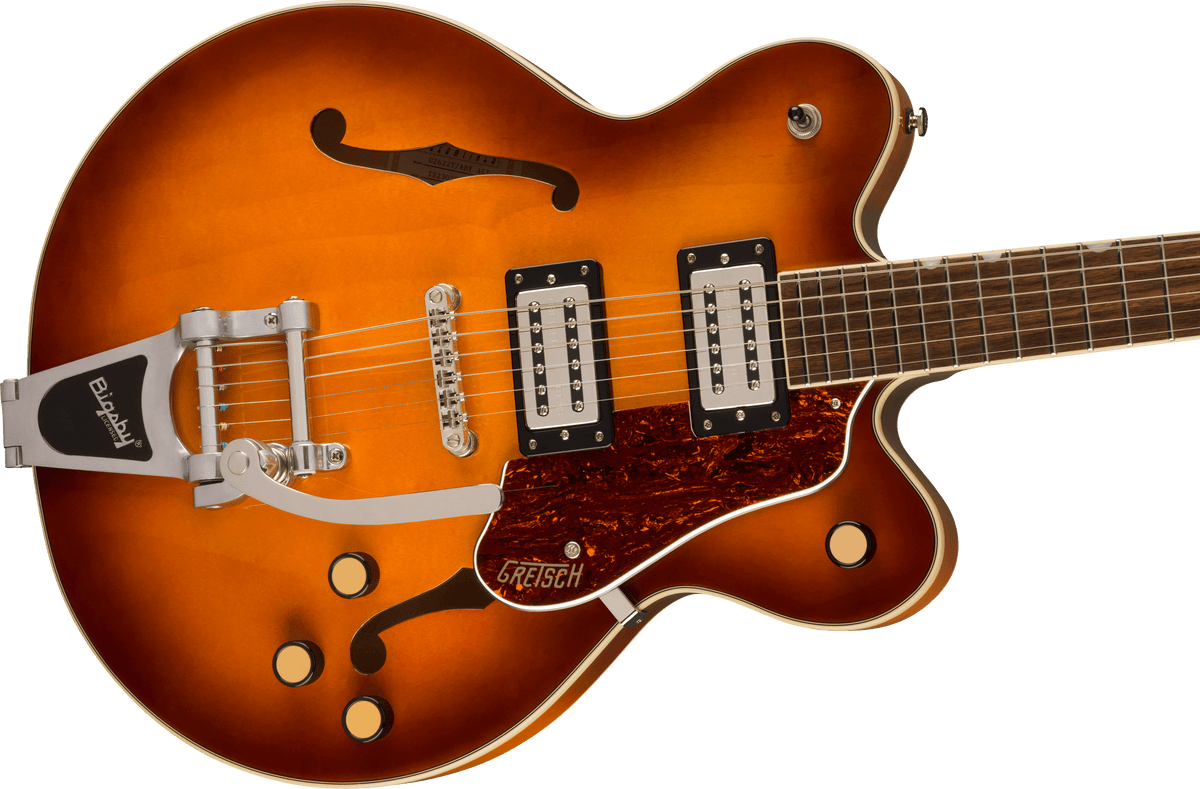

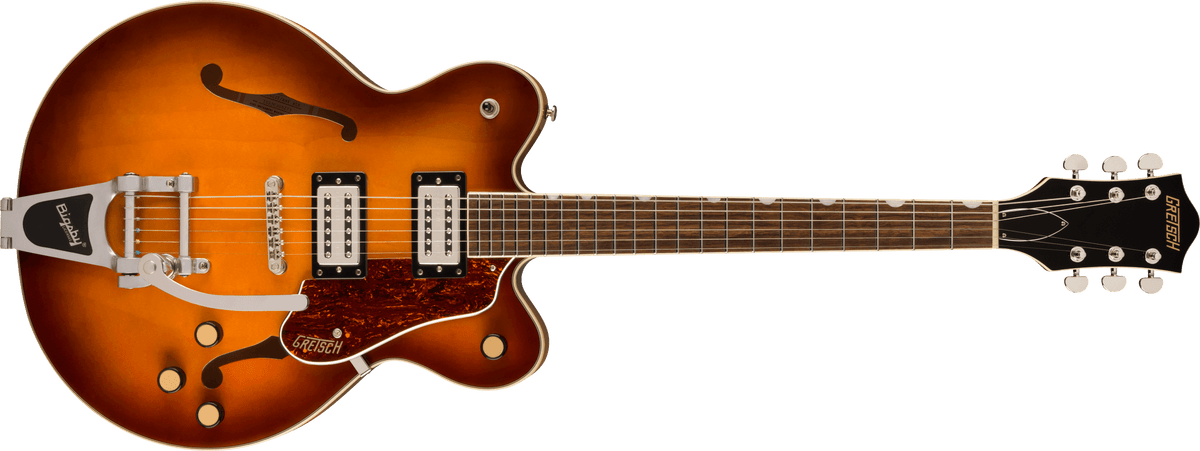

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2622T Streamliner Center Block Double-Cut with Bigsby Laurel Fingerboard Broad’Tron BT-3S Pickups Abbey Ale listed above. For larger pics, click on an image to open in a new tab.
