Gretsch G2622T Streamliner Center Block Bigsby Aged Brooklyn Burst Spe

The G2622T Streamliner Center Block with Bigsby and Broad'Tron Pickups is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2800100537.

Key Features

Arched Laminated Maple Top
Arched Laminated Maple Body
Nato Neck
Rosewood Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Tuning Machines
Broad'Tron Bridge Pickup
Broad'Tron Neck Pickup

Product Identifiers

Model Name	G2622T Streamliner Center Block with Bigsby
Part Number	2800100537
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978777327

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Arched Laminated Maple
Back Material	Arched Laminated Maple
Body Shape	Streamliner Center Block
Body Binding	White
Body Finish	Gloss
Bracing	Spruce Center-Block
Upper Bout Width	11.5" (292 mm)
Lower Bout Width	16" (40.6 cm)
Waist	9.75" (248mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	1-Ply Black
Control Knobs	Gold Vintage-Style
Bridge Cover / Tailpiece	Bigsby-Licensed B70 Vibrato
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Broad'Tron
Neck Pickup	Broad'Tron
Pickup Configuration	Broad'Tron / Broad'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G2622T Gretsch Hardshell (p/n 099-2622-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)
Included Accessories	Optional: 099-6458-000 G2162 Gig Bag; 099-6408-000 Hardshell Case
Recommended Case	Optional: 099-6458-000 G2162 Gig Bag; 099-6408-000 Hardshell Case

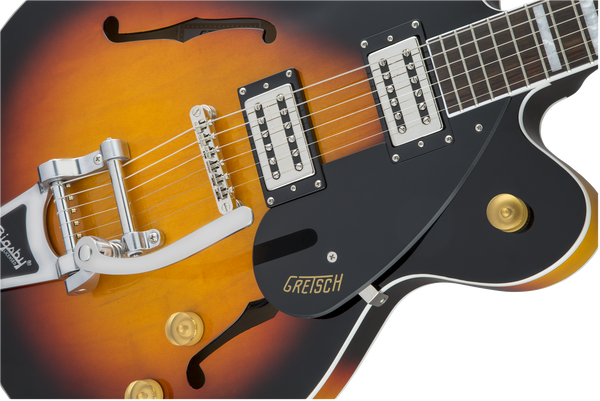

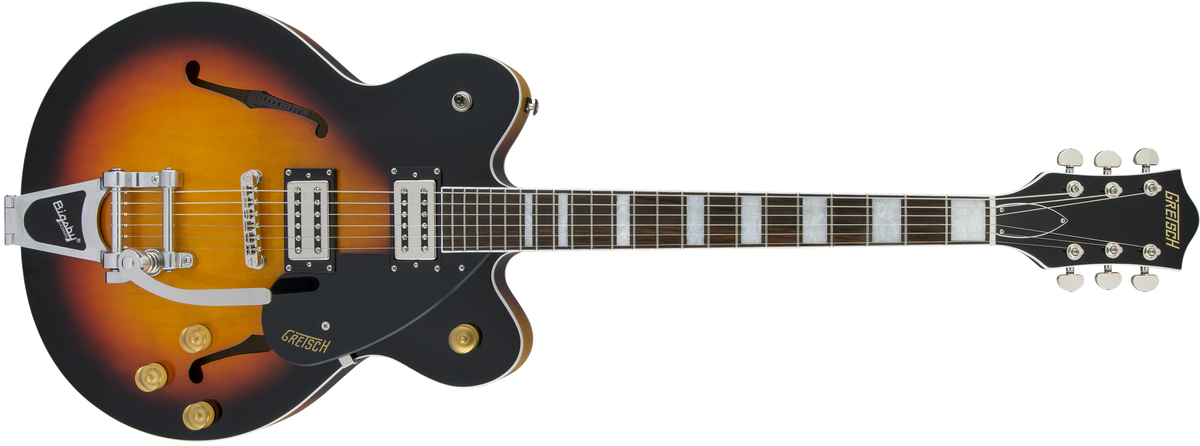

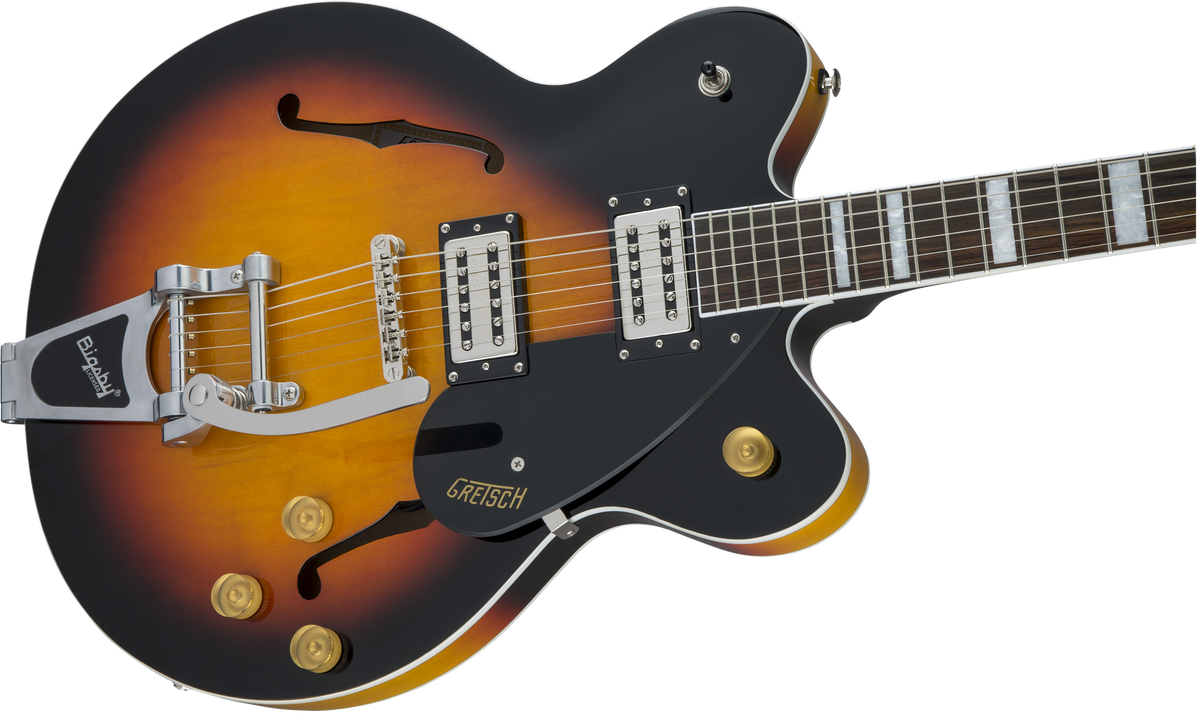

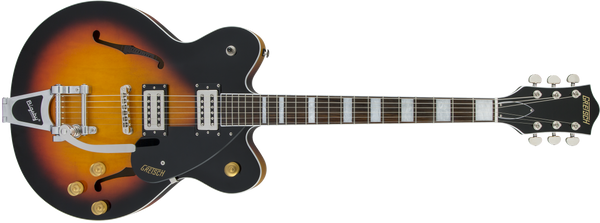

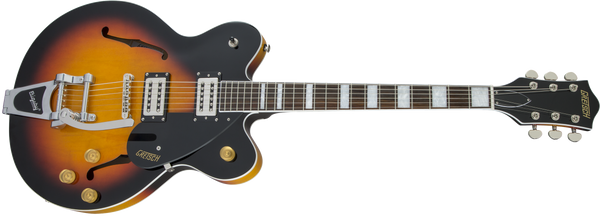

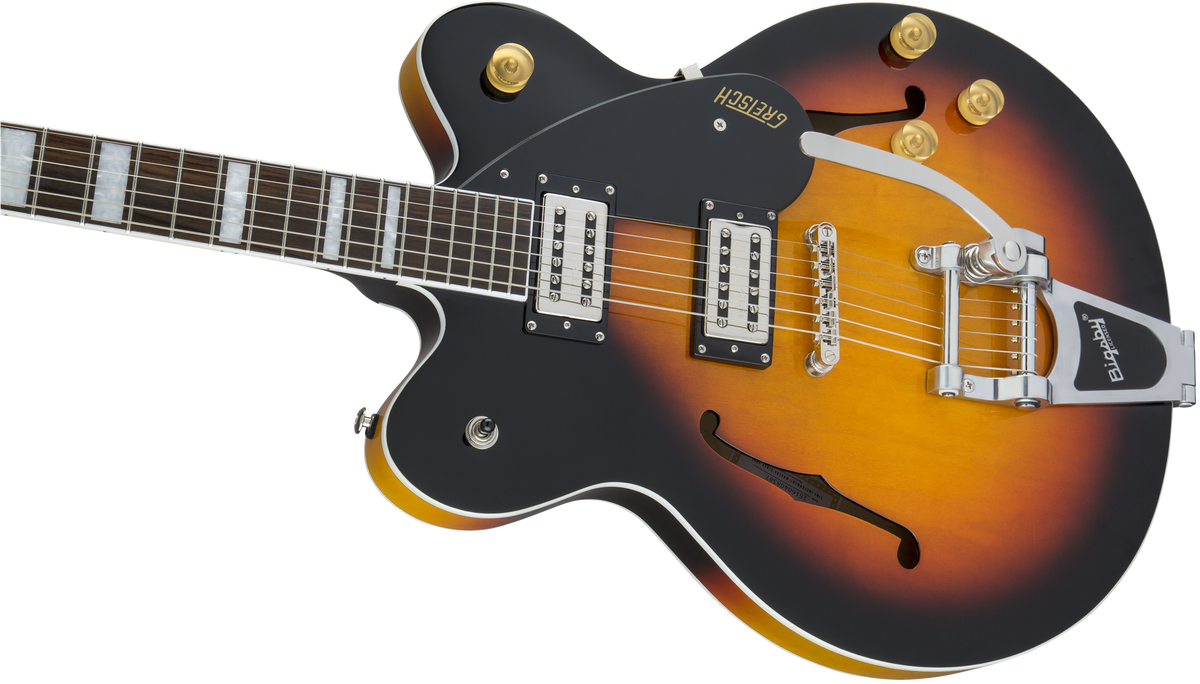

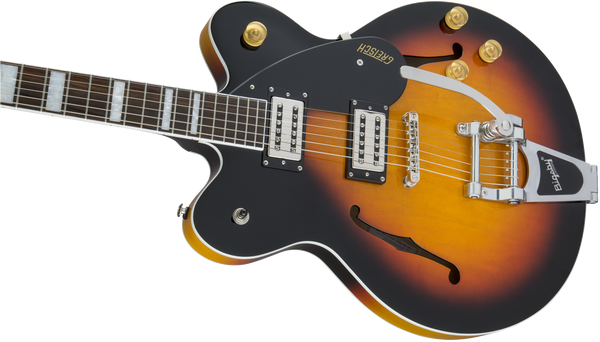

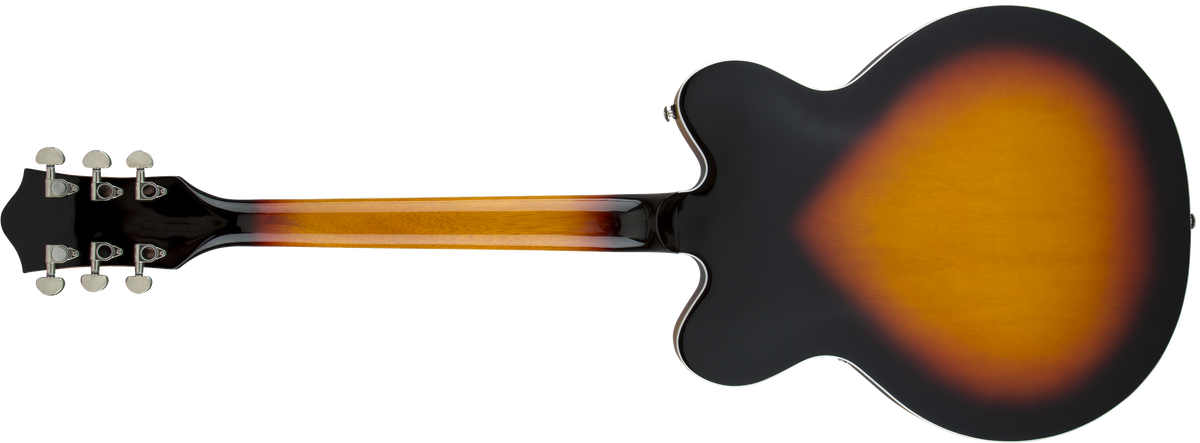

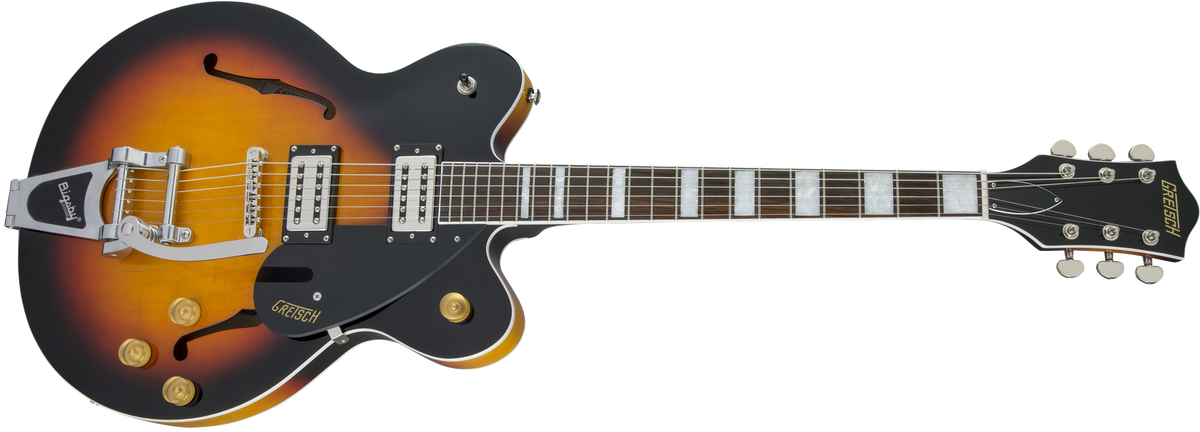

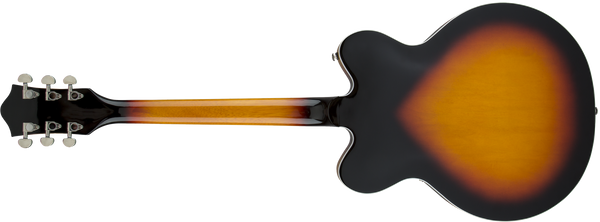

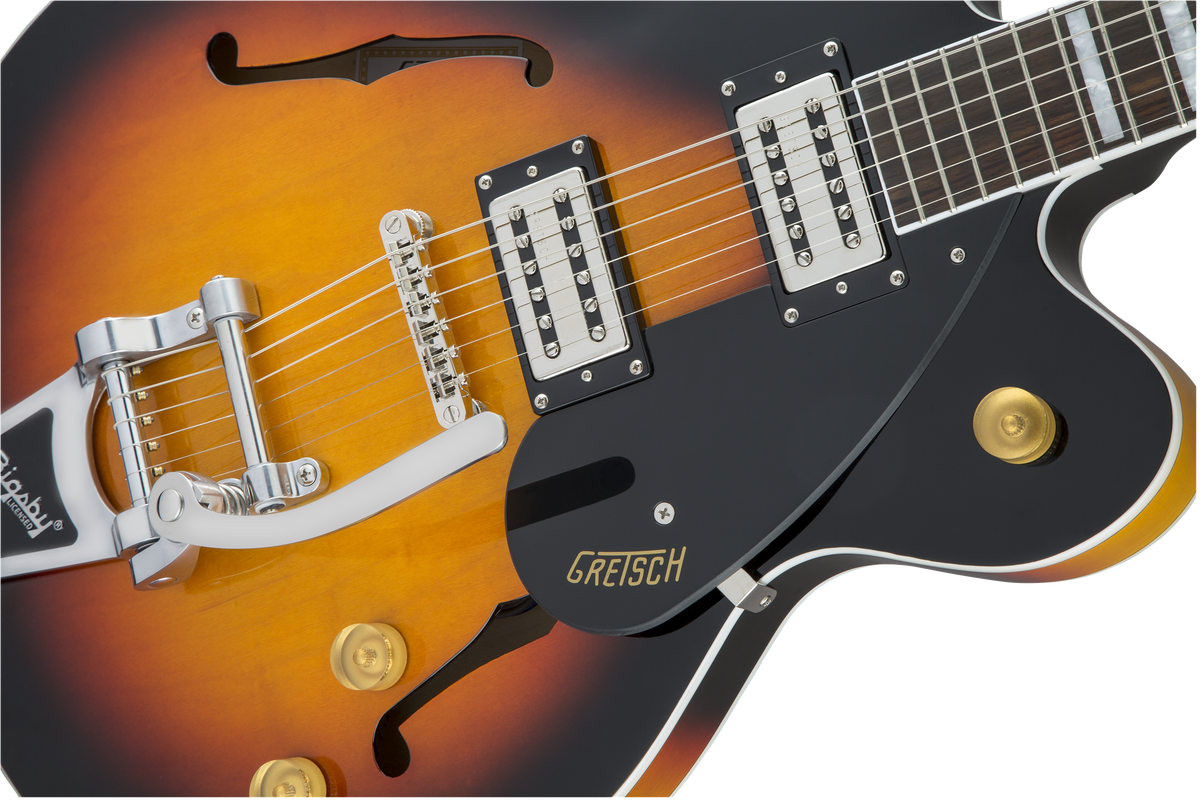

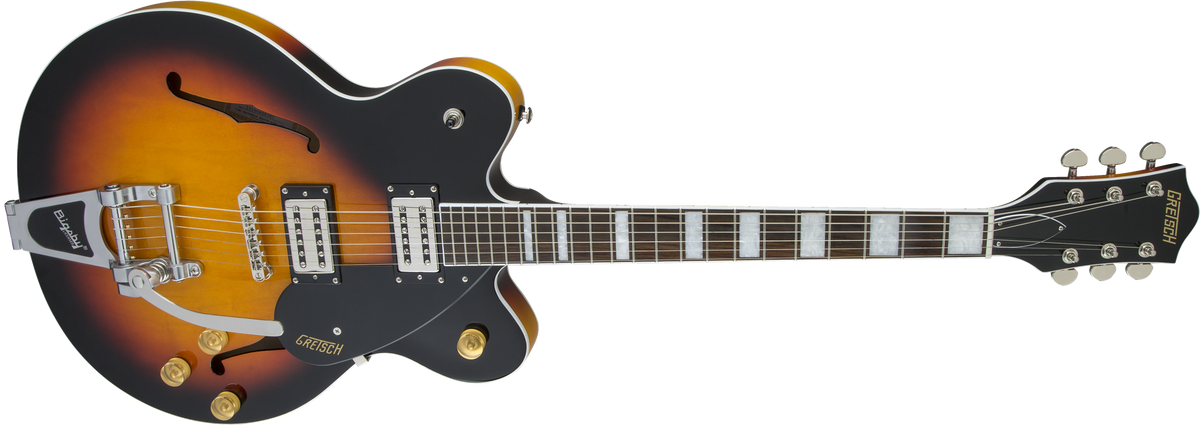

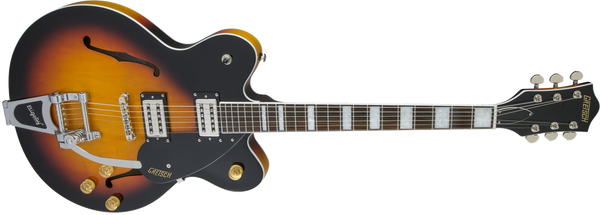

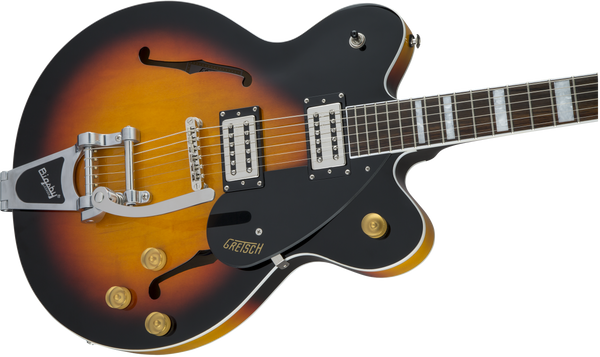

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2622T Streamliner Center Block with Bigsby and Broad'Tron Pickups listed above. For larger pics, click on an image to open in a new tab.
