Gretsch G2622T-P90 Streamliner Center Block Double-Cut P90 Bigsby Forge Glow Specs

The G2622T-P90 Streamliner Center Block Double-Cut P90 with Bigsby Laurel Fingerboard Forge Glow is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2807500597.

Key Features

Arched Laminated Mahogany Top
Arched Laminated Mahogany Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Tuning Machines
FideliSonic 90 Bridge Pickup
FideliSonic 90 Neck Pickup

Product Identifiers

Model Name	G2622T-P90 Streamliner Center Block Double-Cut P90 with Bigsby
Part Number	2807500597
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978797431

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Laminated Mahogany
Back Material	Arched Laminated Mahogany
Body Shape	Center Block
Body Binding	Aged White with B/W/B Purfling
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	11.5" (292 mm)
Lower Bout Width	16" (406 mm)
Waist	9.75" (248 mm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	1-Ply Black
Control Knobs	Gretsch Radio Arrow
Bridge Cover / Tailpiece	Bigsby B70
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Oval
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	Aged White

Electronics

Bridge Pickup	FideliSonic 90
Neck Pickup	FideliSonic 90
Pickup Configuration	P90 / P90
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G2622T Gretsch Hardshell (p/n 099-2622-000); Optional G2162 Hollow Body Gig Bag (p/n 099-6458-000)

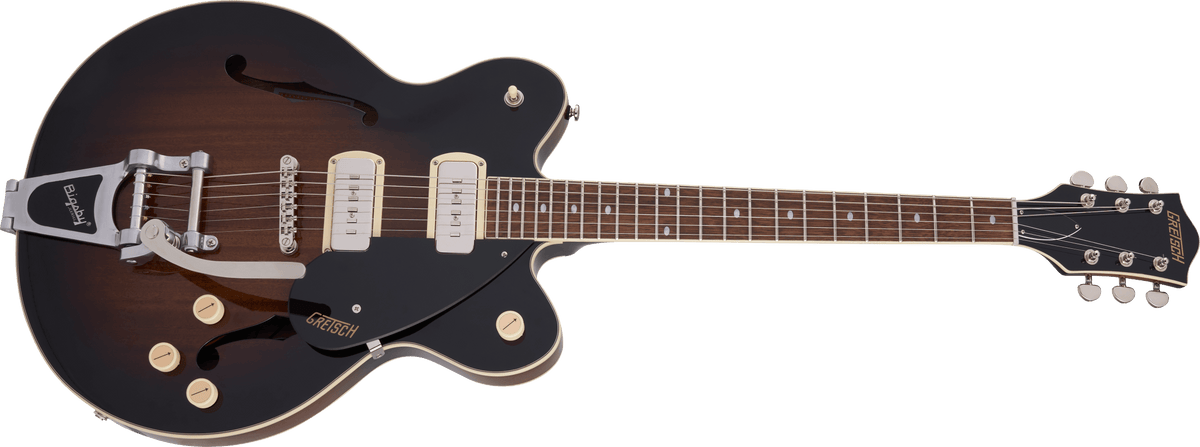

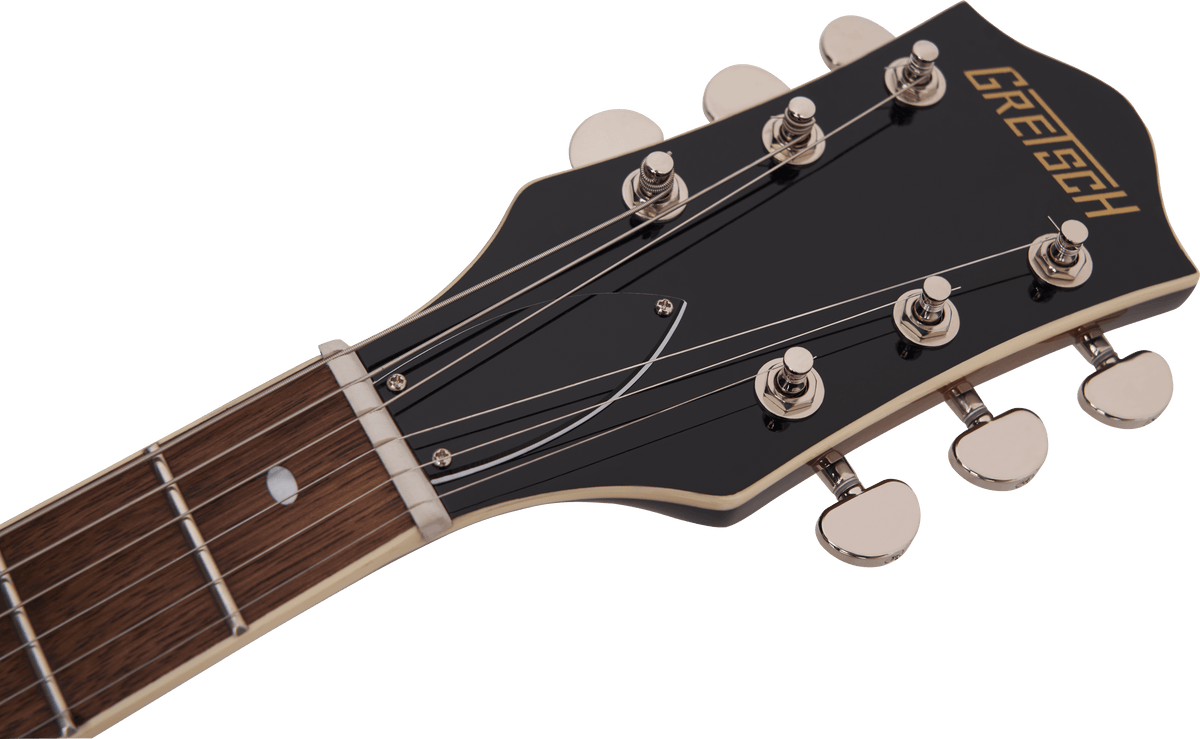

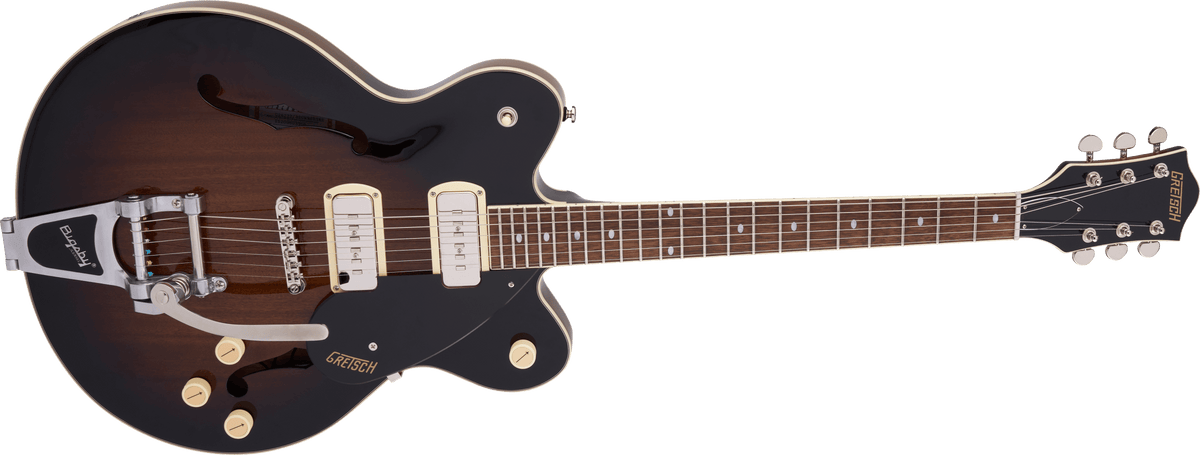

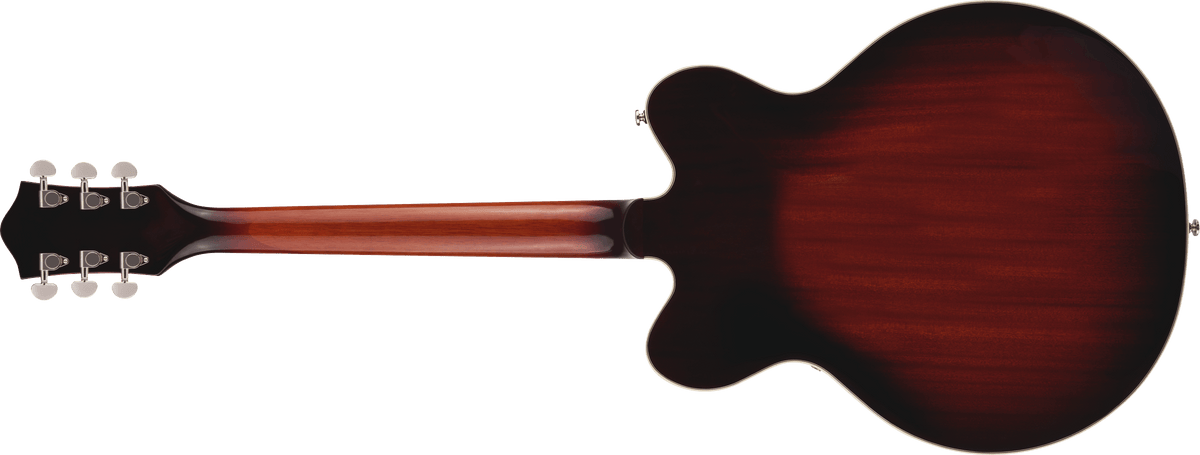

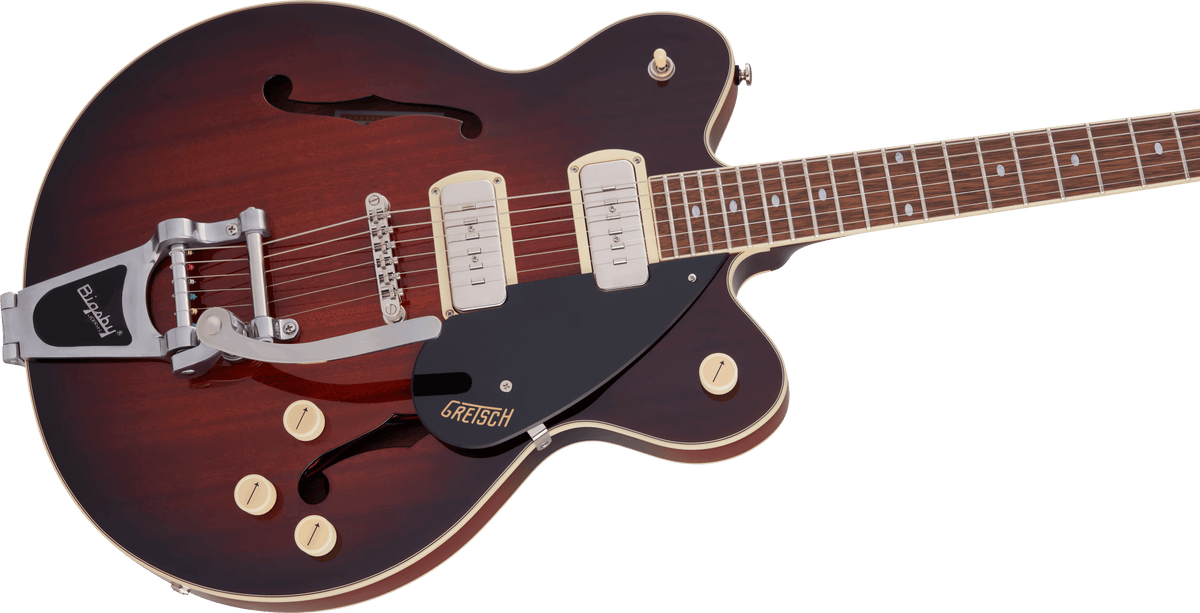

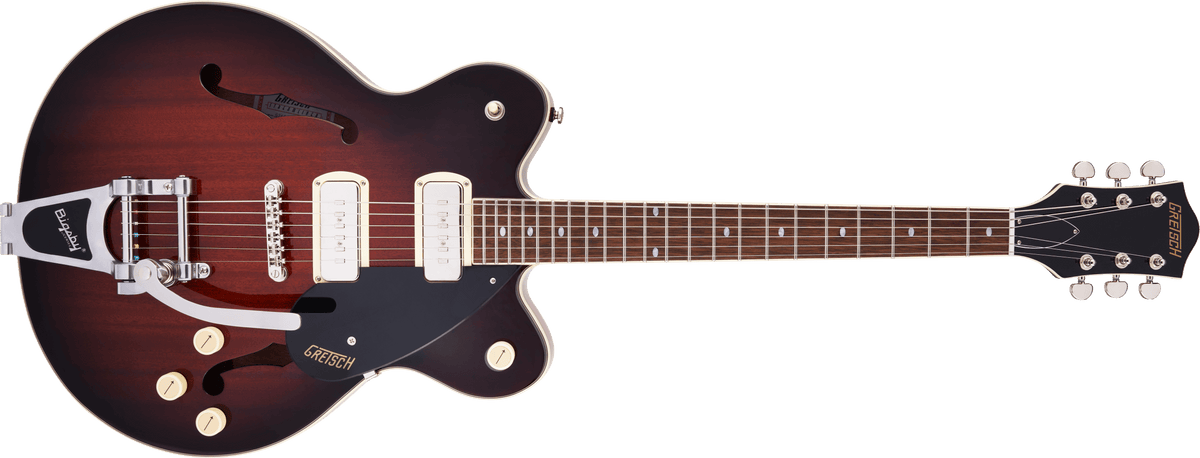

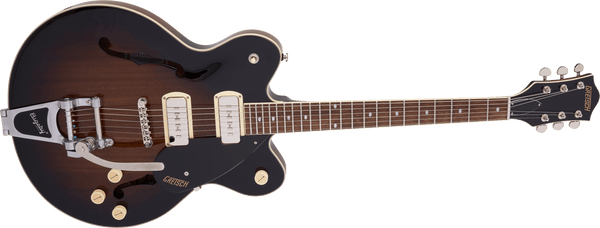

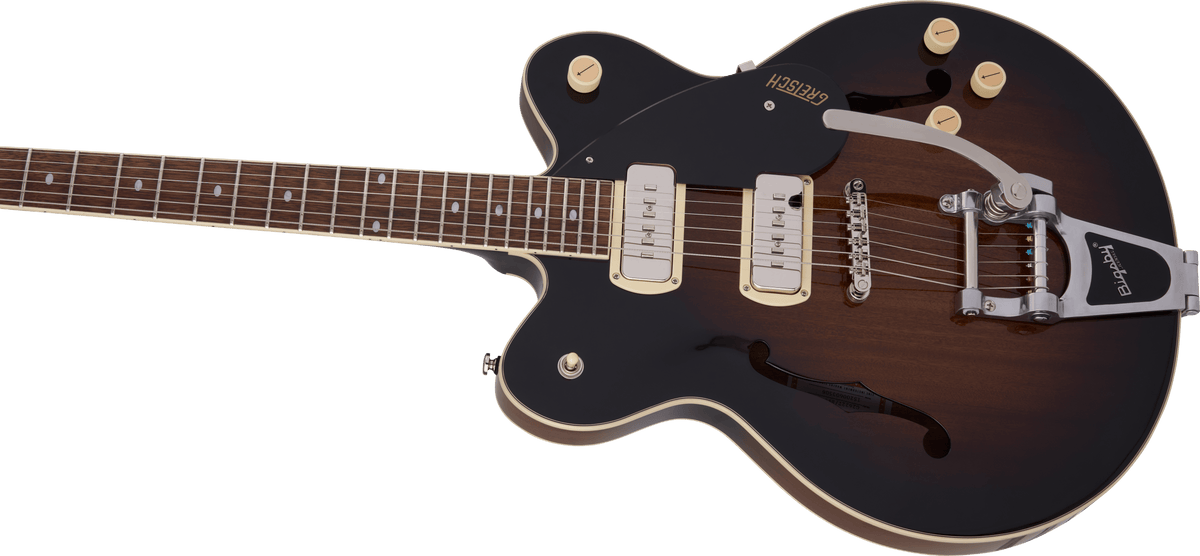

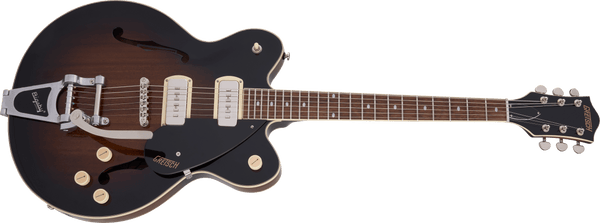

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2622T-P90 Streamliner Center Block Double-Cut P90 with Bigsby Laurel Fingerboard Forge Glow listed above. For larger pics, click on an image to open in a new tab.
