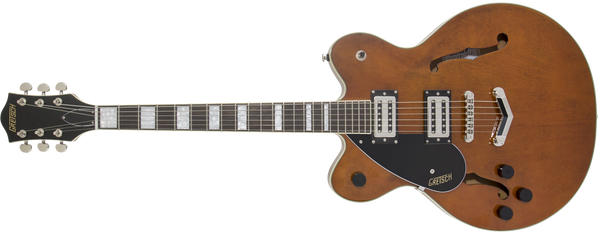

Gretsch G2622LH Streamliner Center Block Double-Cut V-Stoptail Left-Handed Single Barrel Stain Specs

The G2622LH Streamliner Center Block Double-Cut with V-Stoptail Left-Handed Laurel Fingerboard Broad'Tron BT-2S Pickups Single Barrel is a semi hollow electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2806320593.

Key Features

Laminated Maple Top
Laminated Maple Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Adjusto-Matic Bridge
Die-Cast Tuning Machines
Broad'Tron BT-2S Bridge Pickup
N/A Middle Pickup
Broad'Tron BT-2S Neck Pickup

Product Identifiers

Model Name	G2622LH Streamliner Center Block Double-Cut with V-Stoptail, Left-Handed
Part Number	2806320593
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Semi-Hollow
UPC Code	885978066759

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated Maple
Back Material	Laminated Maple
Body Shape	Streamliner Center Block
Body Binding	Aged White with B/AW/B Purfling
Body Finish	Gloss
Bracing	Center Block
Upper Bout Width	11.5" (292 mm)
Lower Bout Width	16" (40.6 cm)
Waist	9.75” (24.76 cm)

Hardware

Bridge	Anchored Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	3-Ply Black/White/Black
Control Knobs	Black Vintage-Style
Bridge Cover / Tailpiece	Gretsch "V" Stoptail
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Big Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss Urethane

Electronics

Bridge Pickup	Broad'Tron BT-2S
Middle Pickup	N/A
Neck Pickup	Broad'Tron BT-2S
Pickup Configuration	HH
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics	N/A

General

Orientation	Left-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional Gig Bag 0996458000 / Hardshell Case 0992622000

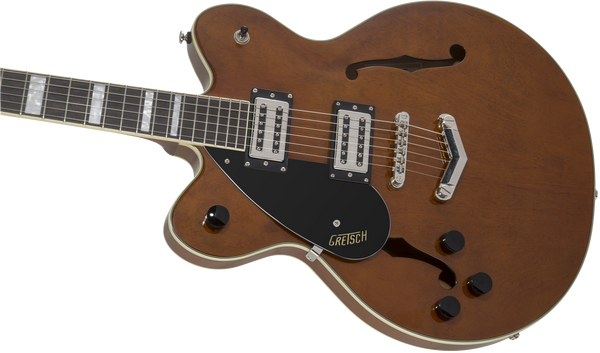

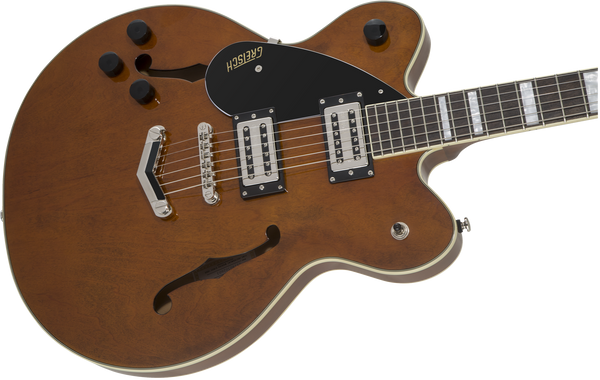

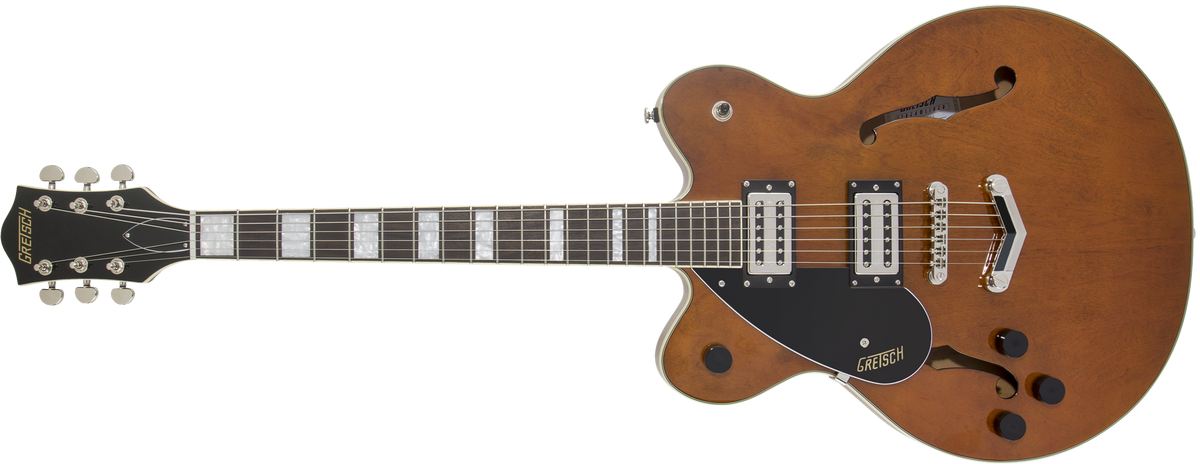

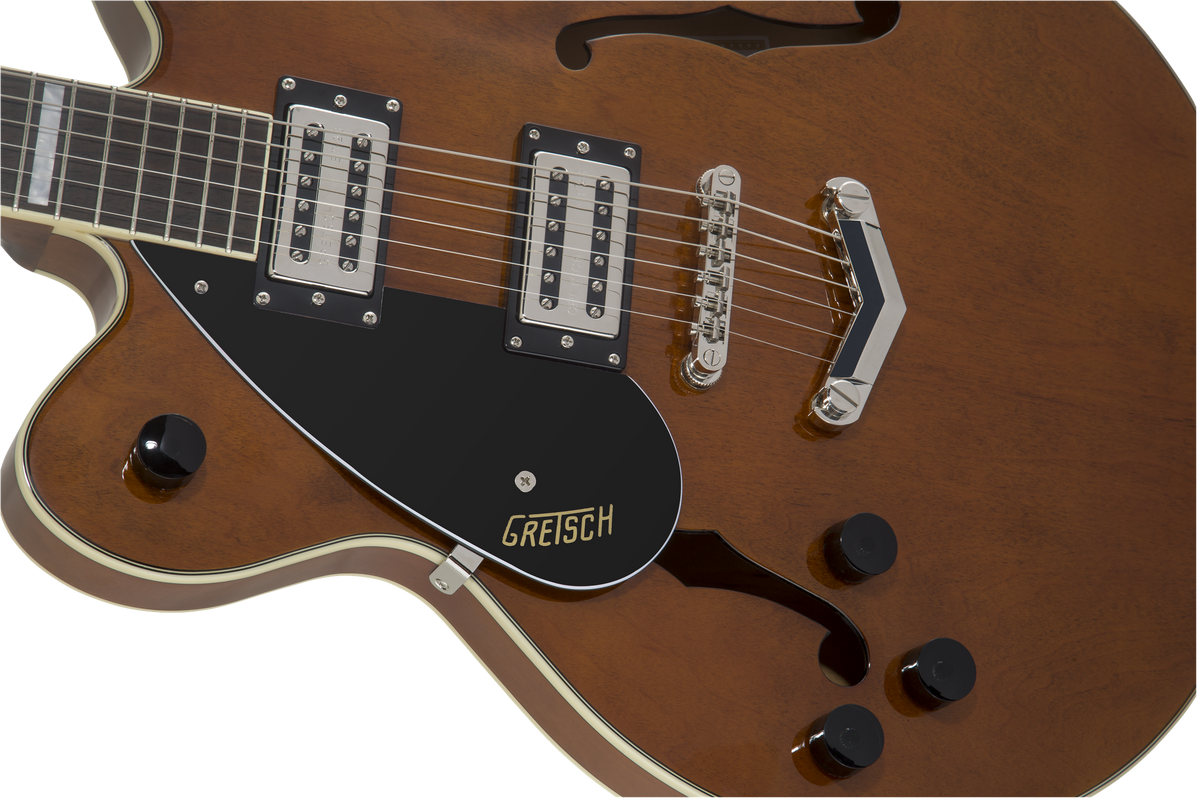

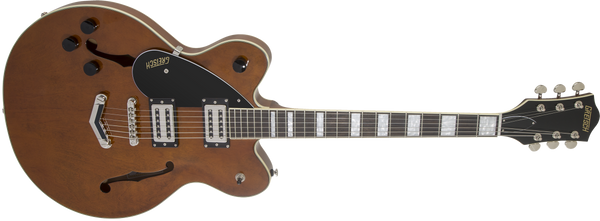

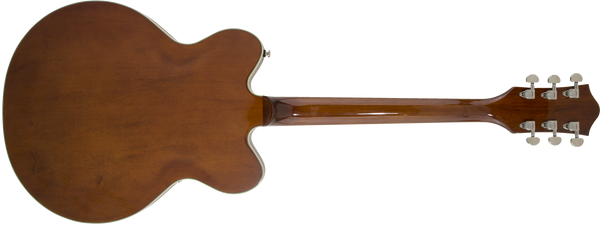

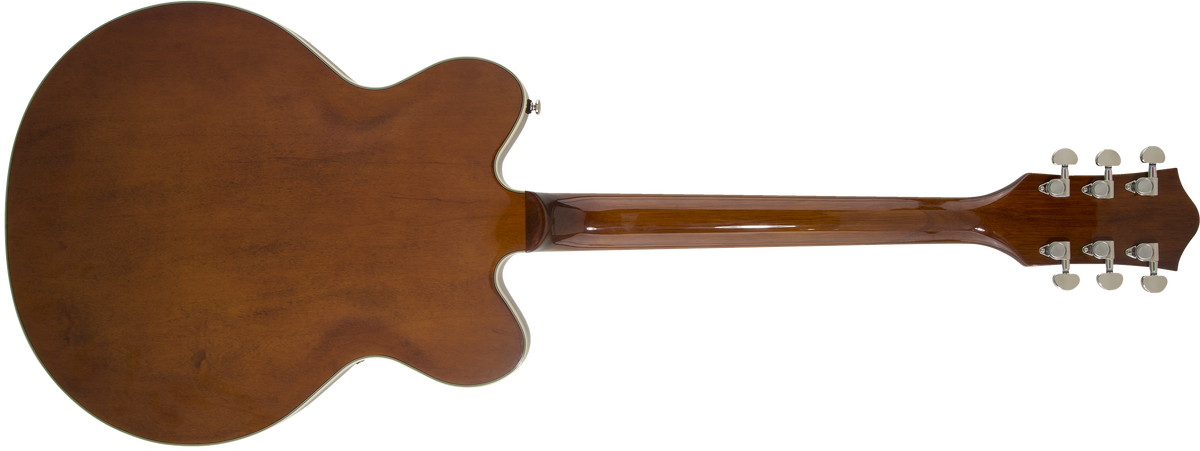

Reference Images

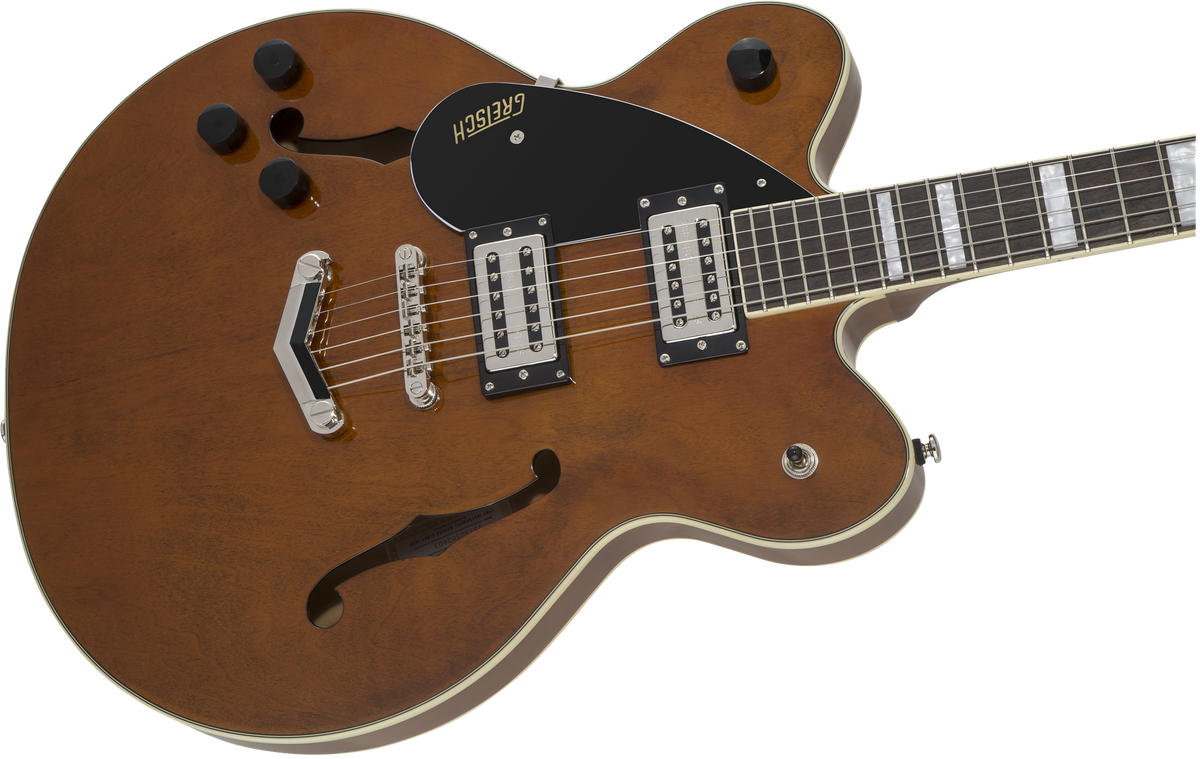

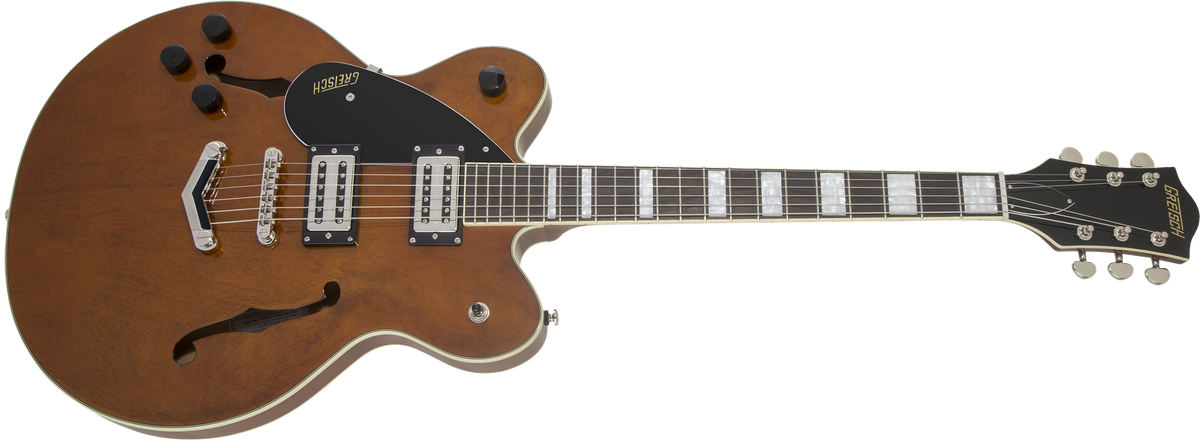

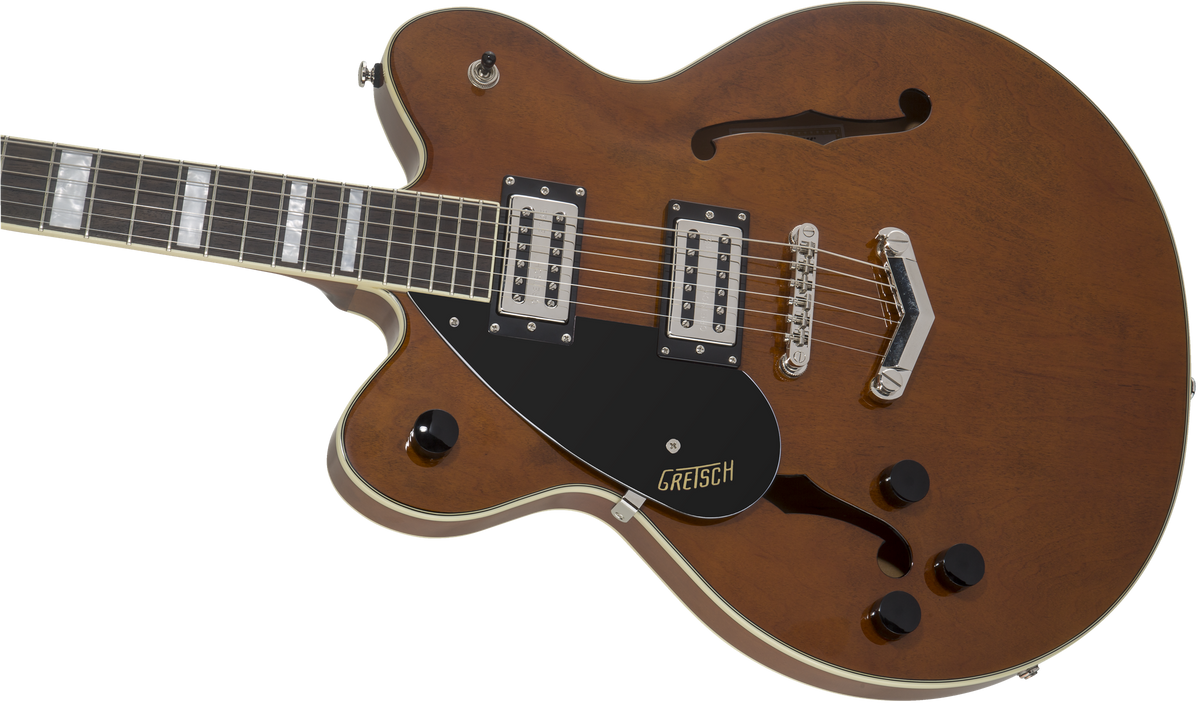

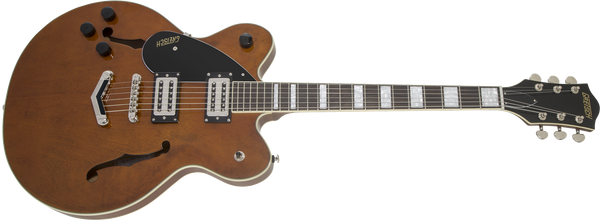

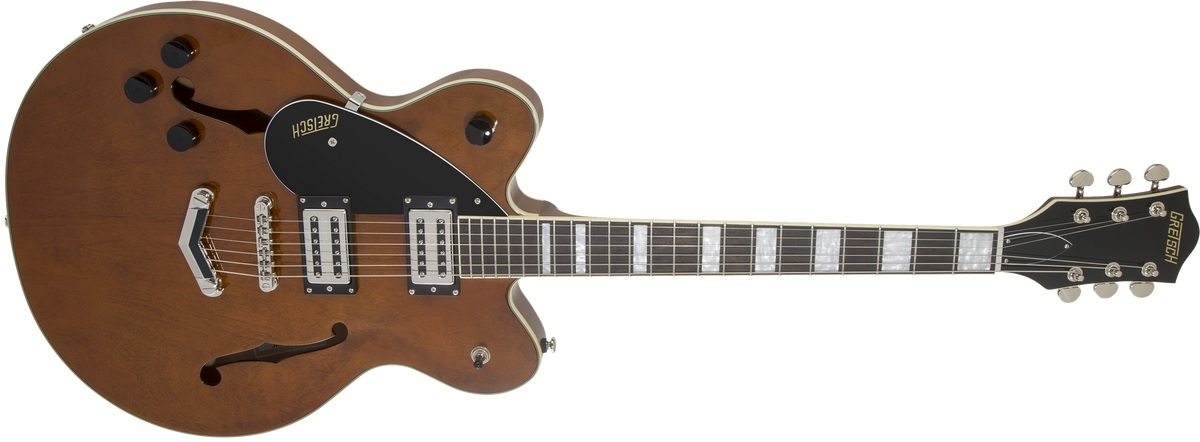

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2622LH Streamliner Center Block Double-Cut with V-Stoptail Left-Handed Laurel Fingerboard Broad'Tron BT-2S Pickups Single Barrel listed above. For larger pics, click on an image to open in a new tab.
