Gretsch G2420 Streamliner Hollow Body Chromatic II Walnut Stain Specs

The G2420 Streamliner Hollow Body with Chromatic II Laurel Fingerboard Broad'Tron Pickups Walnut Stain is a hollow body electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2804700517.

Key Features

Laminated Maple Top
Laminated Maple Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Tuning Machines
Broad'Tron BT-2S Bridge Pickup
N/A Middle Pickup
Broad'Tron BT-2S Neck Pickup

Product Identifiers

Model Name	G2420 Streamliner Hollow Body with Chromatic II
Part Number	2804700517
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Hollow Body
UPC Code	885978066674

Factory Specifications

Body Construction

Body Material	Laminated Maple
Top Material	Laminated Maple
Back Material	Laminated Maple
Body Shape	Streamliner Hollow Body
Body Binding	Aged White with B/AW/B Purfling
Body Finish	Gloss
Bracing	Parallel Bracing
Upper Bout Width	11.625" (29.5 cm)
Lower Bout Width	16" (40.6 cm)
Waist	9.75” (24.76 cm)

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast
Pickguard	3-Ply Tortoiseshell
Control Knobs	Black Vintage-Style
Bridge Cover / Tailpiece	Chromatic II
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Hump Block
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss Urethane
Truss Rod	Head Adjust

Electronics

Bridge Pickup	Broad'Tron BT-2S
Middle Pickup	N/A
Neck Pickup	Broad'Tron BT-2S
Pickup Configuration	HH
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Special Electronics	N/A

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional Gig Bag 0996458000 / Hardshell Case 0992420000

Reference Images

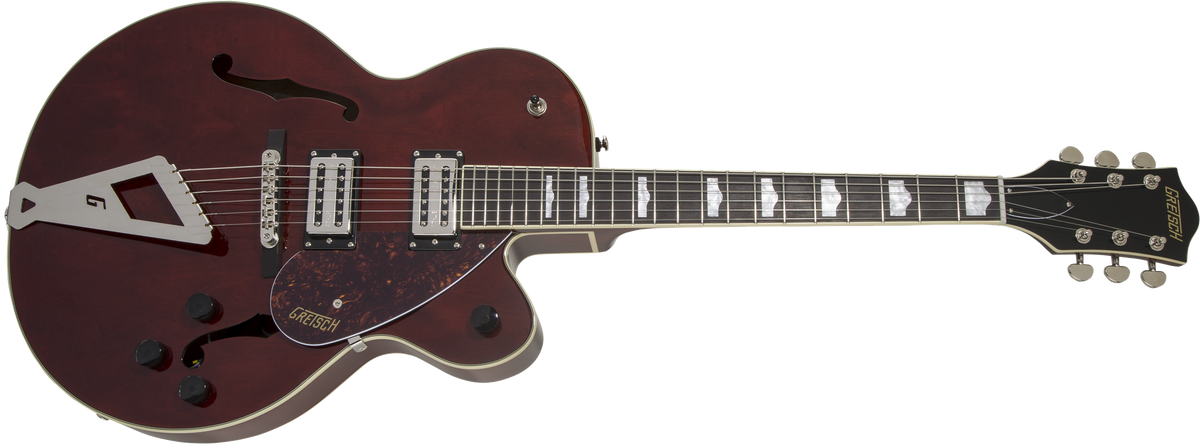

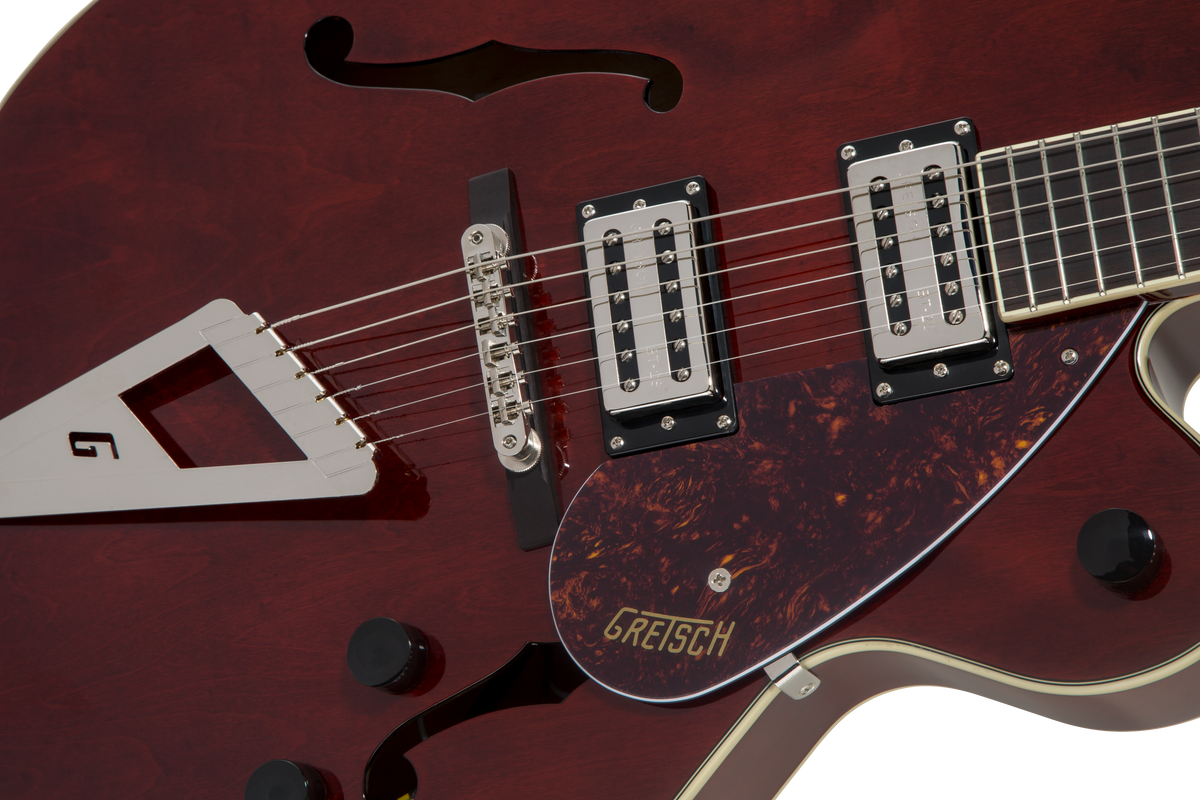

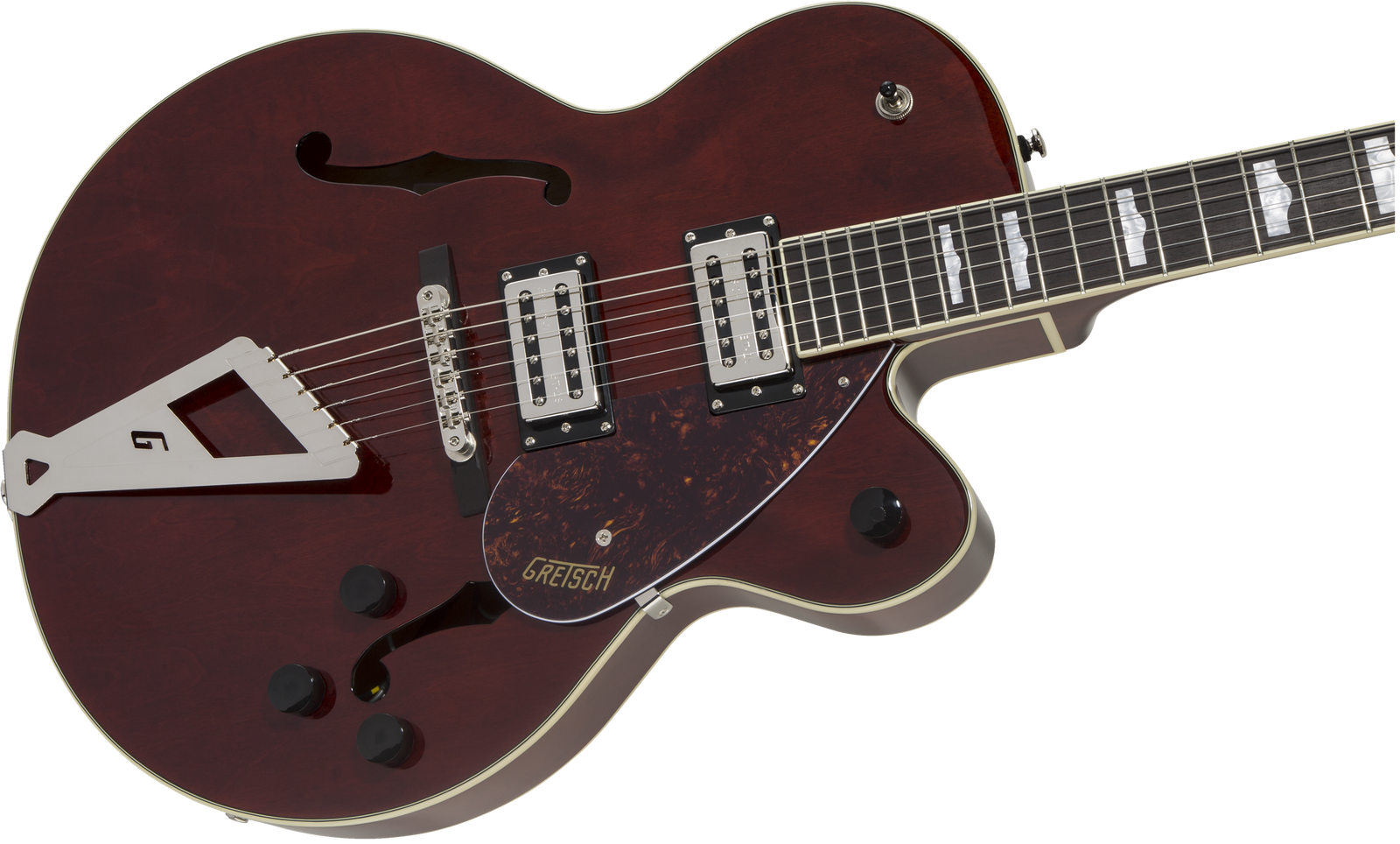

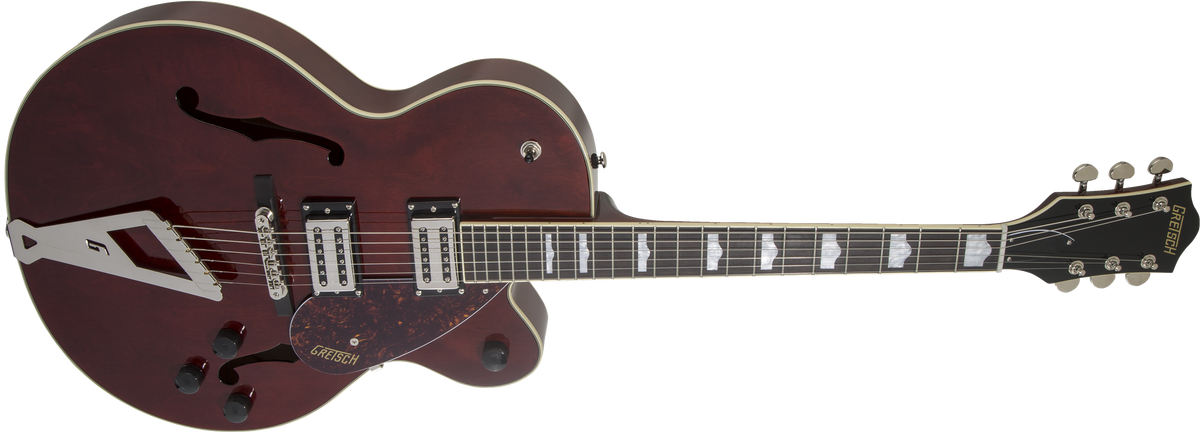

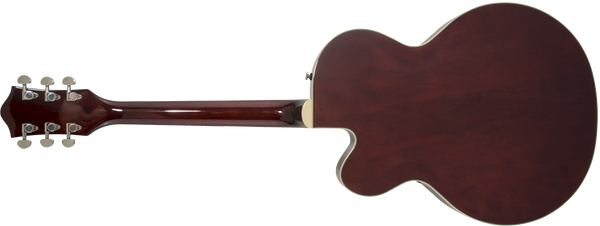

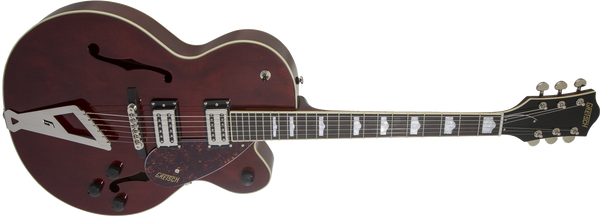

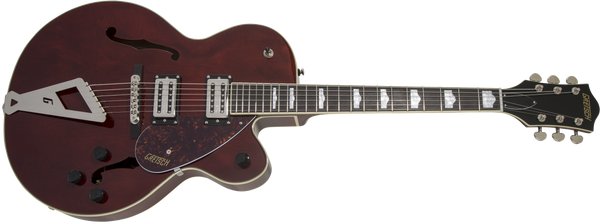

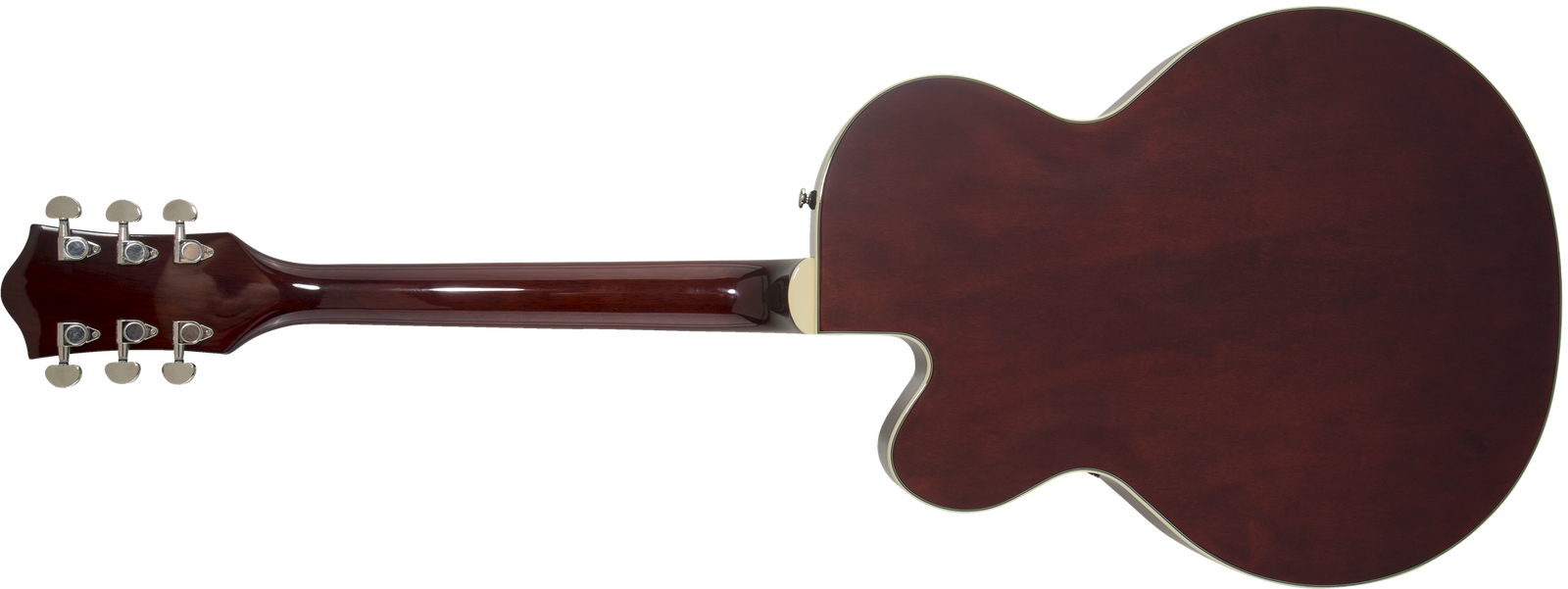

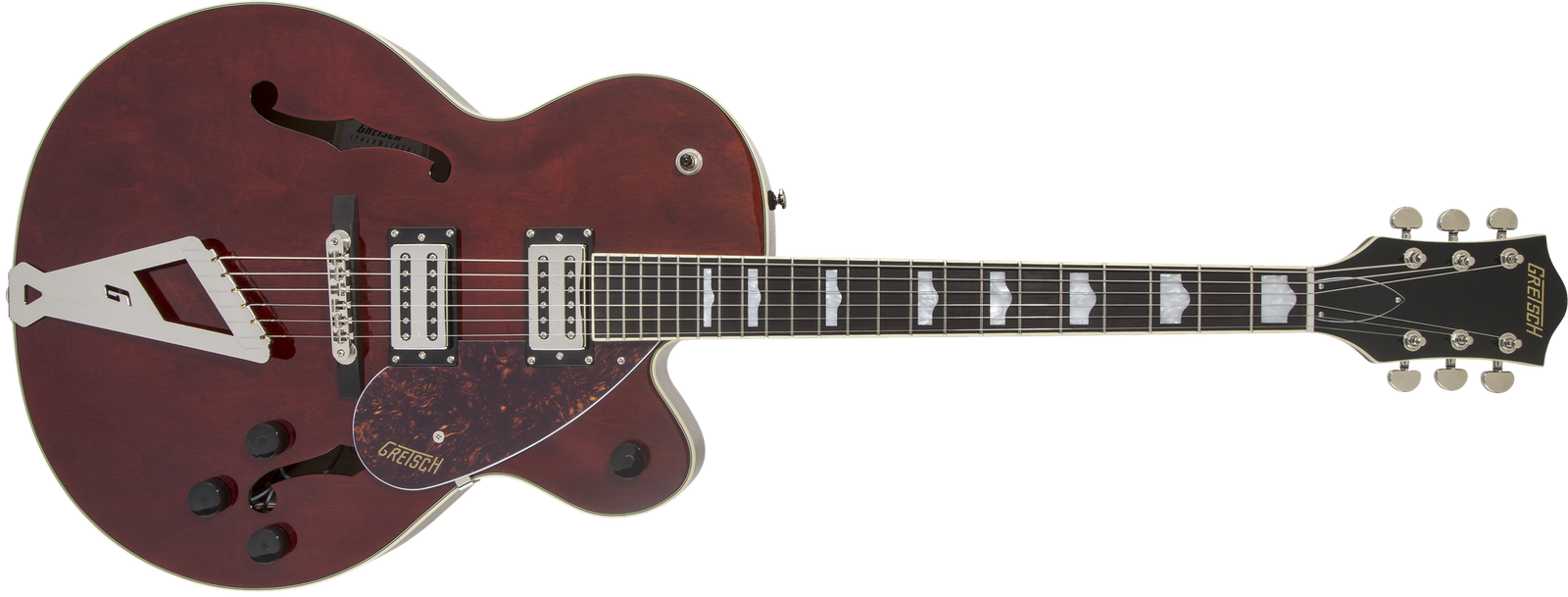

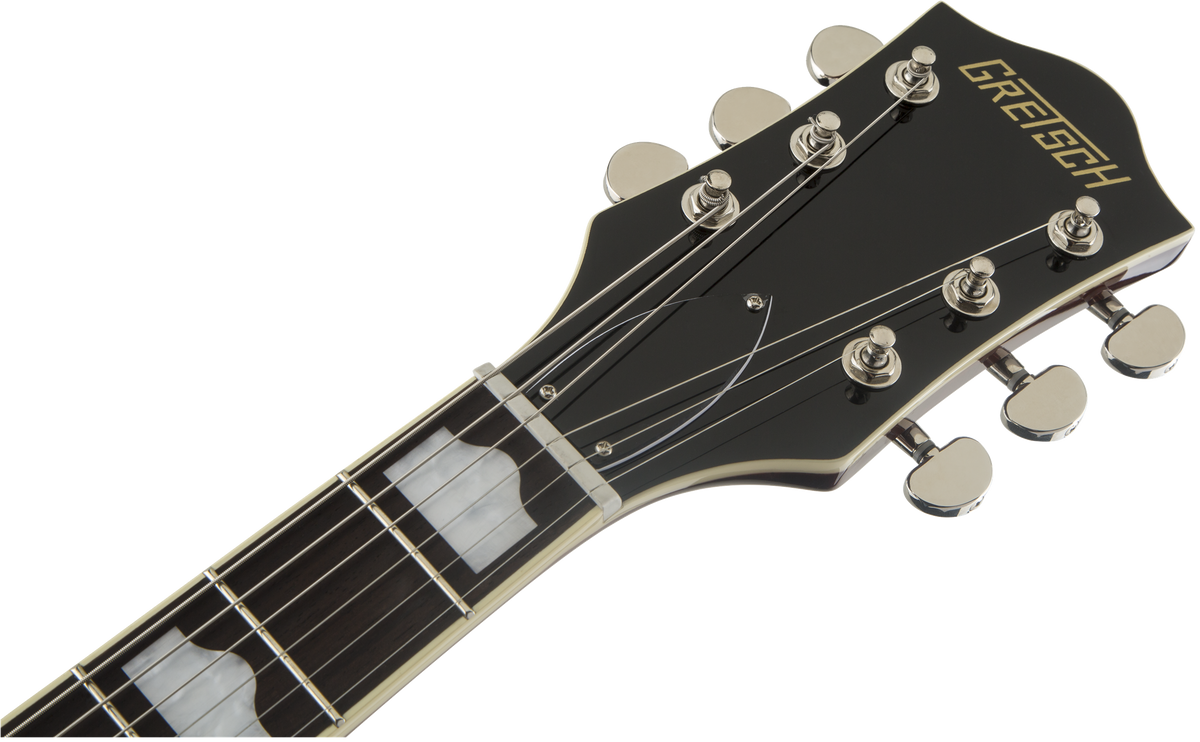

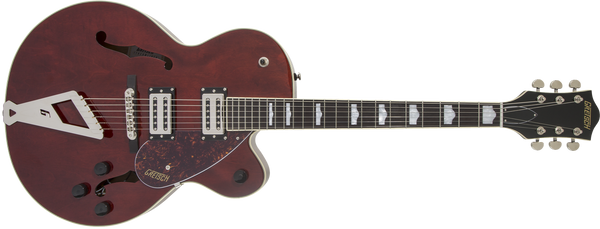

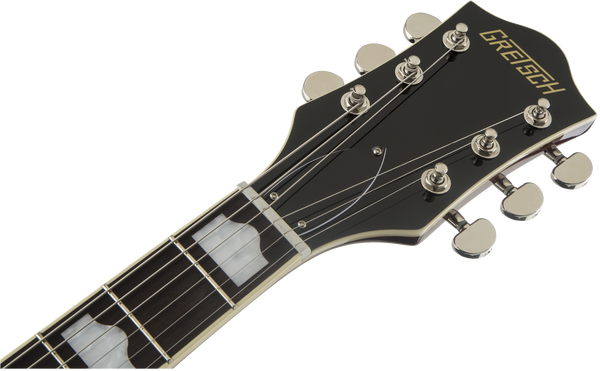

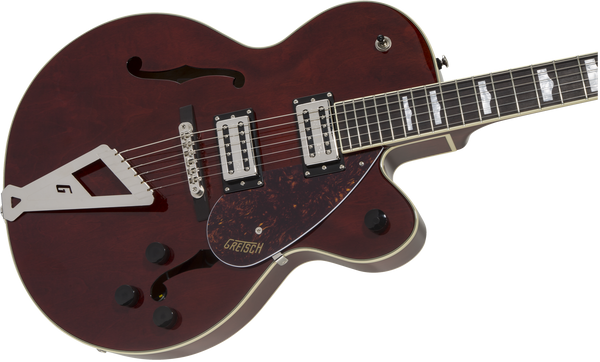

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2420 Streamliner Hollow Body with Chromatic II Laurel Fingerboard Broad'Tron Pickups Walnut Stain listed above. For larger pics, click on an image to open in a new tab.
