The G2220 Electromatic Junior Jet Bass II Short-Scale Walnut Stain is a solid body bass guitar
built by Gretsch. This guitar is manufactured in China
and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2514730517.
Key Features
Basswood Top
Maple Neck
Laurel Fingerboard
30.3" (770 mm) Scale Length
1.56" (39.62 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
4-Saddle Adjustable Bridge
Die-Cast Tuning Machines
Single-Coil Bass Bridge Pickup
Single-Coil Bass Neck Pickup
Product Identifiers
Model Name
G2220 Electromatic Junior Jet Bass II Short-Scale
Part Number
2514730517
Product Series
Electromatic
Country of Origin
China
Brand
Gretsch
Type
Bass Guitar
Category
Solid Body
UPC Code
885978906833
Factory Specifications
Body Construction
Body Material
Basswood
Top Material
Basswood
Body Shape
Jet
Body Finish
Gloss
Hardware
Bridge
4-Saddle Adjustable
Tuning Machines
Die-Cast
Pickguard
Black Plexi Pickguard with White Gretsch Logo
Control Knobs
G-Arrow
Hardware Finish
Chrome
Neck Construction
Neck Material
Maple
Fingerboard Material
Laurel
Radius
12" (305 mm)
Fingerboard Inlays
White Pearloid Dot
Number of Frets
20
Fret Size
Medium Jumbo
Nut Width
1.56" (39.62 mm)
Scale Length
30.3" (770 mm)
Nut Material
Synthetic Bone
Neck Finish
Gloss Urethane
Electronics
Bridge Pickup
Single-Coil Bass
Neck Pickup
Single-Coil Bass
Pickup Configuration
SS
Controls
Master Volume, Master Tone
Pickup Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
General
Orientation
Right-Hand
Strings
Nickel Plated Steel (.040-.095 Gauges)
Case / Gig Bag
Optional: Gig Bag 0996468000 / Hardshell Case 9225260000
Reference Images

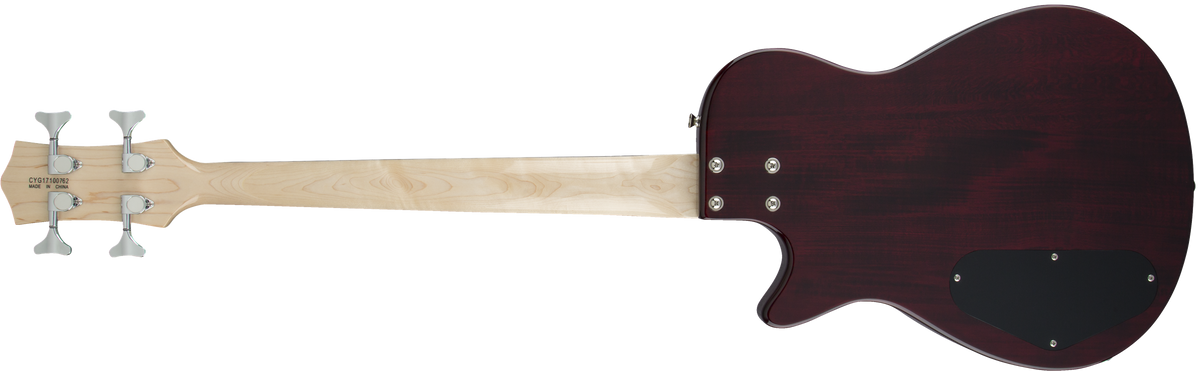

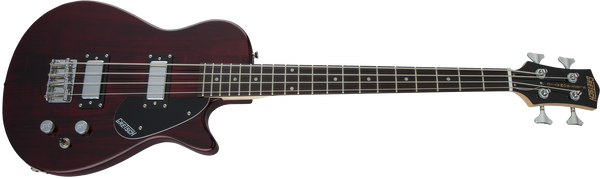

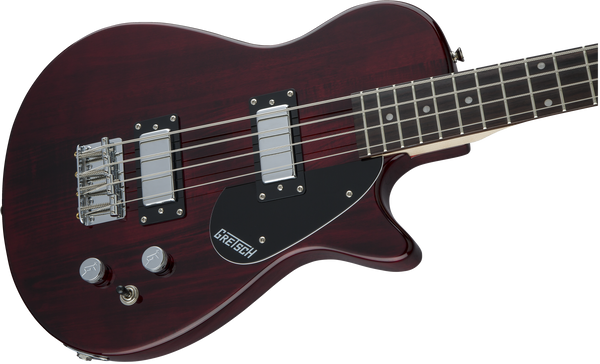

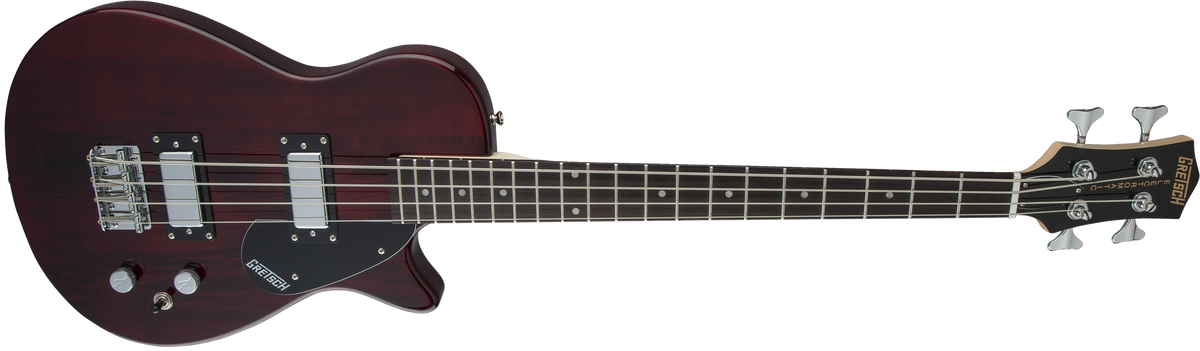

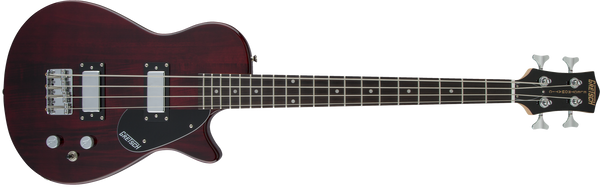

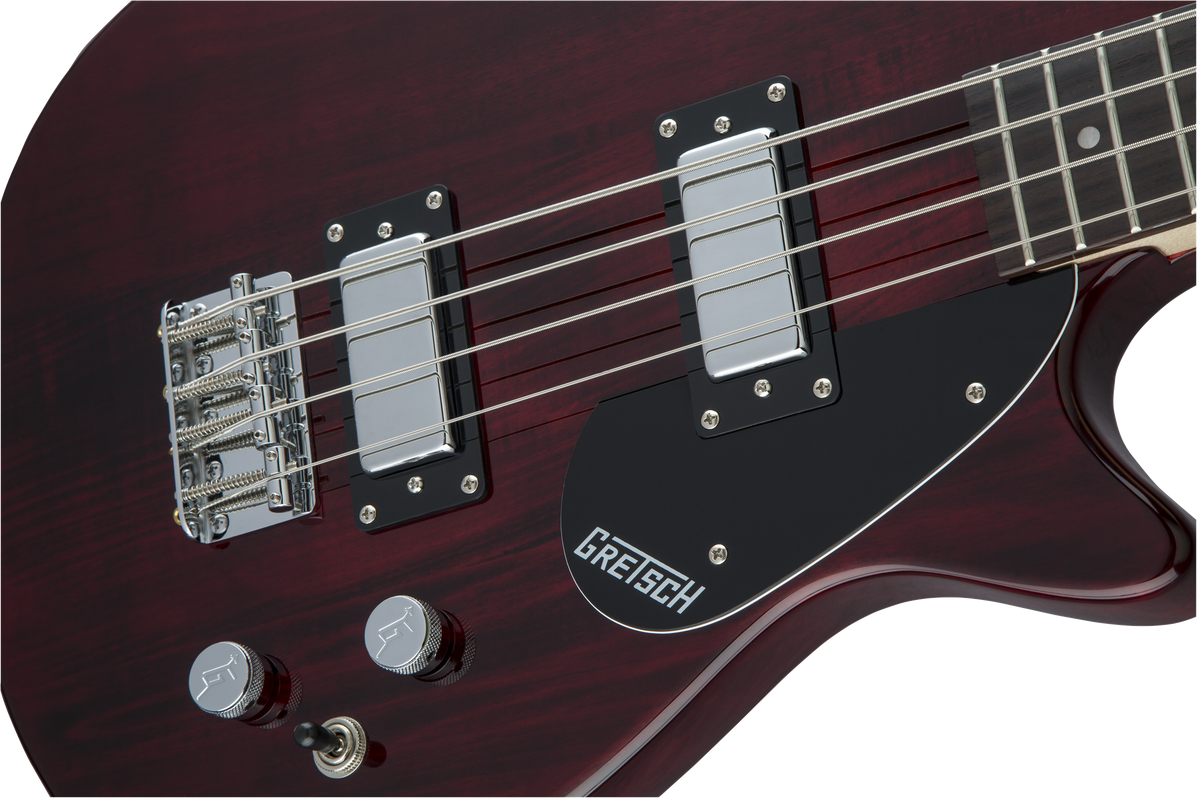

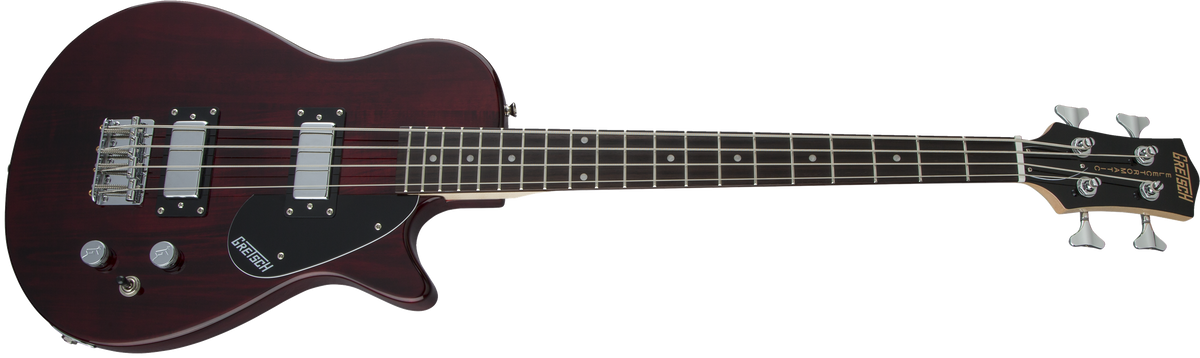

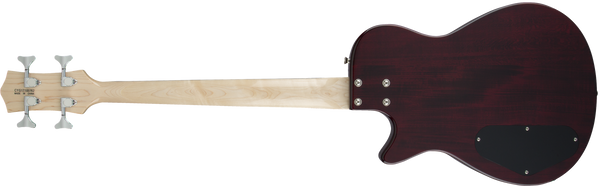

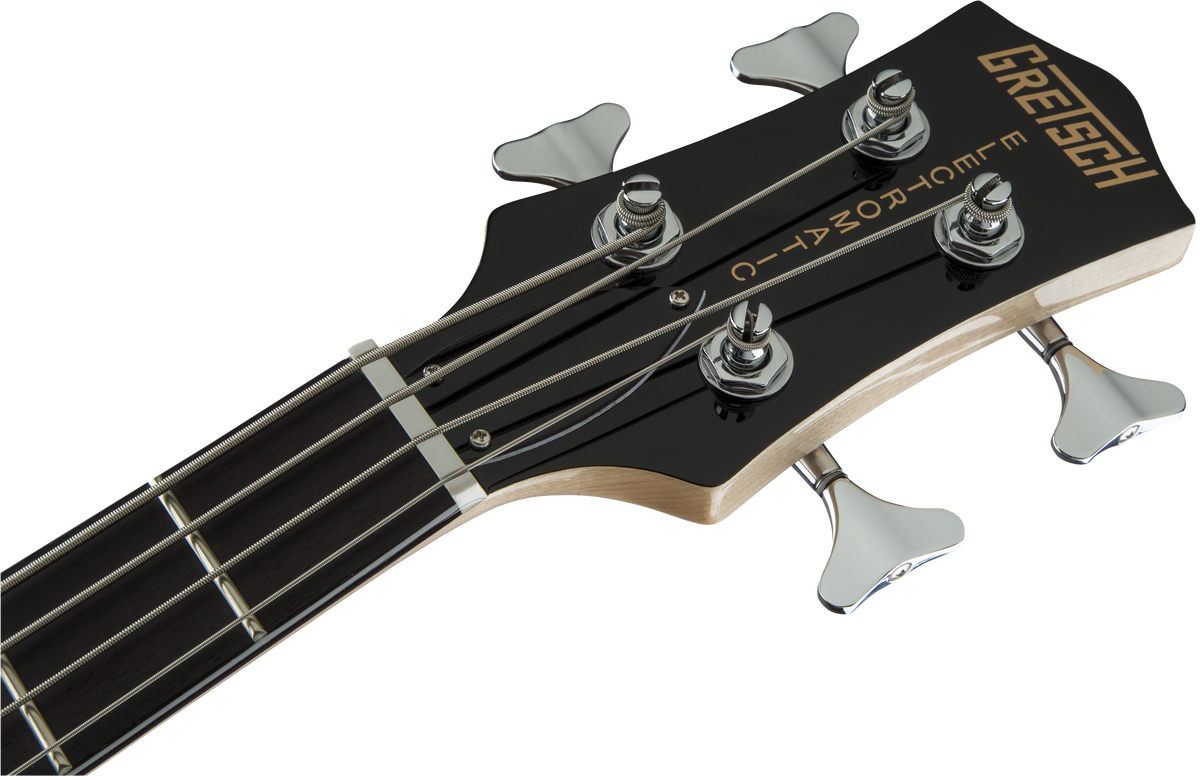

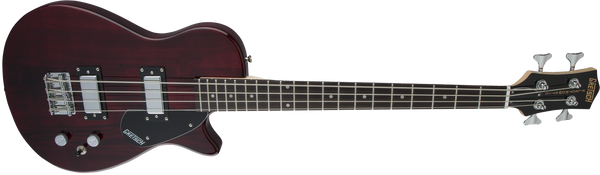

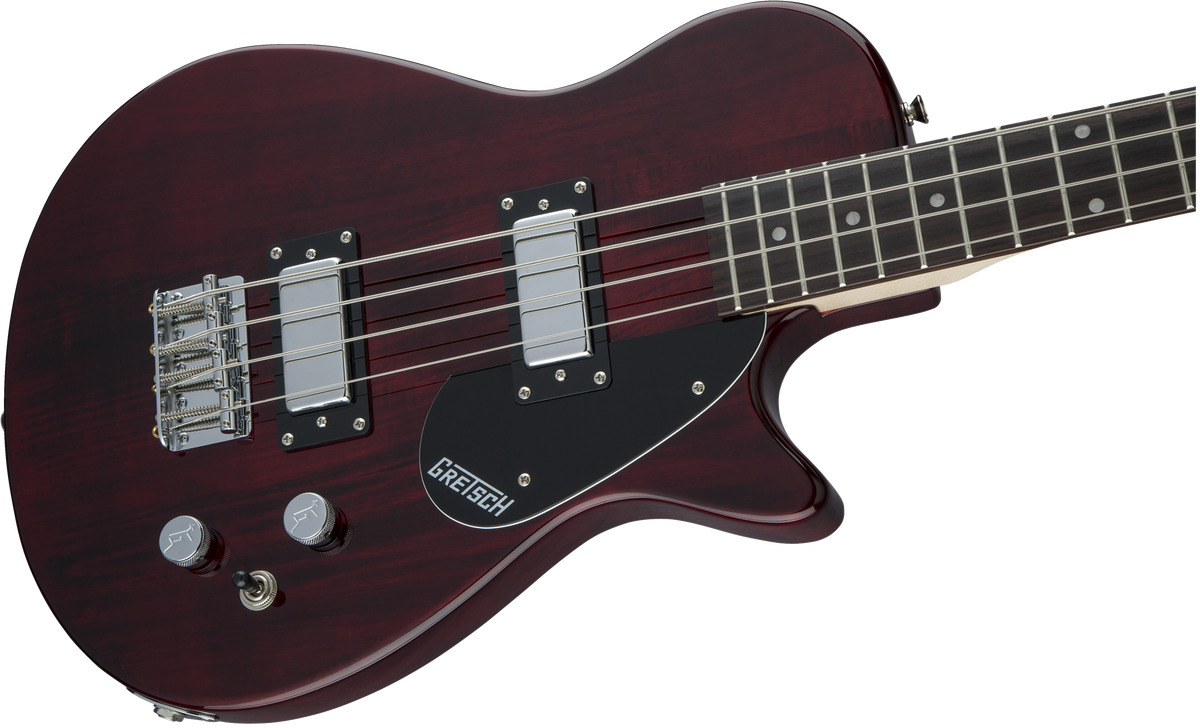

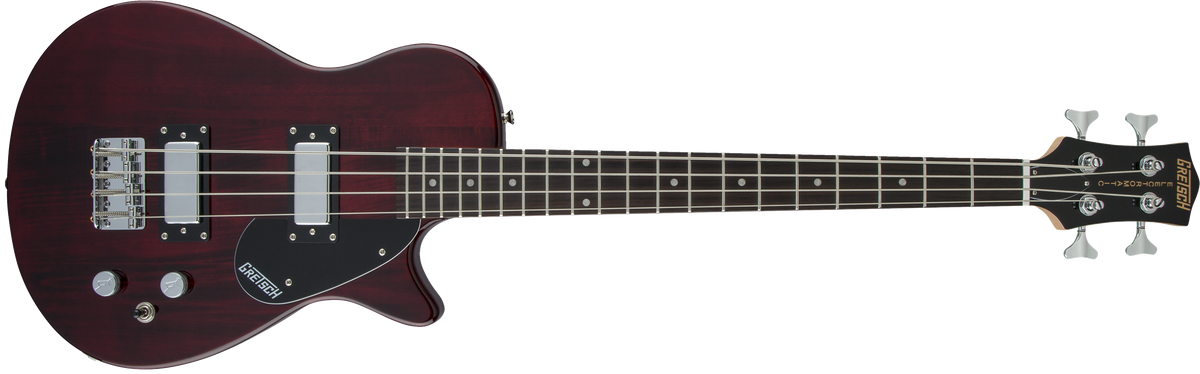

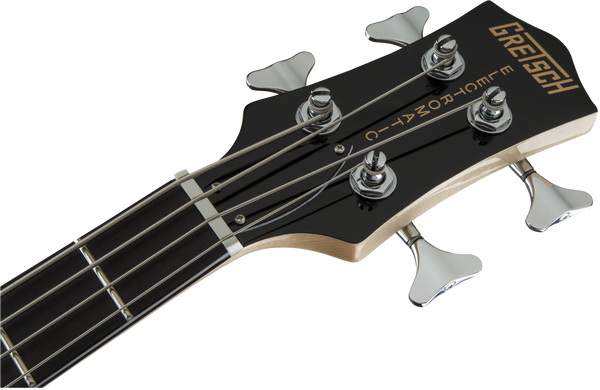

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2220 Electromatic Junior Jet Bass II Short-Scale Walnut Stain listed above. For larger pics, click on an image to open in a new tab.
