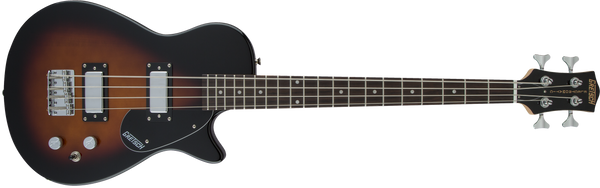

Gretsch G2220 Electromatic Junior Jet Bass II Short-Scale Bass Tobacco Sunburst Specs

The G2224 Junior Jet Bass II Rosewood Fingerboard 30.3" Scale Tobacco Sunburst is a solid body bass guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2514620552.

Key Features

Basswood Top
Maple Neck
Rosewood Fingerboard
30.3" (770 mm) Scale Length
1.56" (39.68 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
4-Saddle Adjustable Bridge
Die-Cast Tuning Machines
Gretsch Mini Humbucking Bridge Pickup
Gretsch Mini Humbucking Neck Pickup

Product Identifiers

Model Name	G2220 Electromatic Junior Jet Bass II Short-Scale Bass
Part Number	2514620552
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Bass Guitar
Category	Solid Body
UPC Code	885978095629

Factory Specifications

Body Construction

Body Material	Basswood
Top Material	Basswood
Body Shape	Jet
Body Finish	Gloss Urethane
Lower Bout Width	13.46" (341.88 mm)

Hardware

Bridge	4-Saddle Adjustable
Tuning Machines	Die-Cast
Pickguard	Black Plexi Pickguard with White Gretsch Logo
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	4-Saddle Standard
Hardware Finish	Chrome

Neck Construction

Neck Material	Maple
Fingerboard Material	Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	White Dot
Number of Frets	20
Fret Size	Medium Jumbo
Nut Width	1.56" (39.68 mm)
Scale Length	30.3" (770 mm)
Nut Material	Synthetic Bone
Neck Finish	Gloss Urethane
Headstock	Jet Style

Electronics

Bridge Pickup	Gretsch Mini Humbucking
Neck Pickup	Gretsch Mini Humbucking
Pickup Configuration	HH
Controls	Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.045-.105 Gauges)
Unique Features	2-Mini Bass Humbucking Pickups, 30.3" Scale, Deluxe Enclosed Die-cast Tuners, Bolt-On Neck
Case / Gig Bag	Optional G2168 Baritone/Junior Jet Bass Gig Bag (p/n 099-6468-000)
Included Accessories	Optional: 099-6468-000 Gig Bag - G2168 - Jet Baritone/Junior Jet Bass
Recommended Case	Optional: 099-6468-000 Gig Bag - G2168 - Jet Baritone/Junior Jet Bass

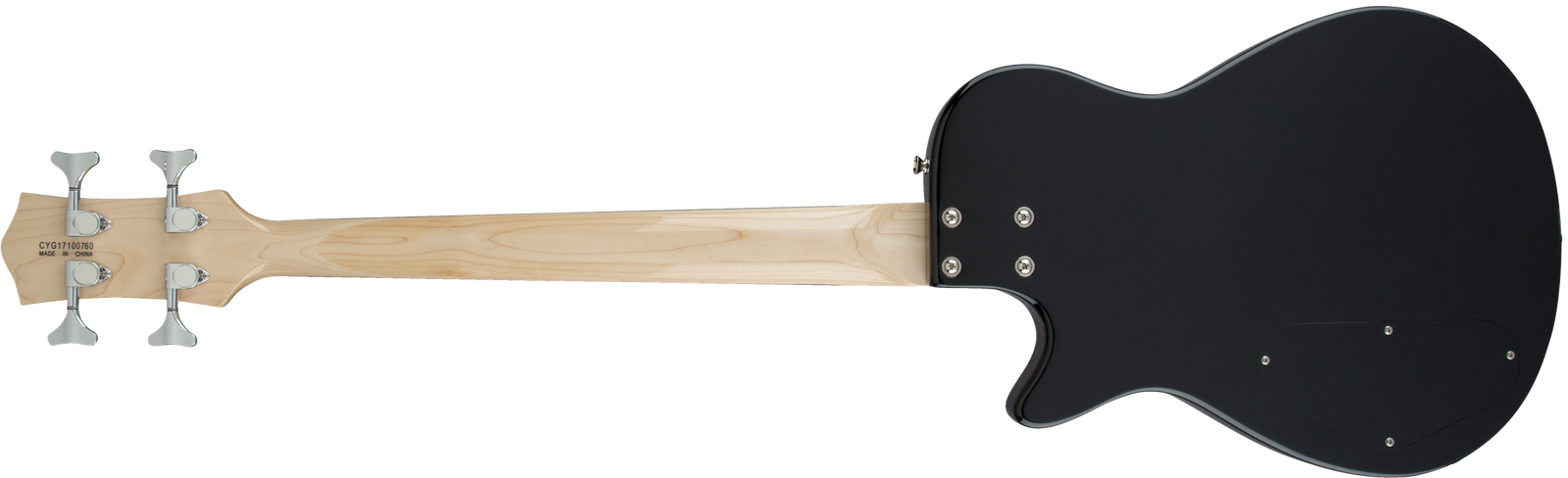

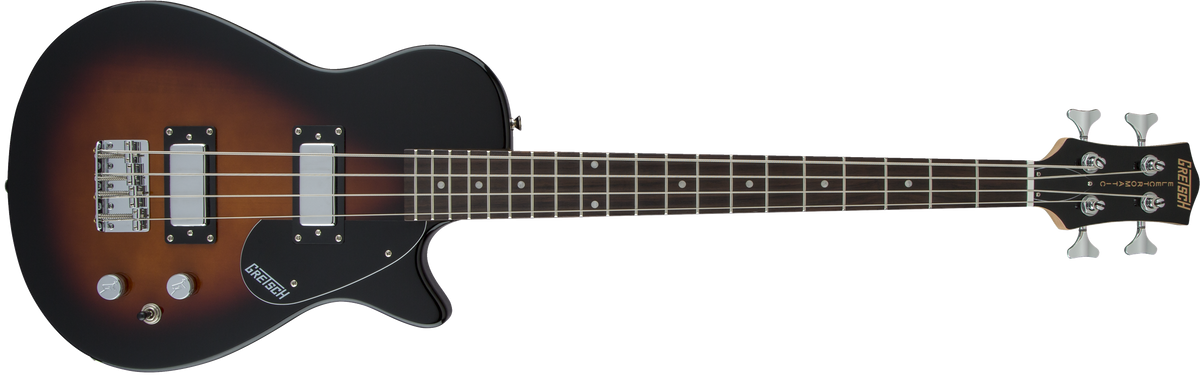

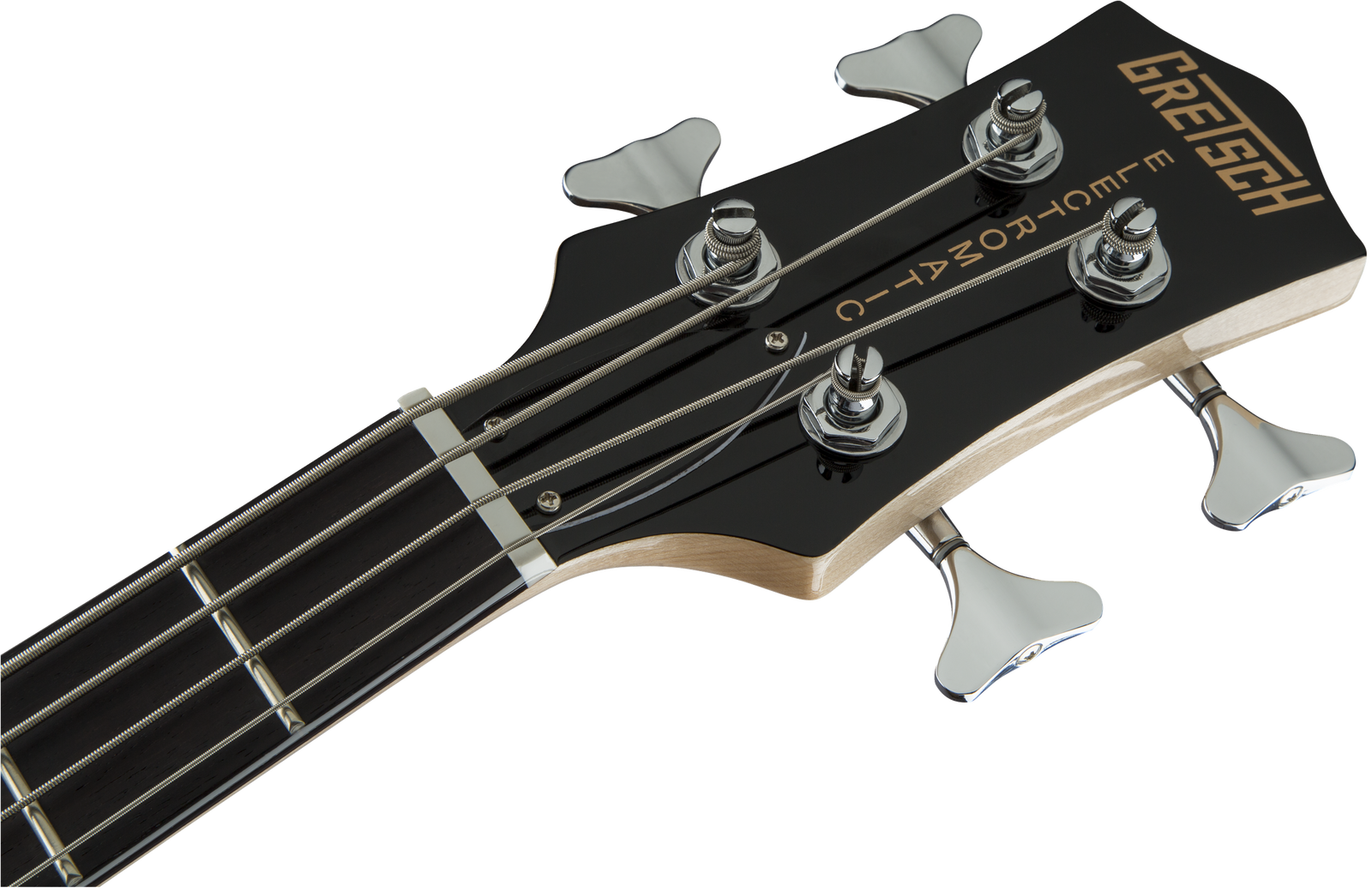

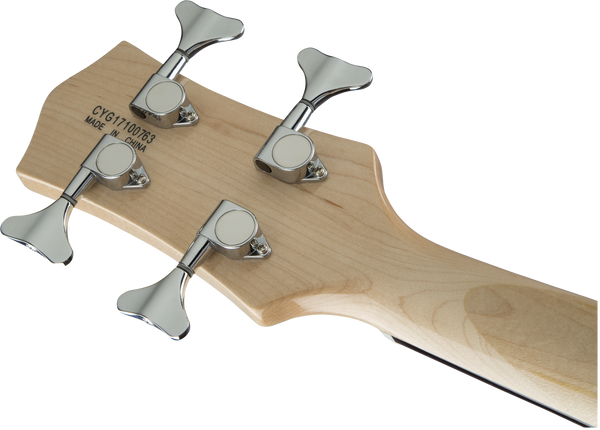

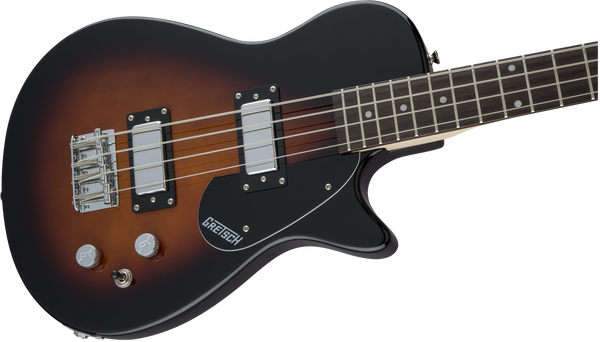

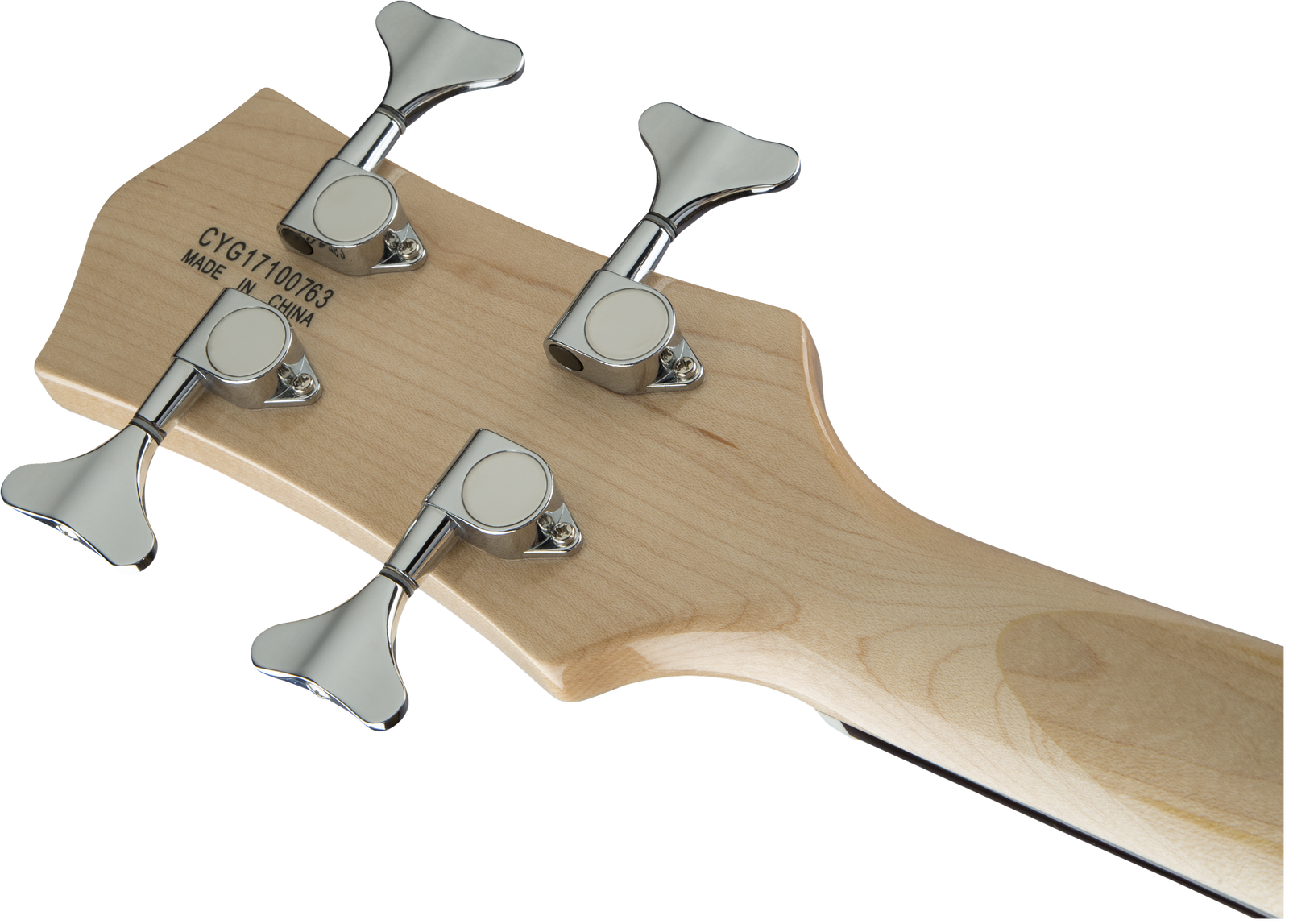

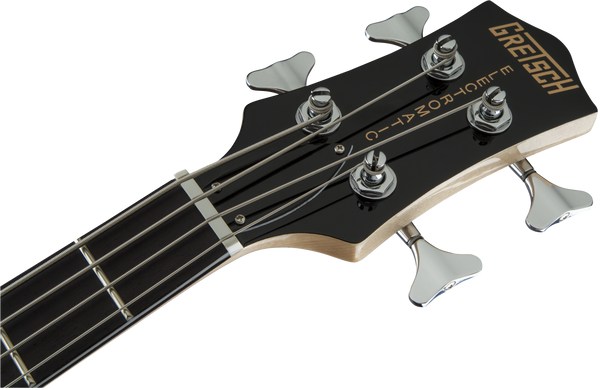

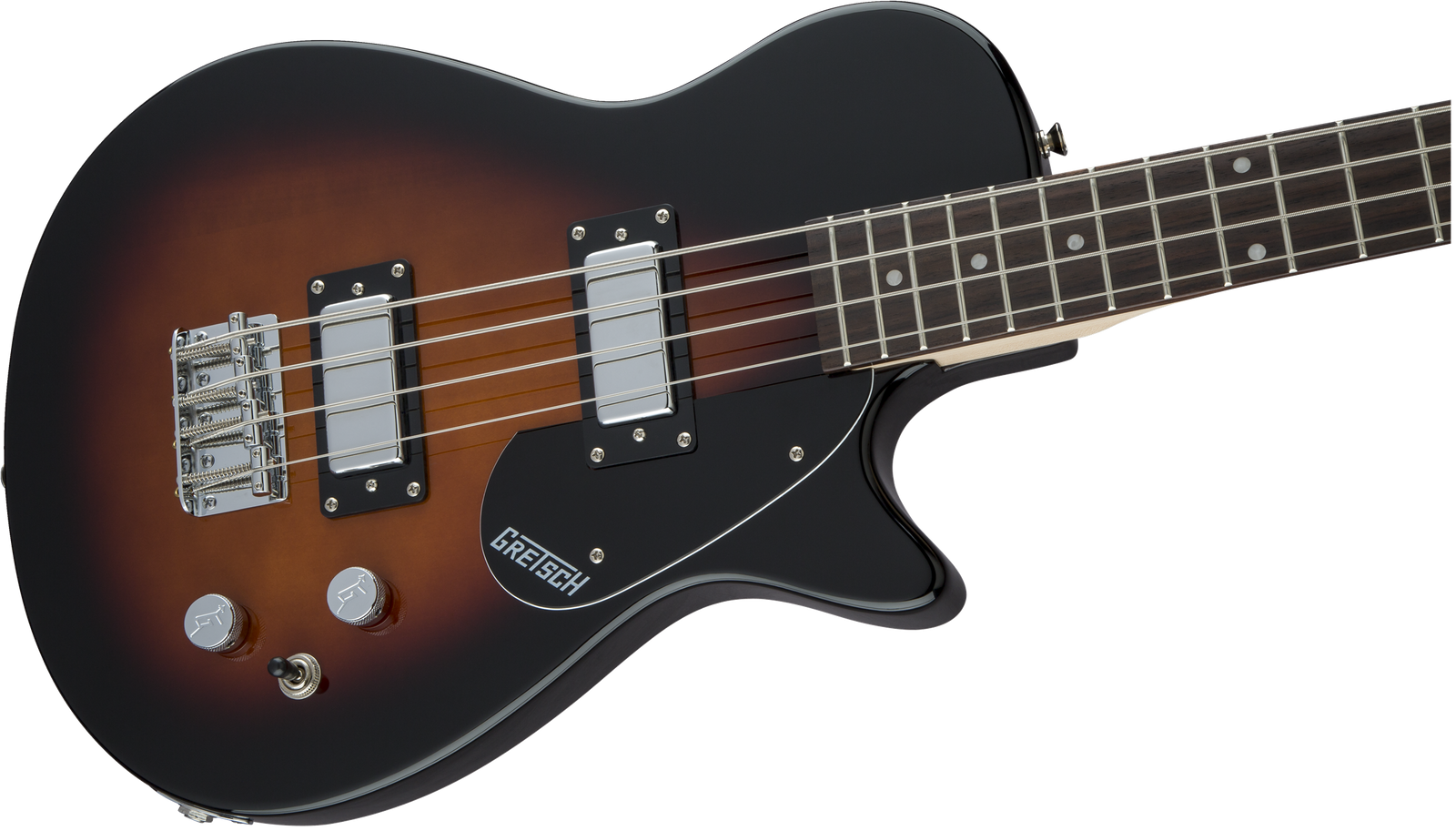

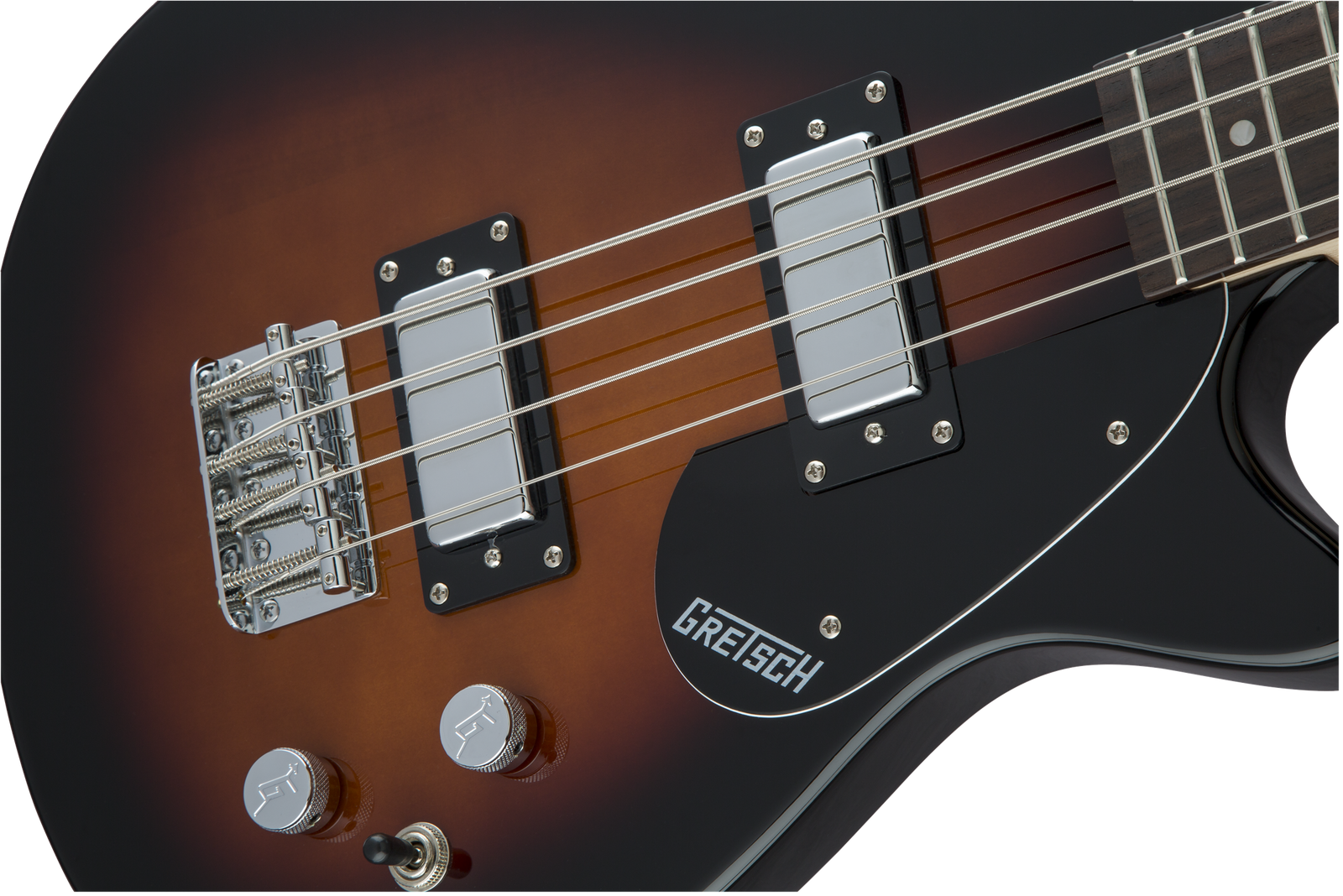

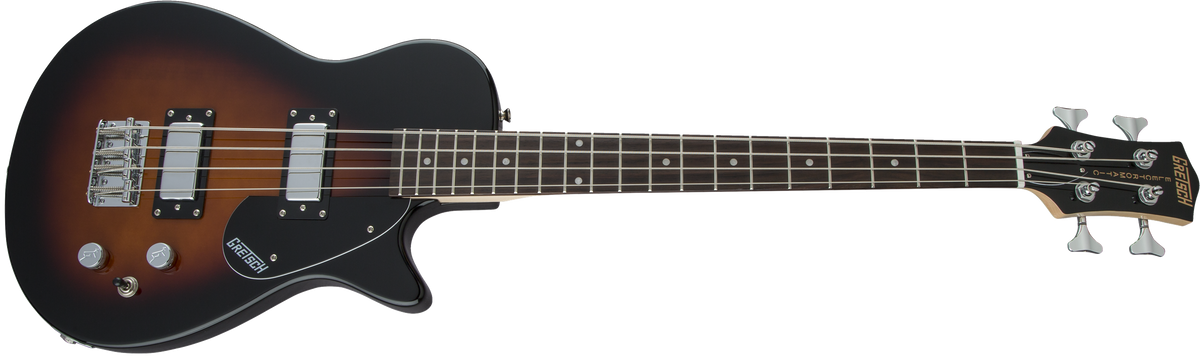

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2224 Junior Jet Bass II Rosewood Fingerboard 30.3" Scale Tobacco Sunburst listed above. For larger pics, click on an image to open in a new tab.
