Gretsch G2217 Streamliner Junior Jet Club FSR Ice Blue Metallic Specs

The G2217 Streamliner Junior Jet Club BT Laurel Fingerboard Ice Blue Metallic is a solid body electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2816900583.

Key Features

Nato Top
Nato Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Compensated Wrap-Around Bridge
Die-Cast Tuning Machines
Broad'Tron Bridge Pickup
Broad'Tron Neck Pickup

Product Identifiers

Model Name	G2217 Streamliner Junior Jet Club FSR
Part Number	2816900583
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978840625

Factory Specifications

Body Construction

Body Material	Nato
Top Material	Nato
Back Material	Nato
Body Shape	Jet
Body Binding	None
Body Finish	Gloss
Upper Bout Width	10.375" (263.52 mm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Compensated Wrap-Around
Tuning Machines	Die-Cast
Pickguard	1-Ply Tortoiseshell
Control Knobs	Gold Vintage-Style
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	White
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Bolt-On
Neck Finish	Gloss

Electronics

Bridge Pickup	Broad'Tron
Neck Pickup	Broad'Tron
Pickup Configuration	Broad'Tron / Broad'Tron
Controls	Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G6238FT Gretsch Flat Top Solid Body Hardshell (p/n 099-6474-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

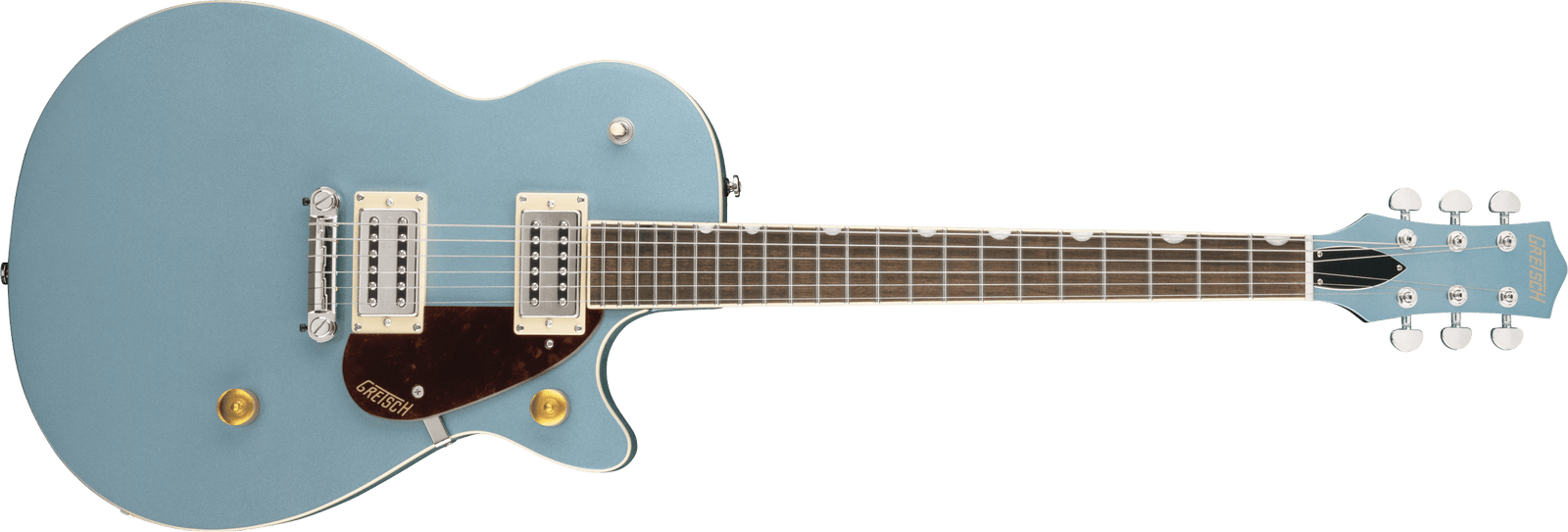

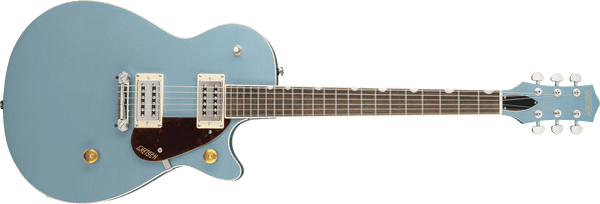

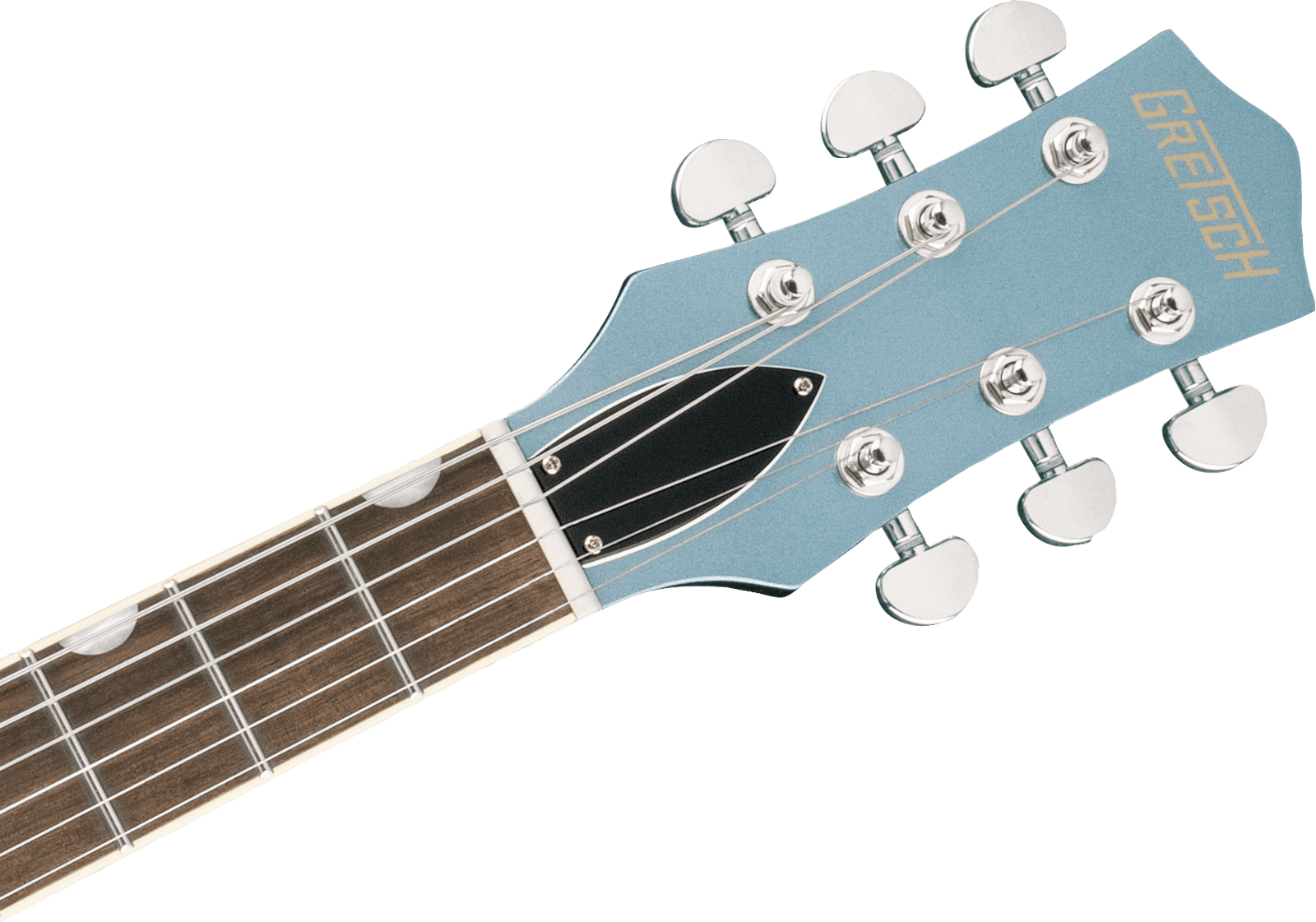

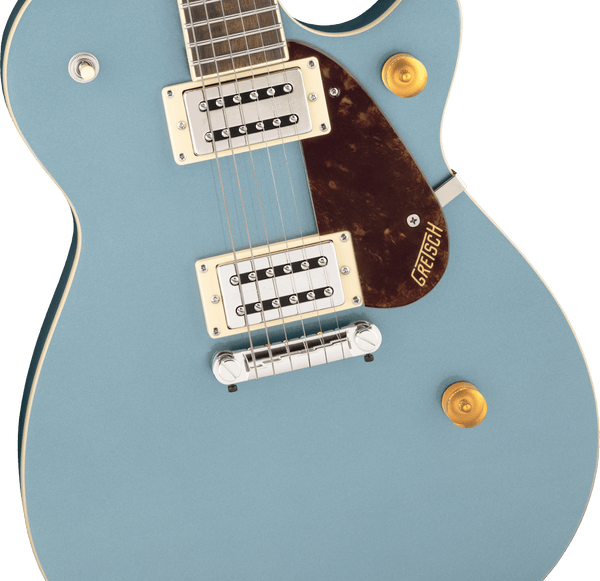

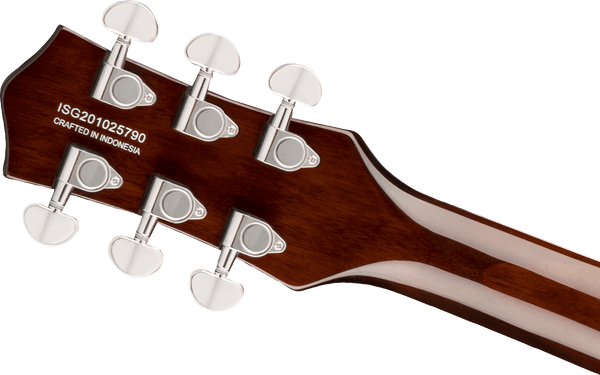

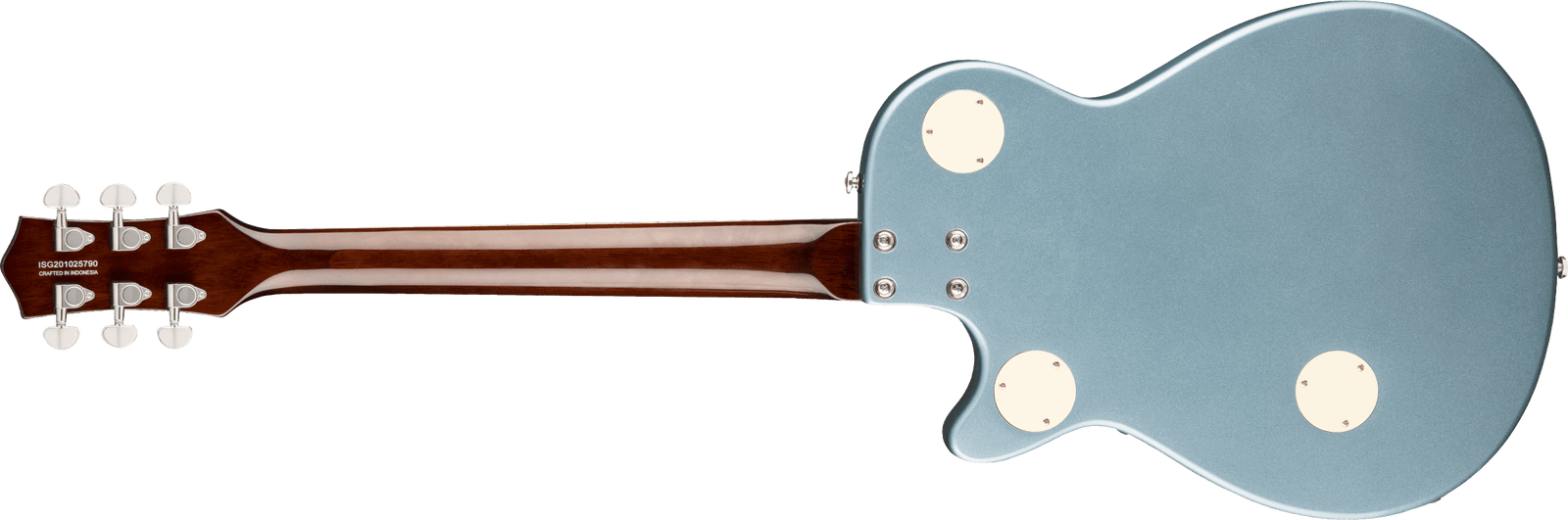

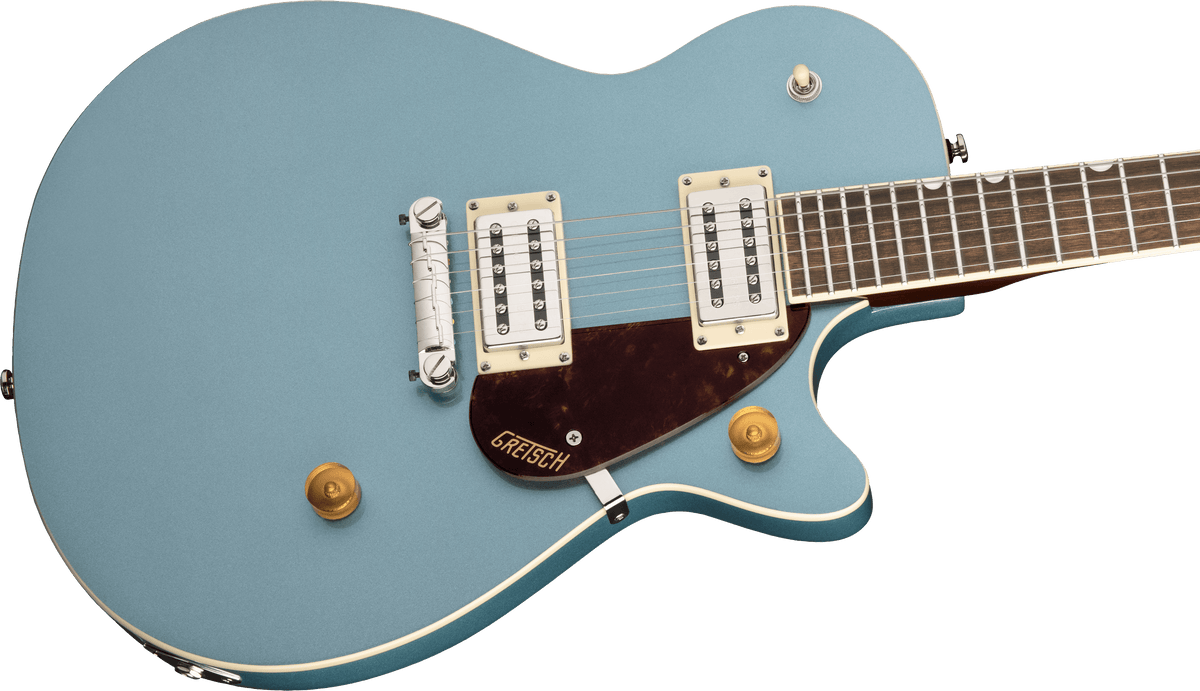

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2217 Streamliner Junior Jet Club BT Laurel Fingerboard Ice Blue Metallic listed above. For larger pics, click on an image to open in a new tab.
