Gretsch G2215-P90 Streamliner Junior Jet Club Havana Burst Specs

The G2215-P90 Streamliner Junior Jet Club P90 Laurel Fingerboard Havana Burst is a solid body electric guitar built by Gretsch. This guitar is manufactured in Indonesia and is a Streamliner Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2806700531.

Key Features

Nato Top
Nato Body
Nato Neck
Laurel Fingerboard
24.75" (629 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Anchored Compensated Wrap-Around Bridge
Die-Cast Tuning Machines
Broad'Tron BT-2S Bridge Pickup
P90 Soap Bar Neck Pickup

Product Identifiers

Model Name	G2215-P90 Streamliner Junior Jet Club
Part Number	2806700531
Product Series	Streamliner Collection
Country of Origin	Indonesia
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	717669554514

Factory Specifications

Body Construction

Body Material	Nato
Top Material	Nato
Back Material	Nato
Body Shape	Jet
Body Binding	Aged White
Body Finish	Gloss
Upper Bout Width	10.375" (263.53 mm)
Lower Bout Width	13.46" (341.88 mm)
Waist	8.625" (219.08 mm)

Hardware

Bridge	Anchored Compensated Wrap-Around
Tuning Machines	Die-Cast
Pickguard	Black Plexi
Control Knobs	Black Vintage-Style
Bridge Cover / Tailpiece	Wrap-Around
Hardware Finish	Nickel

Neck Construction

Neck Material	Nato
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.75" (629 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Bolt-On
Neck Finish	Gloss
Headstock Binding	None

Electronics

Bridge Pickup	Broad'Tron BT-2S
Neck Pickup	P90 Soap Bar
Pickup Configuration	Broad'Tron / P90
Controls	Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional G6238FT Gretsch Flat Top Solid Body Hardshell (p/n 099-6474-000); Optional G2164 Gretsch Solid Body Gig Bag (p/n 099-6460-000)

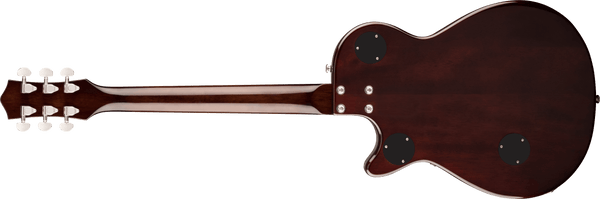

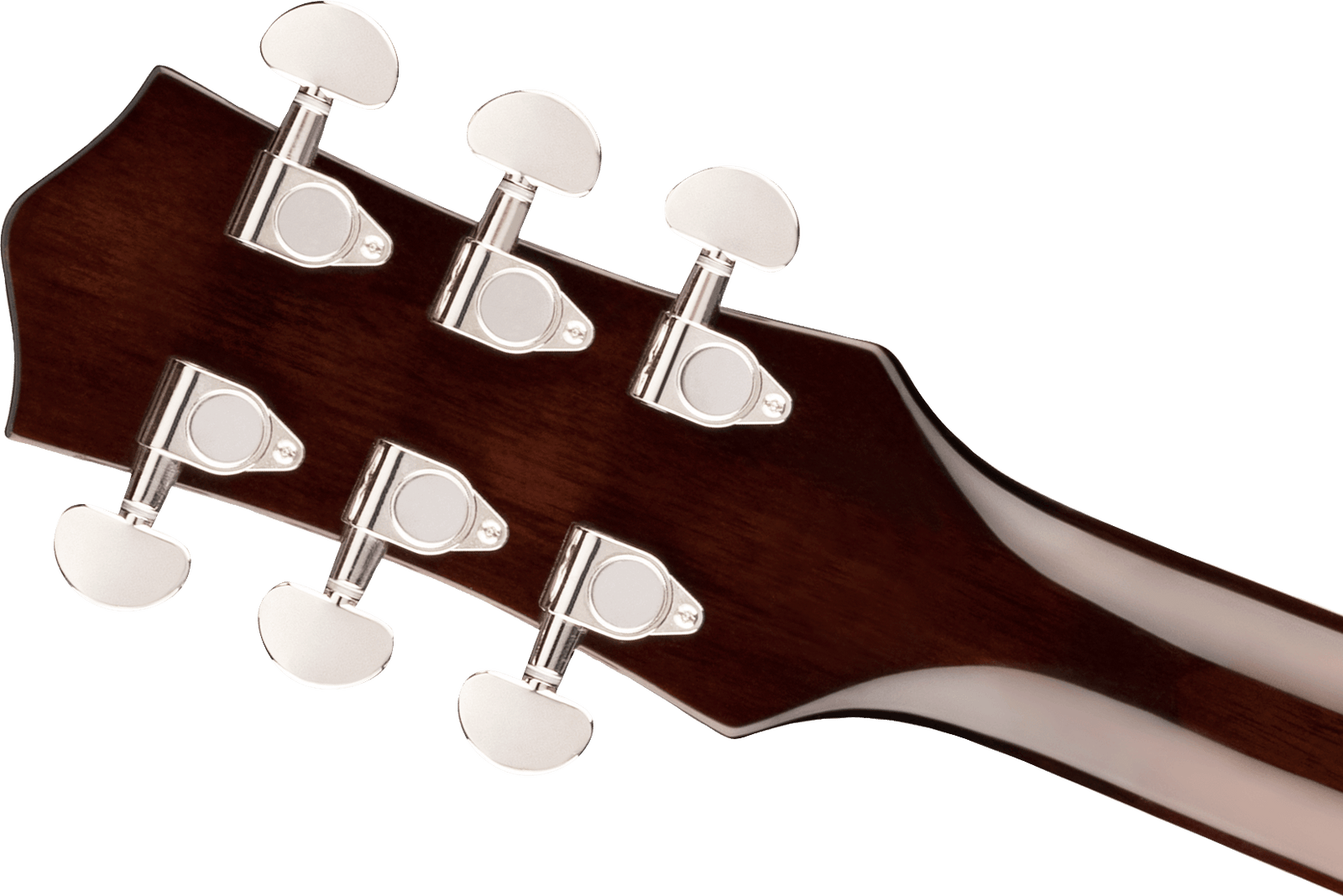

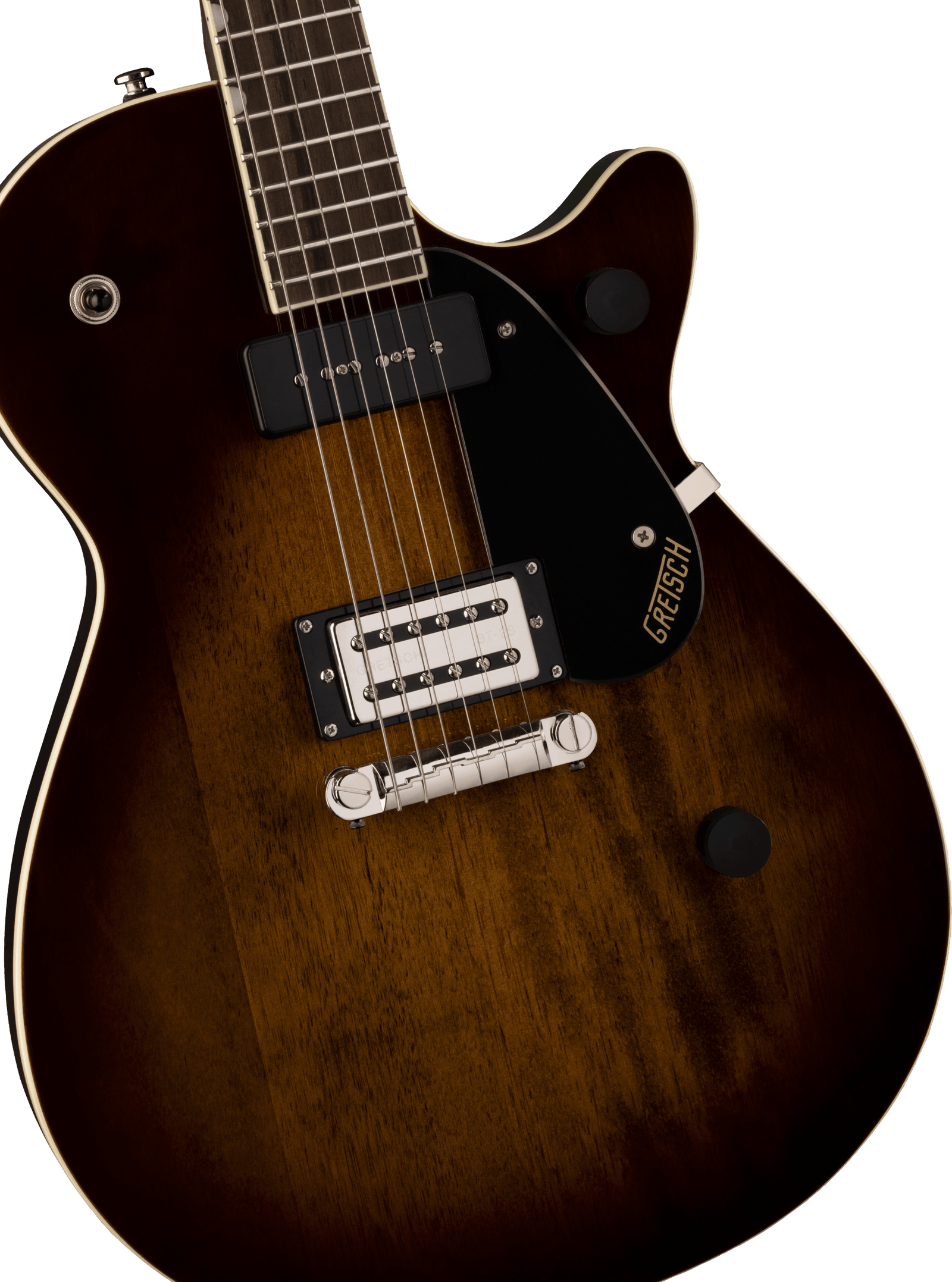

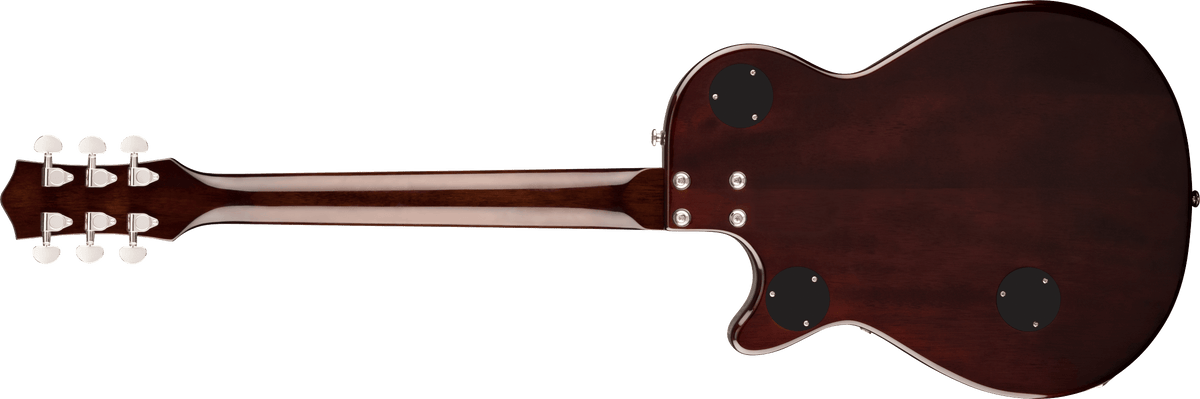

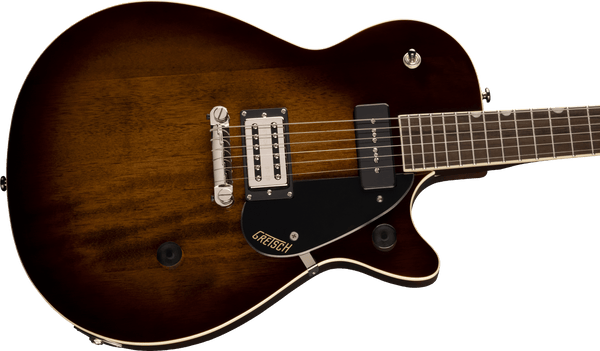

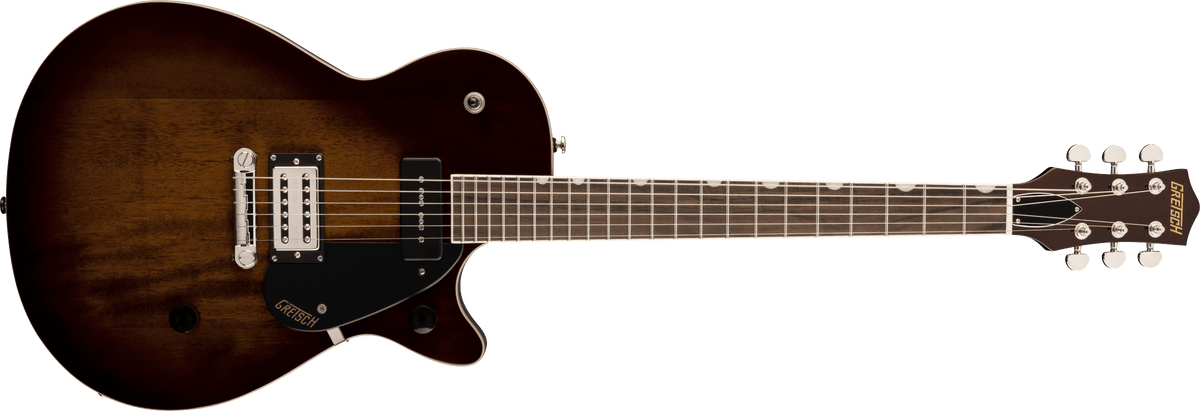

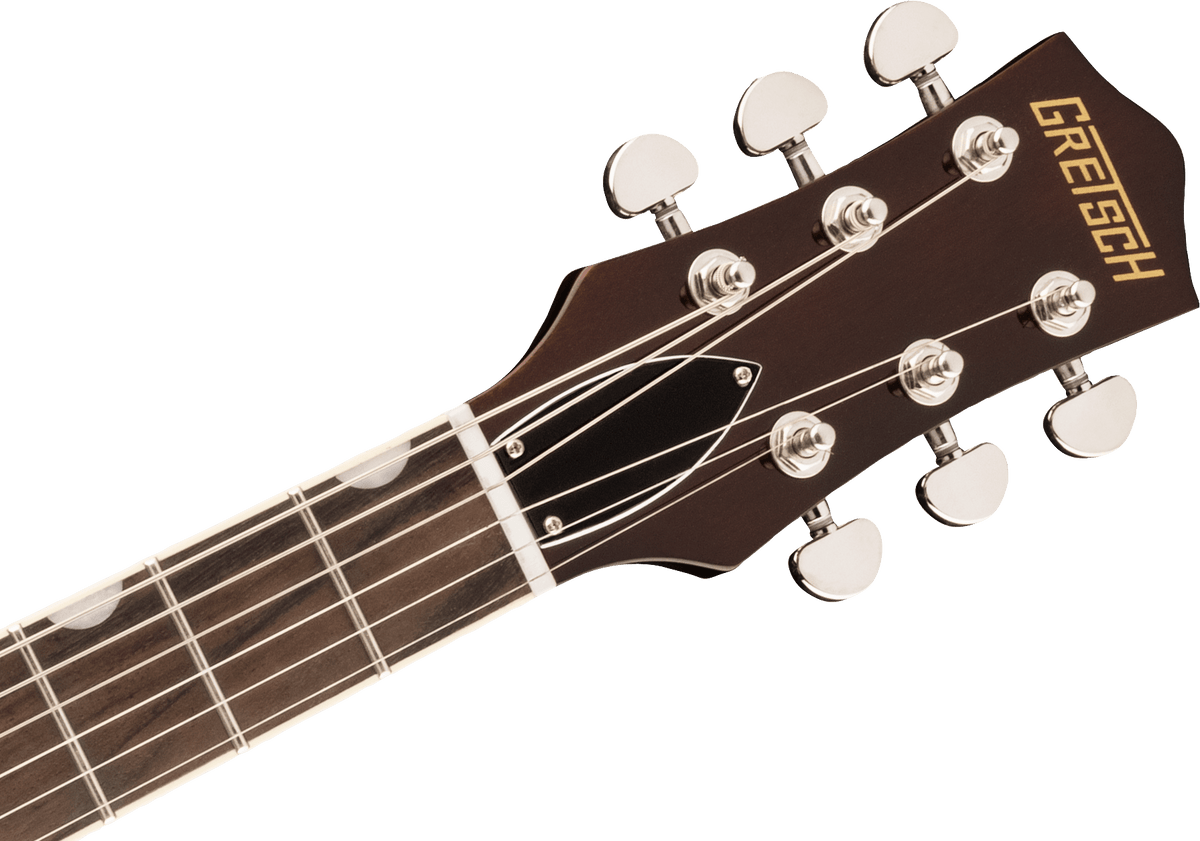

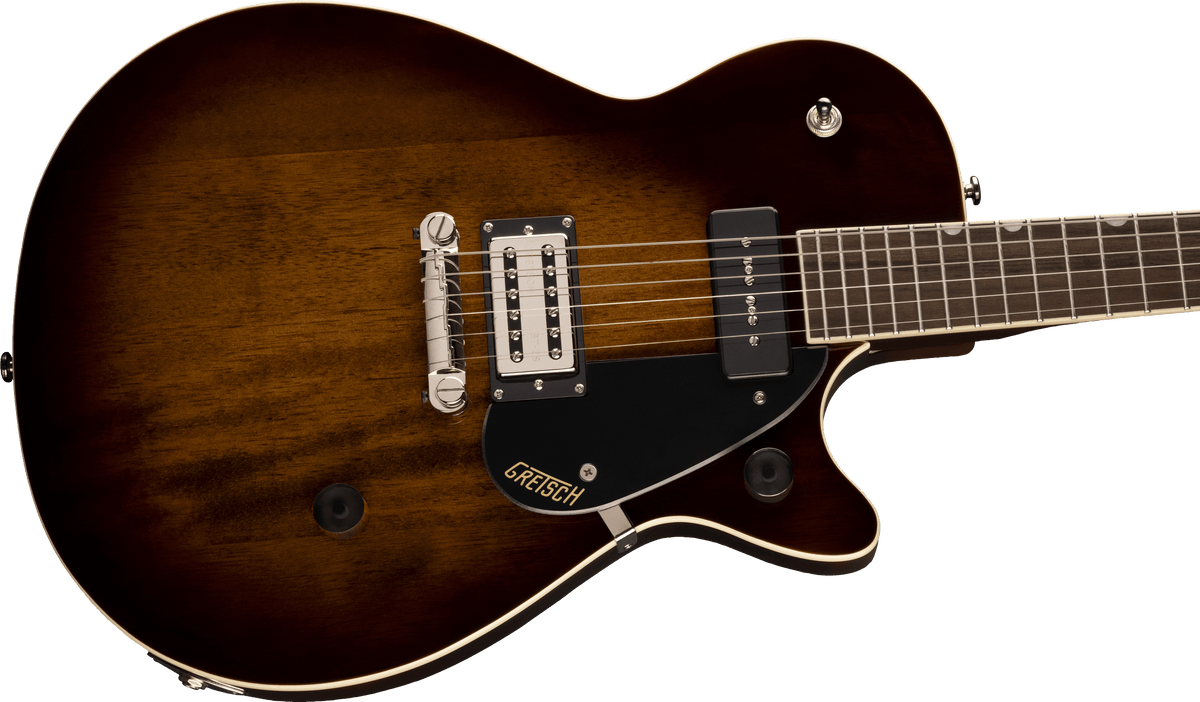

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the G2215-P90 Streamliner Junior Jet Club P90 Laurel Fingerboard Havana Burst listed above. For larger pics, click on an image to open in a new tab.
