Gretsch Electromatic Pristine LTD Jet Single-Cut Bigsby Petrol Specs

The Electromatic Pristine LTD Jet Single-Cut with Bigsby Laurel Fingerboard Petrol is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2507813548.

Key Features

Arched Maple Top
Mahogany Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Sealed Tuning Machines
FT-5E Filter’Tron Bridge Pickup
FT-5E Filter’Tron Neck Pickup

Product Identifiers

Model Name	Electromatic Pristine LTD Jet Single-Cut with Bigsby
Part Number	2507813548
Product Series	Electromatic
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	717669887155

Factory Specifications

Body Construction

Body Material	Mahogany
Top Material	Arched Maple
Back Material	Mahogany
Body Shape	Jet
Body Binding	White with B/W Purfling
Body Finish	Gloss
Bracing	Chambered

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast Sealed
Pickguard	Gold Plexi with Black Gretsch and Electromatic Logos
Control Knobs	G-Arrow
Bridge Cover / Tailpiece	Bigsby B50
Hardware Finish	Gold

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Laurel
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.6" (625 mm)
Nut Material	Synthetic Bone
Neck Shape	Thin "U"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	White

Electronics

Bridge Pickup	FT-5E Filter’Tron
Neck Pickup	FT-5E Filter’Tron
Pickup Configuration	Filter'Tron / Filter'Tron
Controls	Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Pickup Switching	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag	Optional: G2164 Gig Bag (0996460000), G6238FT Hardshell Case (0996474000), G6238 Deluxe Hardshell (0996410000)

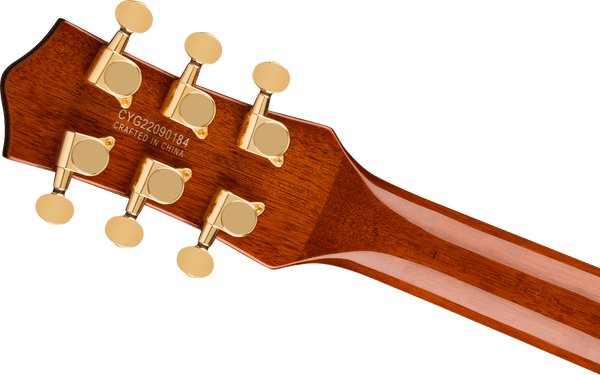

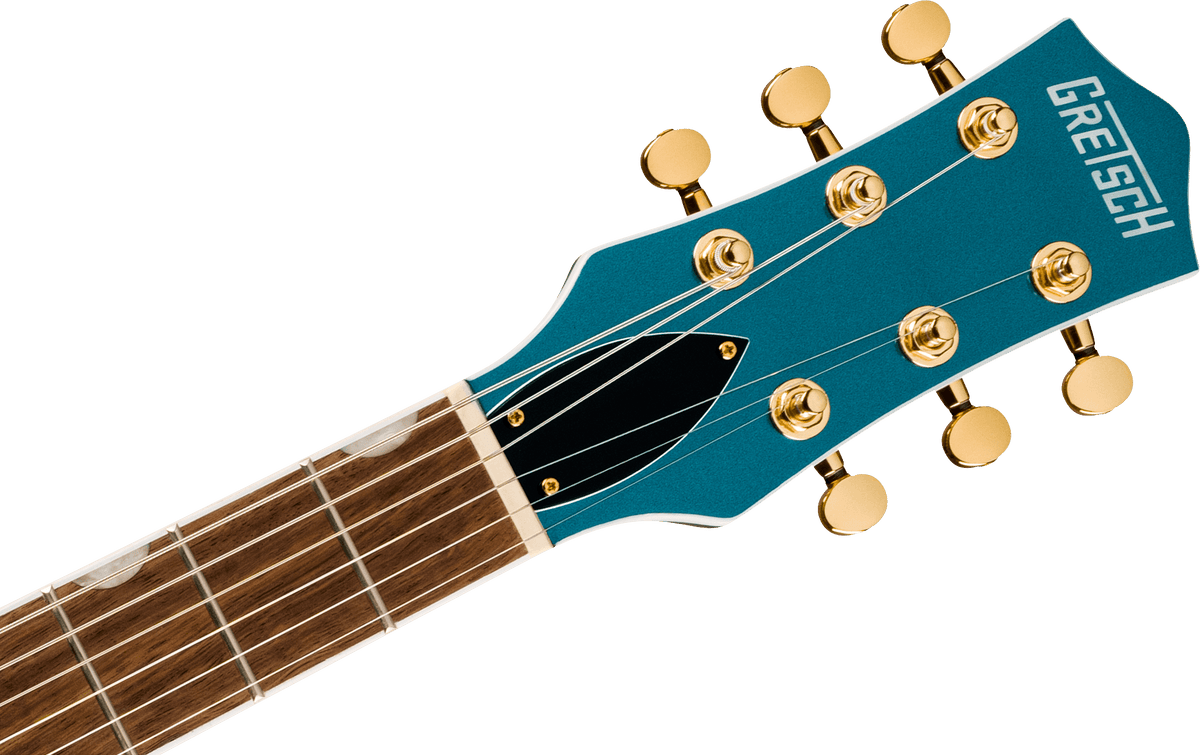

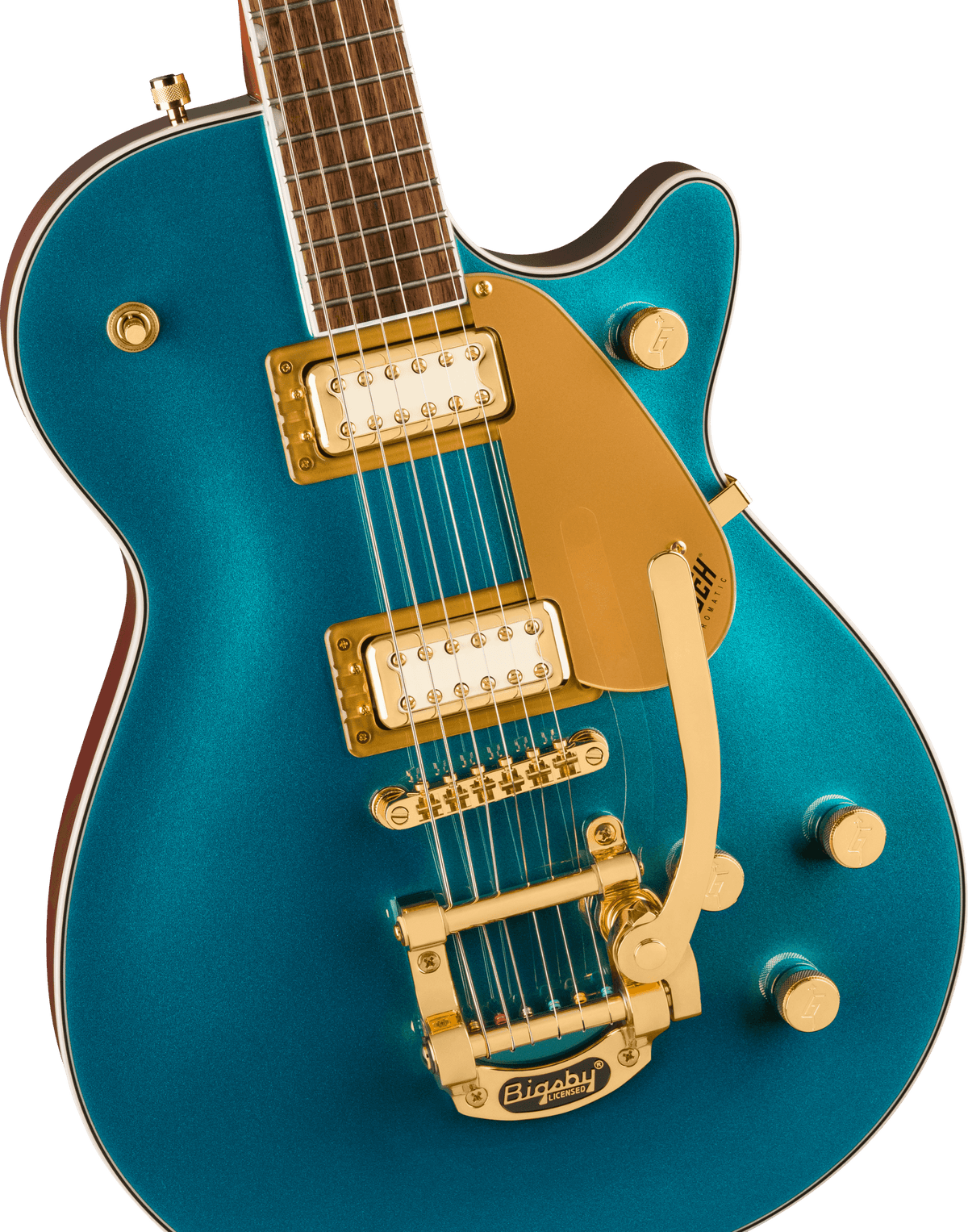

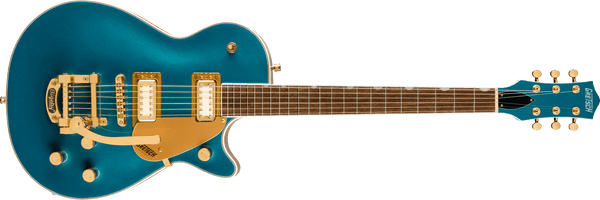

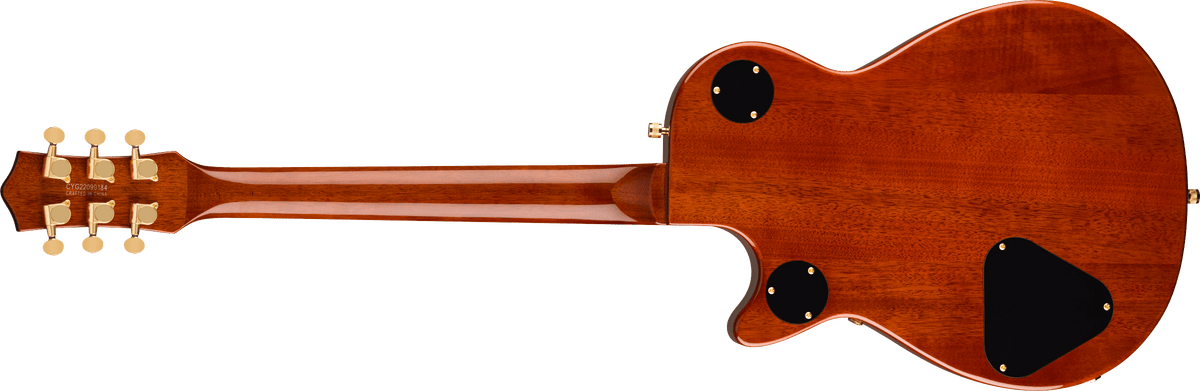

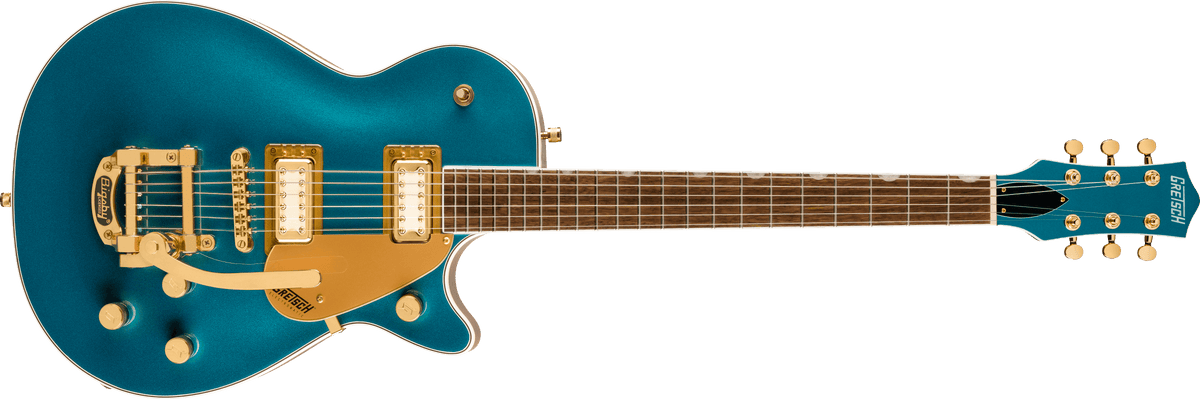

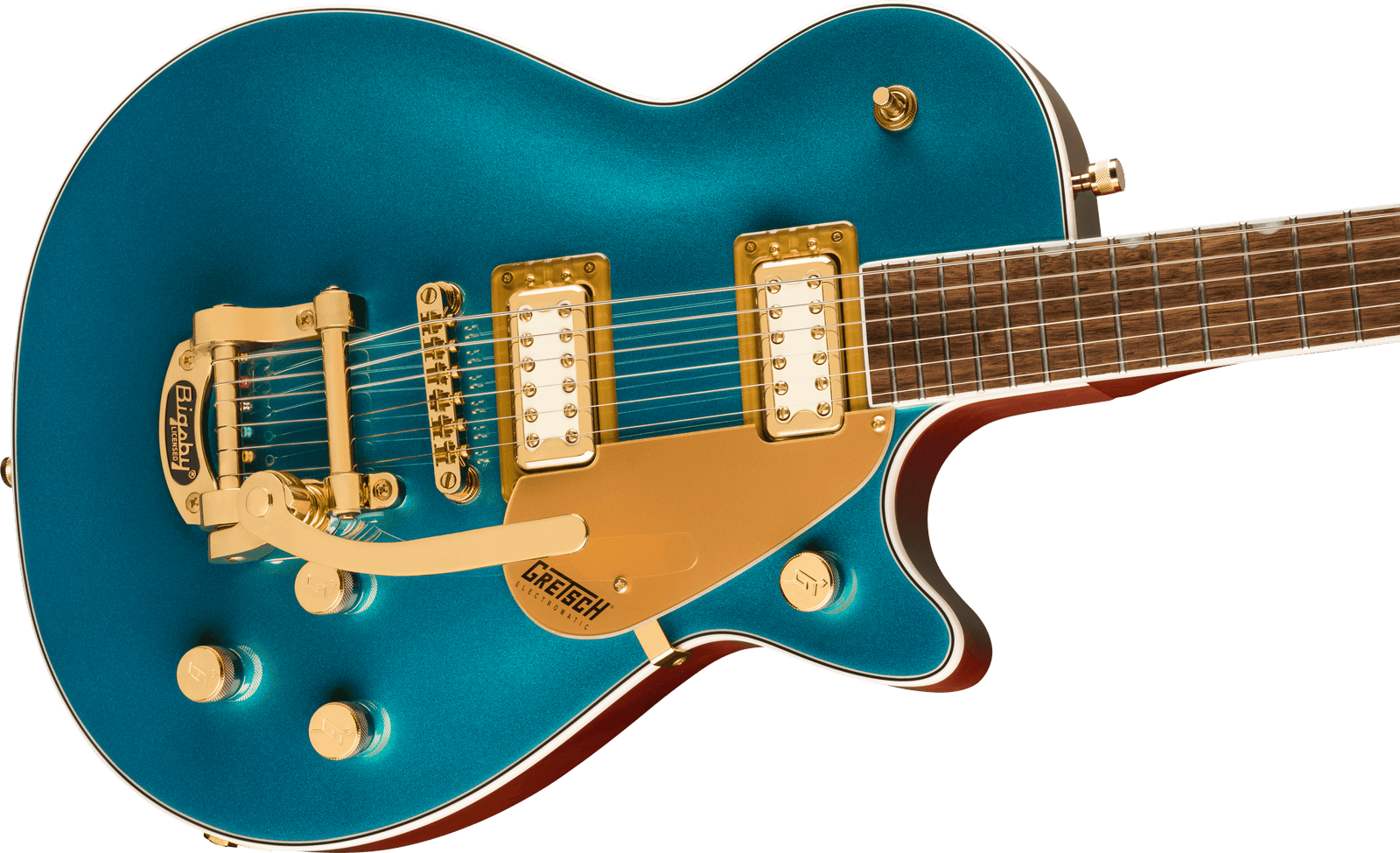

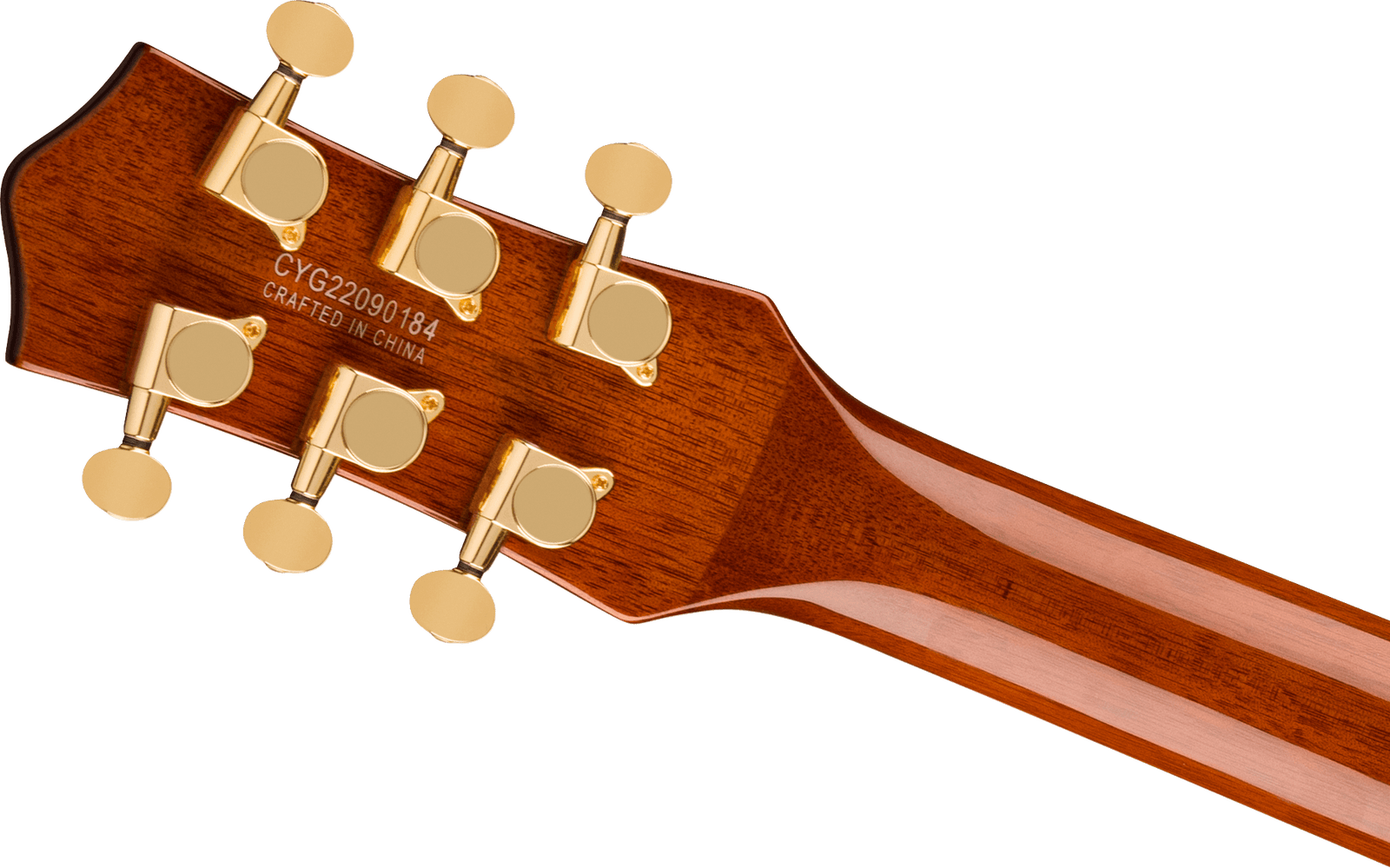

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Electromatic Pristine LTD Jet Single-Cut with Bigsby Laurel Fingerboard Petrol listed above. For larger pics, click on an image to open in a new tab.
