Gretsch Electromatic Jet Club 1 Pickup Jet Black Specs

The Electromatic Jet Club 1 Pickup Rosewood Fingerboard Jet Black is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2514101506.

Key Features

Chambered Mahogany Body
Mahogany Neck
Bound Rosewood Fingerboard
24.88" (632 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
LockDown Locking Bridge Bridge
Die-Cast Sealed Tuning Machines
PureVolt Twin Six Humbucker Bridge Pickup

Product Identifiers

Model Name	Electromatic Jet Club 1 Pickup
Part Number	2514101506
Product Series	Electromatic Collection
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978717583

Factory Specifications

Body Construction

Body Material	Chambered Mahogany
Body Shape	Jet
Body Finish	Gloss Polyester

Hardware

Bridge	LockDown Locking Bridge
Tuning Machines	Die-Cast Sealed
Pickguard	3-Ply Black/White/Black
Control Knobs	Knurled Plain Top Metal
Hardware Finish	Nickel

Neck Construction

Neck Material	Mahogany
Fingerboard Material	Bound Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	24.88" (632 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Performance "C"
Neck Construction	Set-Neck
Neck Finish	Gloss
Headstock Binding	Aged White
Truss Rod	Dual-Action Head Adjust
Truss Rod Nut	4 mm Hex

Electronics

Bridge Pickup	PureVolt Twin Six Humbucker
Pickup Configuration	H
Controls	Master Volume with Treble-Bleed, Master Tone
Pickup Switching	None
Auxiliary Switching	Push-Pull on Master Tone Control Splits Bridge Pickup
Special Electronics	Treble Bleed; Push-Pull Pot On Tone For Coil Split

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.010-.046 Gauges)

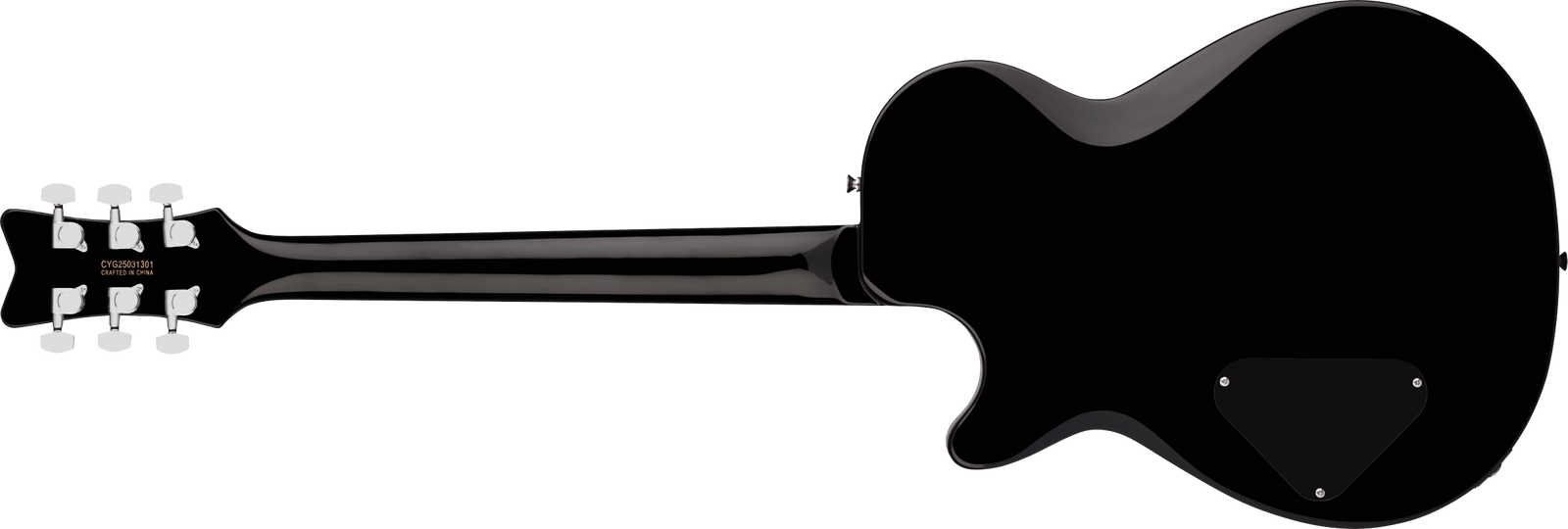

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Electromatic Jet Club 1 Pickup Rosewood Fingerboard Jet Black listed above. For larger pics, click on an image to open in a new tab.
