The Electromatic CVT Double-Cut with Wraparound Laurel Fingerboard Havana Burst is a solid body electric guitar
built by Gretsch. This guitar is manufactured in China
and is a Electromatic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2511500531.
Key Features
Mahogany Body
Mahogany Neck
Laurel Fingerboard
24.6" (625 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjustable Wrap-Around Bridge
Die-Cast Sealed Tuning Machines
Twin Six Humbucker Bridge Pickup
Twin Six Humbucker Neck Pickup
Product Identifiers
Model Name
Electromatic CVT Double-Cut with Wraparound Tailpiece
Part Number
2511500531
Product Series
Electromatic Collection
Country of Origin
China
Brand
Gretsch
Type
Electric Guitar
Category
Solid Body
UPC Code
885978760152
Factory Specifications
Body Construction
Body Material
Mahogany
Body Shape
CVT
Body Binding
None
Body Finish
Gloss
Hardware
Bridge
Adjustable Wrap-Around
Tuning Machines
Die-Cast Sealed
Pickguard
3-Ply Tortoise
Control Knobs
Knurled Plain Top Metal
Bridge Cover / Tailpiece
Adjustable Wrap-Around
Hardware Finish
Nickel
Neck Construction
Neck Material
Mahogany
Fingerboard Material
Laurel
Radius
12" (305 mm)
Fingerboard Inlays
Pearloid Neo-Classic Thumbnail
Side Dots
Black
Number of Frets
22
Fret Size
Medium Jumbo
Nut Width
1.6875" (42.86 mm)
Scale Length
24.6" (625 mm)
Nut Material
Graph Tech NuBone
Neck Shape
Performance "C"
Neck Construction
Bolt-On
Neck Finish
Gloss
Headstock Binding
Aged White
Electronics
Bridge Pickup
Twin Six Humbucker
Neck Pickup
Twin Six Humbucker
Pickup Configuration
HH
Controls
Master Volume, Master Tone
Pickup Switching
3-Position Toggle: Position 1. Bridge, Position 2. Bridge and Neck, Position 3. Neck
General
Orientation
Right-Hand
Strings
Nickel Plated Steel (.010-.046 Gauges)
Case / Gig Bag
Optional G2164 Solid Body Gig Bag (p/n 099-6460-000)
Reference Images

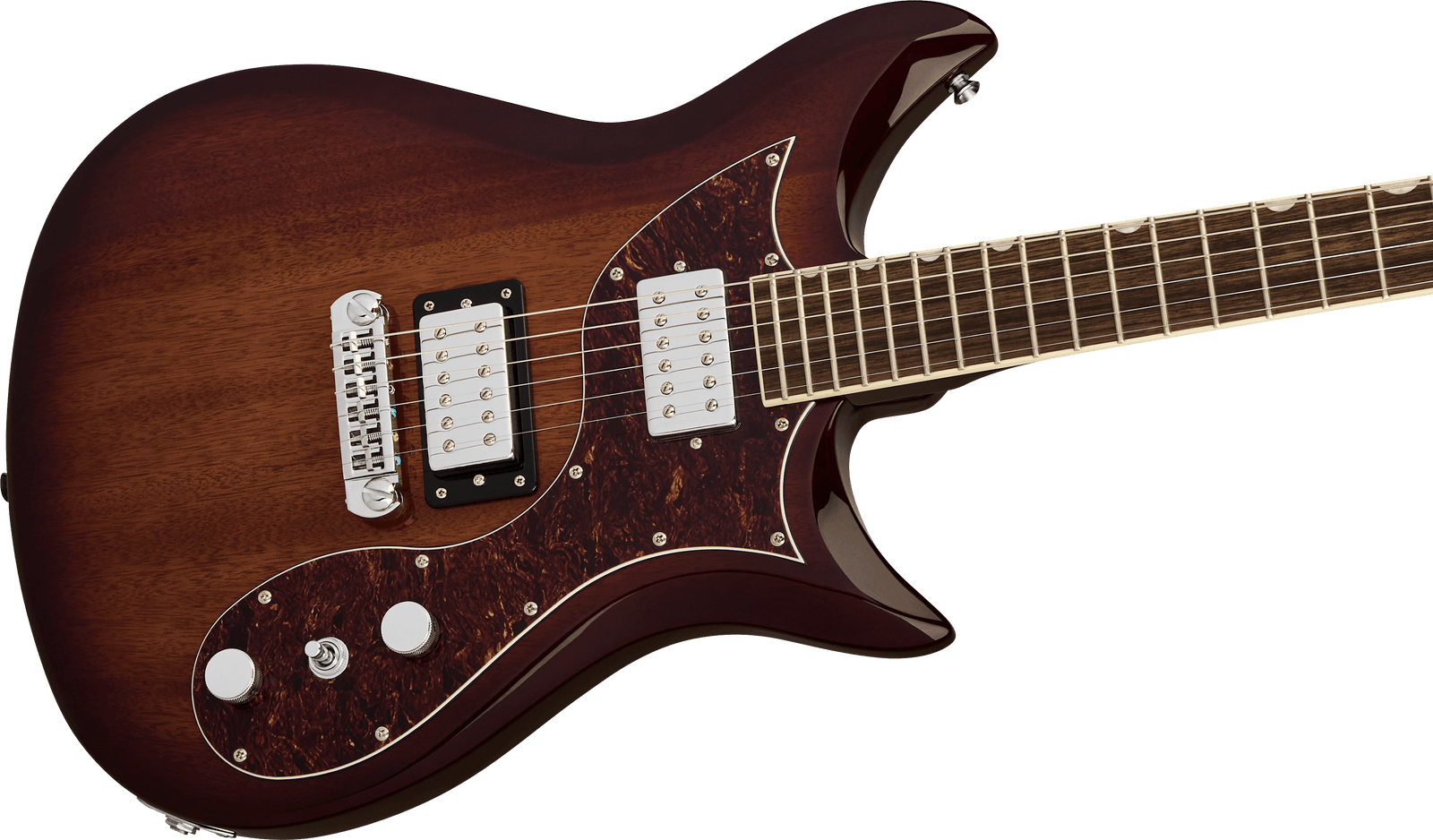

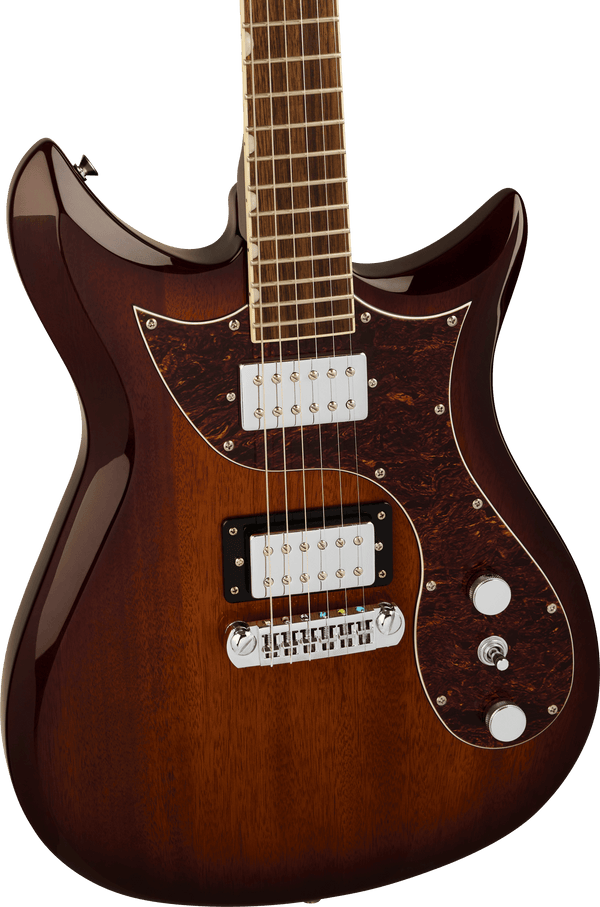

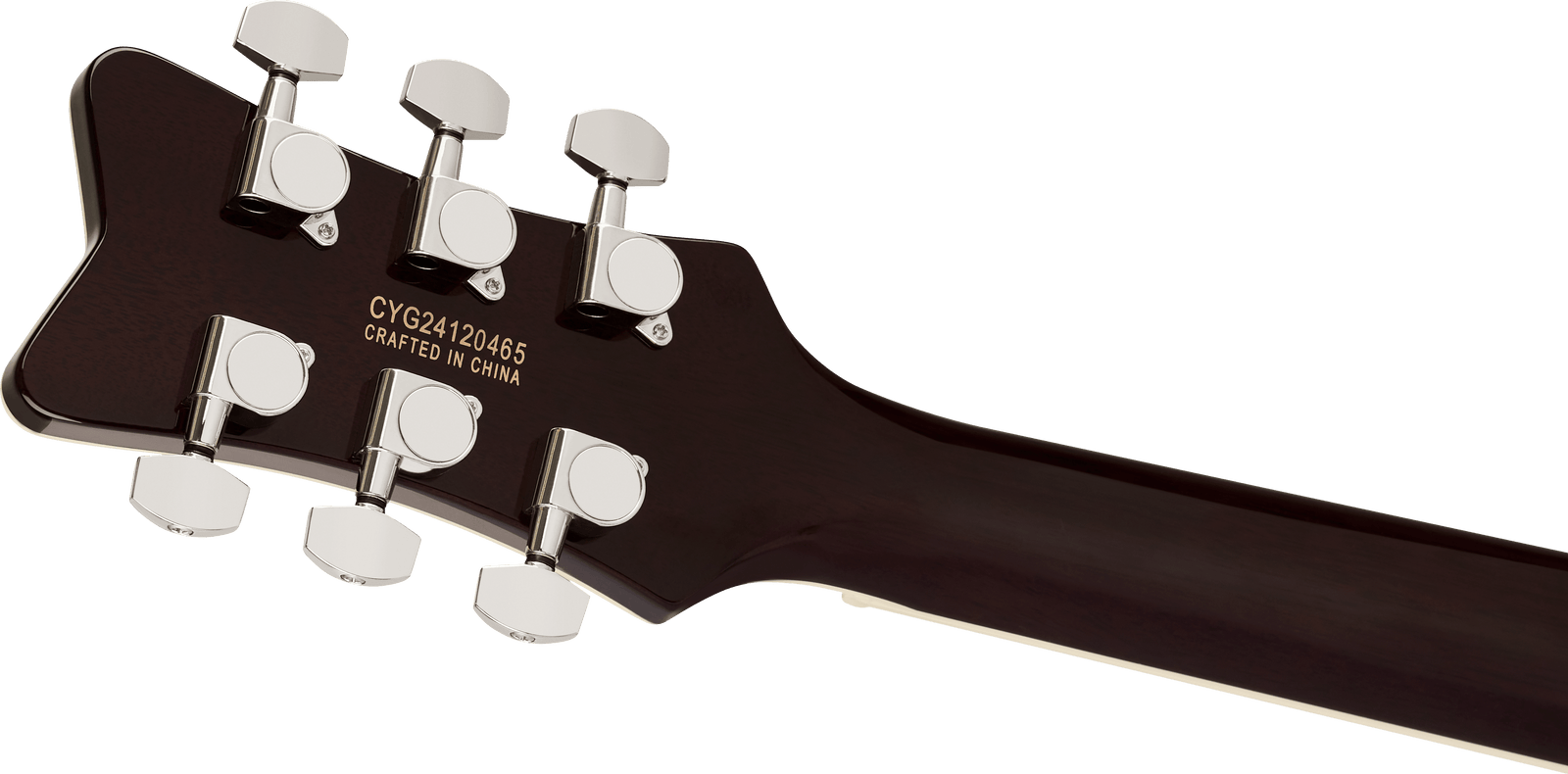

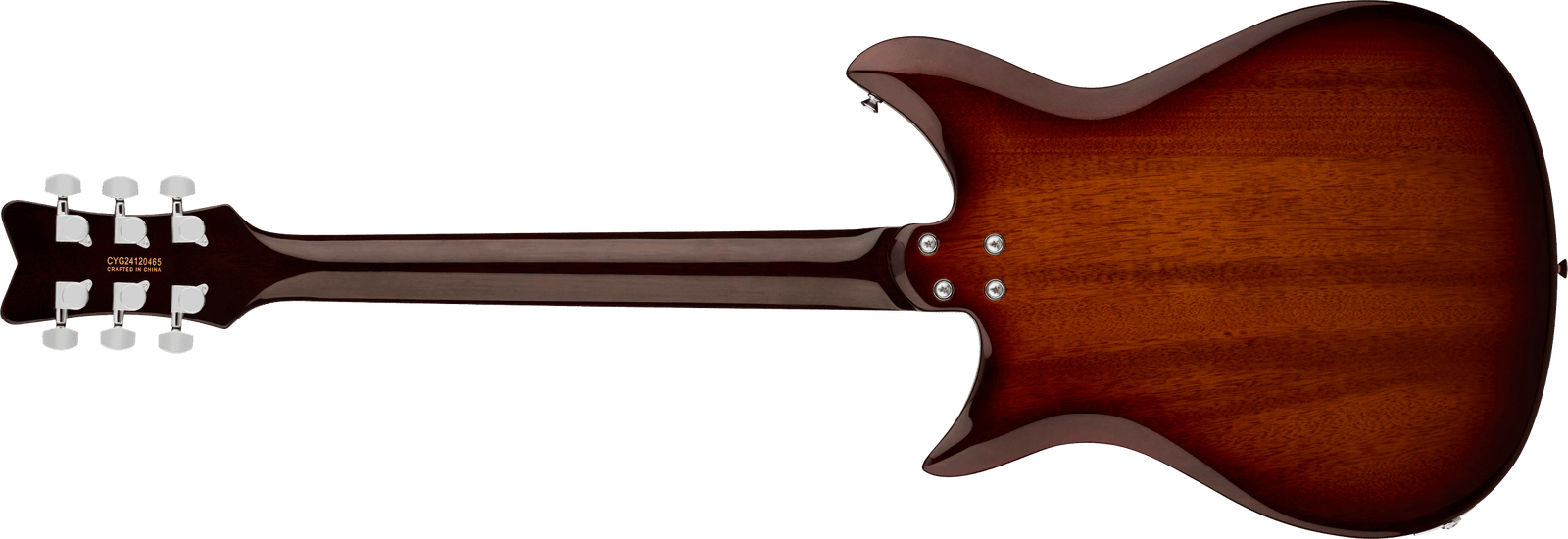

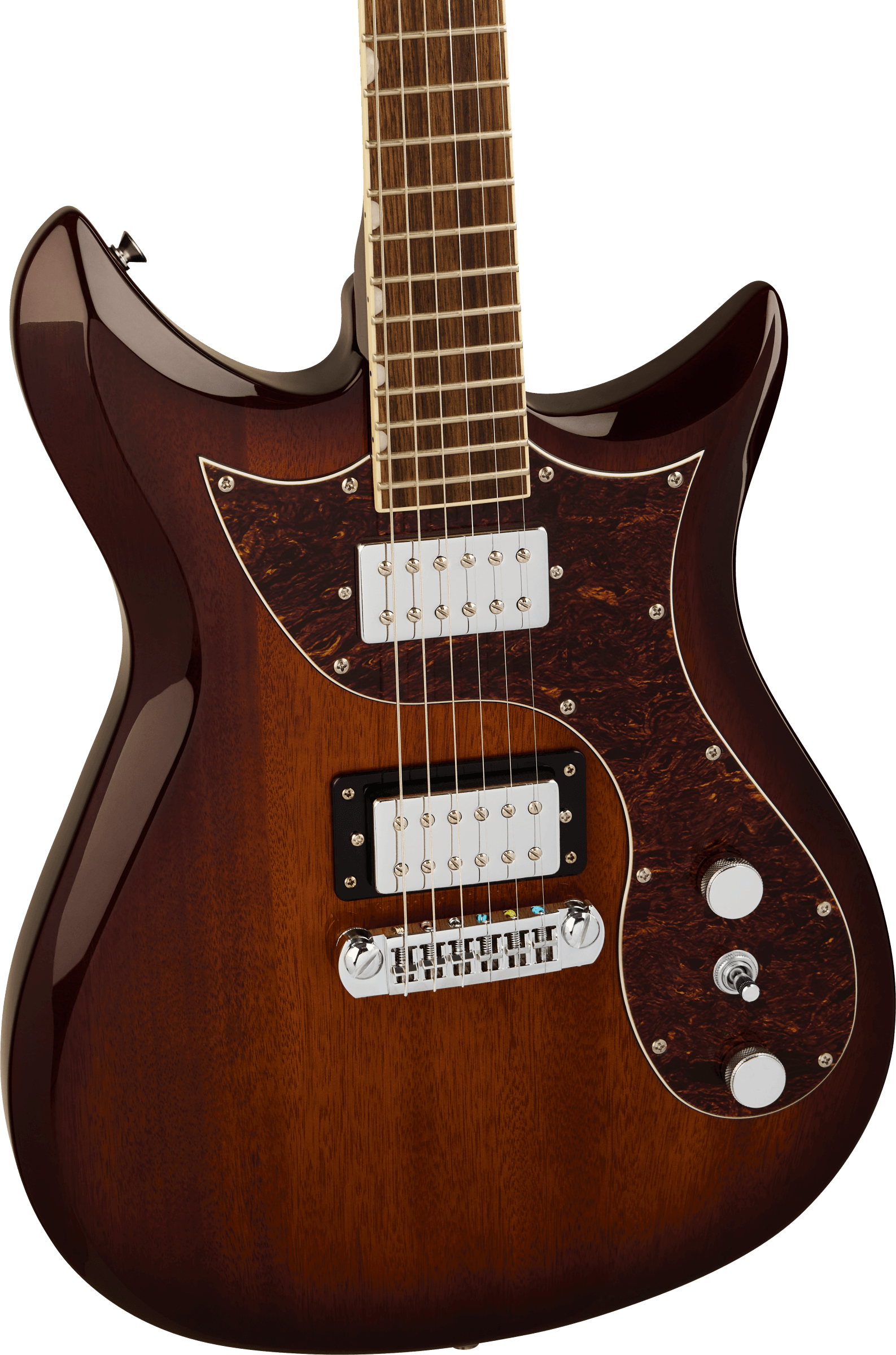

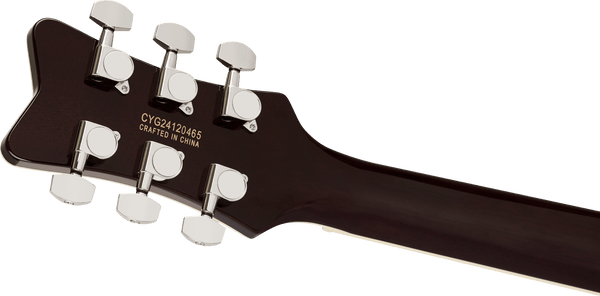

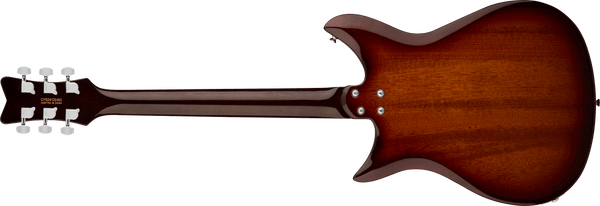

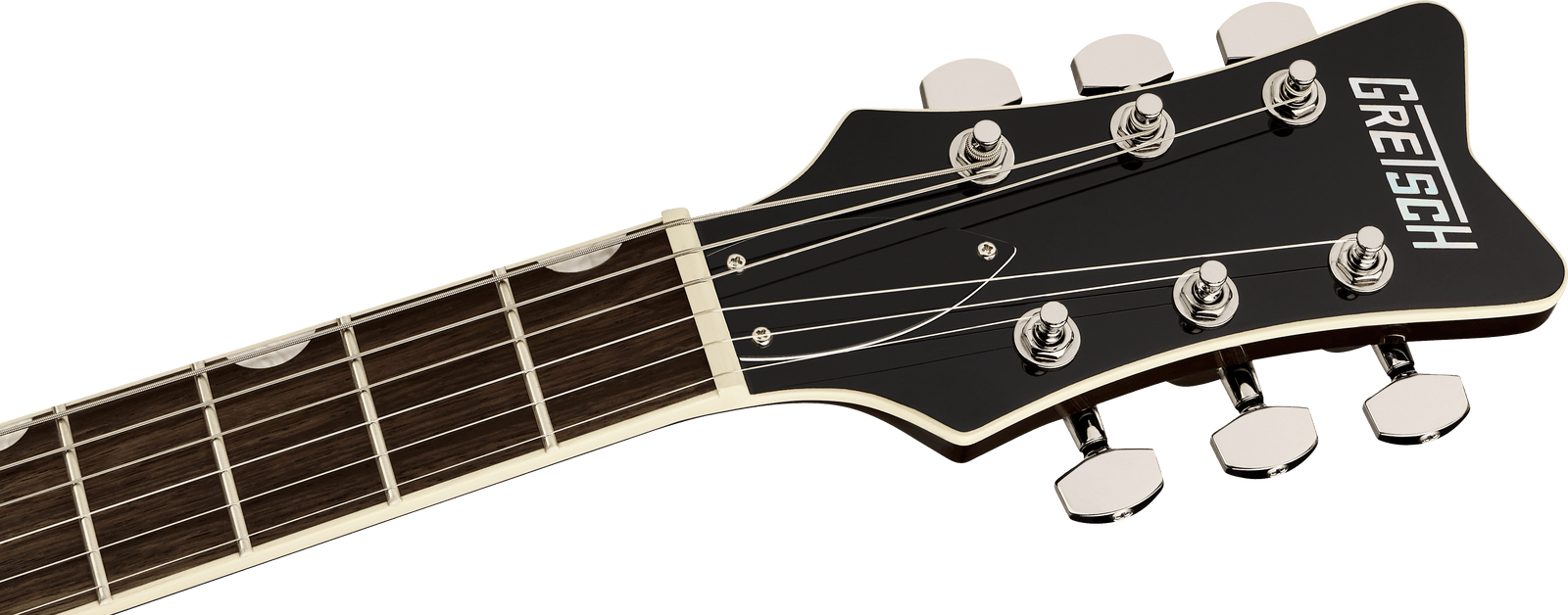

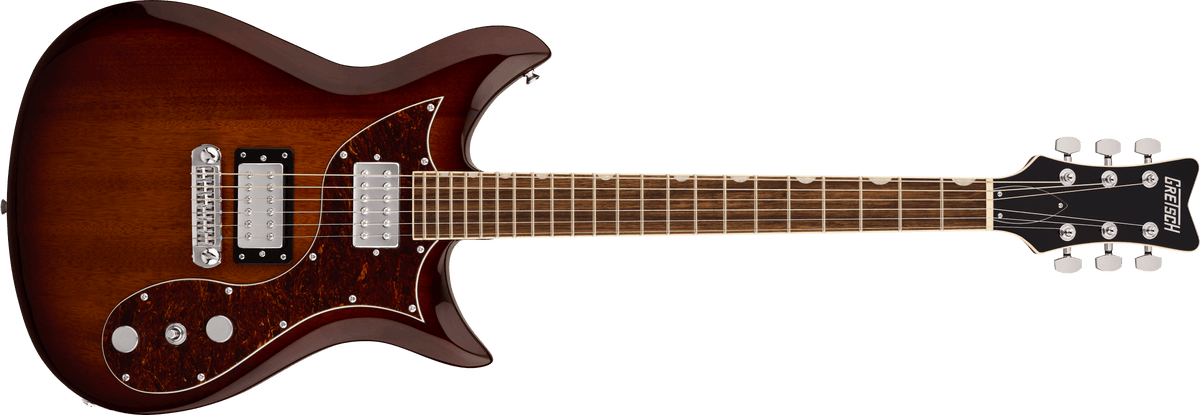

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Electromatic CVT Double-Cut with Wraparound Laurel Fingerboard Havana Burst listed above. For larger pics, click on an image to open in a new tab.
