Gretsch Electromatic CVT Baritone Bristol Fog Specs

The Electromatic CVT Baritone Rosewood Fingerboard Bristol Fog is a solid body electric guitar built by Gretsch. This guitar is manufactured in China and is a Electromatic Collection model. Below is the complete factory specification breakdown of tonewoods, measurements, electronics, and hardware, as well as product identifiers and a visual reference index curated by Tone Wolf for manufacturer part number 2515500526.

Key Features

Mahogany Body
Maple Neck
Bound Rosewood Fingerboard
27" (686 mm) Scale Length
1.6875" (42.86 mm) Nut Width
12" (305 mm) Radius
Medium Jumbo Frets
Adjusto-Matic Bridge
Die-Cast Sealed Tuning Machines
Twin Six Humbucker Bridge Pickup
Twin Six Humbucker Neck Pickup

Product Identifiers

Model Name	Electromatic CVT Baritone
Part Number	2515500526
Product Series	Electromatic Collection
Country of Origin	China
Brand	Gretsch
Type	Electric Guitar
Category	Solid Body
UPC Code	885978997459

Factory Specifications

Body Construction

Body Material	Mahogany
Body Shape	CVT
Body Binding	None
Body Finish	Gloss

Hardware

Bridge	Adjusto-Matic
Tuning Machines	Die-Cast Sealed
Pickguard	3-Ply Black/White/Black
Control Knobs	Knurled Plain Top Metal
Bridge Cover / Tailpiece	Stop Tail
Hardware Finish	Nickel

Neck Construction

Neck Material	Maple
Fingerboard Material	Bound Rosewood
Radius	12" (305 mm)
Fingerboard Inlays	Pearloid Neo-Classic Thumbnail
Side Dots	Black
Number of Frets	22
Fret Size	Medium Jumbo
Nut Width	1.6875" (42.86 mm)
Scale Length	27" (686 mm)
Nut Material	Graph Tech NuBone
Neck Shape	Performance "C"
Neck Construction	Bolt-On
Neck Finish	Gloss
Headstock Binding	Aged White
Truss Rod	Dual-Action Head Adjust
Truss Rod Nut	4 mm Hex

Electronics

Bridge Pickup	Twin Six Humbucker
Neck Pickup	Twin Six Humbucker
Pickup Configuration	HH
Controls	Master Volume with Treble-Bleed (With Push/Pull For Coil Splitting Neck Pickup), Master Tone (With Push/Pull For Coil Splitting Bridge Pickup)
Pickup Switching	3-Position Toggle: Position 1. Bridge, Position 2. Bridge and Neck, Position 3. Neck
Auxiliary Switching	Push-Pull on each Control Splits Bridge and Neck Pickups Respectively
Special Electronics	Treble Bleed Circuit

General

Orientation	Right-Hand
Strings	Nickel Plated Steel (.014-.068 Gauges)
Truss Rod Wrench	4 mm Hex (Allen)

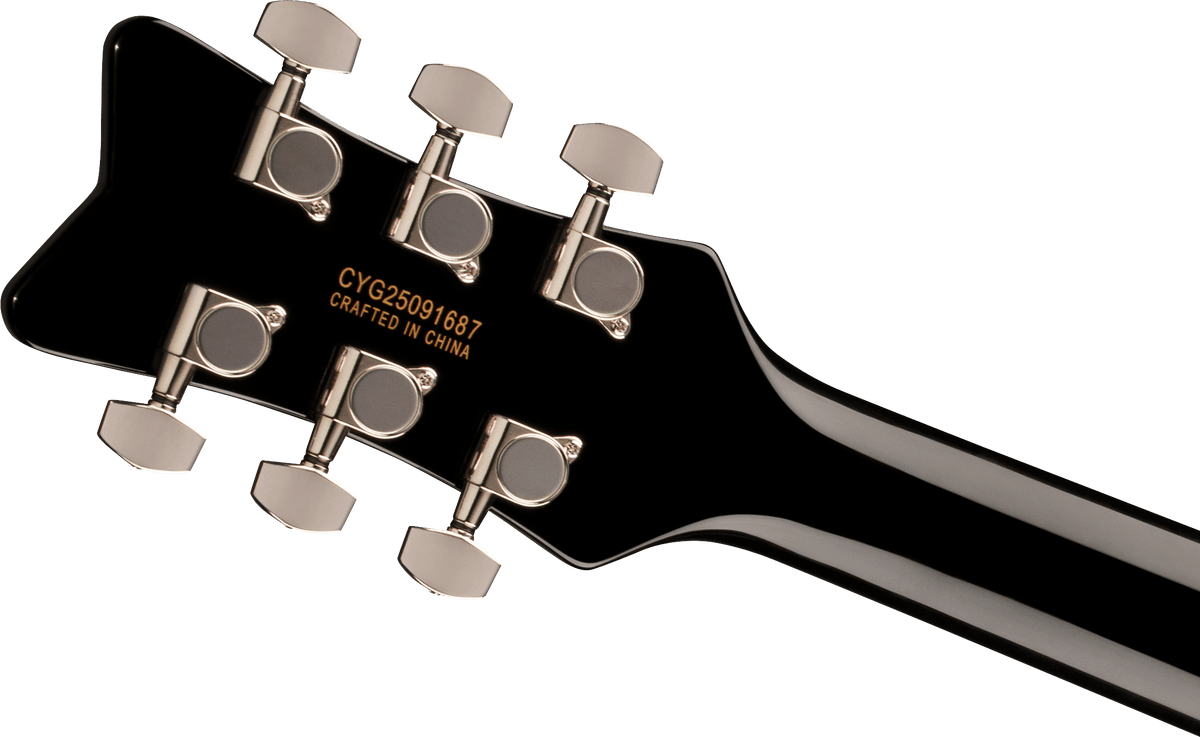

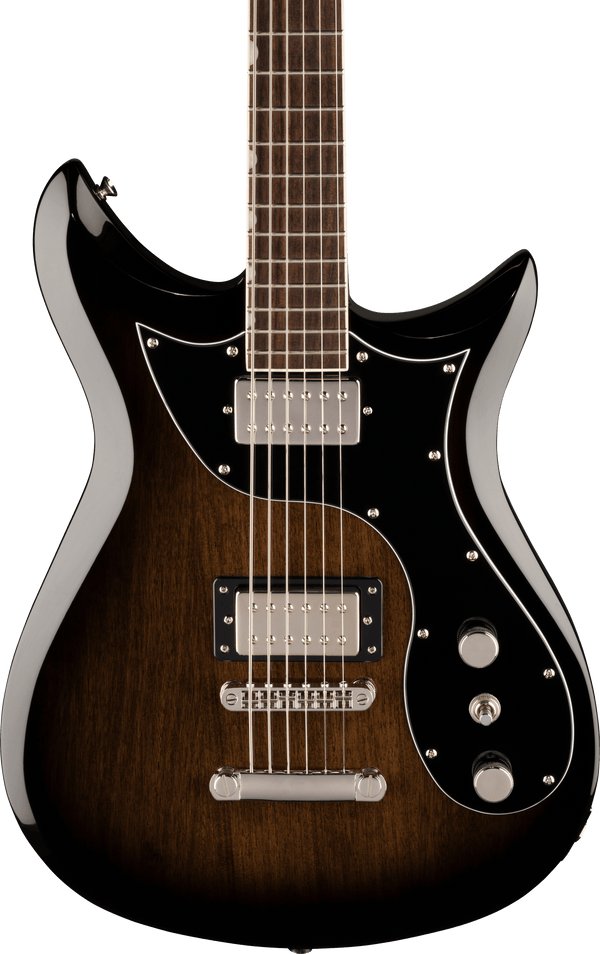

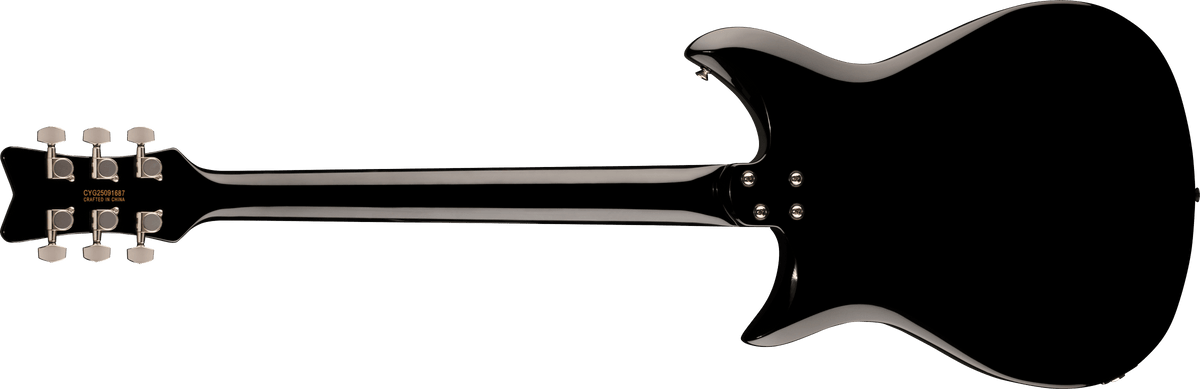

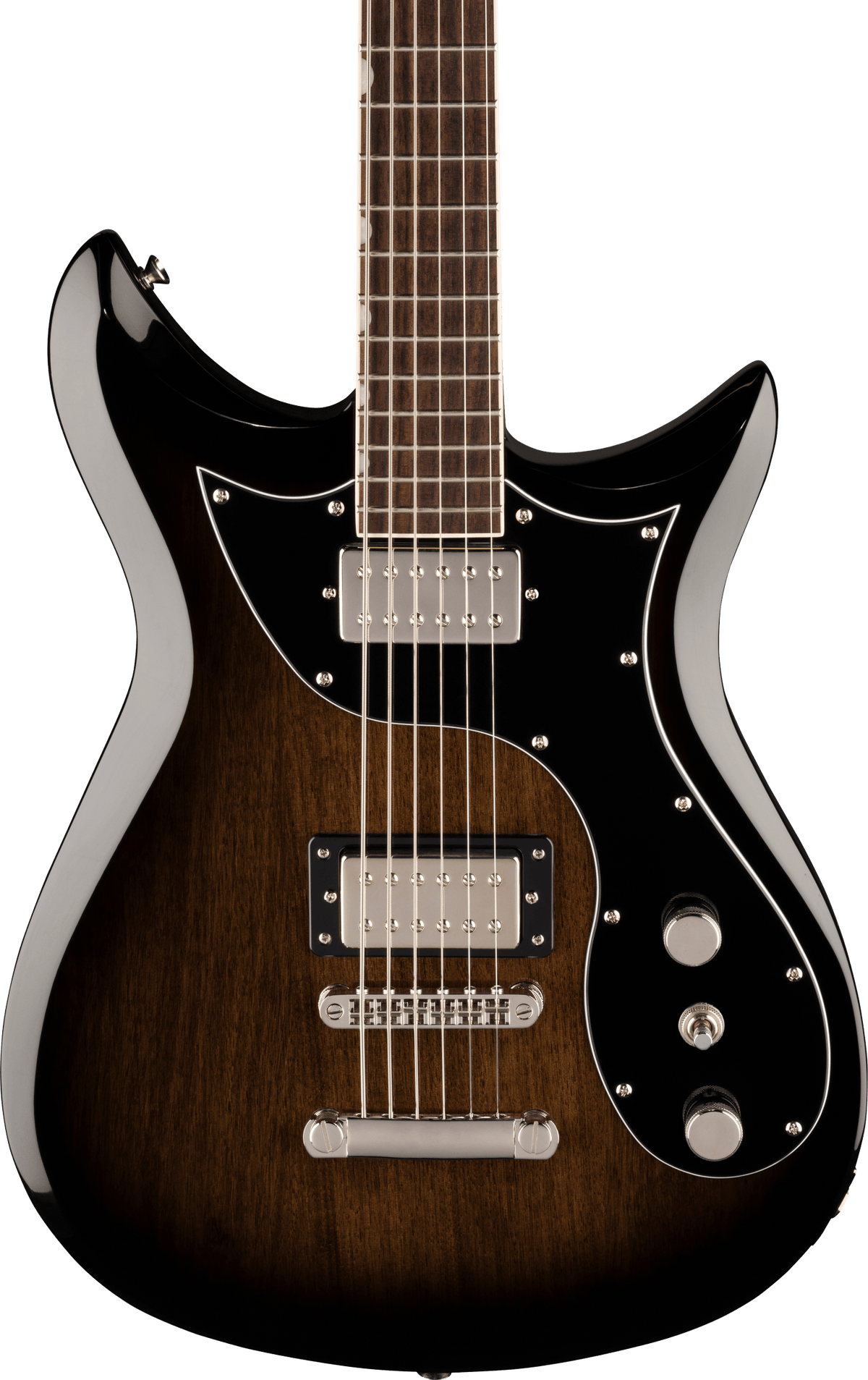

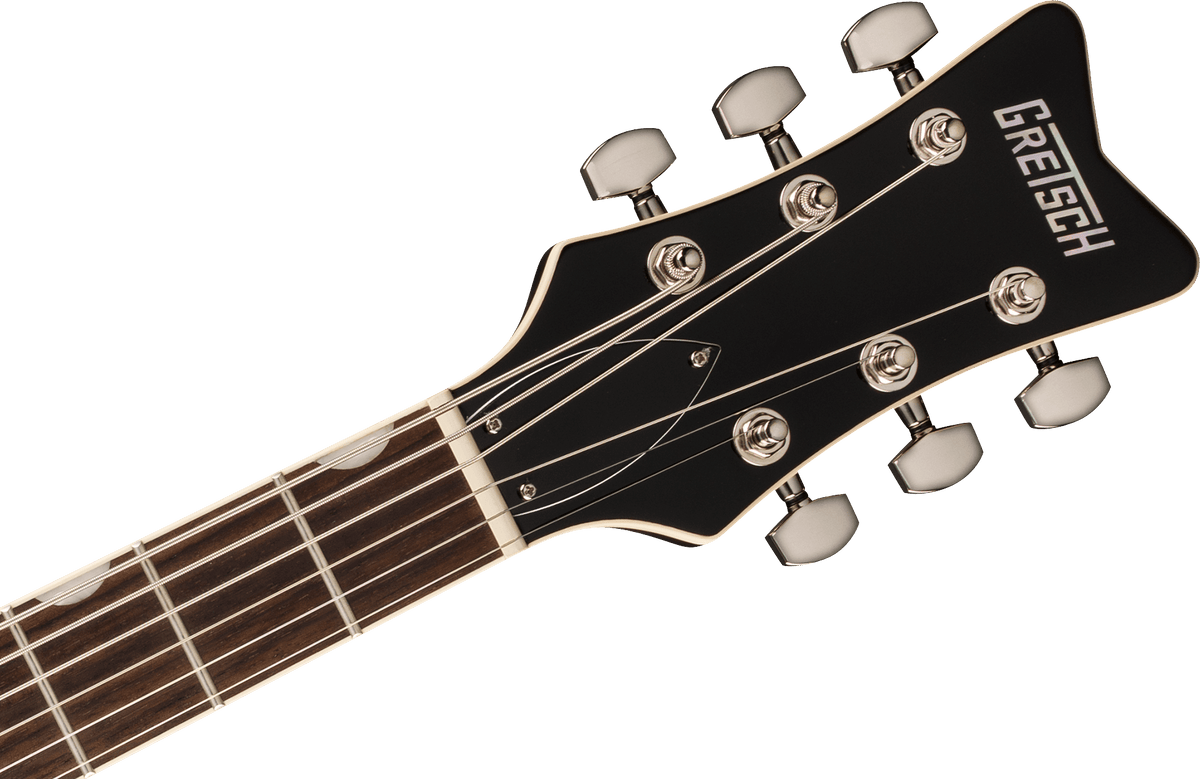

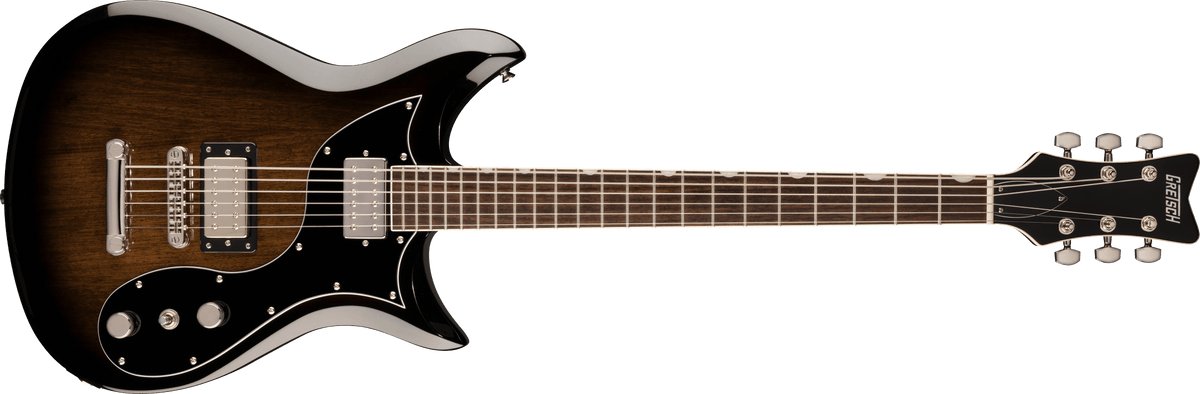

Reference Images

Visual reference gallery showing factory-correct details, finish, and hardware specifications for the Electromatic CVT Baritone Rosewood Fingerboard Bristol Fog listed above. For larger pics, click on an image to open in a new tab.
